45000 литров топливного бака алюминиевый полуприцеп
- Категория: Tanker Trucks >>>
- Поставщик: Weifang,Changjiu,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 11424.90 $* | 11995.60 $* |
| Aug-17-2025 | 11328.37 $* | 11894.58 $* |
| Jul-17-2025 | 9504.16 $* | 9979.67 $* |
| Jun-17-2025 | 11136.28 $* | 11693.67 $* |
| May-17-2025 | 9696.29 $* | 10181.17 $* |
| Apr-17-2025 | 10944.18 $* | 11491.28 $* |
| Mar-17-2025 | 10848.10 $* | 11390.16 $* |
| Feb-17-2025 | 10752.55 $* | 11290.84 $* |
| Jan-17-2025 | 10656.10 $* | 11189.49 $* |
Характеристики
Product Description
-
45000 Liters Fuel Tank Aluminium Semi Trailer For Sale
Product Specification | ||||||
1 | Type | Tank Semitrailer | ||||
2 | Product Name | Fuel Tank Semitrailer | ||||
3 | Volume | 49000L | ||||
4 | Tare Weight | 9800kg | ||||
5 | Payload | 30t | ||||
6 | Tank Body | Tank Material | Thickness:6mm | |||
Sealing Head | Thickness:6mm | |||||
Anti-Wave Board | Corrugated shape Thickness:4mm | |||||
Partition Plate | Thickness:4mm | |||||
Manhole | Aluminum manhole | |||||
Shape of Tank | Square | |||||
Compartments | 5 | |||||
Dimension | 12800x2280x3800 | |||||
7 | Running System | Axles | 13t Good quality axles | |||
Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam | |||||
Tires | 11.00R20,12unit | |||||
8 | Braking System | Dual lines pneumatic brake system, KORMEE ABS braking system | ||||
9 | Frame | Main Beam | Height 500, upper 8mm, lower 10mm. Mid web 6mm | |||
10 | King Pin | Size: 50# (2'') or 90#(3.5''); Type: welded or assembled | ||||
11 | Landing Gear | double side operation, Static capacity 28Ton | ||||
12 | Electrical & Paint | Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||
Lights & Reflectors | 24V, 7 lines | |||||
Painting | zinc-rich primer and modified urethane topcoat as customers' choices. | |||||
Accessories | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES | |||||

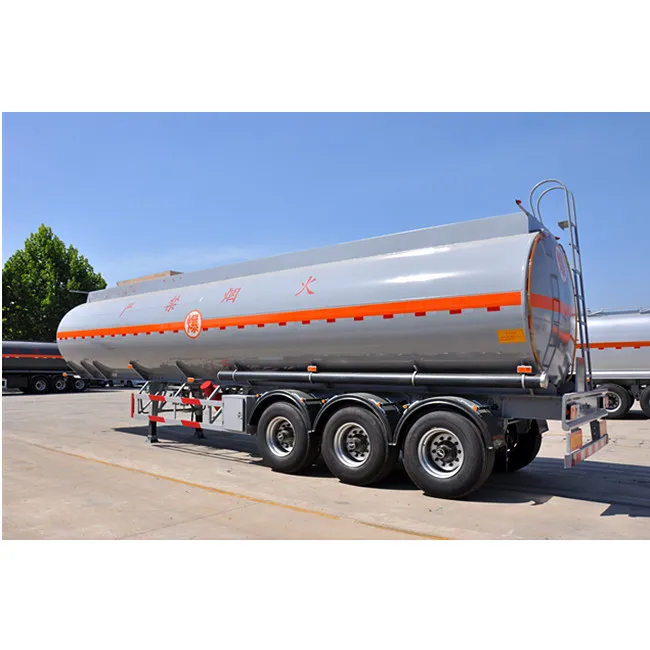

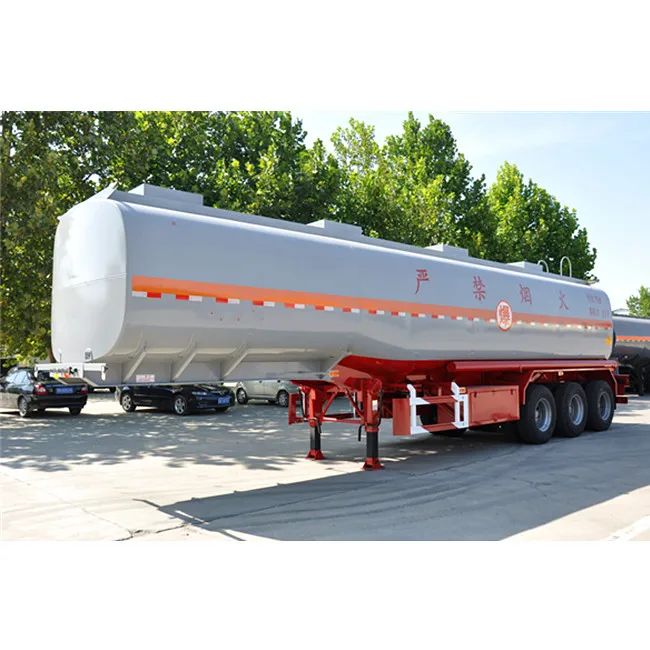

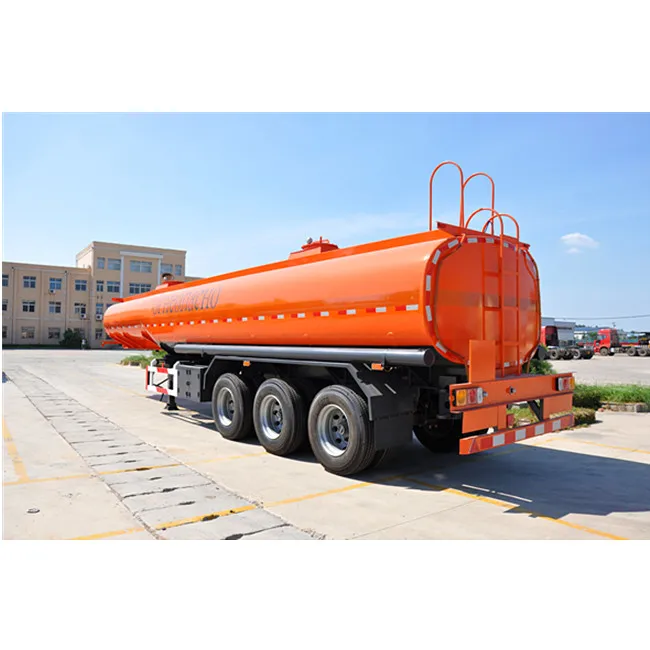

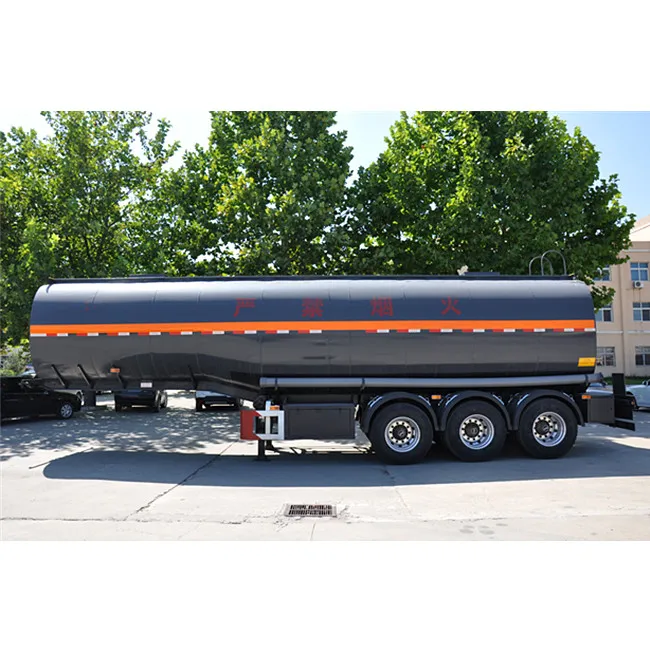

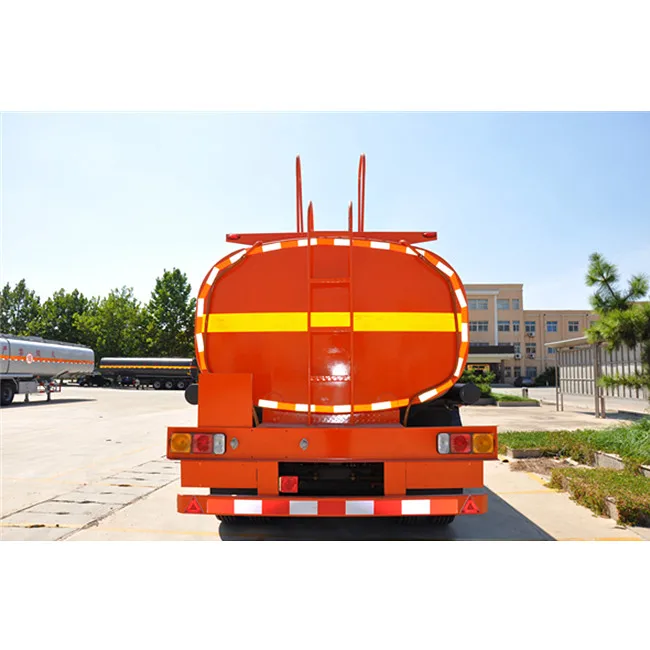

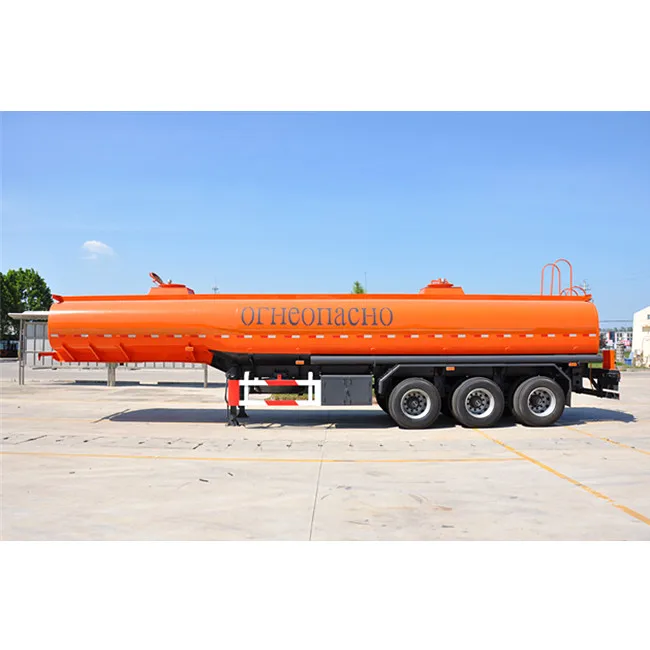

Details Images
Product Configuration
I. Product Decription
***Material:We adopt the Chinese best quality Shanghai Baogang steel Q345B-T700 as the vehicle chassis.The tank material, we have the carbon steel tank,stainless steel tank, aluminium alloy tank to choose.
***Axle: We usually use the famous brand 13t axle FUWA or HUAJIN axlewith the 16t brake pa We can use the BPW axle as the customer's requirement.
***Part:We choose the good quality spare parts in our trailer.To ensure the efficient utilization of the tank trailer for our
customer.
***Subsea safety valve: Every compartment of our tank semitrailer have the subsea safety valve.To ensure the safety of the tank semitrailer when it have accident.
***ABS braking system: This is our standard regulation to equip the KORMEE ABS braking system in our tank trailer..
***Material:We adopt the Chinese best quality Shanghai Baogang steel Q345B-T700 as the vehicle chassis.The tank material, we have the carbon steel tank,stainless steel tank, aluminium alloy tank to choose.
***Axle: We usually use the famous brand 13t axle FUWA or HUAJIN axlewith the 16t brake pa We can use the BPW axle as the customer's requirement.
***Part:We choose the good quality spare parts in our trailer.To ensure the efficient utilization of the tank trailer for our
customer.
***Subsea safety valve: Every compartment of our tank semitrailer have the subsea safety valve.To ensure the safety of the tank semitrailer when it have accident.
***ABS braking system: This is our standard regulation to equip the KORMEE ABS braking system in our tank trailer..
II..The Advantage:
Ⅲ. Guarrantee For The Parts Of The Traielr:
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||||||
MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | ||||||
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | ||||||||
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | ||||||||
BALANCE ARM | 3 MONTHS | ||||||||||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||||||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | ||||||
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | ||||||||
AIR RESERVOIR | 6 MONTHS | ||||||||||
ITEM NAME | WARRANTY | ||||||||||
OTHERS | LEAF SPRING | 3 MONTHS | |||||||||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | ||||||||||
EMERGENCY RELAY VALVE | 3 MONTHS | ||||||||||
BRAKE SHOE | 3 MONTHS | ||||||||||
RELAY VALVE | 3 MONTHS | ||||||||||
Classification
Successful Case
10 years production experiences as one of the largest manufacturer.
Advanced processing equipment guarantee high quality.Customized freely, competitive price.
100% after sales warranty, 24 hours available for your support. OEM/ODM services backed by
10 years R&D center..
10 years R&D center..
FAQ
Q:How about the delivery time?
A: Most of our trucks and machine have stock ,we can deliver to you within 7 days, if specially ordered , normally we need around 30 days for production.
Q: How many units of truck does you have per year?
A:Almost 30000 units.Nearly 5000units update per month.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,our workers are well trained. Every unit of product undergoes a rigorous inspection process.We will reconditioned our truck and machine in professional line.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What's the payment terms?
A:By T/T
Q: How about shipment?
A:20FT container, 40FT container,40FT high container,open-top container,flat bed container,Ro-Ro ship or bulk ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to many countries as following around the world:PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Q: How many units of truck does you have per year?
A:Almost 30000 units.Nearly 5000units update per month.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,our workers are well trained. Every unit of product undergoes a rigorous inspection process.We will reconditioned our truck and machine in professional line.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What's the payment terms?
A:By T/T
Q: How about shipment?
A:20FT container, 40FT container,40FT high container,open-top container,flat bed container,Ro-Ro ship or bulk ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to many countries as following around the world:PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
