Характеристики

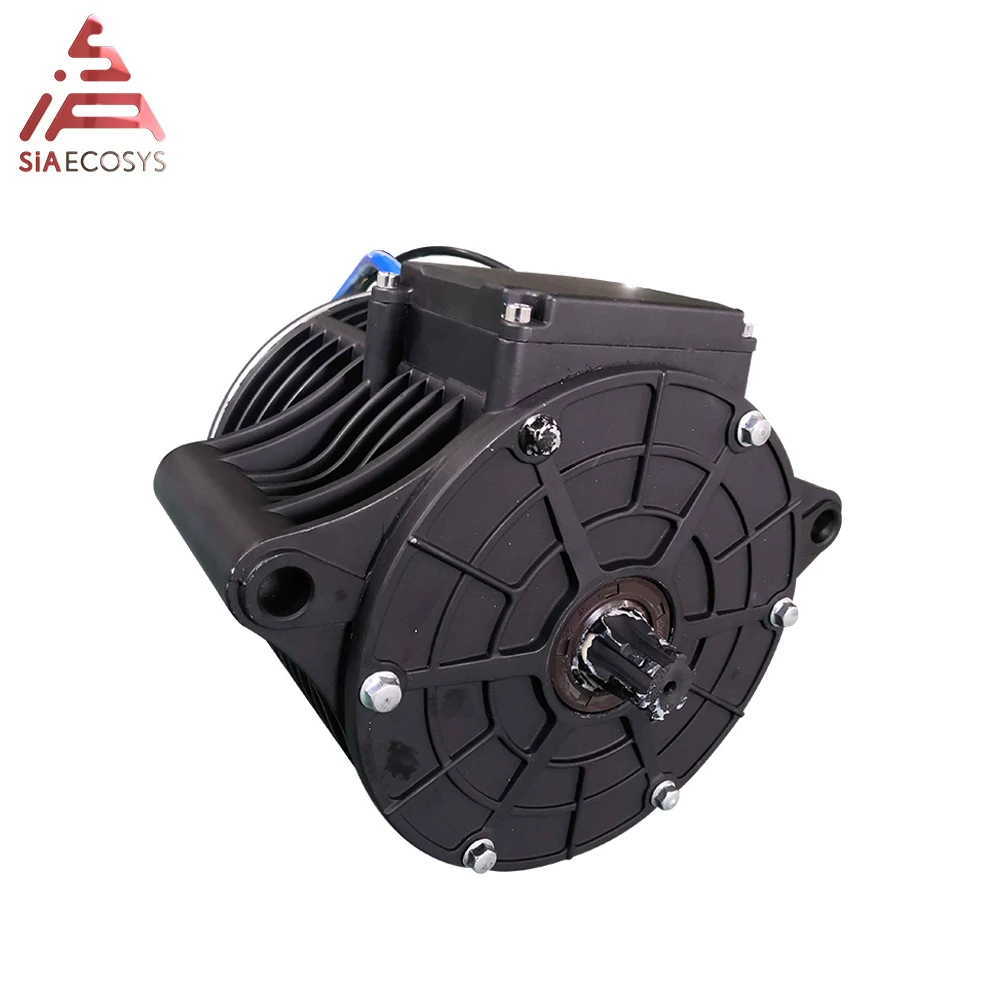

QS 138 3kW V2 72V electric bicycle mid drive motor with sprocket
For 138 3000W mid drive motor kit assembly, it could be used for electric scooter, electric motorcycle.
It could be 72V 100KPH.
By the way, new 3kW mid drive motor doesn't have assemble kits, it's only available for separate selling.
It can be designed as belt driven ( default ) and sprocket design ( Customized ).
Kits including
1*QS V2 Motor 3000W 138 70H Mid Drive Motor

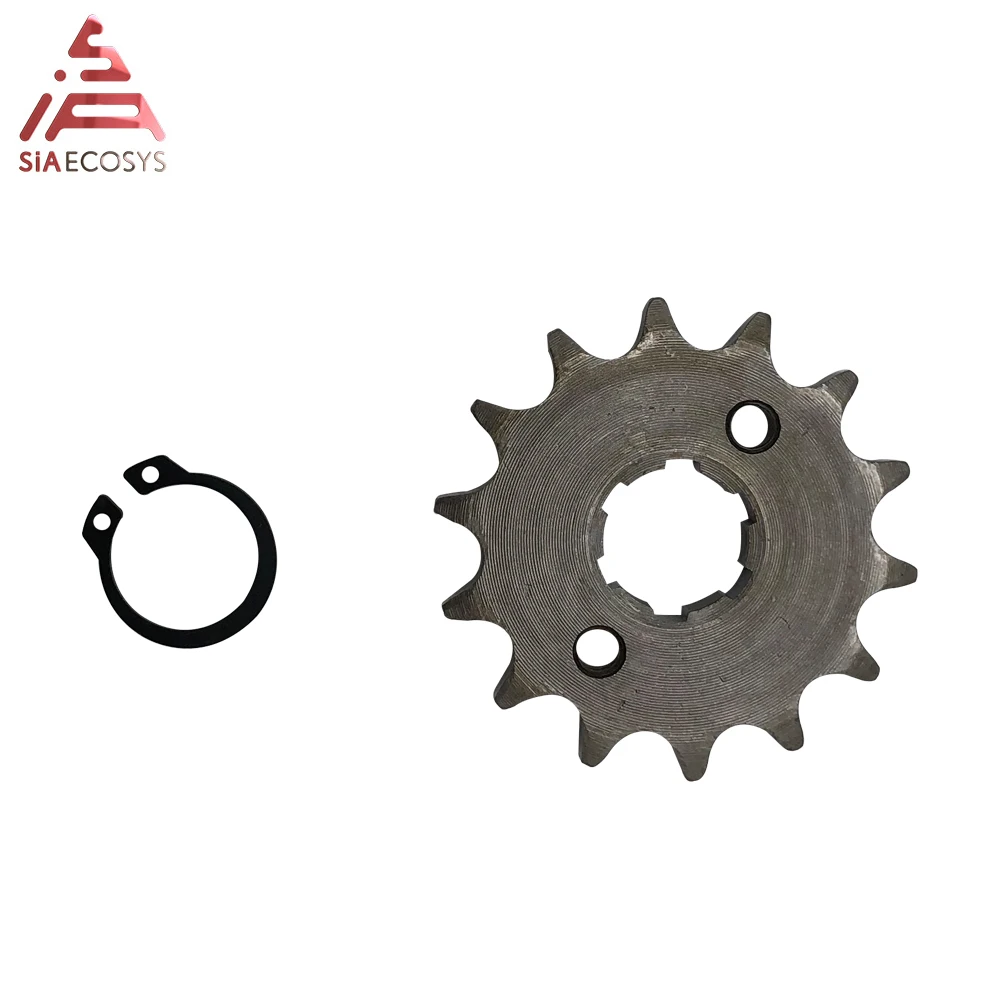

1*428 14t sprocket
QS Motor Specification
- Item: QS Motor 3000W 138 70H Mid Drive Motor
- Motor Type: BLDC Permanent Magnet Inner Rotor Motor With Hall Sensor
- Brand: QS Motor, QSMOTOR
- Motor Design: Single axle
- Matched Wheel: 12inch Wheel (as default)
- Magnet Height: 70mm, 60pcs, 5 pole pairs
- Diameter of stator: 138mm
- Rated Power: 3000W
- Rated Voltage: 72V as default
- Speed: 100KPH
- No-load rpm: 3800rpm without flux weakening, 6000RPM with flux weakening.
- Max Torque: approx 56N.m without Reduction ratio, approx 247N.m with 1:4.77 Reduction ratio
- Reduction ratio: 1:4.77 (as default)
- Max Efficiency: 88%
- Continuous Battery Current: pending (72V)
- Peak Battery Current: 120A (72V)
- Suggest Peak Phase Current: 450A
- Thermic Probe: None as default (KTY83/122 is available, if you need, please let sales man know).
- Working Temperature: Pending
- Single Hall Plate with waterproof connectors
- 16mm² Cross Section of Phase Wire (not include insulation layer)
- Hall Sensor Phasing angle: 120 degree
- Waterproof Grade: IP54
- Color: Black
- N.W./G.W.: 10.8kgs/11.5kgs
- Package Dimension: 34cm*34cm*33cm

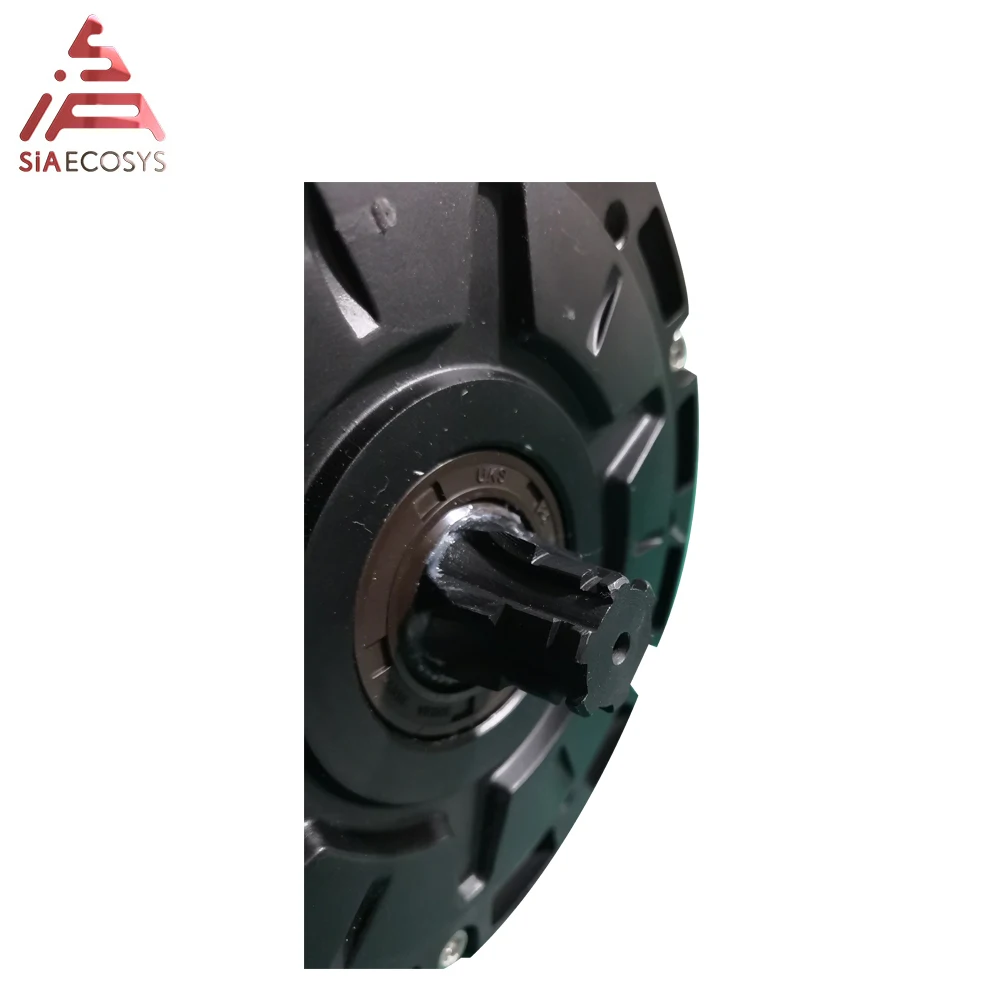

- Axle matched with 428 sprocket, teeth optional(12T, 13T, 14T...etc) 14T as default.
P.S.: For 3kW 138 new mid drive motor, it can be designed as belt driven.(As default)
If you want to buy such mid drive motor, please kindly click below picture.
Drawing
QS 3kW 138 mid drive motor(new appearance)
Matched controller recommendation:
- Item: EM150SP sine wave controller
- Net weight: 2040g
- Rated current: 180A
- Boost current: 220A
- Peak current: 470A
- Max. Power: 12960W
- Flux Weaking Ratio: 100~250%
- Max. Efficiency: 88~93%
- Degree of protection: IP67
If you're interested in buying motor and controller together, please kindly click below picture.
Application
Performance Test
basic RPM
With flux weakening
With belt ratio 1:4.77
How to Recommend you suitable motors?
Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
