Подлинный производитель обеспечивает P4 P5 P6 P8 P10 мм полноцветный экран водонепроницаемый внутренний наружный светодио дный
- Категория: Digital Signage and Displays >>>
- Поставщик: Shenzhen,RAYBO,LED,Display,Manufactory,Co.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 146.75 $* | 149.3 $* |
| Jul-16-2025 | 118.45 $* | 120.95 $* |
| Jun-16-2025 | 144.99 $* | 147.25 $* |
| May-16-2025 | 143.70 $* | 146.12 $* |
| Apr-16-2025 | 114.71 $* | 116.95 $* |
| Mar-16-2025 | 140.49 $* | 143.86 $* |
| Feb-16-2025 | 139.27 $* | 142.30 $* |
| Jan-16-2025 | 138.89 $* | 141.33 $* |
Характеристики
Product Description
1、Front Maintenance
K1 series is custom-designed by RAYBO for the front maintenance rental field. All series use high-refresh rate drive, with strong compatibility, full color, light and thin, easy to install and maintain.

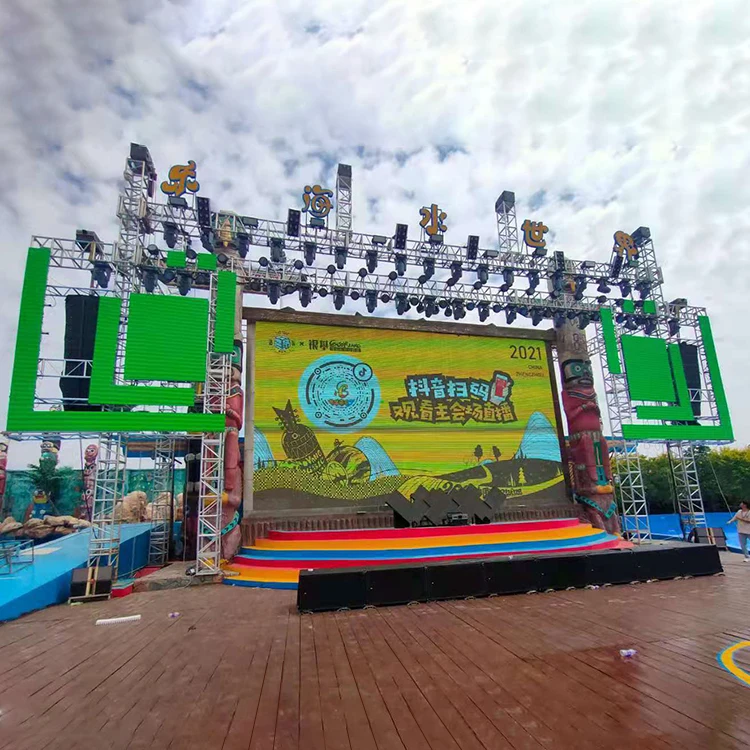

The rental K series adopts standardized cabinet design, which has extremely high installation convenience, can be quickly installed, disassembled and transported. It is mainly used in: theater stages, large-scale performances, high-end conferences, concerts, concerts, exhibitions and other activities.
2. Thin and light design, easy to install

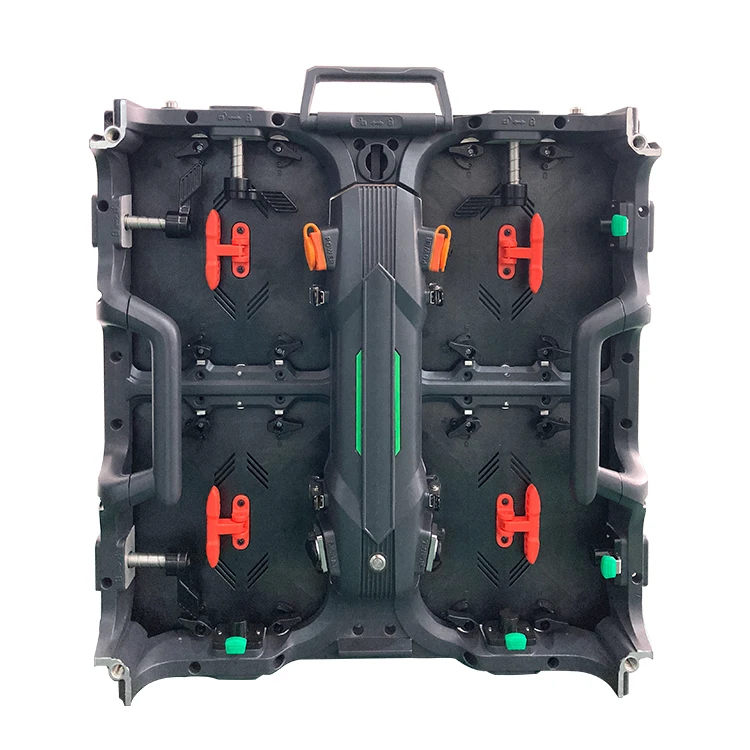

It adopts die-casting aluminum cabinet. The thickness is only 85MM, and weighs only 13.4KG. The die-cast aluminum cabinet also make sure the toughness of the Cabinet and will not deform after long-term use.
3. Wireless material design, plug-in module, fast maintenance
Change the original line connection design method, adopt integrated adapter board design, plug-in hard link, improve stability, realize quick disassembly and assembly of the power Cabinet as a whole, and more convenient maintenance.
4. Diversified construction

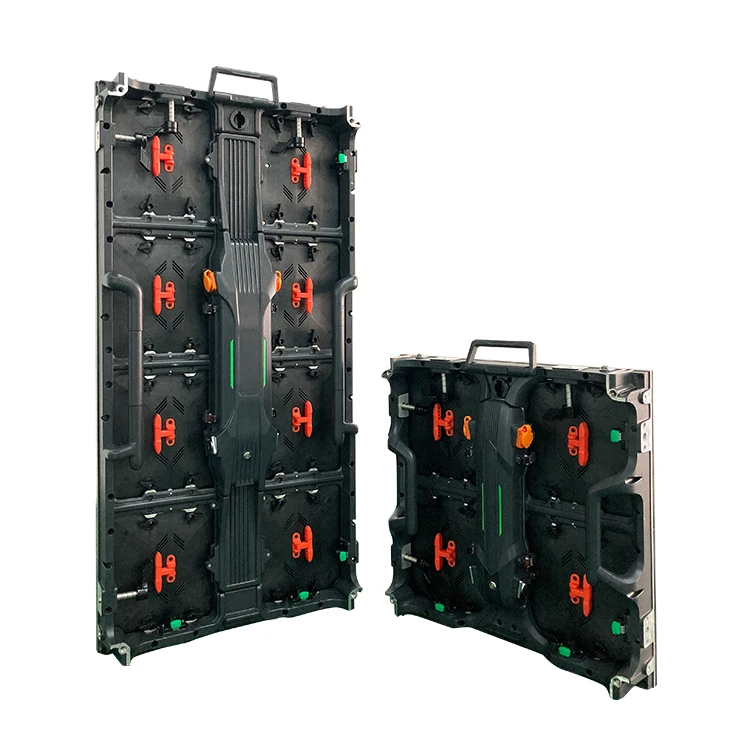

It can be built with inner arc, outer arc, hoisting, adapt to diversified construction methods. Support 500*500, 500*1000 cabinets. Could mutually assembled up and down, left and right, which greatly meets the needs of customers in the display area. Surrounded by reya holes. Designed to be easy to quickly build on the Rhea rack.
5. Realistic presentation
High brightness, high contrast, high color saturation, low brightness and high gray level, when the brightness is lower than 100nit, the gray level will not lost, also there is no grayscale sweat spot.
K1 series is custom-designed by RAYBO for the front maintenance rental field. All series use high-refresh rate drive, with strong compatibility, full color, light and thin, easy to install and maintain.
The rental K series adopts standardized cabinet design, which has extremely high installation convenience, can be quickly installed, disassembled and transported. It is mainly used in: theater stages, large-scale performances, high-end conferences, concerts, concerts, exhibitions and other activities.
2. Thin and light design, easy to install
It adopts die-casting aluminum cabinet. The thickness is only 85MM, and weighs only 13.4KG. The die-cast aluminum cabinet also make sure the toughness of the Cabinet and will not deform after long-term use.
3. Wireless material design, plug-in module, fast maintenance
Change the original line connection design method, adopt integrated adapter board design, plug-in hard link, improve stability, realize quick disassembly and assembly of the power Cabinet as a whole, and more convenient maintenance.
4. Diversified construction
It can be built with inner arc, outer arc, hoisting, adapt to diversified construction methods. Support 500*500, 500*1000 cabinets. Could mutually assembled up and down, left and right, which greatly meets the needs of customers in the display area. Surrounded by reya holes. Designed to be easy to quickly build on the Rhea rack.
5. Realistic presentation
High brightness, high contrast, high color saturation, low brightness and high gray level, when the brightness is lower than 100nit, the gray level will not lost, also there is no grayscale sweat spot.
Specification
Terms | Technical parameter | ||
Panel | Dimension | （W）250*250mm（H） | |
Pixel pitch | 2.976mm | ||
Pixel Density | 112896/ M2 | ||
Pixel configuration | 1R1G1B | ||
LED specification | SMD1415 | ||
Pixel resolution | （W）84*84（H） | ||
Average power | 12W | ||
Panel current | 6.5A | ||
PCB | VO level | ||
Panel weight | 0.65KG | ||
Cabinet | Cabinet material | Die-cast aluminum | |
Cabinet size | 500*500*85mm\\500*1000*85mm | ||
Cabinet resolution | 168*168\\168*336 | ||
Cabinet weight | 7.85kg\\13.4kg | ||
Best viewing angle | Horizontal>170 Vertical>120 | ||
Brightness | 3600cd/㎡ | ||
Best viewing distance | 3--30M | ||
Working temperature | -20-+50 | ||
Panel power supply | 5V40A | ||
Screen power supply | 220VAC/50HZ+_10% | ||
Max power | <600W/m² | ||
Average power | 150W | ||
Humidity | 10%-95%RH | ||
Technical parameter | Driving device | 2153IC | |
Drive type | 1/16Scanning | ||
Refresh frequency | 3840HZ | ||
Display color | 4096*4096*4096 | ||
Brightness | 3600cd/M2 | ||
Life span | 100000Hours | ||
Communication distance | <100M | ||
Installation Method
The installation method is quick and convenient, supports hoisting, mounting, any combination of cabinets, 500*500 cabinets and 500*1000 cabinets can be combined to build.
Support inner and outer arc installation, inner arc can achieve 8 degrees, outer arc can achieve 15 degrees.
Support inner and outer arc installation, inner arc can achieve 8 degrees, outer arc can achieve 15 degrees.
Company Profile
Shenzhen RAYBO LED Display Manufactory Co., LTD.RAYBO LED Display Manufactory Co,. LTD is a manufactory that focus on the global LED market. We have more than 15 years experience in R&D, manufacturing, marketing of different kinds of indoor and outdoor LED display. Providing perfect solutions for our advertising, exhibition, church, stage, bar and stadium, etc industries customers. We are a one-stop solution provider of LED products from raw materials to after-sales services.
With the growth of experience in the industry, RAYBO has became a trendsetter in the LED industry by offering quality, customized and durable products worldwide. Our headquarter is located in Shenzhen, where is the world's largest LED display industry resource concentration center. Here, we have the most creative design team and high educated engeneer team to provide premium solutions. We also have the most advantage automatic production lines and professional test equipments in the industry, which is the fundation of a realiable manufatory.
All of our products are with CCC, CE, FCC, Rohs, etc certificates for global market. We have also passed ISO9OO1 quality certification as a member of China Optics and Optoelectronics Industry Association.
Currently, our products and services have been distributed to over 80 countries. We have valuable partners in US, Canada, Australia, UK, Italy, Mexico, Japan and Indonesia, etc. We have build strong partnership with local industries, and hope you will be the next.
With the growth of experience in the industry, RAYBO has became a trendsetter in the LED industry by offering quality, customized and durable products worldwide. Our headquarter is located in Shenzhen, where is the world's largest LED display industry resource concentration center. Here, we have the most creative design team and high educated engeneer team to provide premium solutions. We also have the most advantage automatic production lines and professional test equipments in the industry, which is the fundation of a realiable manufatory.
All of our products are with CCC, CE, FCC, Rohs, etc certificates for global market. We have also passed ISO9OO1 quality certification as a member of China Optics and Optoelectronics Industry Association.
Currently, our products and services have been distributed to over 80 countries. We have valuable partners in US, Canada, Australia, UK, Italy, Mexico, Japan and Indonesia, etc. We have build strong partnership with local industries, and hope you will be the next.
Our Advantages
1、15+ Years R&D Exprience.
2、ISO9001，CE, RoHS,FCC certification.
3、Worldwide Installs and after sales support.
2、ISO9001，CE, RoHS,FCC certification.
3、Worldwide Installs and after sales support.
Certifications
Packing & Delivery
Flight case: EPE(Expandable Polyethylene) protection, anti-pressure, anti-shock , ensure goods safety.
Packaging parameters | Package Size | Weights | Cabinet Number |
1100(L)*550(W）*750（H）MM | 95KG | 5 in 1（500*1000） |
