390 manual operation filter press lowest price good quality

1.Product description

Henan Jincheng Filter Equipment Co., Ltd is a professional manufacturer of filtering equipments. We are one of the key enterprises specializing in manufacturing filter press. Our products range covers series of plate and frame filter press, chamber filter press, belt vacuum filter press, membrane filter press, centrifuge, shale shaker, industrial pumps, deep cone thickener, flotation column, etc.

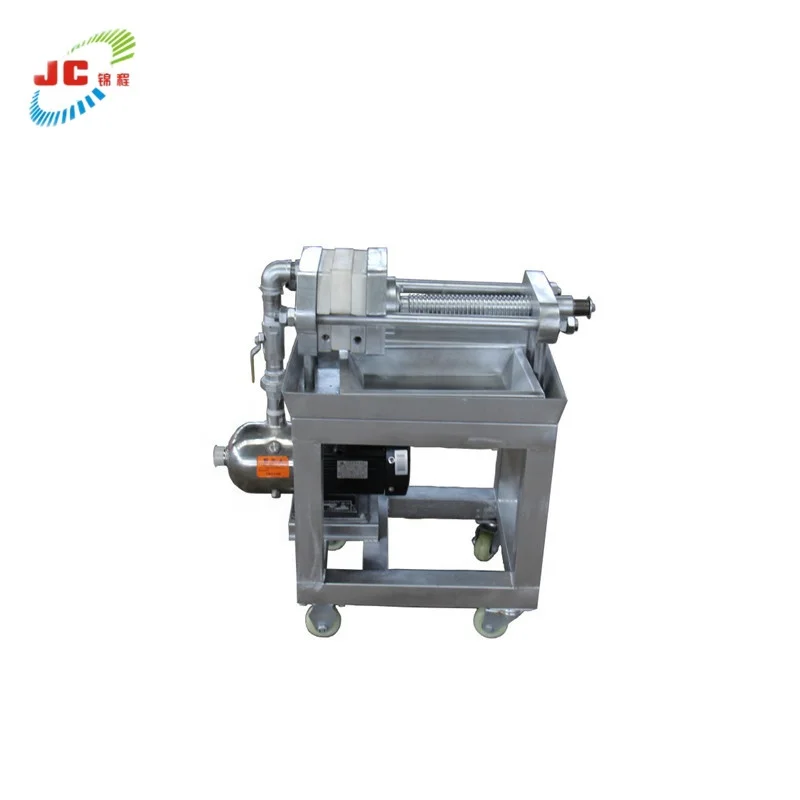

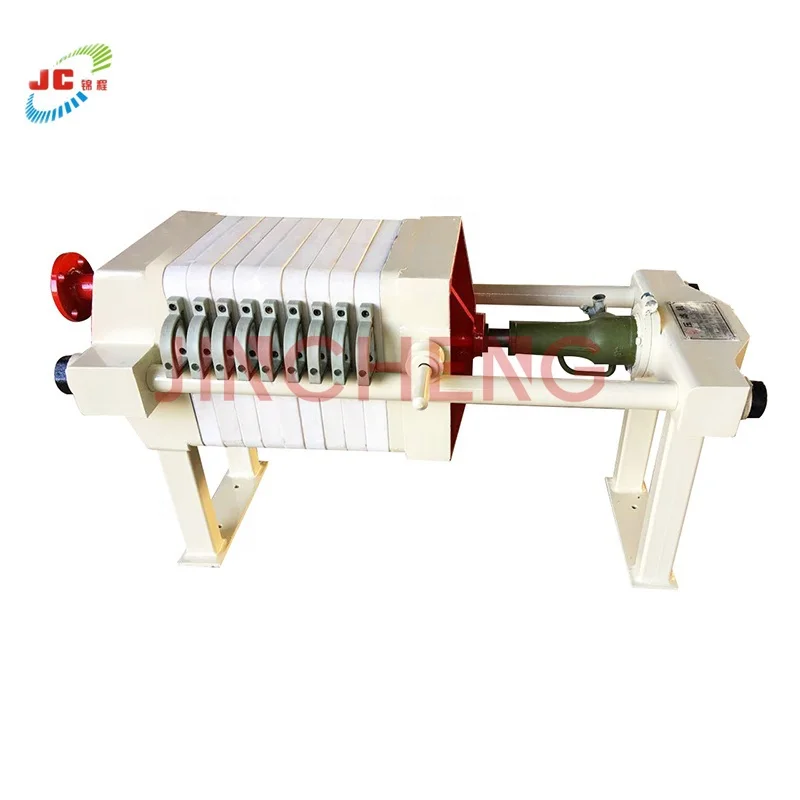

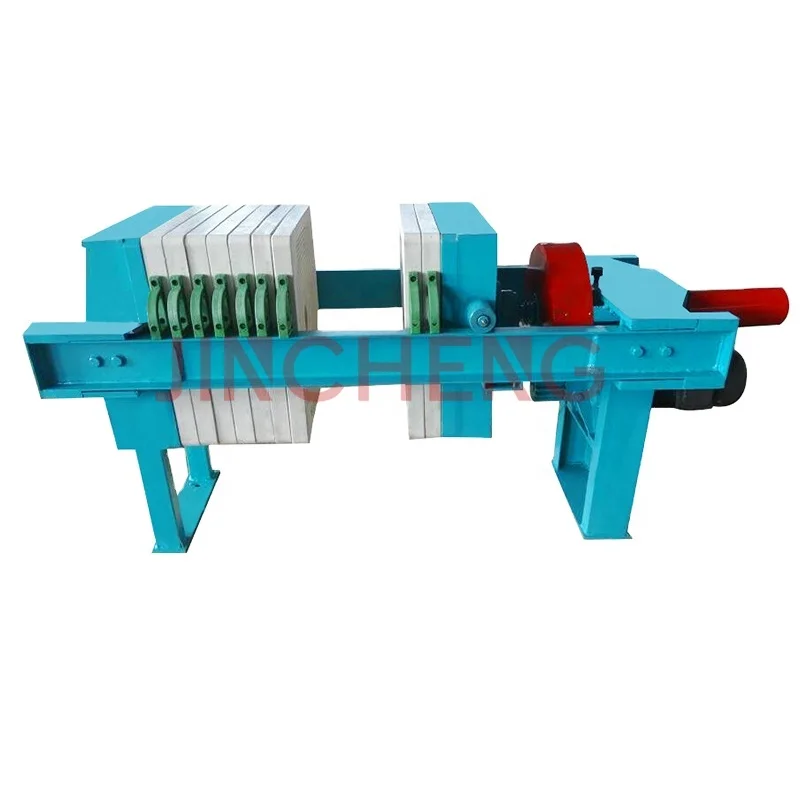

The manual filter press is a kind of intermittent operation of the pressurized filtration equipment which is suitable for the small scale of testing.

2.Usage of the manual filter press machine

It is widely used in coal washing , Oil, chemicals, dyes, metallurgy, medicine, food, alcohol and other fields, but also for textile, printing and dyeing, pharmaceutical, paper, leather and other industrial waste water and urban sewage treatment and other areas that need to be solid-liquid separation.

3. Details of the manual filter press machine

Model	Filtering area	No,of plate	Volume of chamber	Filtering pressureMpa
XMQ1/390-20	1	4	10	0.5
XMQ2/390-20	2	9	20	0.5
XMQ3/390-20	3	14	30	0.5

4.Functions of manual filter press machine

You can choose different systems based on your requirements, for example , free-flow or under flow, manual or automatic ,washing or with belt conveyor;

This is belt conveyor under machine which can transport the dry cake out;

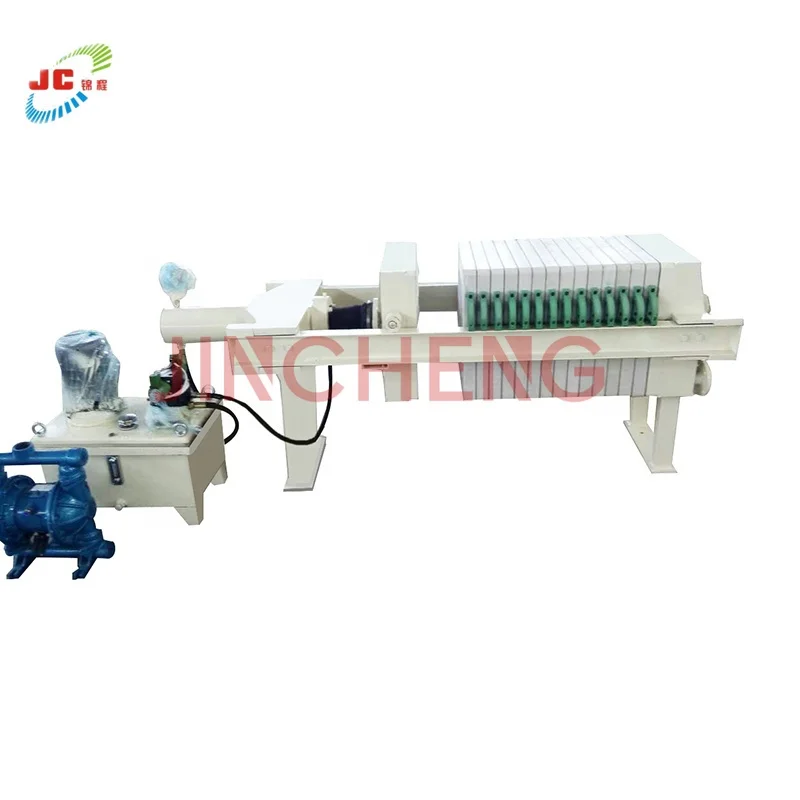

Skid-mounted filter press with working platform, buffering tank, feeding pump together;

Drip tray under the machine can help collection dropped water

5.Working principle

When the sludge filter press works, all the filter plates are pressed between the movable head plate and the fixed tail plate, so that the adjacent filter plate is formed with a sealed filtering chamber around. After all the filter chambers are filled with pulp, the pressure filtration process begins, and the slurry is separated from the pulp by the feed pump.The solid particles are left in the filter chamber due to the barrier of the filter cloth, and the filtrate is discharged through the filter cloth along the drainage channel on the filter plate,and the filtrate is not discharged, that is, the dewatering process is completed. At this point, the material can be stopped and the head plate is returned to the original position.

6.The filtering effect and case of our factory

7. Customer visiting and exhibitions

we have export to a lots of countries around the world, for example, USA, Russia, South Africa, India, Iraq,German,Brazil,Sri Lanka and so on

8. Our workshop

9.Package and transport

10 Certificate

11 Guarantee

Service：
1. we have professional technical team to offer advice before ordering;
2. There have technical support service online;
3.We will offer video or instruction to help install the machine;
4.If necessary, the engineer will door to door for debugging the machine;
5.Electrical elements is 1 year warranty（Except quick-wear parts）
6.Frame is 5 years warranty.

12 FAQ

Q1: What's your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water pump, pressure instrument,flow meter, level meter and dosing system.

Q2: May I visit your factory?
A: Of course, our factory is located in Yuzhou City Henan Province, welcome your arrival.

Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba, For after-sales, returns, claims etc.

Q4: Why choose us?
1. We have more than 20 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
