NVR301-08S3-P8-NB --- ДООН OEM H.265 8CH 4K/8MP Встроенный PoE NVR (OEM

NVR301-08S3-P8-NB --- ДООН OEM H.265 8CH 4K/8MP Встроенный PoE NVR (OEM

Категория: Surveillance Systems >>>
Поставщик: Shenzhen,Ewinner,Tech.,Ltd.

Цена:87,00 $ - 95,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	110.97 $*	112.26 $*
Jul-18-2025	90.27 $*	92.7 $*
Jun-18-2025	109.68 $*	111.37 $*
May-18-2025	108.77 $*	110.39 $*
Apr-18-2025	86.70 $*	88.57 $*
Mar-18-2025	106.57 $*	108.50 $*
Feb-18-2025	105.2 $*	107.26 $*
Jan-18-2025	104.35 $*	106.50 $*

Характеристики

Product Description

Specification

Model	EW-NVR808-01
Video/Audio Input
IP Video Input	8-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	48Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HD/VGA Output	HD: 3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	8-ch
Corridor Mode Screen	3/4/5/7/9
Decoding
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capacity	1 x 4K@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8TB for each disk

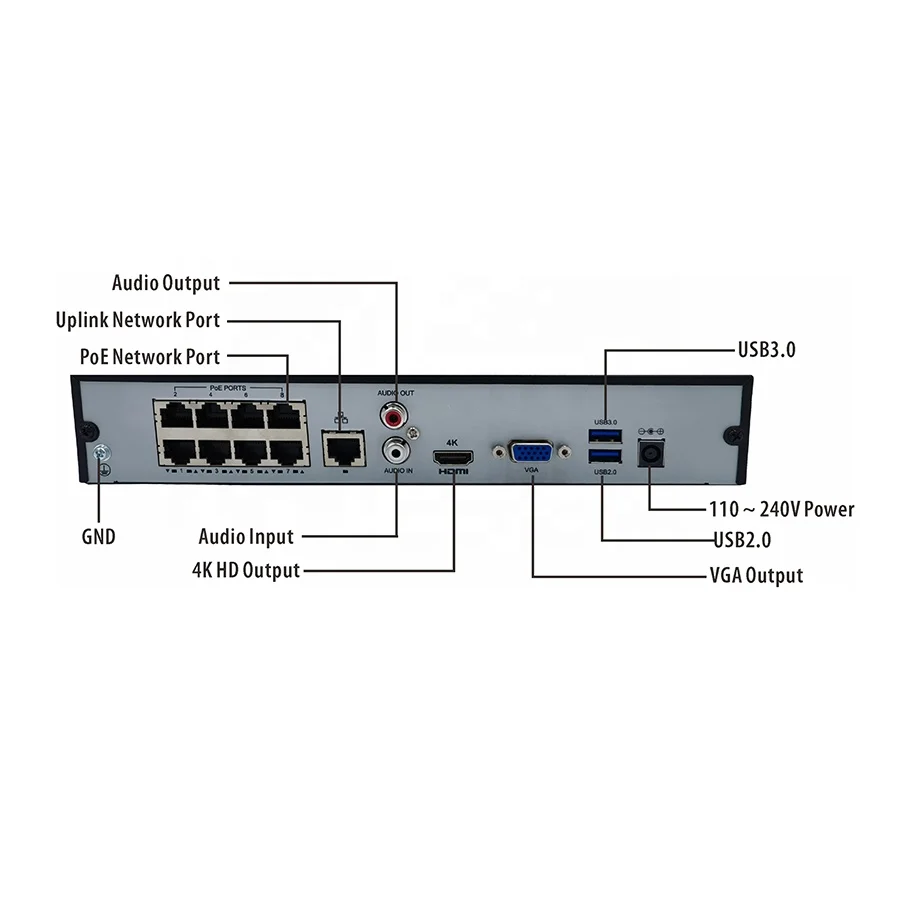

External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface	8 independent 100 Mbps PoE network interfaces
Max Power	Max 30W for single port Max 75W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
General
Power Supply	52V DC Power Consumption: ≤8 W (without HDD)
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD)	1KG (2.43 lb)

Features

* Support Ultra 265/H.265/H.264 video formats
* 8-channel input
* Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
* Support 1-ch HDMI, 1-ch VGA, HDMI at up 4K(3840x2160) resolution
* HDMI and VGA simultaneous output
* Up to 8MP resolution recording
* 1 SATA HDD up to 8TB

* Support mobile phone viewing from APP
* Support Cloud Upgrade
