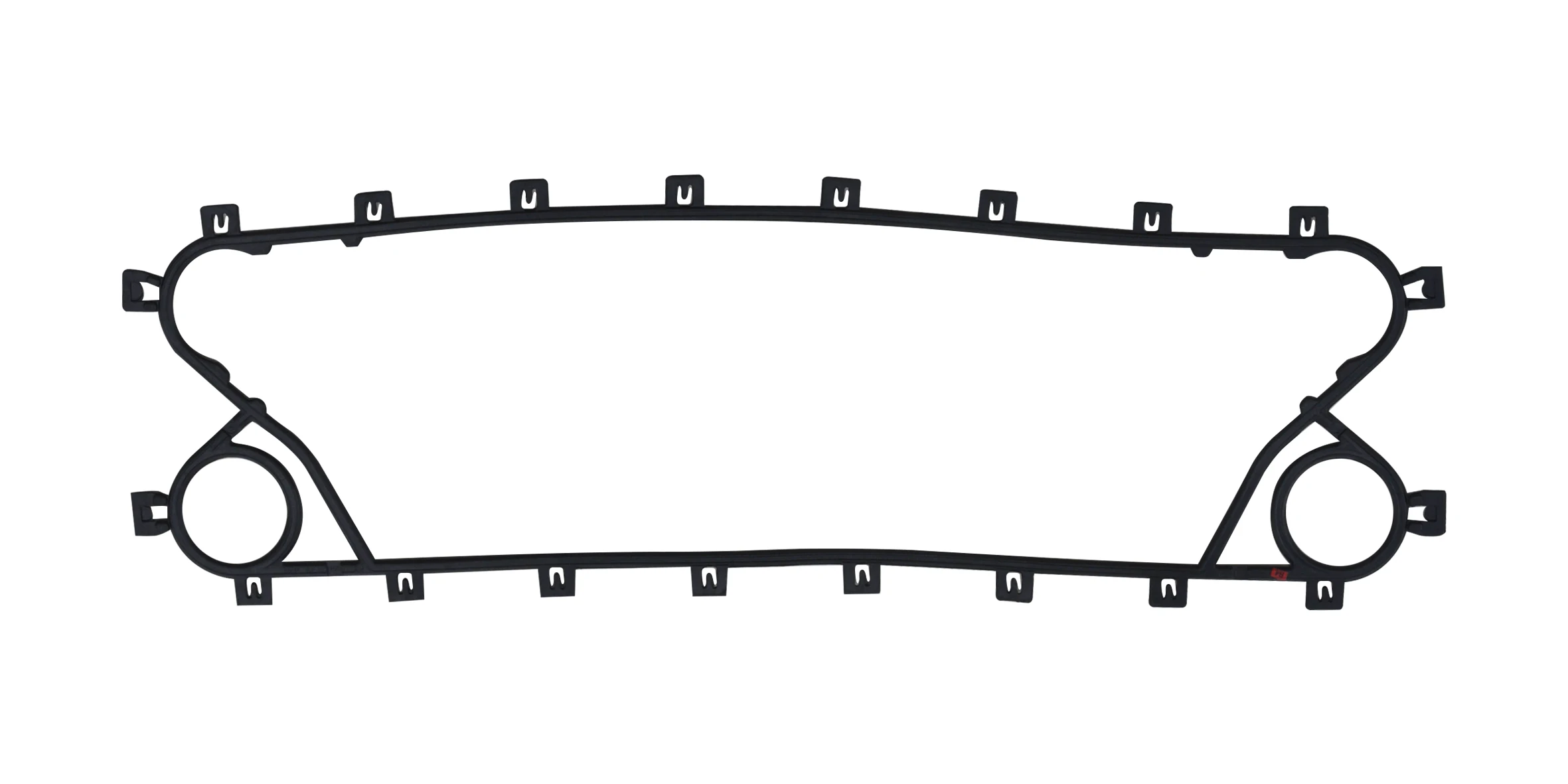

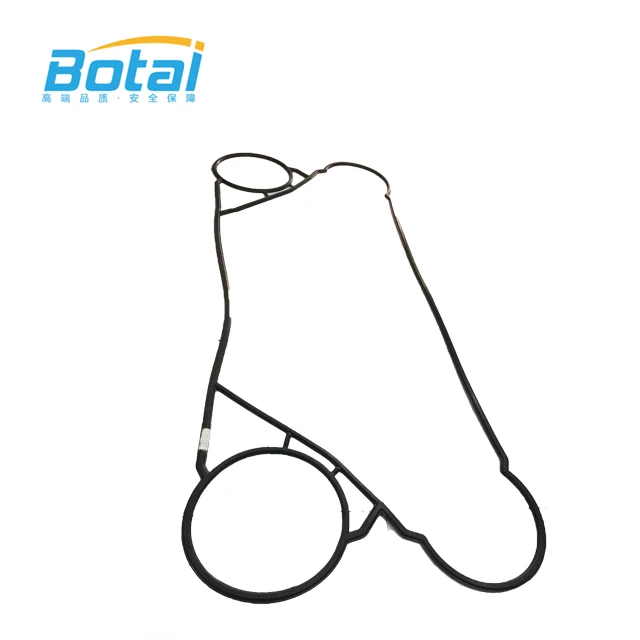

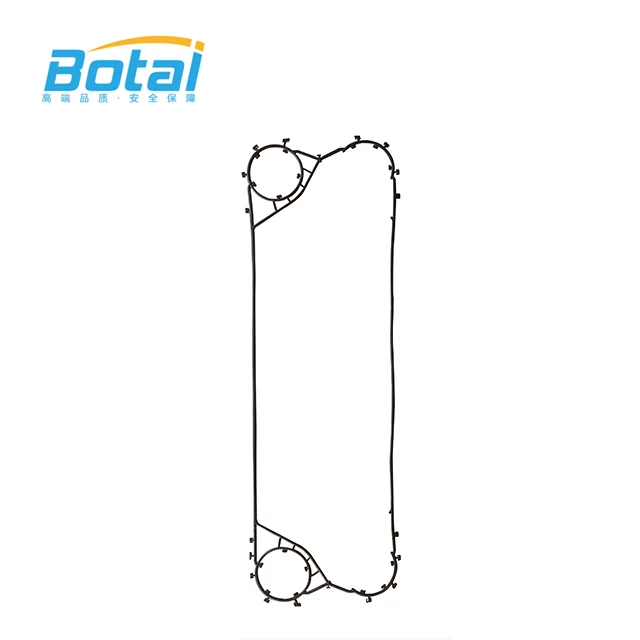

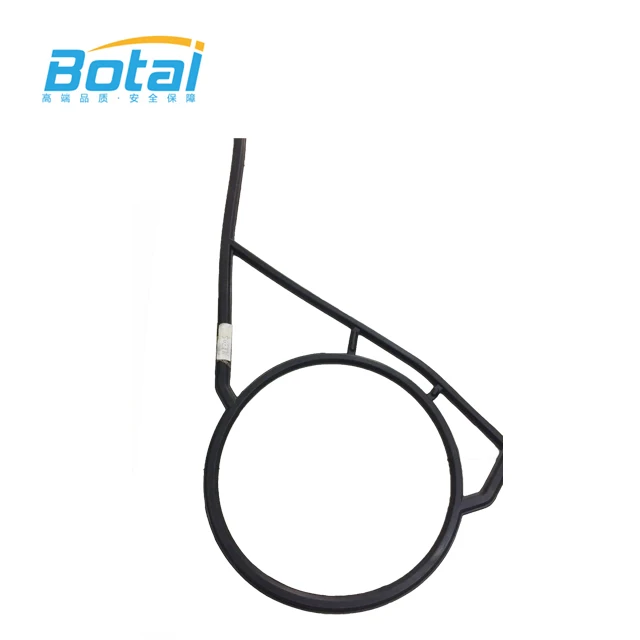

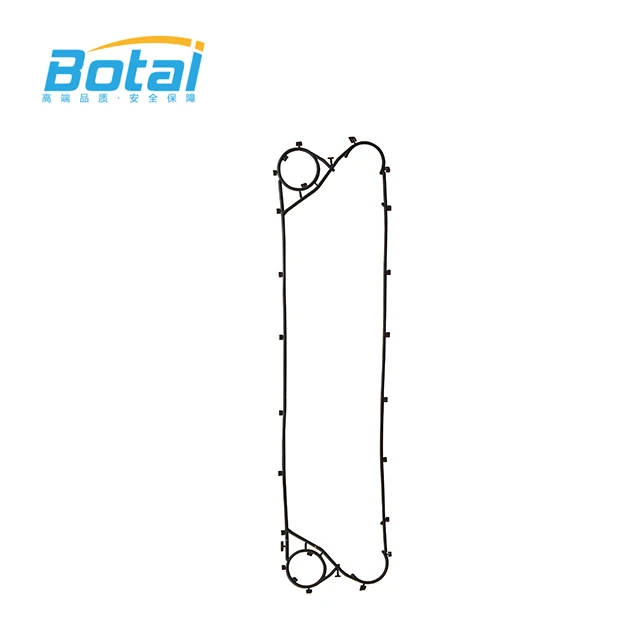

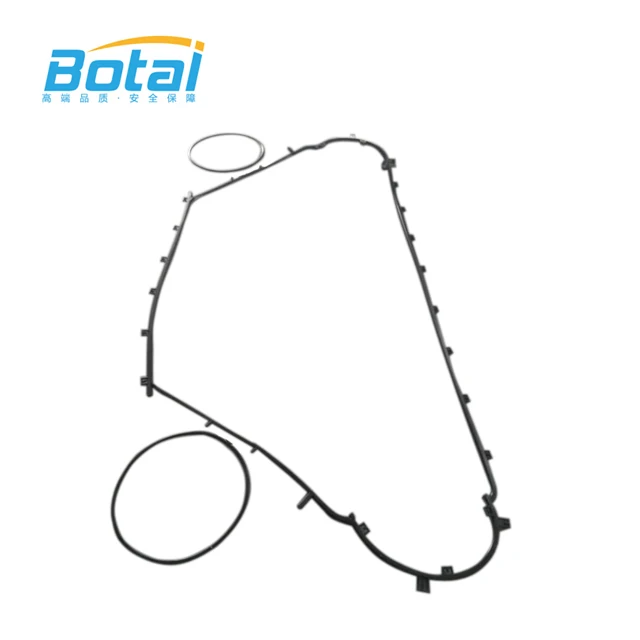

Фе резиновая прокладка/прокладка для пластинчатого теплообменника/прокладка пластинчатый теплообменник

Фе резиновая прокладка/прокладка для пластинчатого теплообменника/прокладка пластинчатый теплообменник

Категория: >>>
Поставщик: TIANJIN,JINFAN,MOULD,CO.,LTD

Цена:900,00 $ - 1 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	1071.17 $*	1125.82 $*
Aug-20-2025	1062.19 $*	1115.93 $*
Jul-20-2025	891.95 $*	936.64 $*
Jun-20-2025	1044.59 $*	1096.77 $*
May-20-2025	909.73 $*	954.84 $*
Apr-20-2025	1026.38 $*	1077.1 $*
Mar-20-2025	1017.18 $*	1068.69 $*
Feb-20-2025	1008.19 $*	1058.97 $*
Jan-20-2025	999.44 $*	1049.74 $*

Характеристики

PHE Description

Plate Heat Exchanger Feature and Application

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates.

Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

Application
PHE for HVAC, Marine, Food like Beer, Milk, Juice, Chemical,Mine,Refinery, Powerplant

Plate Heat Exchanger Spares:Plate & Gasket Material and application
Plate	SS304/316L	Water, river water,	edible oil, mineral oil;
		GRADE 1 Titanium	seawater, brine,	and chloride;
		C276	concentrated sulfuric acid,	hydrochloric acid,phosphoric acid;
Gasket	NBR	-25~+120° C	Water, Sea Water, Mineral Oil, Salty Water
		EPDM	-35~+150° C	Hot Water, Steam, Acid, Caustic
		HNBR	-15~+160° C	High temperature mineral oil and water
	VITON	-20~+180° C	High temperature resistance, strong oxidants, oil, acid and alkali.
		NBR HT	-25~+130° C	High Temperature NBR
		EPDM HT	-35~+150° C	High Temperature EPDM

PHE Brands & Models

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Our Company

BIG SCALE IN WORLDWIDE FIELD:

Tianjin Jinfan mould co.,ltd is a professioanl Plate ,gasket,and plate heat exchanger manufacturer since 2004.

The factory occupies 25000㎡，owing 13 press machines like 45000T,15000T,5000T,10 big cutting&shearing machine,NC cutting,laser,cutting machine，welding machine etc.

We produce about 300 plate heat exchanger models with plate area of 0.03㎡ to 3㎡，and port fromφ28 toφ480.

HIGH POSITION IN PHE MARKET:

As the first and biggest plate & mould source in China,90% of the plates moulds are made by us in China, and majority of the plates are from us in Chinese market.

We exported large quantity of plates, gaskets, plate heat exchanger and moulds to Europe, Asia, Middel East, USA, Australia, South Afric, owing to equivalent quality with OEM spares, competitive price, large stock, short deliver, technical support (software and experience), certificate suppoert (ISO9001, EN 3.1 and SGS,etc), as well as after work service.

Quality Control System;

We have long time cooperation with big raw material supplier and imported special material like Titanium 245SMO,etc.

The plates ,PHEs, and facilities are all stictly traceable to meet the need of after sale service.The strong manufactring ability and full quality control enable us to provide you world class products.

The Special and Sole Service:

We produce the most complete PHE ranges,including every brands.

Besides our molde list,we make all the brands and models.Because we made moulds ourselves,so no matter you need any model,we can provide and support to you for any possibility!

Quality Test&Packing

Payment & Shipping

Payment Term

*Our normal payment term is 30% deposit,and 70% before shipping.

* We can also accept other payment term according to the request of our clients.

Delivery Time

* Our normal delivery time is 3-15days.

* If there is any urgent order,we would like to help finish it in 1-2day,because we're the real source in Chinese market.

Our Service &Contact

Service
1.We're the real source of PHE plates in China.We are always making new moulds each month according to the need of clients,and produce plates everyday by 13 sets of press machines and 300 sets of moulds.So we can provide you the most complete range of PHE and spares. 2.We kept large stock of raw material like SS304,316L,Titanium,even C276 and254SMO.Delivery time is short.No matter you have any emergency,we can help and support you.Our material all from the famous supplier in USA,Japan,and Korea.Thickness is at least 0.47mm for 0.5mm plate,and at least 0.57mm for 0.6mm plate. 3.Our complete production and quality control system enable us to provide 100% guarantee to the customers. 4.We have software of APV,Tranter,GEA,Sondex,Funke,API,etc.And can provide you technical sheet and PHE drawing.We can support you for the new unit for your PHE project. 5.Most important is high quality and good price.That's why we win more and more customers and friends in worldwide and gain the international position in the PHE field. 6.We work 24hours to service for you.
