H265 H264 HD 1080P OLED HDMI видео кодек поддерживает 4 канала потоковый вывод данных кодирующее устройство телевидения по протоколу
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Nantong,Zydz,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 235.57 $* | 240.99 $* |
| Jul-19-2025 | 191.5 $* | 195.25 $* |
| Jun-19-2025 | 231.38 $* | 236.15 $* |
| May-19-2025 | 229.96 $* | 234.81 $* |
| Apr-19-2025 | 183.24 $* | 187.17 $* |
| Mar-19-2025 | 226.74 $* | 231.24 $* |
| Feb-19-2025 | 224.27 $* | 228.26 $* |
| Jan-19-2025 | 222.23 $* | 226.42 $* |
Характеристики
Overview

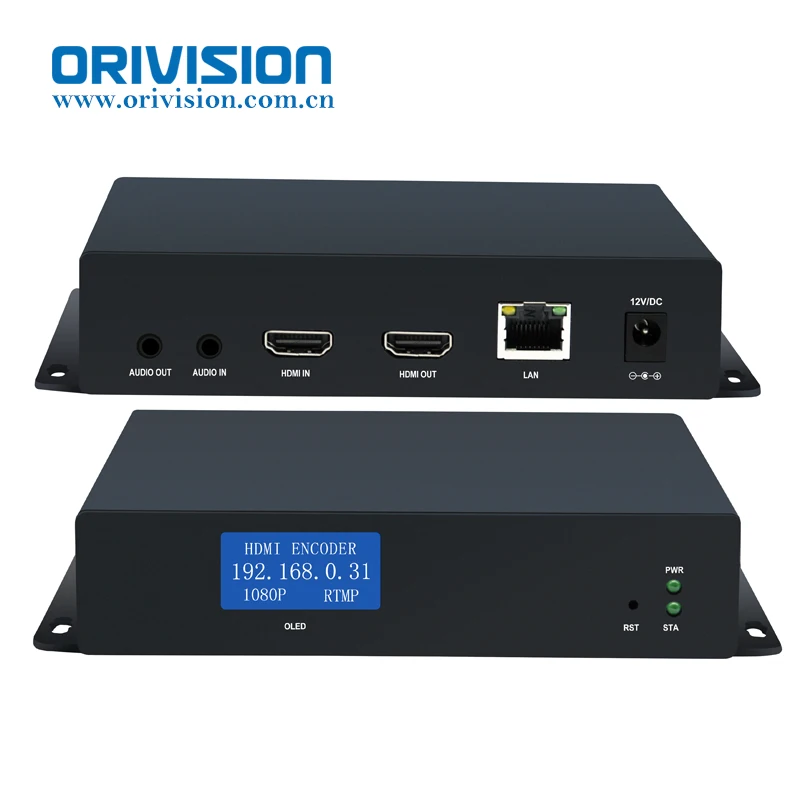

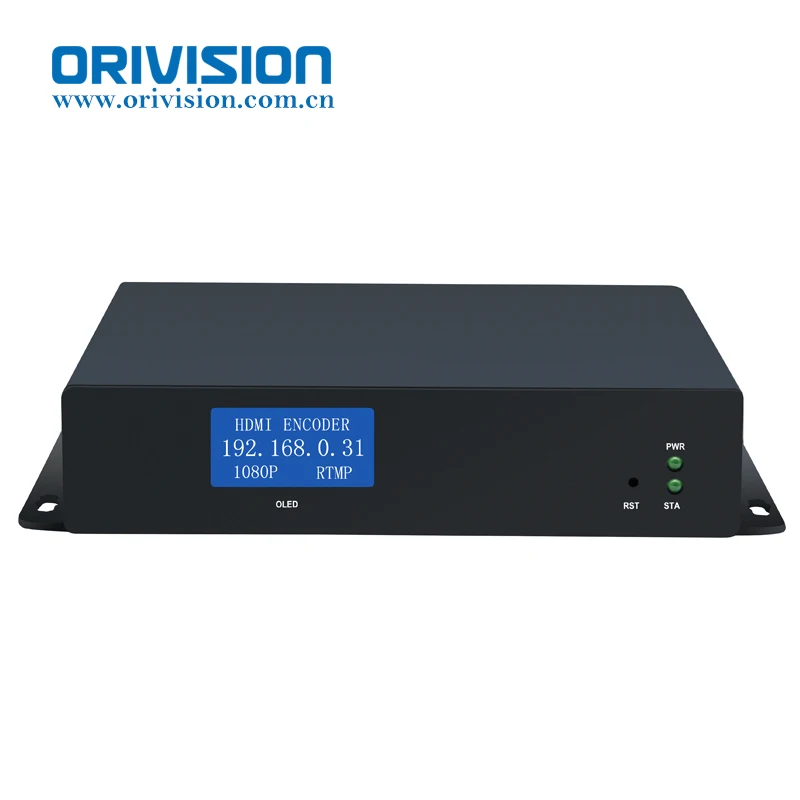

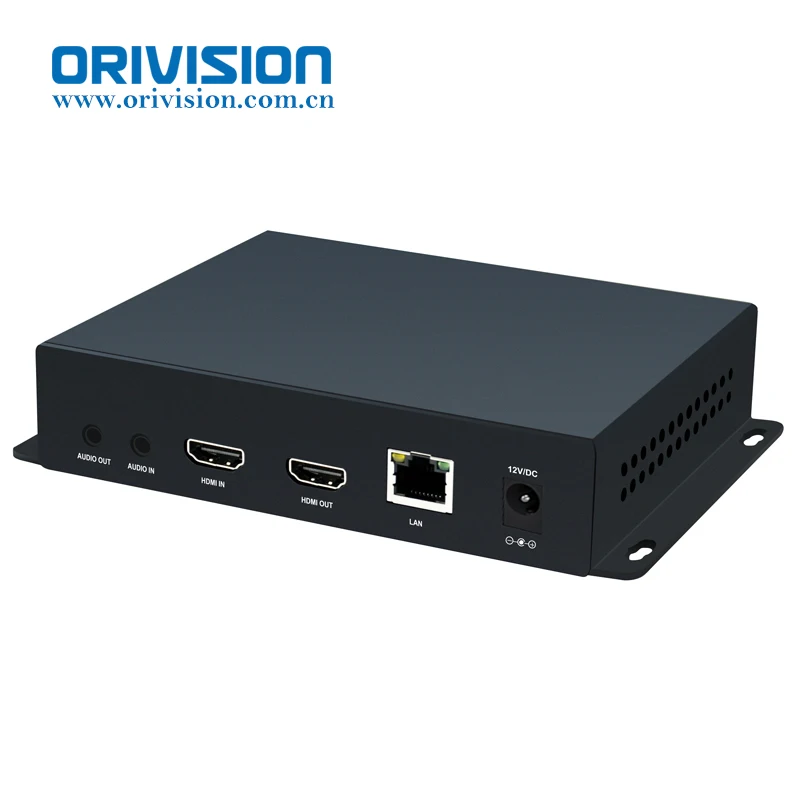

H.265 HDMI Video Encoder with OLED
ZY-EH901 is our professional HD audio and video encoding device with powerful functionality. It is equipped with 1 channel HDMI & Audio input and 1ch HDMI output, supporting H.265 and H.264 encoding format and four video streaming output, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, RTMPS, SRT, ONVIF, HLS, FLV.
△ Support 4 channel stream output simultaneously.
△ Support POE
△ OLED real-time display to ensure uninterrupted video streaming.
△ No need to access video, audio can be coded separately.

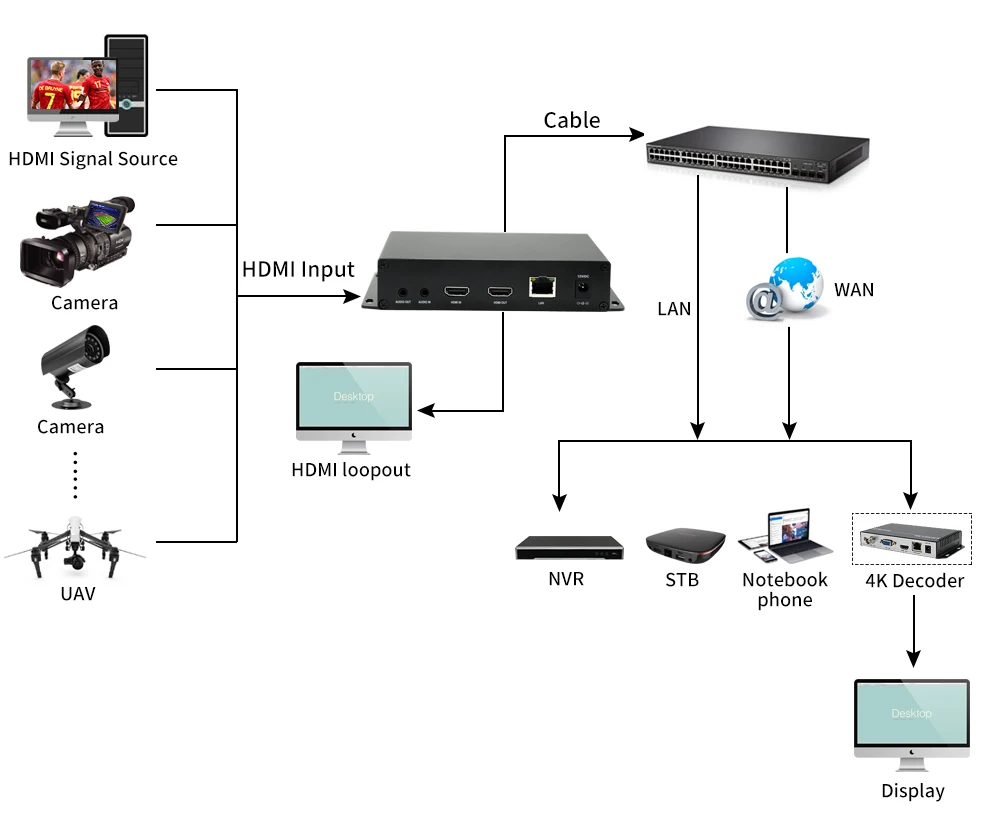

Application Diagram

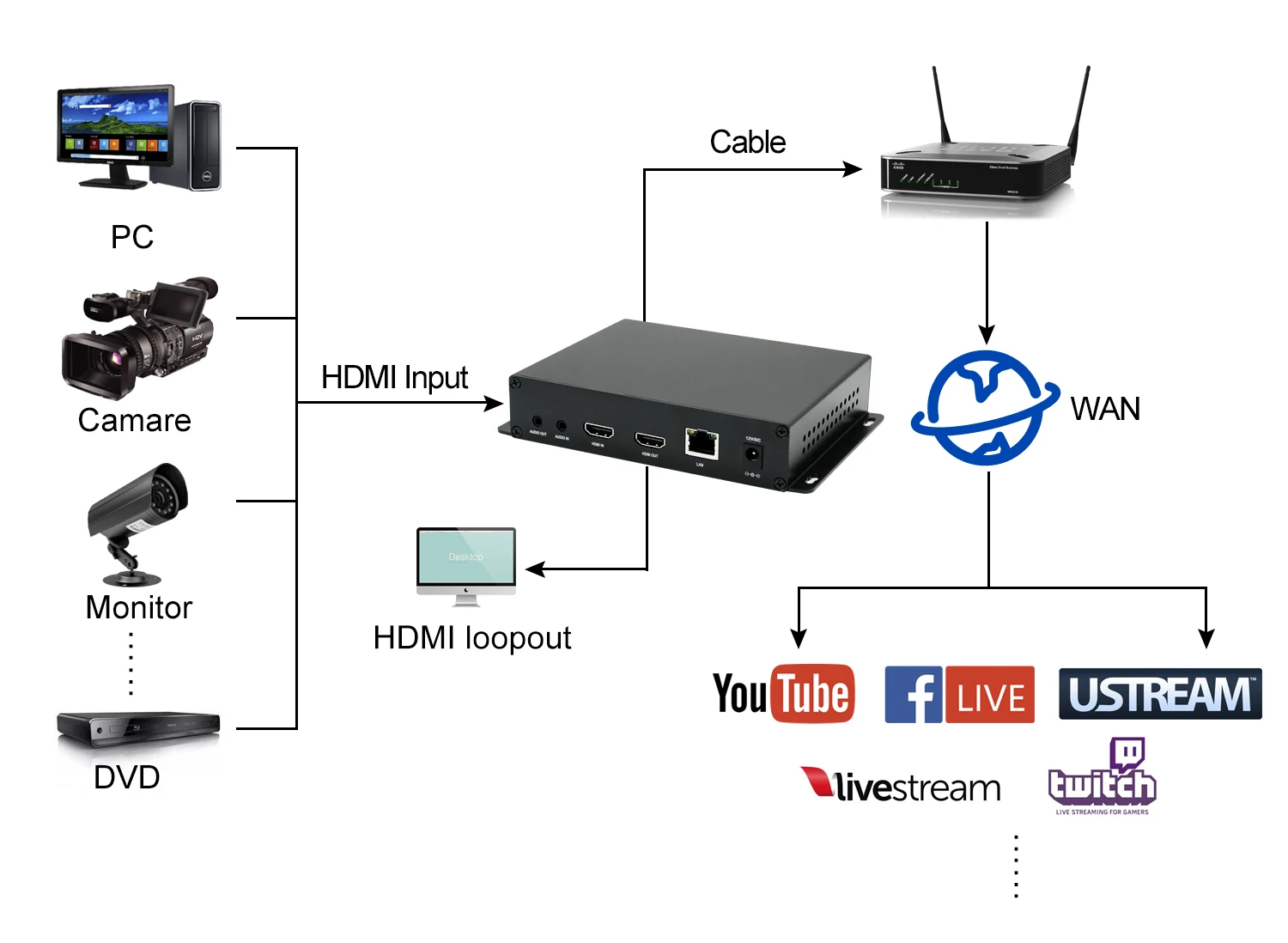

(1)For Live Streaming Online Connection
(2)For Multi-purpose Connection

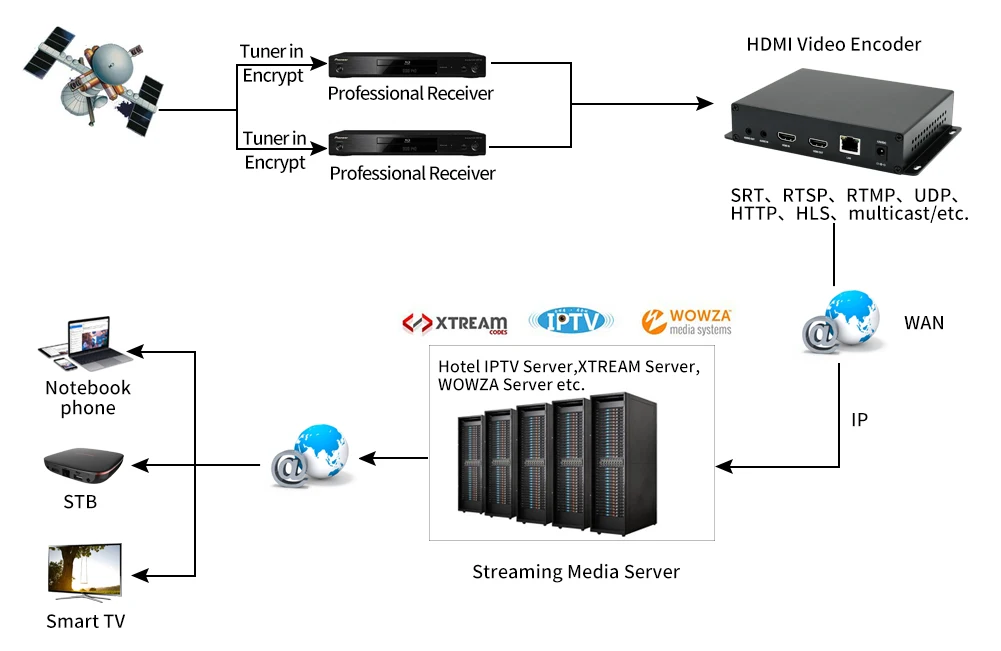

(3)For IPTV Project Connection
Recommend Products
Specification
Model | ZY-EH901 | |
Video | ||
Input interface | 1×HDMI (Support HDMI1.4 and HDCP1.4) | |
Support resolution | 1080P\\1080i\\720P 、1600x1200\\1400x1050\\1440x900\\1280x1024\\ 1280x960\\1280x800\\1024x768\\800x600 etc. | |
Frame rate | 30/60 frame | |
Output interface | 1×Ethernet port (RJ45), 1×HDMI (Support HDMI1.4 and HDCP1.4) | |
Video encoding | H.265/H.264 | |
Code Rate control | 16kbps- 12Mbps | |
Code Rate | CBR/VBR | |
Audio | ||
Input interface | 1×External audio, HDMI built-in Audio | |
Output interface | 1×External audio | |
Audio encoding | ACC, MP3 | |
Sampling rate | Auto | |
Bit-rate Option | 32k,44.1K,48K,64K,96K,128K,160K,192K,384K | |
Sampling Accuracy | 24 Bit | |
Audio Data-rate | 64Kb/s to 384Kb/s | |
Network | ||
RJ45 | 1000M Ethernet port | |
Program streaming | HTTP, RTSP, RTMP, RTMPS, SRT, HLS, FLV, ONVIF(UDP/RTP) | |
Control Panel | Web panel (Language is English), remote upgrade | |
Firmware Update | Enable by uploading files to the dashboard | |
General | ||
Dimension(W*L*H) | 6.4*4.4*1.3in(163*111*32mm) | |
Gross Weight | 0.35kg | |
Temperature | 0 ~ 45℃（for working）,-20~60℃（for storing) | |
Humidity | <90%, non-condensing | |
Input Voltage | DC 12V/1A | |
Power Consumption | 5W | |
Praise From Customers
Support OEM/ODM
OEM
Free print company logo by laser print;
MOQ≥1 unit
ODM
Pls send your requirements to us. (support@orivision.cn)
FAQ
1. Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,Skype,whatsapp etc.
2. 3 years warranty
We provide new free spare parts in 3 years because of the product quality problems, except for man-made damage.
3. Provide factory repair service
If the customer has a problem with the equipment, he can send it back to the factory for repair. Maintenance is free, but there
will be a material charge.
4. About Import tax
I hope you know that import duty is paid on imported goods in most countries. Our all quote and price don't include your import tax. As to specific rates, please consult your local customs office. I appreciate your understanding!
5. About delivery time
Our the fast delivery time will be within 3 days after payment. But we promise to arrange the delivery within 7 days after receiving the payment, In case of special circumstances.If you want to know more about the delivery time, pls contact us.
6. About the shipping way
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such us FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,Skype,whatsapp etc.
2. 3 years warranty
We provide new free spare parts in 3 years because of the product quality problems, except for man-made damage.
3. Provide factory repair service
If the customer has a problem with the equipment, he can send it back to the factory for repair. Maintenance is free, but there
will be a material charge.
4. About Import tax
I hope you know that import duty is paid on imported goods in most countries. Our all quote and price don't include your import tax. As to specific rates, please consult your local customs office. I appreciate your understanding!
5. About delivery time
Our the fast delivery time will be within 3 days after payment. But we promise to arrange the delivery within 7 days after receiving the payment, In case of special circumstances.If you want to know more about the delivery time, pls contact us.
6. About the shipping way
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such us FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
