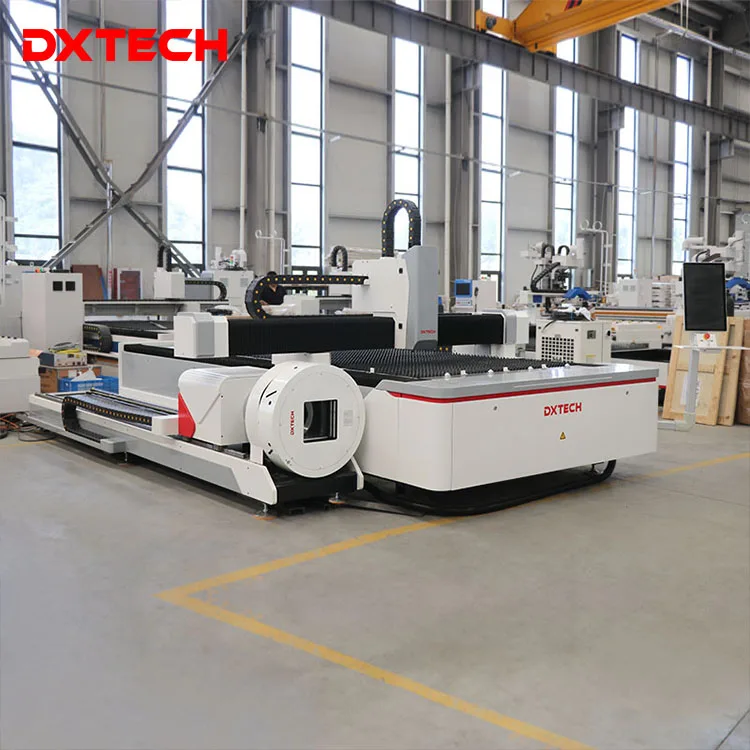

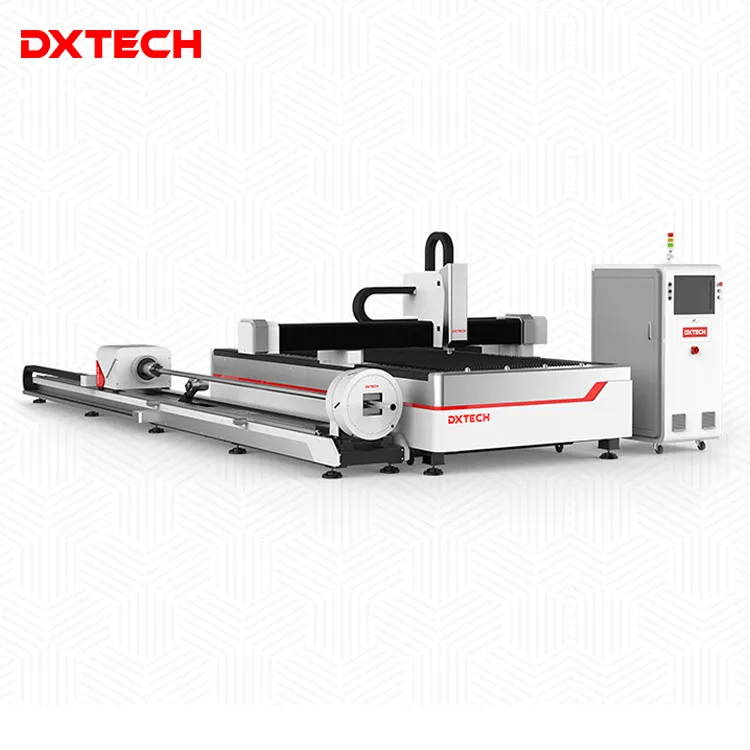

1000W 2000W 3000W Plate And Tube Laser Cutting Machine 3000X1500 Laser Cutting Machine for Stainless Steel Carbon Steel 10mm
Product Description
Product Introduction
——
Dual-use Metal Sheet Pipe Tube Laser Cutting Machine is designed for Circular Square Metal Pipe Tube Cutting and sheets cutting.
It adopts strong steel bed, rack drive system, professional pipe laser cutting CNC system, which ensure good cutting accuracy and efficiency of the CNC laser cutting machine.
Over 3500 sets CNC fiber laser cutting machine have been sold to over 180 countries. It is an ideal choice to cut plates and pipes for economic users.
Features
——
1. One machine for two purposesDouble-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency.
2. The strong steel bed to keep the machine for many years without distortion.
3. World-class components like guide rails and racks to guarantee the cutting accuracy.

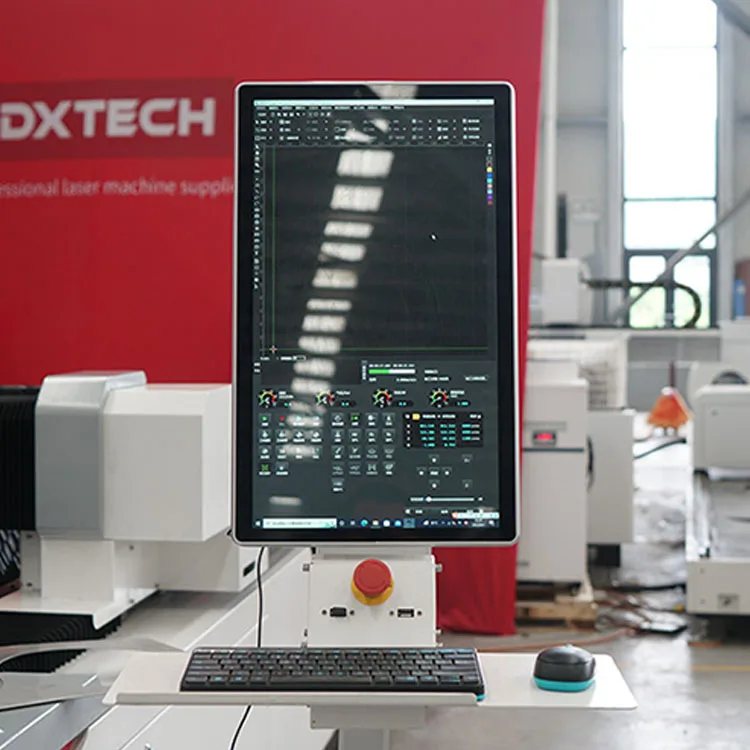

4. The professional CNC pipe cutting system is easy and simple to operate and maintain.
5. Integrated large air volume dust removal system.
6. Imported high-end accessories to provide users with powerful cutting ability and efficiency, ensuring high-precision and stable operation of the machine.

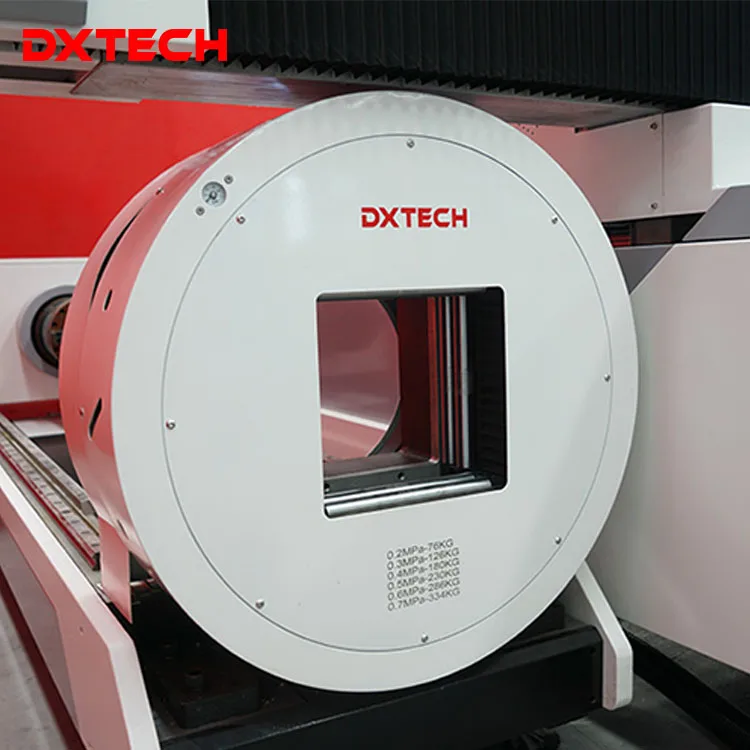

Fully automatic double pneumatic chuck
——One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
——Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.
——The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.
Automatic exchange of platform
——Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
——Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
——Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
——Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

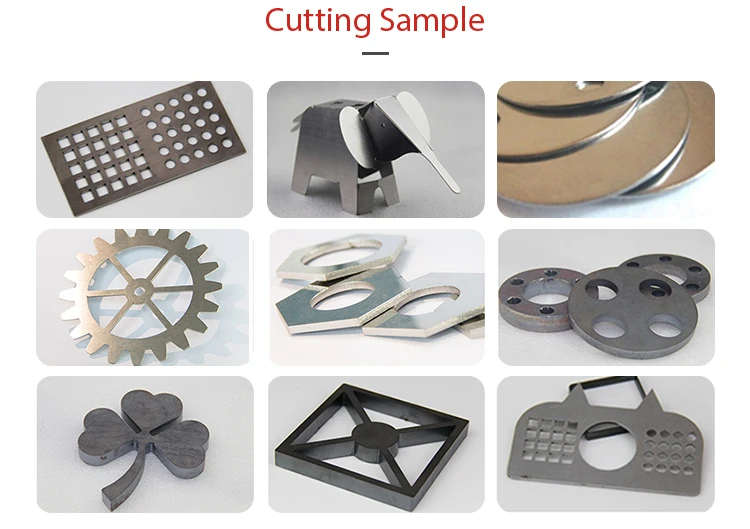

Sample Show
Technical Parameters
Model | DXTECH-1530ST | DXTECH-2040ST | DXTECH-2560ST |
Working area (mm) | 1515*3030 | 2020*4040 | 2525*6050 |
Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
Max. exchange time | 25s | 30s | 40s |
Max. acceleration | 2.0G | 2.0G | 2.0G |
Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
Laser | Multiple options | Multiple options | Multiple options |
Focusing method | Auto/manual | Auto/manual | Auto/manual |
Machine bed | Sheet welded bed | Sheet welded bed | Tube welded bed |
Max. running speed | 140m/min | 140m/min | 140m/min |
Product category
Company Profile
Our factory
Our strict quality policy ensures thehigh reliability and longevity of DXTECH laser machines.
Quality control in the production process.
Random sample testing by Quality Control.
Traceability for DXTECH laser machines.
Reliable laser machines with long service life.
Laser machine spare parts availability exceeds 96%.
Our Certificate and Exhibition
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.
copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
