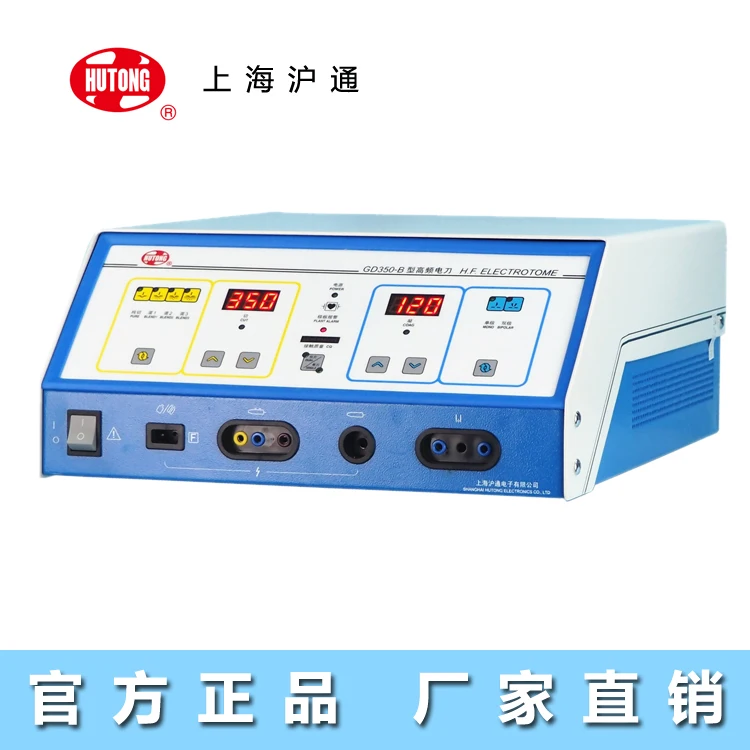

First Chinese brand monopolar radio frequency machine bipolar diathermy electrosurgical unit dental GD350-B



1, made in SHA

2, with CFDA certificate from 1996

3, more than 25 years of stable quality

4, 6000+ Chinese hospitals are using this generator

5, 240000+ sets are using in mainland hospitals





Intelligent Device System

1.Separate power display and outlet socket for monopolar cut, monopolar coag and bipolar coag, each output can be individually configured.

2.The unit always remember the last setting when it turned off.

3.The ESU unit can be connected with laparoscope,thoracoscope and endoscope etc.

4. Protection against over-voltage and over-current.

5. Defibrillation protected. 6. Convection refrigeration without ventilating fans.



Characteristics

Microprocessor controlled, with the ability to automatically adjust, he is designed for general operations. With suitable accessories, he could be used in Laparostic/Thoracoscopic/LEEP surgeries.



Activation Option

Monopolar output could be activated by hand-switch or foot-switch,bipolar output actovated by foot-switch



REM(Return Electrode Monitoring)

Return electrode (for Monopolar) with quality monitoring system(REM). This REM system continually monitors patient impedance levels and deactivates the generator if less contacting between the patient/return electrode and skin is detected, at the same time with Audible and Visual Alarms.



Automatic self-test

When switch on the machine, it will start automatically self-test routine prior to operation. If alarms, there are different codes shows and refer to possible problems.



Monopolar Cut

Monopolar outlet, 3-pin (4mm) standard outlets. Different effects for cutting modes: pure cut for fast tissue dissection, while blend 1 to blend 3 with slight to strong coagulation effect.



Monopolar Coagulation

Monopolar coagulation mode provides 0-120W coagulation effects.



Bipolar

Bipolar coagulation provides contact coagulation without sparking from 0-50W.



Compatible with other Equipment

Optimum Smoke Evacuator



Application of Use

General surgery, Gynecology, Neurosurgery, Dermatology, Orthopedics, Plastic surgeries Cerebral surgery, Microsurgery, ENT surgery and etc.





Working mode		Power range	Peak voltage	Load(Ω)
Monopolar	Pure  Cut	0-350W	2000V	500
	Blend 1	0-250W	3000V	500
	Blend 2	0-200W	3300V	500
	Blend 3	0-120W	3000V	500
	Standard Coag	0-120W	3000V	500
Bipolar	Bipolar Coag	0-50W	300V	100
Operating Frequency		512KHz



Environmental Conditions for Use
Condition	Range
AC power	220V±22V, 50Hz±1Hz, 3.5A
Power consumption	≤800VA
Temperature	5°C to 40°C
Relative humidity	≤ 80%RH
Pressure	86 KPa to 106 KPa



Environmental Conditions for Transport and Storage
Condition	Range
Temperature	-40°C to 55°C
Relative  humidity	≤ 95% RH
Pressure	50 KPa to 106 KPa
Dimension (L×W×H)	45.5cm×38cm×18.5cm
Net Weight	11KG (without accessories)
Gross Weight	20KG( with two sets of out cartons)
Carton Size	72cm*58cm*41cm



Accessories with generator
Reusable ESU pencil (hand switch control)	1 pc
Reusable ESU pencil (foot switch control)	1 pc

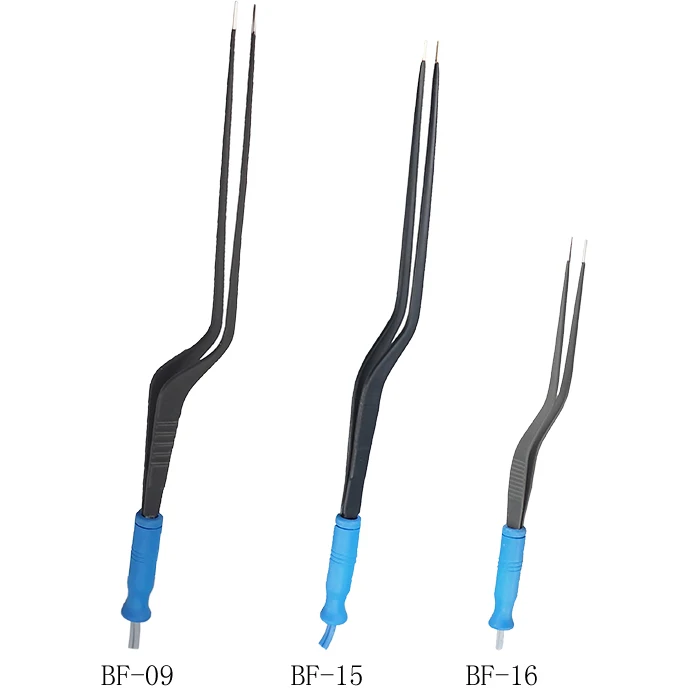

Reusable bipolar forceps (20cm bayonet)	1 pc
Reusable patient plate(stainless steel)	1 pc
Power cable(3m)	1 pc
Double foot-switch	1 pc
Autoclavable pencil insulator	1 pc
