25 тонн гидравлический автокран QY25K5-I для строительной

Описание и отзывы

Трекер стоимости

Характеристики

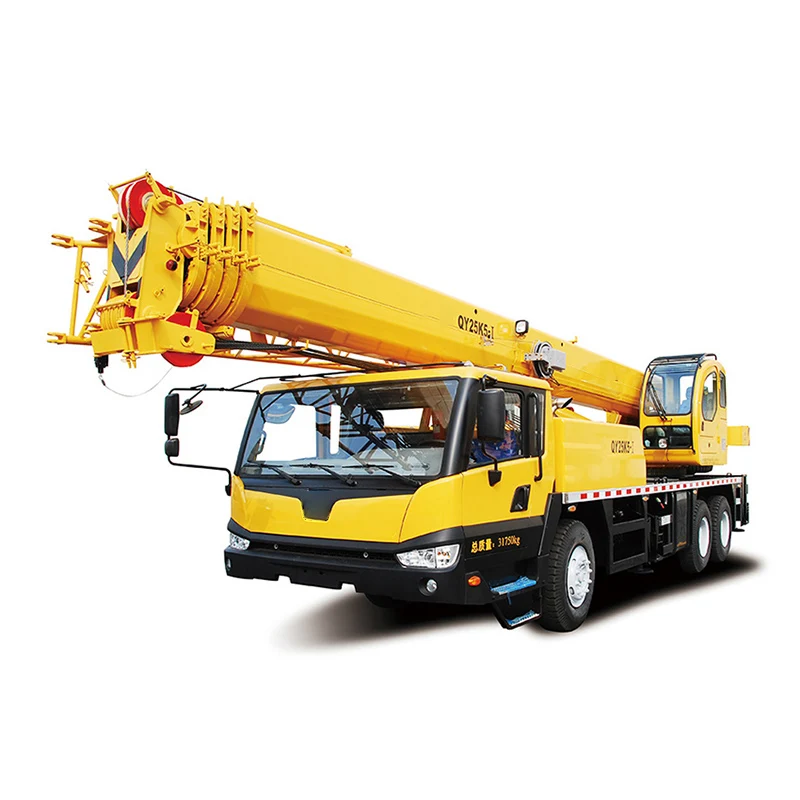

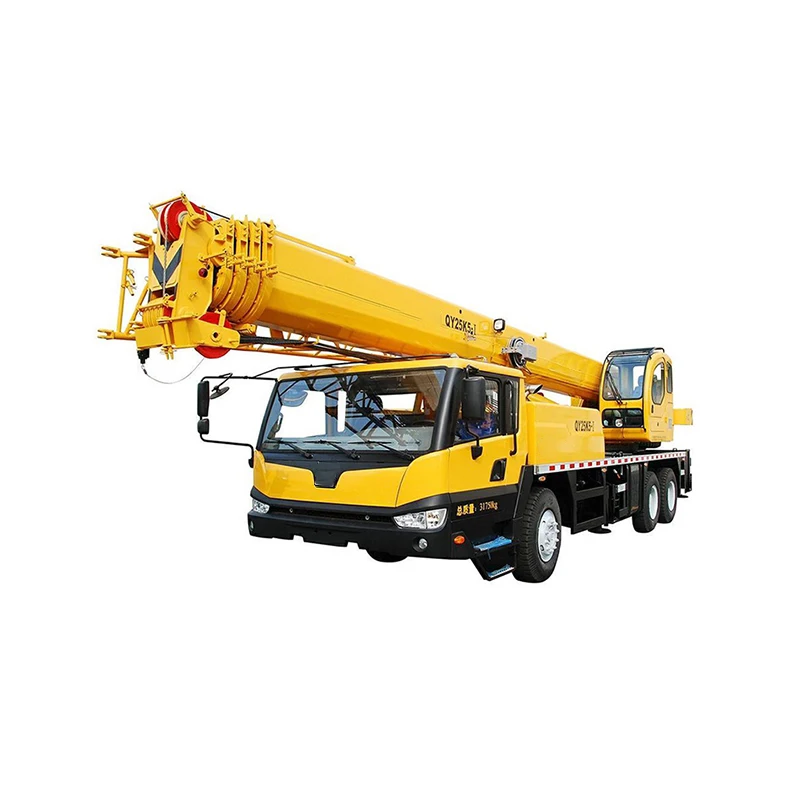

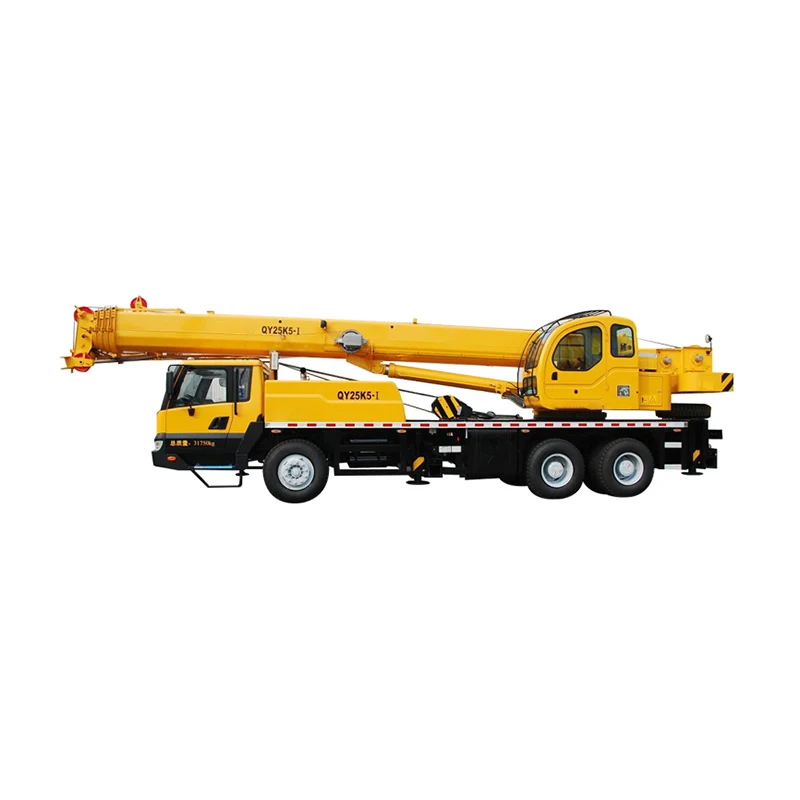

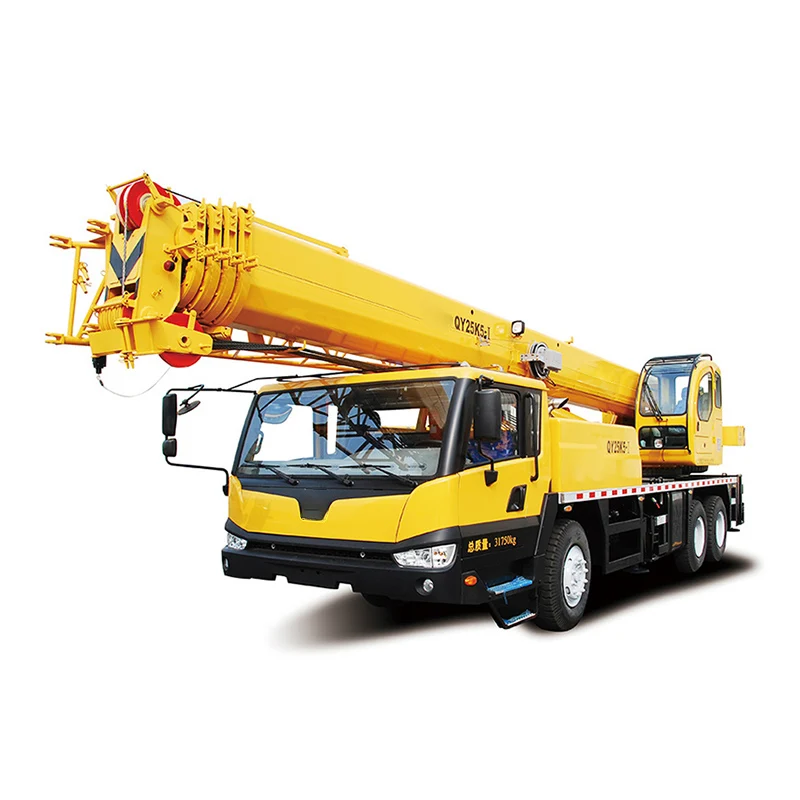

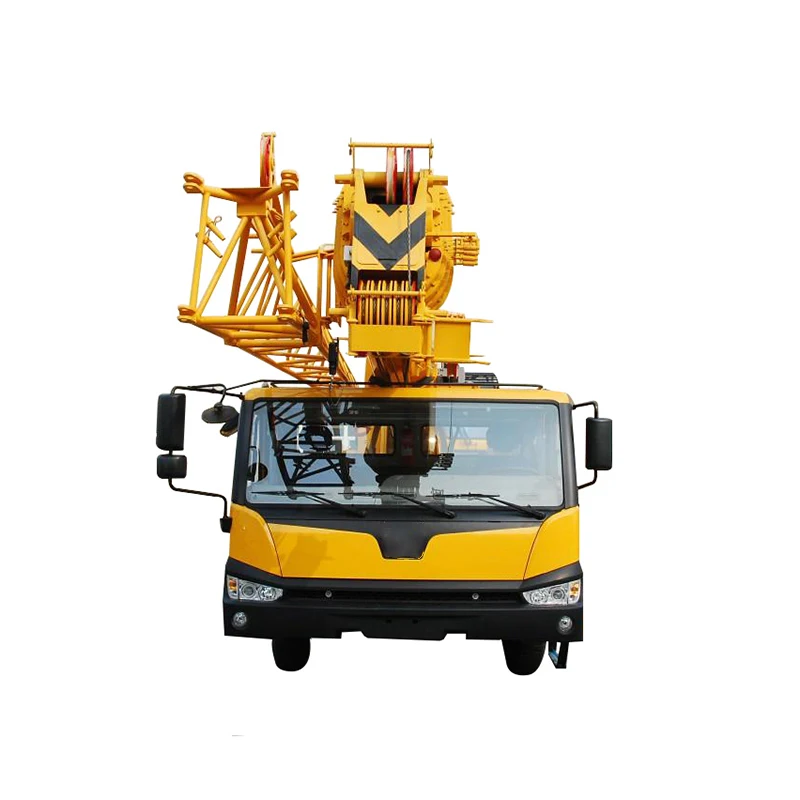

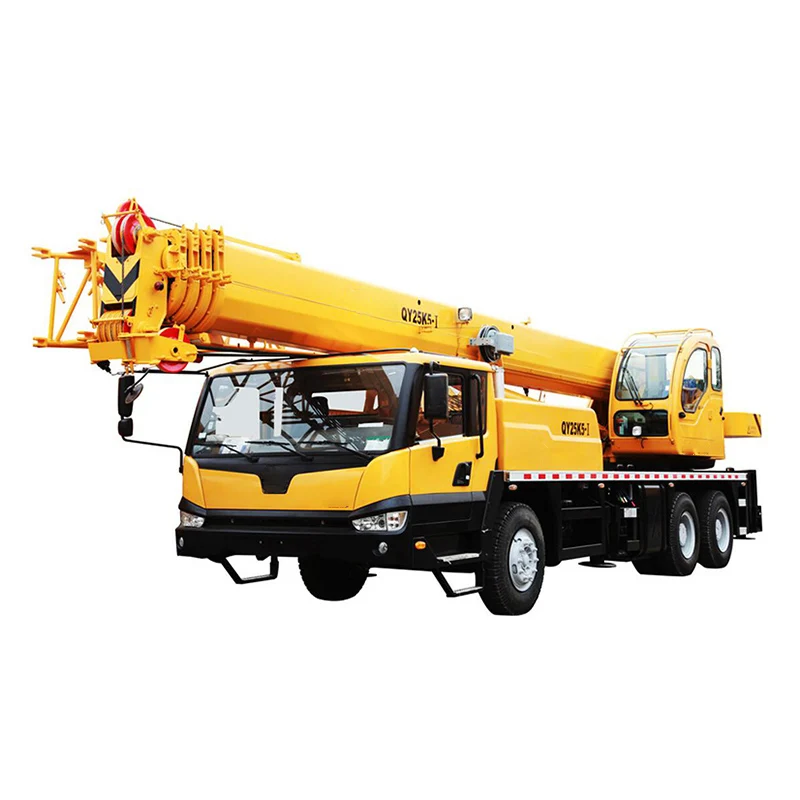

25 ton telescopic boom truck crane QY25K5-I for construction site



Description		Unit	Parameter value
Overall length		mm	12300
Overall width		mm	2500
Overall Height		mm	3350
Wheel Base		mm	4425+1350
Track		mm	2074/1834/1834
Total vehicle mass in travel configuration		kg	31750
Axle load	Front axle	kg	6550
	Rear axle		25200
Engine Model			SC8DK280Q3
Engine rated power		kw/(r/min)	206/2200
Engine rated torque		N.m/(r/min)	1112/1400
Max. travel speed		km/h	80
Min. turning diameter		m	22
Min. ground clearance		mm	275
Max. grade ability		%	40
Approach angle		°	16
Departure angle		°	13
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	≤37
Exterior noise level during acceleration traveling		dB (A)	88
Noise level at seated position		dB (A)	90
