Известный бренд 70 тоннной передвижной кран с 5-ю секциями заграждения
- Категория: Truck Cranes >>>
- Поставщик: Oriemac,Machinery,&,Equipment,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 161364.5 $* | 169432.88 $* |
| Aug-17-2025 | 160008.74 $* | 168008.21 $* |
| Jul-17-2025 | 134244.45 $* | 140956.75 $* |
| Jun-17-2025 | 157296.52 $* | 165161.29 $* |
| May-17-2025 | 136956.53 $* | 143804.11 $* |
| Apr-17-2025 | 154584.28 $* | 162313.72 $* |
| Mar-17-2025 | 153228.57 $* | 160889.61 $* |
| Feb-17-2025 | 151872.48 $* | 159466.31 $* |
| Jan-17-2025 | 150516.1 $* | 158042.0 $* |
Характеристики

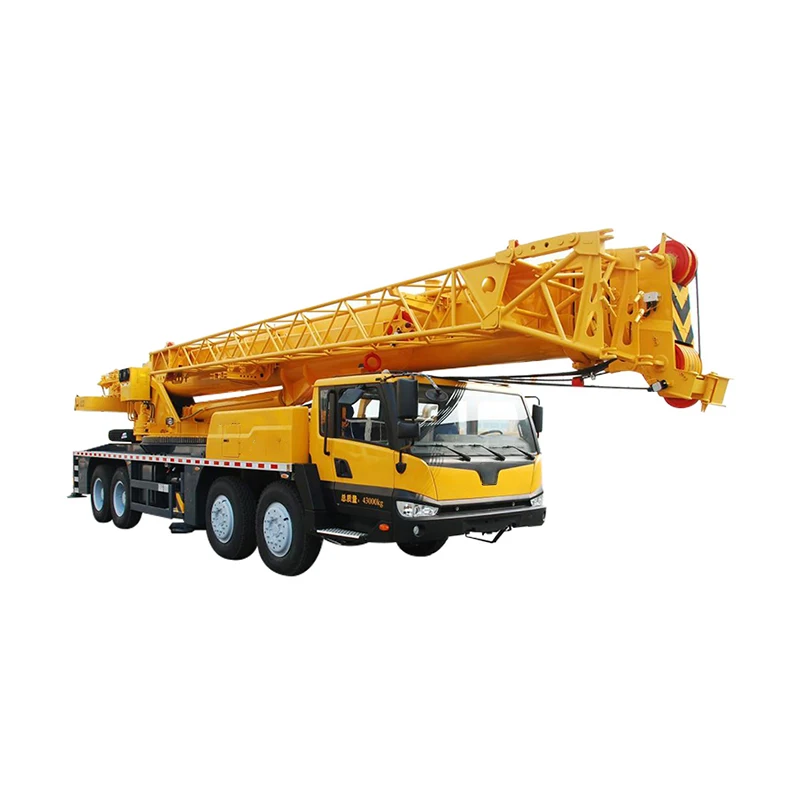

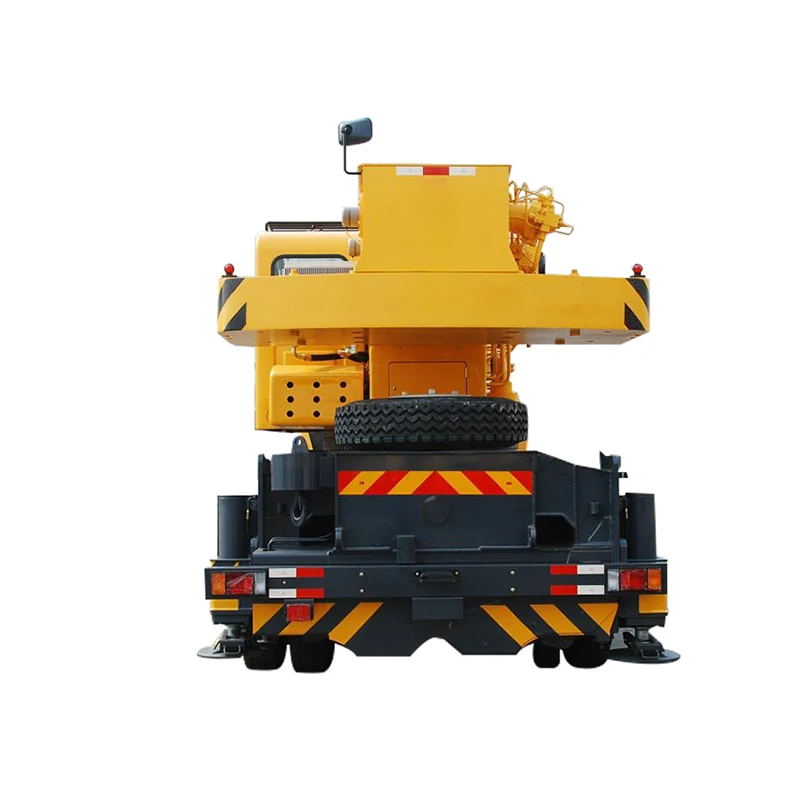

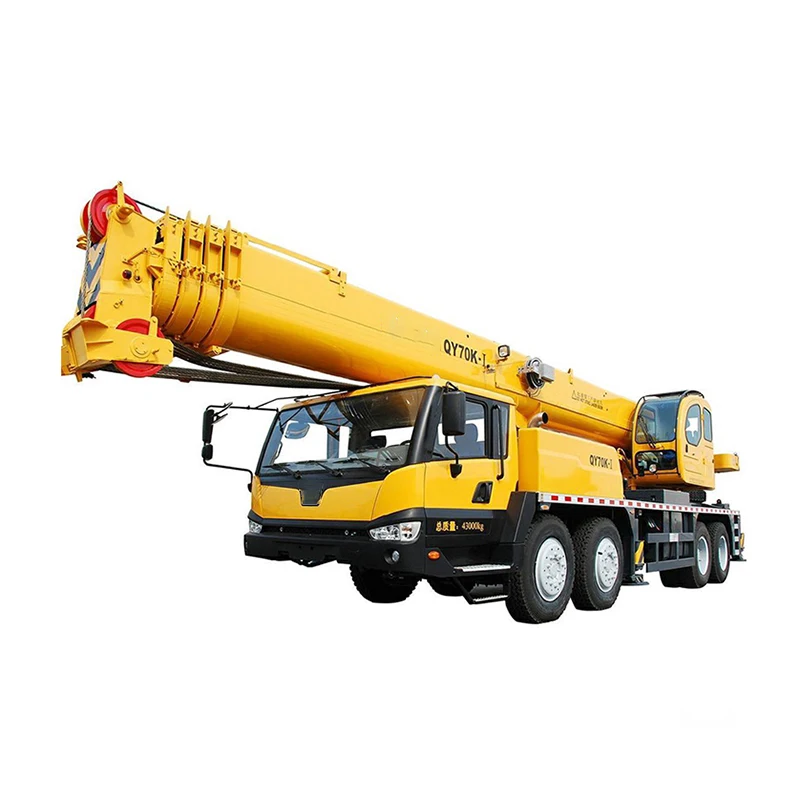

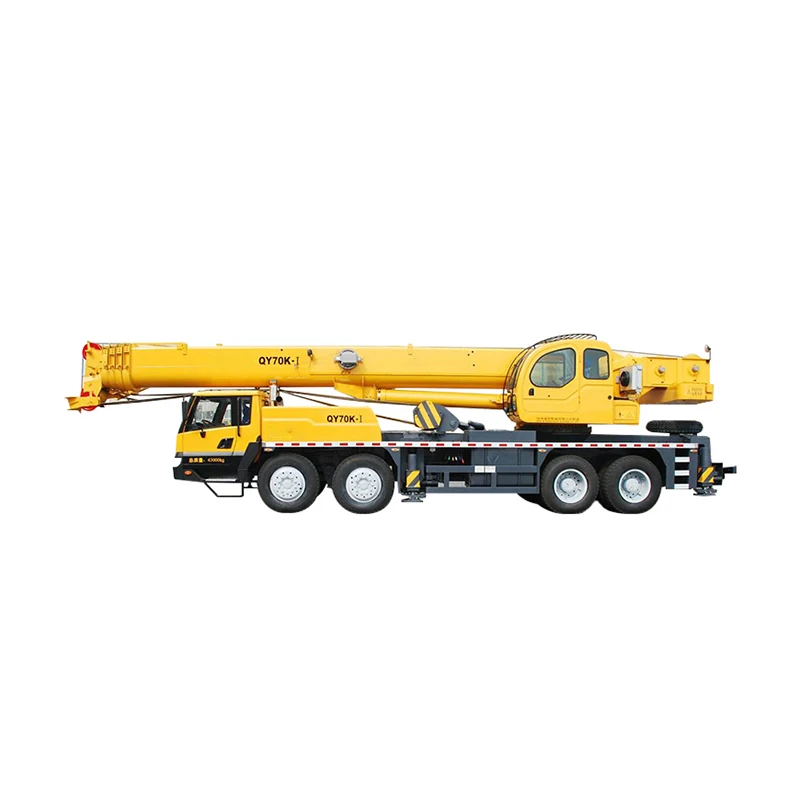

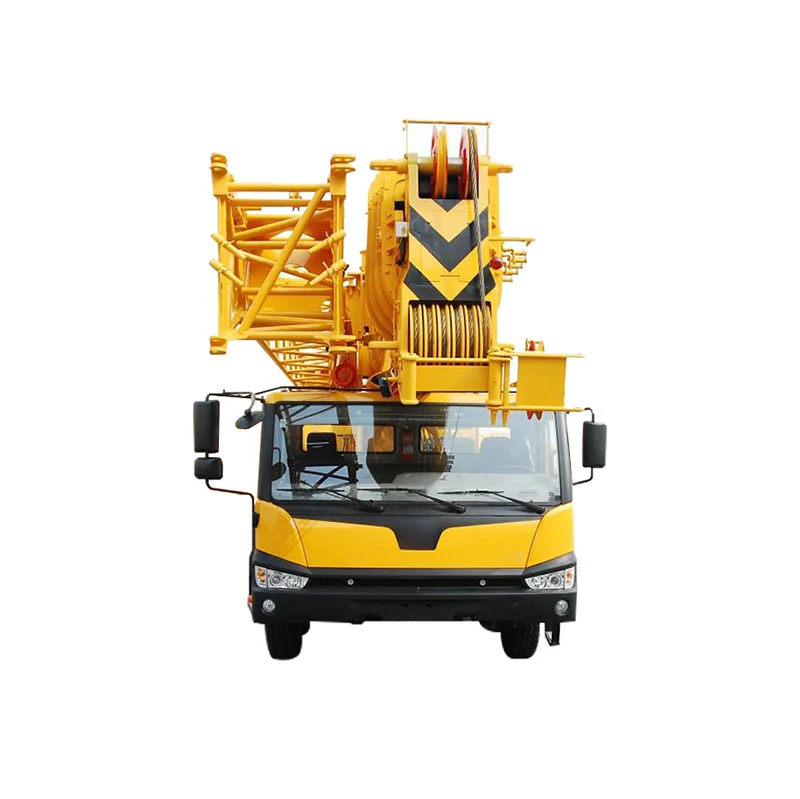

Famous brand 70 ton mobile crane with 5 section booms QY70KH
| Category | Item | Unit | Parameter | |
| Dimensions | Outline size(lengthxwidthxheight) | m | 14700x2800x3770 | |
| Wheel base | m | 1470+4500+1350 | ||
| Track(Front/ Rear) | m | 2314/2063 | ||
| Front/ Rear overhang | mm | 2406/2320 | ||
| Front/ Rear extension | mm | 2351/73 | ||
| Weight | Total vehicle mass in travel configuration | kg | 43800 | |
| Axle load | 1st axle | kg | 9050 | |
| 2nd axle | kg | 9050 | ||
| 3rd axle | kg | 12900 | ||
| 4th axle | kg | 12900 | ||
| Power | Engine model | D10.38-50 | ||
| Engine rated power/rpm | kW/(r/min) | 276/2000 | ||
| Max. net power/rpm | kW/(r/min) | 274/2000 | ||
| Engine rated torque/rpm | N.m/(r/min) | 1560/1200-1500 | ||
| Travel | Max. travel speed | km/h | ≥90 | |
| Min. travel speed | km/h | 2.5~3 | ||
| Min. turning diameter | m | ≤24 | ||
| Min. turning diameter at boom tip | m | ≤29 | ||
| Min. ground clearance | mm | 314 | ||
| Approach angle | ° | 20 | ||
| Departure angle | ° | 15 | ||
| Braking distance (at 30 km/h ) | m | ≤10 | ||
| Max. grade ability | % | 45 | ||
| Fuel consumption per 100 km | L | 40 | ||
| Main performance | Max. total rated lifting capacity | t | 70 | |
| Min. rated working radius | m | 3 | ||
| Turning radius at turntable tail | Counterweight | mm | 4115 | |
| Auxiliary winch | mm | 4180 | ||
| Max. load moment | Base boom | kN.m | 2176 | |
| Fully-extended boom | kN.m | 1394 | ||
| Fully-extended boom + Jib | kN.m | 875 | ||
| Outrigger span | Longitudinal | m | 6.3 | |
| Lateral | m | 7.9 | ||
| Hoist height | Base boom | m | 12.7 | |
| Fully-extended boom | m | 47 | ||
| Fully-extended boom + Jib | m | 62.5 | ||
| Boom length | Base boom | m | 12 | |
| Fully-extended boom | m | 46.5 | ||
| Fully-extended boom + Jib | m | 62.5 | ||
Details
