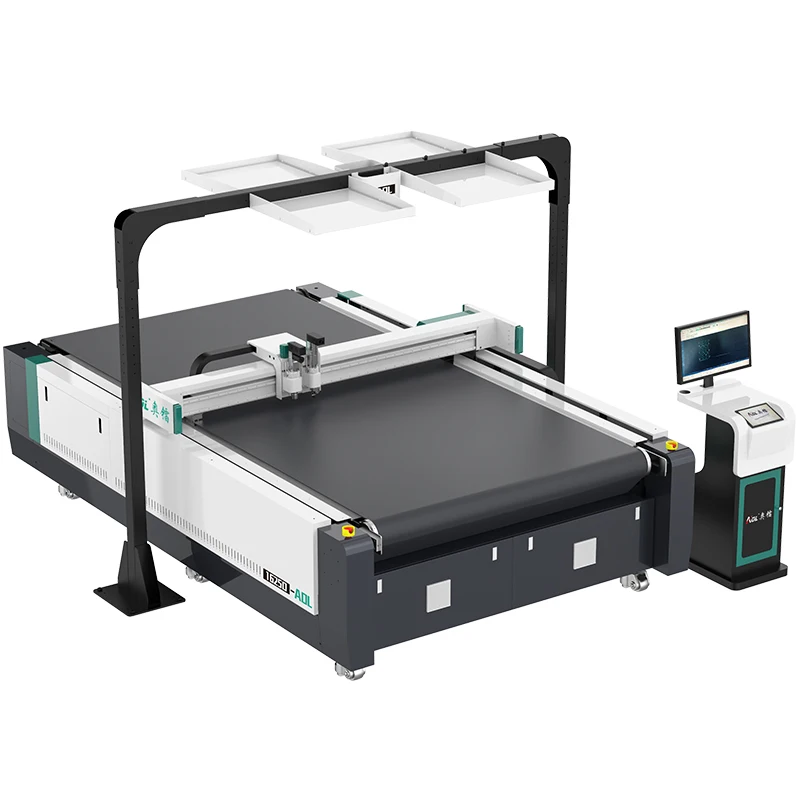

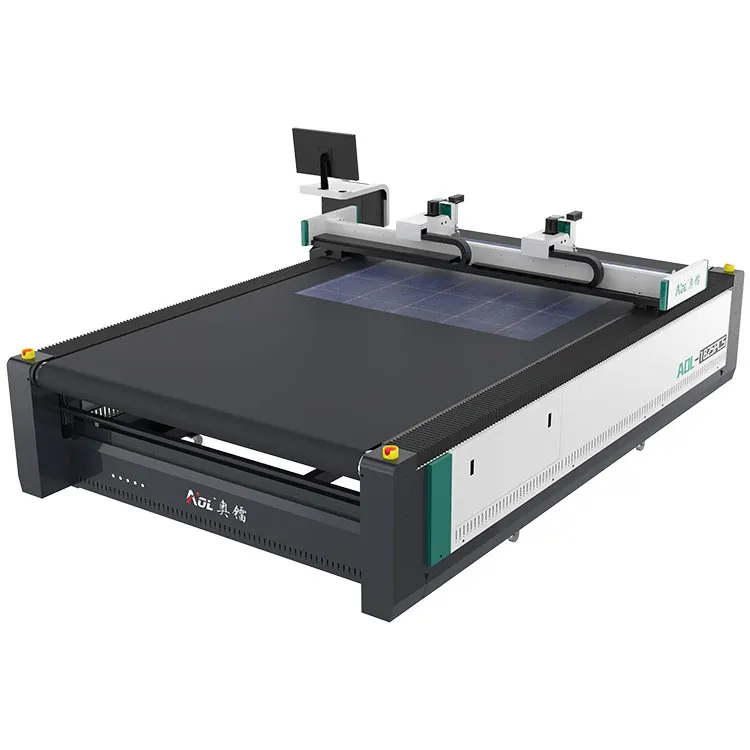

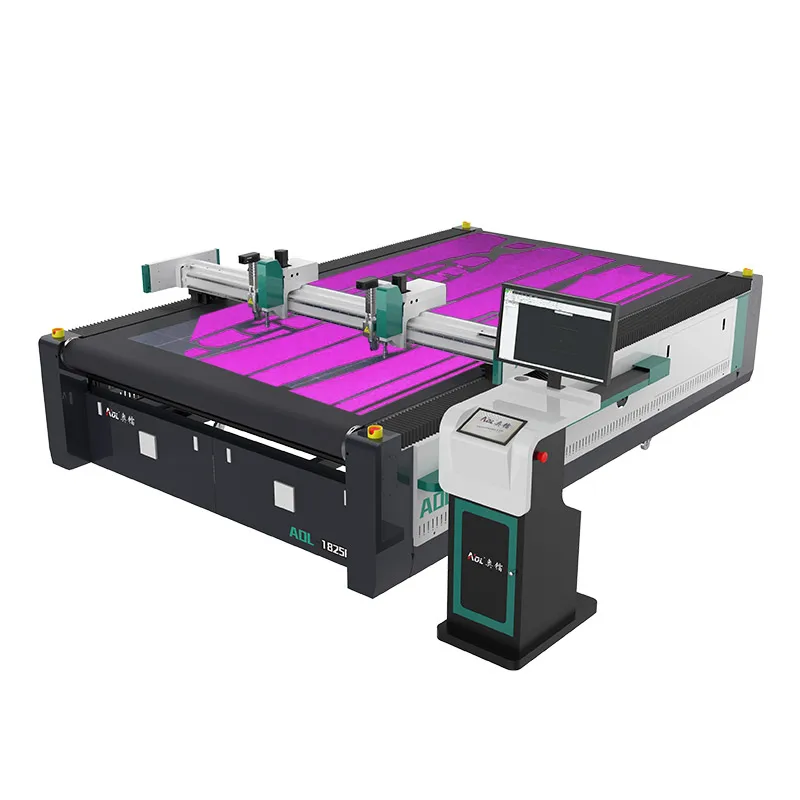

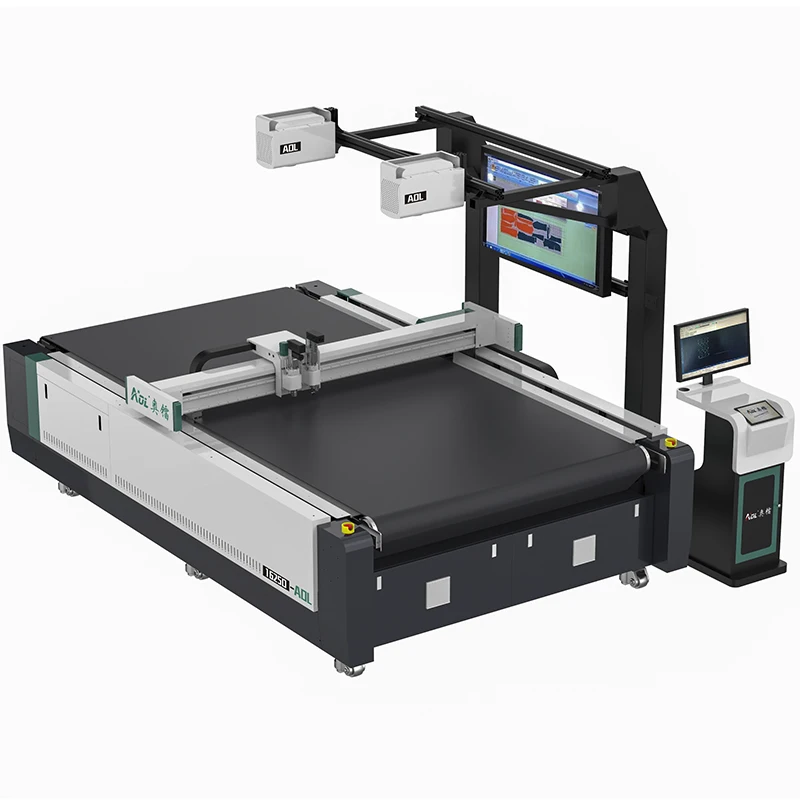

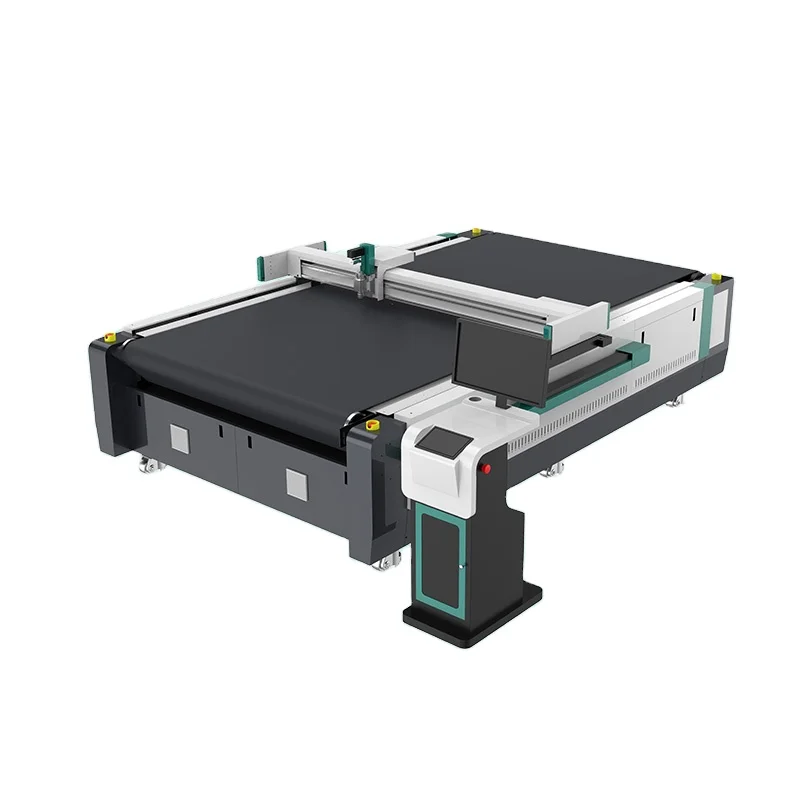

China AOL oscillating tool leather cut plotter



What is CNC oscillating knife cutter?



CNC Oscillating Knife Cutter is a type of CNC cutting machine which is used for high-precision cutting of heavier flexible and semi-rigid materials.



CNC oscillating knife cutting machine is carried on the multi-tool cutting head–Vibration knife, Oblique knife, Circular knife, Punching knife, Milling knife,

Punch roller and Marking pen. CCD camera and Projector are optional for more precise cutting.



CNC Oscillating Knife Cutter is also called CNC Oscillating Knife Cutting Machine, Oscillating Knife Cutting Machine. CNC Oscillating Knife Cutter is used for

cutting Leather, Gasket, PP, PE, EVA, PTFE, ETFE, Carpet, Carton, Wood, MDF, PVC, Acrylic, Carboard, Rubber, Corrugated box, Foam, Leather strip, Composites,

Cardboard, Corrugated board, Honeycomb paper, Plastic film, Fiber paper, Plastic box, Rebound rubber, Rubber cloth, etc.



CNC Oscillating Knife Cutter is widely used in Sign and Graphics, Digital Printing, Packaging, Automotive, Recreational boat, Exhibits and Fixtures, Sign Making,

Gasket Materials, Arts and Crafts and other industries.



Product pramater:



parameters /model	AOL-1625-ZS6	AOL-1825-ZS6
Effective working area	1600x2500mm	1800x2500mm
Multi-function tool	Vibrating knife full cut, semi-cut cutting, indentation, drawing mark, cursor positioning, camera positioning edge cutting, V-groove various angle cutting
safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to material
Applicable materials	Various KT boards, Chevron boards, honeycomb boards, car stickers, adhesives, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, etc.
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Yaskawa servo motor, linear linear guide, timing belt, lead screw
rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI,PLT,DXF,CDRetc







Factory photos:



Why Choose CNC Oscillating Knife Cutter?



1.High speed with high quality, its cutting speed is 5-8 times faster than laser cutting machine.

2. Advanced computerized CNC system, which is easy to operate with Ethernet port.

3. The cutting without air pollution, no burnt edge, uniform in color.

4. Oscillating knife cutting machine can cut soft materials with perfect edges and corner.

5. Oscillating knife cutting machine adopts Japan YASKAWA servo motor and drive,fast cutting speed with high precision.

6. Oscillating knife cutting machine can be equipped with different tools to meet a variety of needs.

7. Special safety sensing device meets the European standard.
