Stainless steel corn cake making machine
US $1150-$1385
Ультразвуковая машина для резки крема торта нож замороженных
- Категория: Cake machine >>>
- Поставщик: Zhangzhou,Wanli,Machinery,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 29750.48 $* | 31238.36 $* |
| Aug-15-2025 | 29500.53 $* | 30975.6 $* |
| Jul-15-2025 | 24750.68 $* | 25988.16 $* |
| Jun-15-2025 | 29000.53 $* | 30450.54 $* |
| May-15-2025 | 25250.42 $* | 26513.2 $* |
| Apr-15-2025 | 28500.82 $* | 29925.13 $* |
| Mar-15-2025 | 28250.36 $* | 29663.37 $* |
| Feb-15-2025 | 28000.24 $* | 29400.75 $* |
| Jan-15-2025 | 27750.28 $* | 29138.76 $* |
Характеристики
Product Overview
The device has two cutting modes: cut rectangle and slice mode.
Working speed and angle parameters are adjustable.
Applications
1. Bread cutting
2. Cut the cake
3. Cheese cutting
4. Dough cut
5. Cookie cutter
6. Gummy nougat cutting
7. Pizza cheese and butter
8. Cut frozen meat and aquatic products
9. Plant fiber, nut cutting
2. Cut the cake
3. Cheese cutting
4. Dough cut
5. Cookie cutter
6. Gummy nougat cutting
7. Pizza cheese and butter
8. Cut frozen meat and aquatic products
9. Plant fiber, nut cutting
Other products feel free to contact us>>
FEATURES AT A GLANCE
· STAINLESS STEEL FRAME
· SECURITY DOOR
· INTERFACE TOUCH SCREEN CONTROL
· ONLINE MAINTENANCE SUPPORT
· VERSATILITY ON FOOD
· EXTENDING BELT UNDERCARRIAGE
· TITANIUM ALLOY ULTRASONIC KNIFE
· SECURITY DOOR
· INTERFACE TOUCH SCREEN CONTROL
· ONLINE MAINTENANCE SUPPORT
· VERSATILITY ON FOOD
· EXTENDING BELT UNDERCARRIAGE
Crossing Knife
Slitting Knife
Final Product
PRODUCT SPECIFICATIONS
Model | Wanlisp4-300K900L3500 |
Dimensions | L3000*W1400*H1550mm |
Weight | Net Wt. 500KGS, Gross Wt.600KGS |
Voltage | 220V |
Rated power | 5000W |
Frequency | 50Hz-60Hz |
Cutting speed | Cross cutting 60 cuts/minute, slitting 30 cuts/minutes |
Number of blades | 2-5 (optional) |
Blade materials | Titanium Alloy |
Blade size | 100-305mm(optional) |
Cut type | Square, rectangular, slices |
Maximum cutting size | 750mmx600mm, height up to 100mm |
Material of machine frame | Stainless Steel |
Automatic belt convey | Yes |
Convey speed | 0-3000mm |
Safety protection system | Security door, frequency ultrasonic scan and fault indicator lamp |
Control System | Five-axis Control System |
Cutting knife control system | Servo motor |
Certification | CE |
Advantages
1. Ultrasonic cutting reduces friction, fine incision, no chip, no deformation, smooth and beautiful section.2. Dimensional
accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.
accuracy: plus or minus 1mm.
3. Can be used as a stand-alone machine or embedded solution.
4. Fast and precise because of unique servo technology.
5. Advanced software to set product parameters using icons on the touch screen.
6. A high quality safety system prevents access of the cutting area during operation.
7. After the setting is completed, a key start, automatic cutting.
8. Automatically chase ultrasonic drive power, real-time tracking of ultrasonic cutting knife frequency, to ensure that the
ultrasonic cutter work in a stable state, suitable for long hours of continuous work.

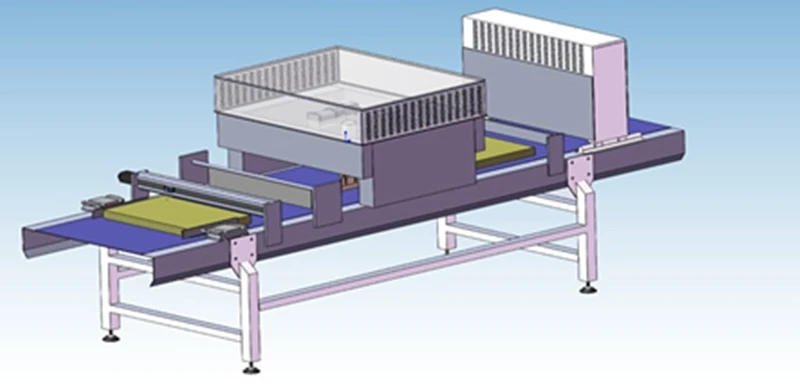

Cutting Schematic Model
Rectangular and square cutting mode
Slice mode
PRODUCT CONFIGURATION
Brand Ultrasonic Transducer
Brand Ultrasonic Generator

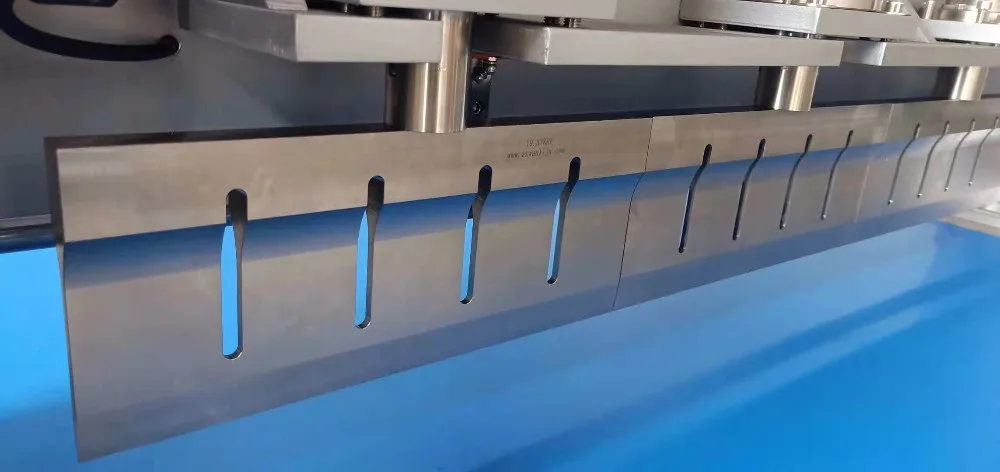

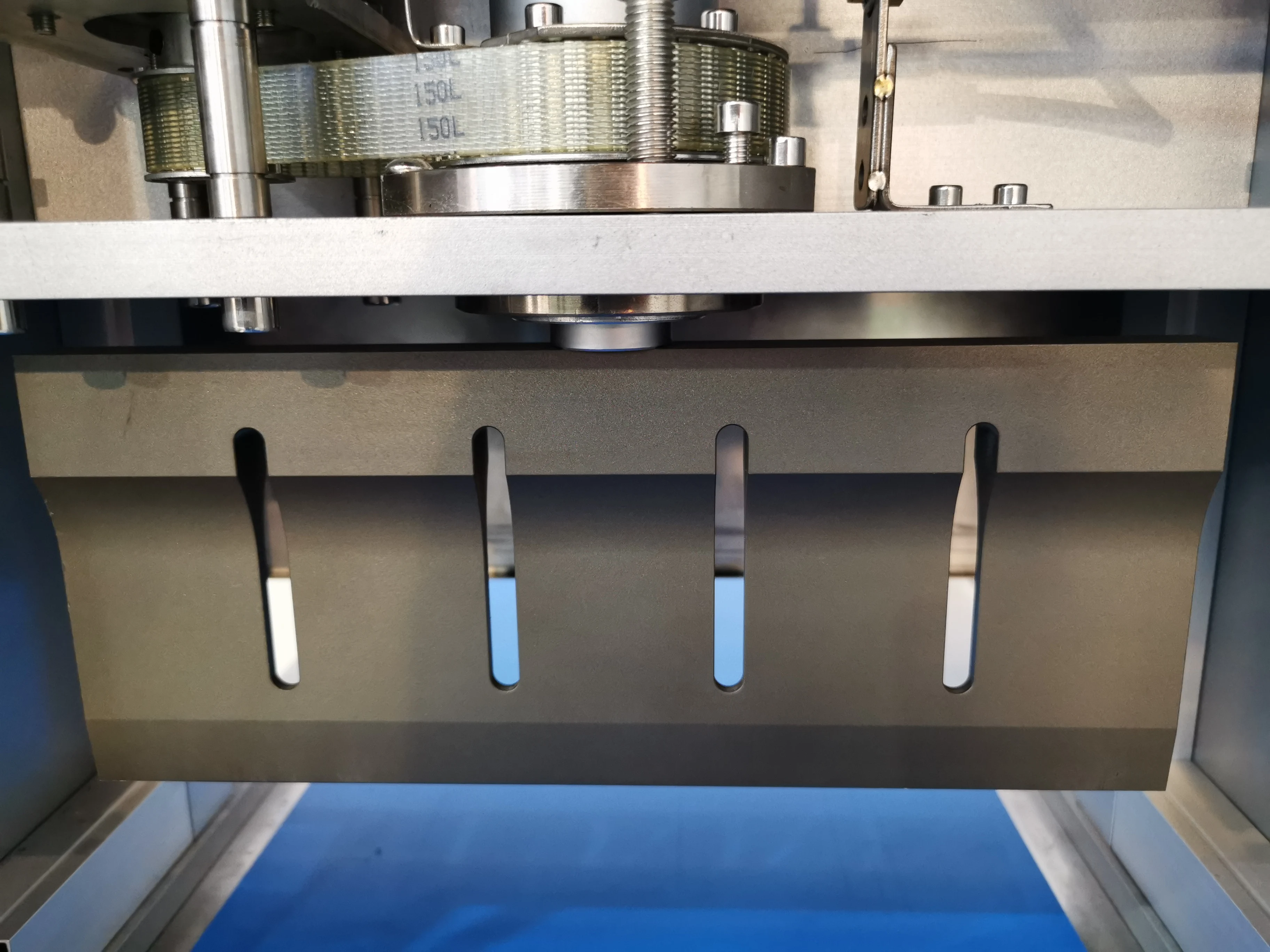

Titanium Alloy Blade
Benefits
1. Pleasing cut and form stability, win the hearts of consumers.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
2. Save material cost, automatic mechanical control structure to achieve less waste and large output.
3. Save labor costs.Fully automatic operation, one person can operate many machines at the same time.
4. Responding to market consumer needs, food hygiene.
5. Easy washing and maintenance, Reduction in maintenance and down times.
Certification
Package & Delivery
SALES AND SERVICE NETWORK
Our Customers
About our factory
ZHANGZHOU WANLI MACHINERY CO.,LTD.
Zhangzhou Wanli Machinery Co., Ltd., , located in Dongyuan Industrial Park Zone, Zhangzhou city, Fujian Province. Zhangzhou Wanli Machinery Trade Co., Ltd. is the Foreign Trade Department and wholly-owned subsidiary of our factory. And we are also a company of integrating R&D, production, sales, and service. We are specializing in the research and manufacturing of high-tech food machinery, which provide a new mode of production for food companies. For example, ultrasonic food cutting machine, this equipment can cut various shapes for food, such as frozen food, sticky food, volatile food, easy moldy food, and tough food(such as sandwich cake bread, box cake, sliced bread, Swiss roll cake, date cake, etc.). Ultrasonic cutters have the following characteristics, they do not stick to the knife during operation; they do not deform the food, and the cut surface is very neat (such as cakes, soft breads, and other easily deformable foods). It could also be controlled by CNC, and could have high output in the production line cutting.
Our company strictly follows the principle of "Quality First, Reputation First", upholding the tenet of "winning by quality, gaining honor by honesty." With good reputation, high-end product quality, and excellent service, we keep our products lasting. Our products have been recognized and supported by domestic and foreign distributors, and exported to Europe and the United States, Europe, the Middle East, Southeast Asia, Oceania and other countries and regions.
We will provide you with first-class products and services with the constant pursuit of perfect quality and the spirit of excellence. Sincere cooperation with new and old customers sincerely creates brilliant! Welcome all guests to visit us!
Our company strictly follows the principle of "Quality First, Reputation First", upholding the tenet of "winning by quality, gaining honor by honesty." With good reputation, high-end product quality, and excellent service, we keep our products lasting. Our products have been recognized and supported by domestic and foreign distributors, and exported to Europe and the United States, Europe, the Middle East, Southeast Asia, Oceania and other countries and regions.
We will provide you with first-class products and services with the constant pursuit of perfect quality and the spirit of excellence. Sincere cooperation with new and old customers sincerely creates brilliant! Welcome all guests to visit us!
Exhibition
FAQ
Q: What is your MOQ ?
A: We accept any quantity as your need.
Q: What should i do before ordering?
A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.
Q: How long is the production lead time?
A: It costs 15 to 30 days for different models of the machine you chose. If your orders are urgent, we will make it faster as your need.
Q: What’s the warranty of your products?
A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.
Q: What is your payment term?
A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.
Q: What should i do before ordering?
A: Before ordering, we need confirm the drawings and price, and confirm the material you chose, then you can start to order. If you need our designer to check the site, we can discuss too.
Q: How long is the production lead time?
A: It costs 15 to 30 days for different models of the machine you chose. If your orders are urgent, we will make it faster as your need.
Q: What’s the warranty of your products?
A: We supply good quality products, all the products is under strictly quality inspection.Provide Free Maintenance Within One Year.Damage Caused by Human Factors such as due to the Buyer Shall be Borne by the Buyer all Repair Costs; After the Warranty Period, The Seller provides Paid Maintenance Services for Life.
Q: What is your payment term?
A: Our normal payment term is TT 30% deposit after contract signed and 70% before delivery. We also accept LC at sight.
Q: Do you have the installation service?
A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.
A: If needed, We will send our engineer to install the machine for the first-time freely, but customers have to bear hotels and accommodation. For the next time maintain the machine, customers have to bear the air ticket also.
