BIOBASE Вертикальная замораживающая сушилка для испытания на сушку лабораторных биомедицинских
- Категория: Freeze Drying Equipment >>>
- Поставщик: Biobase,Meihua,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.93 $* | 0.77 $* |
| Aug-18-2025 | 0.67 $* | 0.45 $* |
| Jul-18-2025 | 0.67 $* | 0.5 $* |
| Jun-18-2025 | 0.72 $* | 0.77 $* |
| May-18-2025 | 0.60 $* | 0.53 $* |
| Apr-18-2025 | 0.58 $* | 0.3 $* |
| Mar-18-2025 | 0.93 $* | 0.20 $* |
| Feb-18-2025 | 0.98 $* | 0.12 $* |
| Jan-18-2025 | 0.76 $* | 0.30 $* |
Характеристики

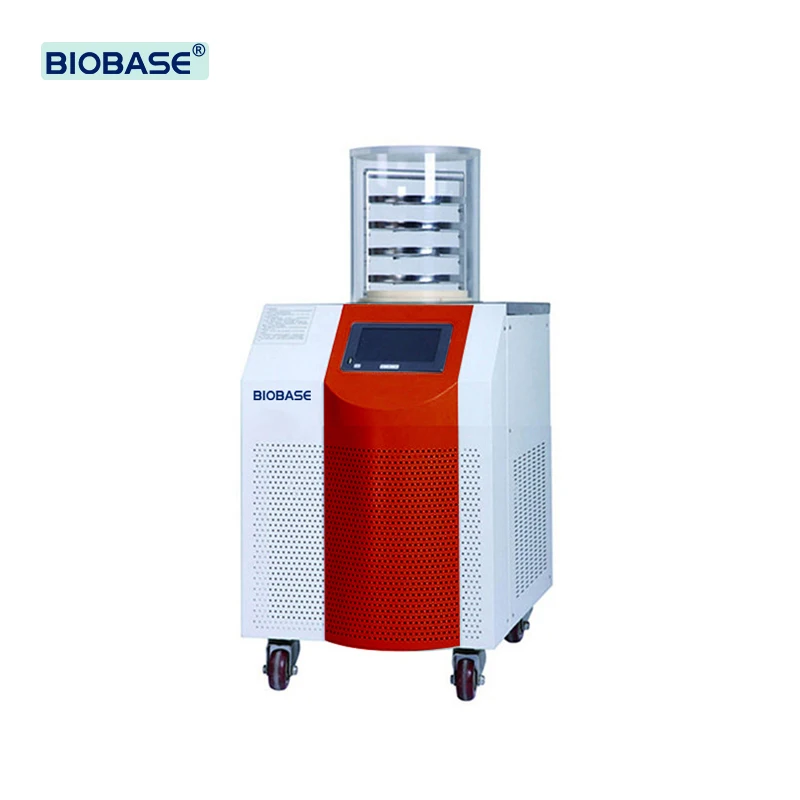

Vertical Freeze Dryer
BK-FD12S(-56/-80)
Product Introduction
Specification
Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |||||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||||
Tray | 4 pcs | 3 pcs | |||||||||
Height Between Trays | 50mm | 68mm | |||||||||
Cold Trap Temperature | ≤-60℃/-80℃ | ||||||||||
Cold Trap Capacity | 9.5L | ||||||||||
Cold Trap Size (Dr*H) | Φ215*260mm | ||||||||||
Vacuum Degree | <10 Pa | ||||||||||
Water Capture Capacity | 4kg/24h | ||||||||||
Tray Size (D*H) | Φ200*20mm | ||||||||||
Freeze Drying Time | 24h | ||||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||||

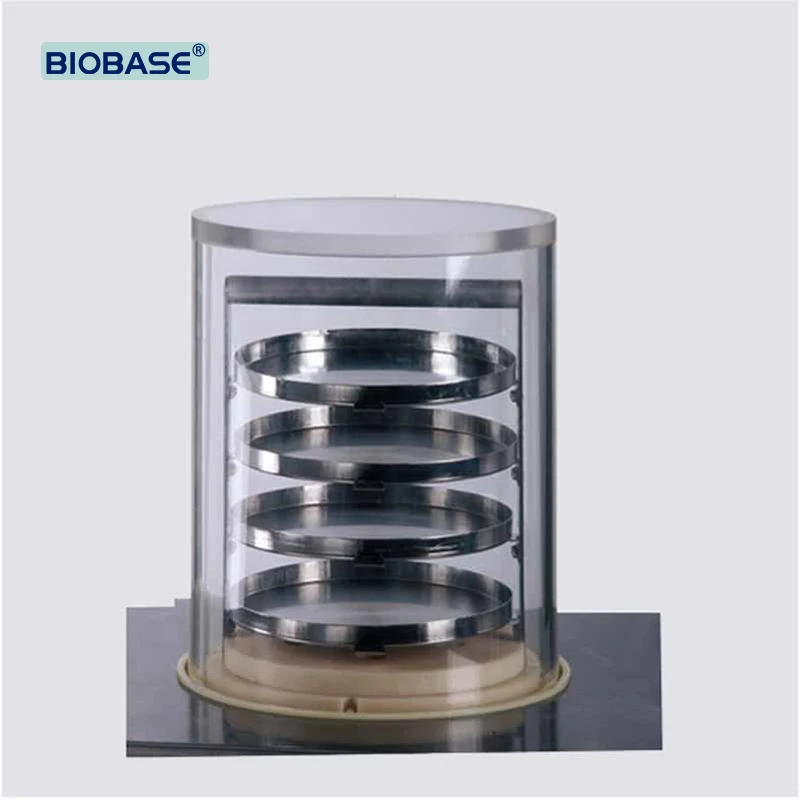

Drying Chamber Size (D*H) | Φ260*310mm | Φ260*450mm | Φ260*450mm | ||||||||
Can Load Vials Qty | Φ22mm | 260 | 195 | ||||||||
Φ16mm | 480 | 360 | |||||||||
Φ12mm | 920 | 690 | |||||||||
Refrigerant | R600a+R290+R23 | ||||||||||
Cooling System | Air cooling | ||||||||||
Consumption | -60℃: 0.9kW,-80℃: 1.5kW | ||||||||||
Power Supply | AC220V, 50Hz, 60Hz (single phase); 110V/220V, 60Hz (single phase, only for -60℃) | ||||||||||
Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT) | ||||||||||
Optional Function & Accessory | Tray heating (for all models), Cold trap defrosting (for all models), Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), Import vacuum pump | ||||||||||
External Size (W*D*H) | 460*620*920/1370mm | ||||||||||
Package Size (W*D*H)mm/ Gross Weight | Main Body | 590*710*1170/90kg | 590*710*1170/90kg | ||||||||
Drying Chamber | 340*340*460/12kg | 390*390*670/12kg | |||||||||
Vacuum Pump | 590*380*220/22kg | 590*380*220/22kg | |||||||||
Company Profile
Related Products
Packing & Delivery
Customer feedback
FAQ
1.what can you buy from us?
Laboratory Equipment (Biological Safety Cabinet,Fume Hood,Laminar Flow Cabinet,Autoclave,Freezer and Refrigerator)2. what services
can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
3.How about delivery time?
10-15days after webreceive prepayment.
4. how can we guarantee quality?
Always a pre-production sample before mass production.
5.How to deal with the faulty?
AFirst, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in 1
warranty year.
Secondly, our after-sales department will periodically follow up customers.
Laboratory Equipment (Biological Safety Cabinet,Fume Hood,Laminar Flow Cabinet,Autoclave,Freezer and Refrigerator)2. what services
can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
3.How about delivery time?
10-15days after webreceive prepayment.
4. how can we guarantee quality?
Always a pre-production sample before mass production.
5.How to deal with the faulty?
AFirst, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in 1
warranty year.
Secondly, our after-sales department will periodically follow up customers.
