OPTO FM3D0325S 3D камера для увеличительной печатной платы
- Категория: >>>
- Поставщик: Guilin,FT-Opto,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 966.98 $* | 1014.22 $* |
| Aug-16-2025 | 958.84 $* | 1006.56 $* |
| Jul-16-2025 | 804.18 $* | 844.70 $* |
| Jun-16-2025 | 942.50 $* | 989.14 $* |
| May-16-2025 | 820.62 $* | 861.0 $* |
| Apr-16-2025 | 926.96 $* | 972.90 $* |
| Mar-16-2025 | 918.69 $* | 964.58 $* |
| Feb-16-2025 | 909.83 $* | 954.51 $* |
| Jan-16-2025 | 901.71 $* | 946.16 $* |
Характеристики

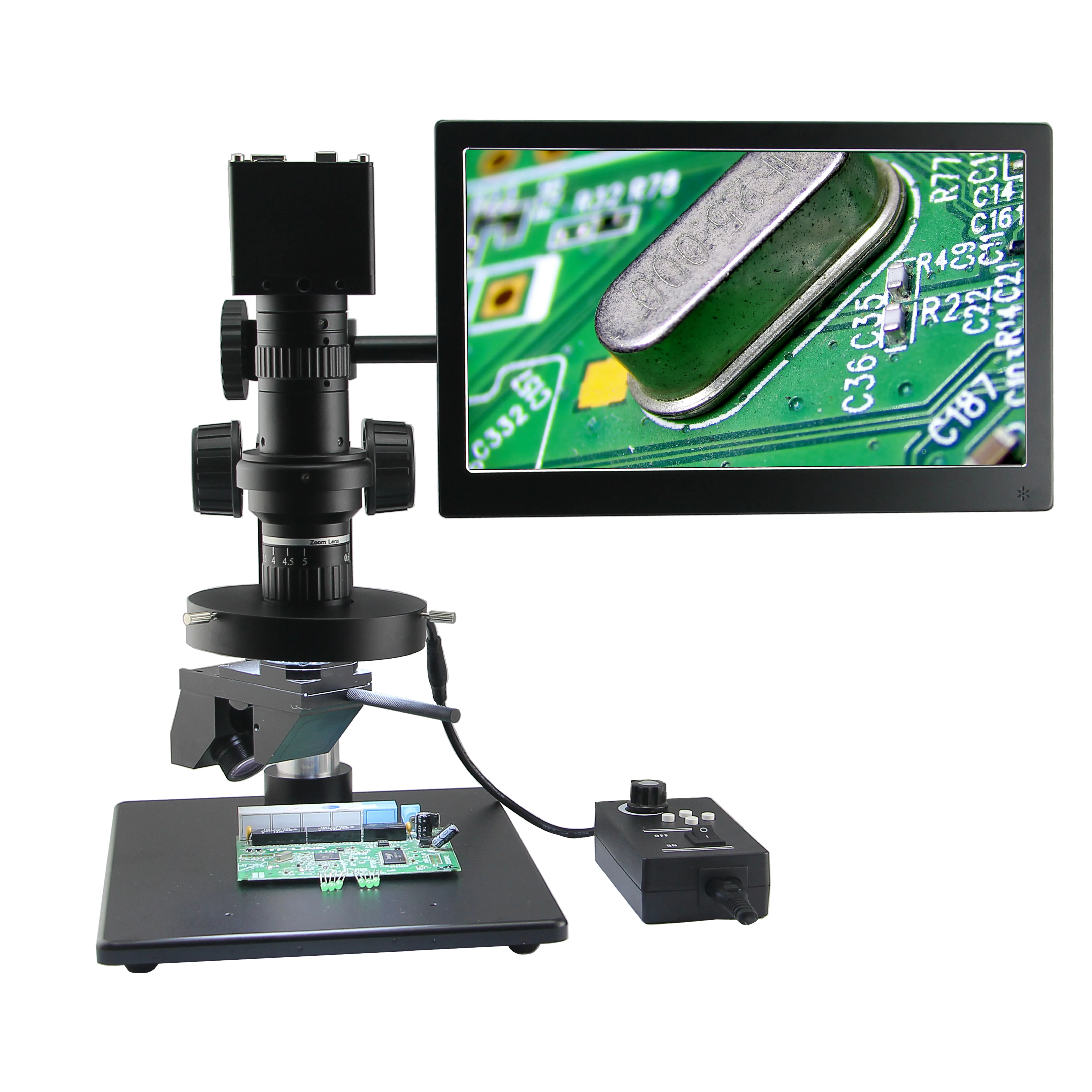

FM3D0325S Stereo Microscope

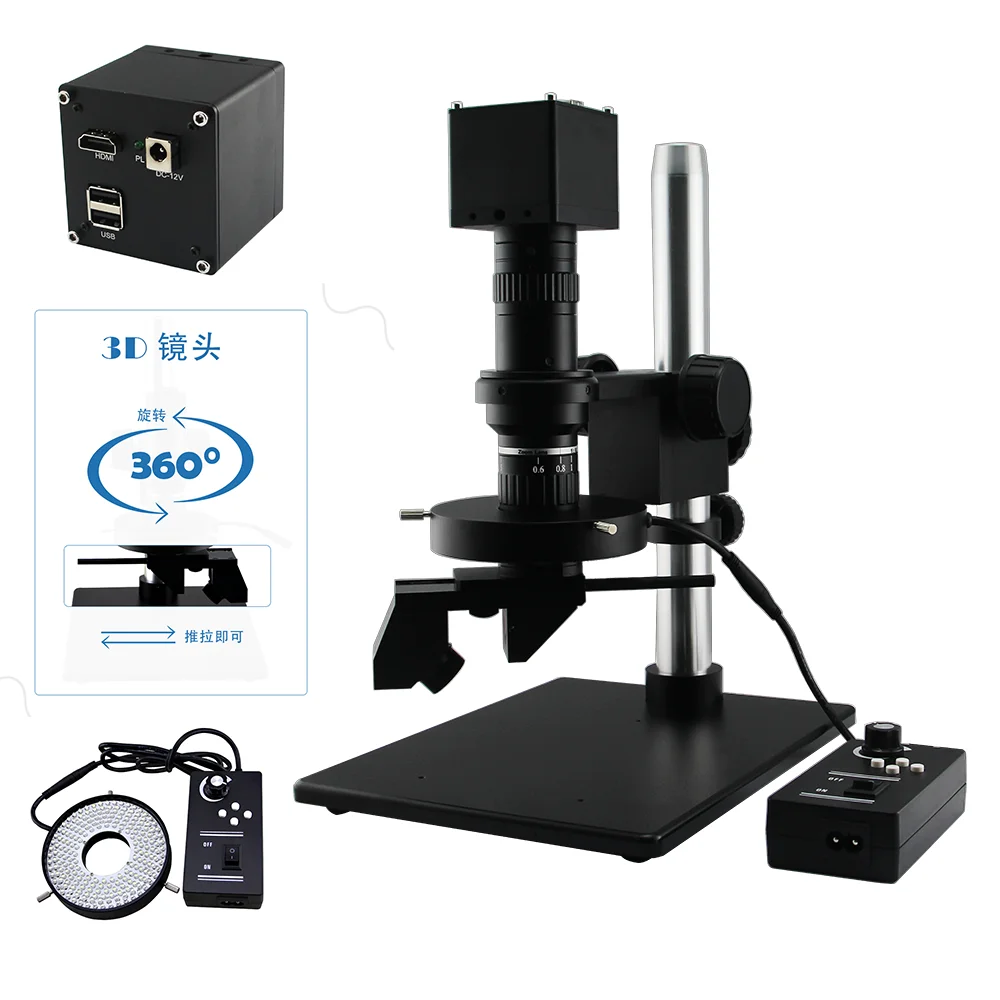

360° Rotation

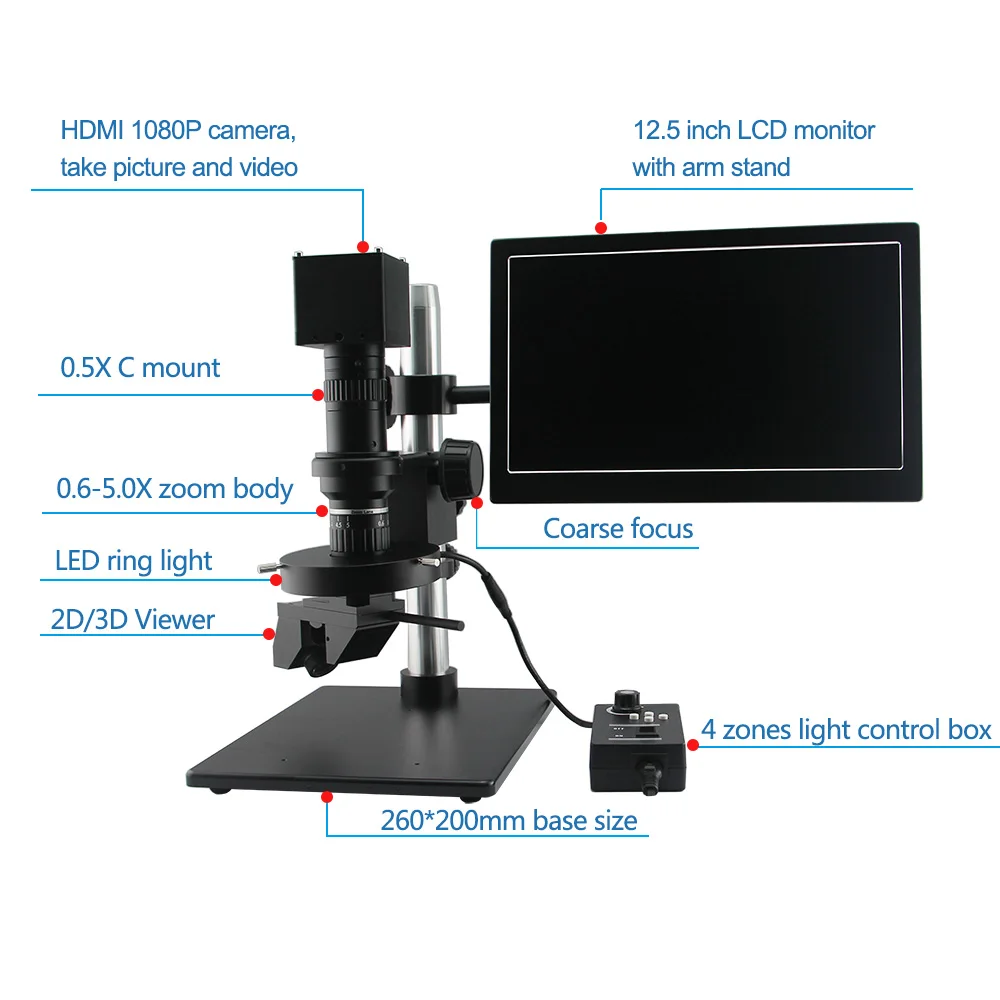

Every Parts Details:
HDMI 1080P Camera
Parameter
Model | FM3D0325S | ||
Optical magnification | 0.6-5.0X with 0.5X C mount | ||
Total magnification | 15-130X base on 12.5 inch LCD monitor | ||
Working distance | 86mm | ||
Ratio | 1:8.3 | ||
FOV | 16*12-1.9*1.4mm | ||
Lens mount | Standard C mount | ||
2D /3D two modes observation | |||
3D 360 °rotation，45 °objective viewing angle | |||
Working distance and center position always maintain same when switch 2D and 3D observation | |||
Sensor | 1/3” | ||
Resolution | 1920 x 1080 | ||
Memory | Take photo and video to U disk | ||
Output | HDMI | ||
Size | 12.5” | ||
Resolution | 1920*1080 | ||
Light control | 4 zones control,0-100% bright adjustable | ||
Light color | White color | ||
Quantity of LED | 208pcs LED | ||
Intensity | 15000Lux | ||
Output voltage | 8-10W | ||
Working distance | 35-110mm | ||
Diameter | Inner diameter 40mm, outer diameter 106mm, height 19mm | ||
Stand parameter | Focus | Coarse focus | |
Base size | 260*200mm | ||
Height | 318mm | ||

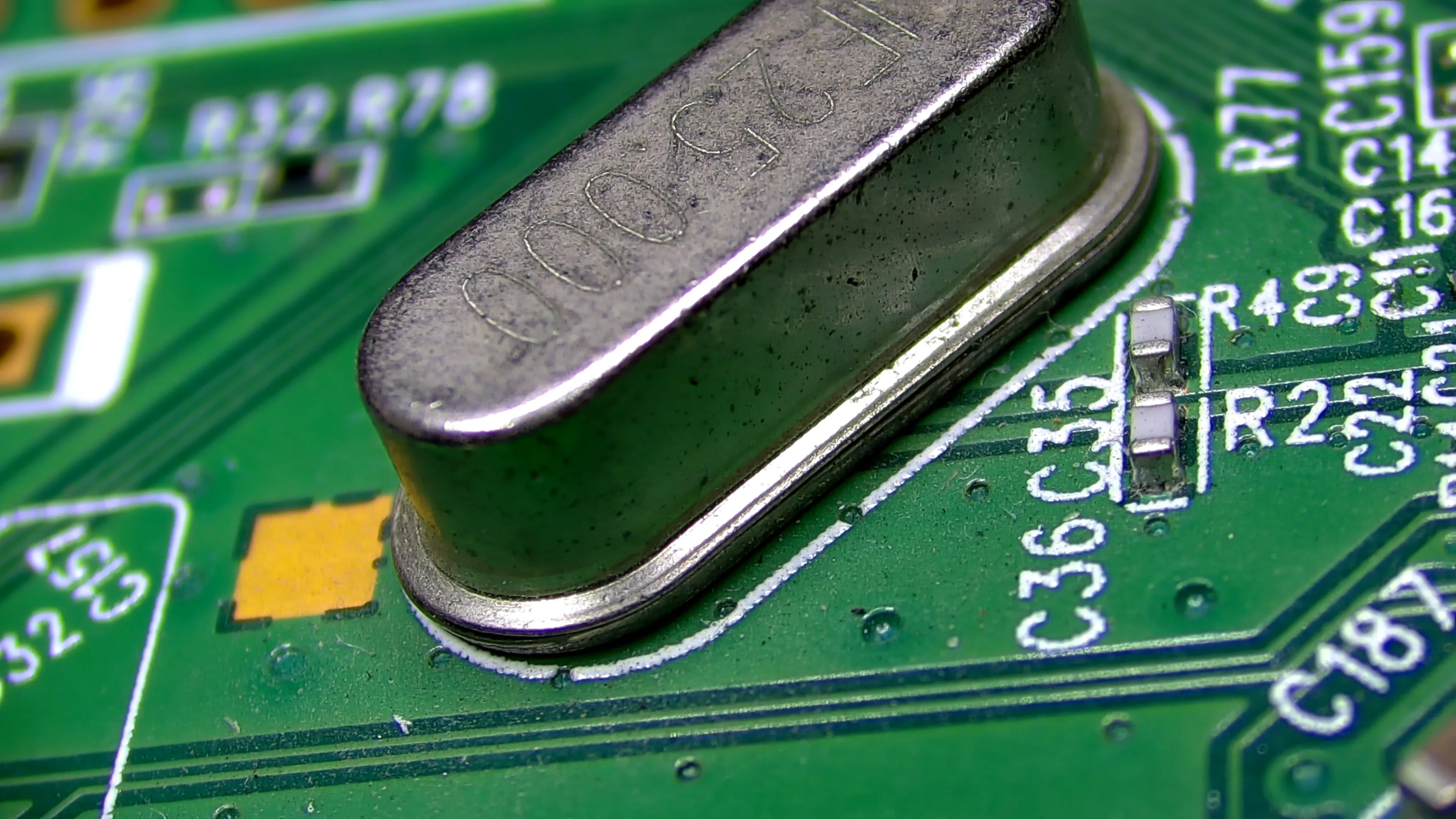

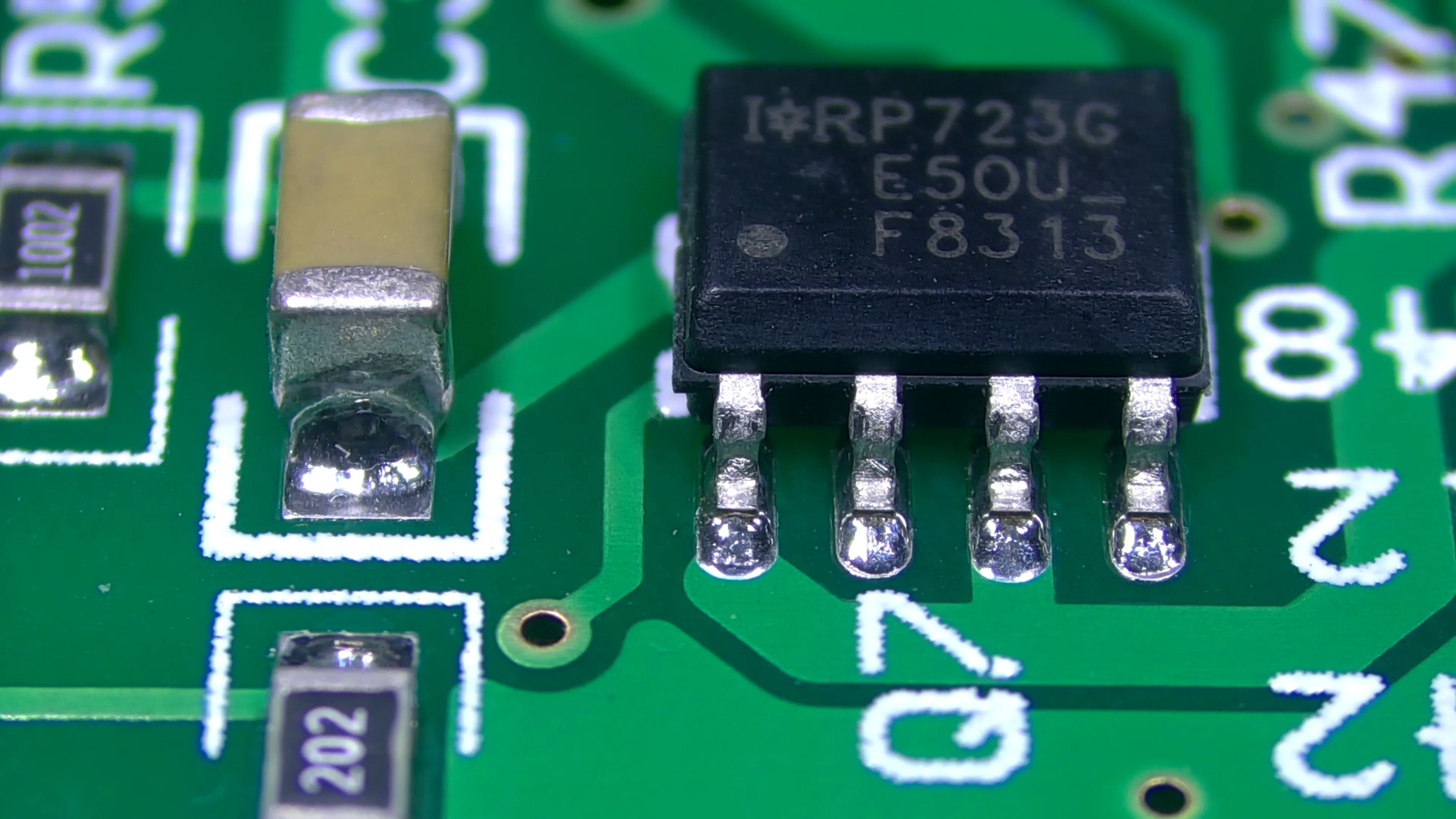

Which Areas can be used and its Acture Effect.
Exhibition
Company Profile
Guilin Ft-Opto Co.,Ltd was founder in 2009 By Mr.Li Pei Who is an expert and the leader of Optical Microscope.
Clean and tidy workshop/Professional design/Exact working attitude
Choose us you are wise,we give you our warm welcome to come and visit our factory.We are the best.
