Тепловые прицелы охотничий инфракрасный прицел военный тепловизор на большие расстояния монокуляр
- Категория: Scopes & Accessories >>>
- Поставщик: Wuhan,Guide,Sensmart,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 2894.27 $* | 2952.63 $* |
| Jul-17-2025 | 2347.58 $* | 2394.97 $* |
| Jun-17-2025 | 2849.68 $* | 2906.67 $* |
| May-17-2025 | 2826.68 $* | 2883.54 $* |
| Apr-17-2025 | 2256.39 $* | 2301.9 $* |
| Mar-17-2025 | 2780.98 $* | 2836.54 $* |
| Feb-17-2025 | 2758.18 $* | 2813.6 $* |
| Jan-17-2025 | 2735.88 $* | 2790.34 $* |
Характеристики
Products Description
Thermal riflescopes hunting infrared riflescope long distance military thermal monocular thermal imaging monocular finder

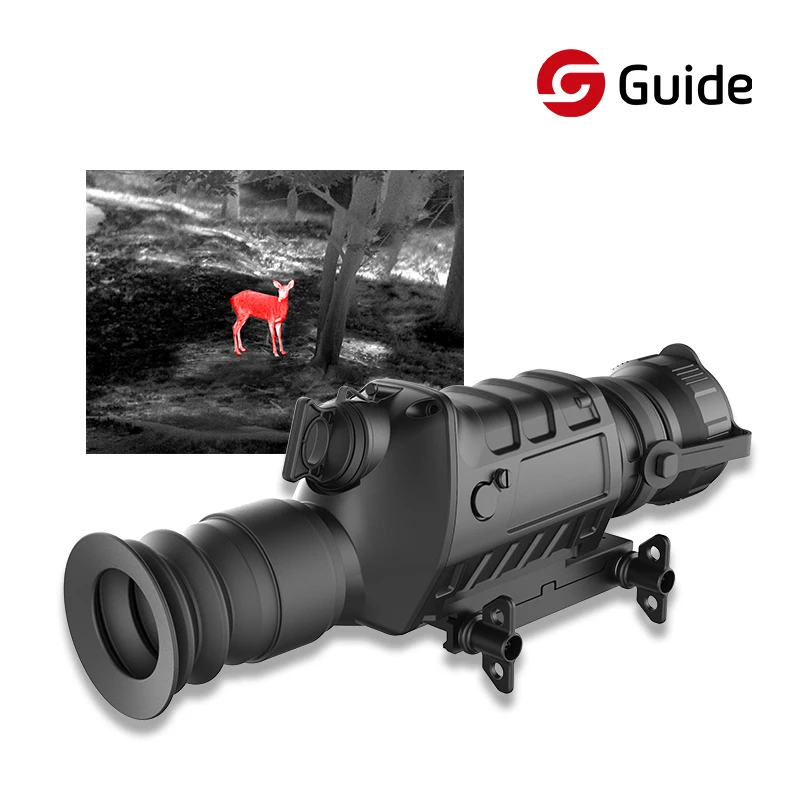

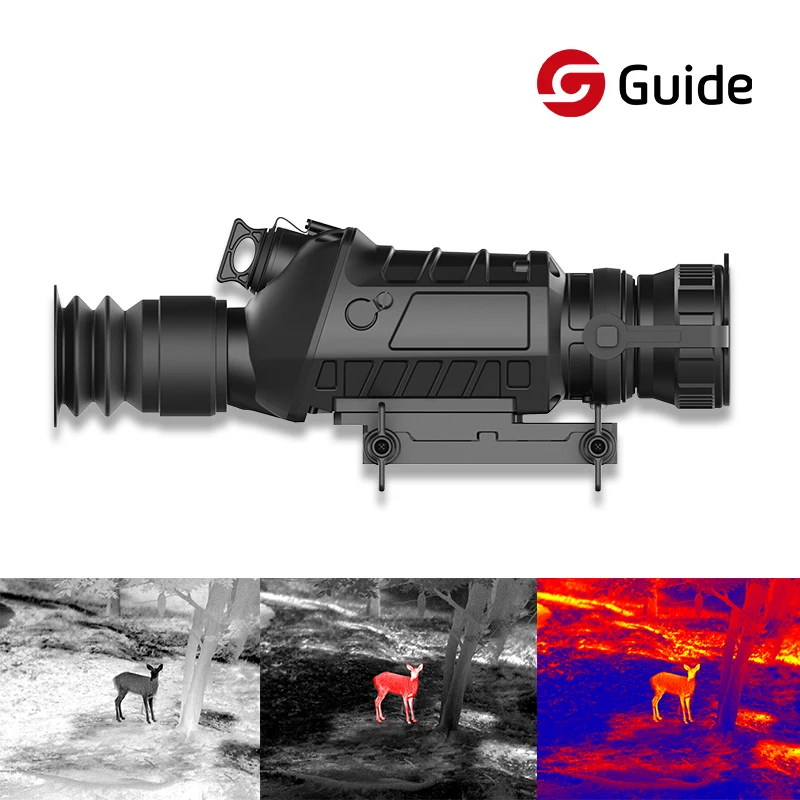

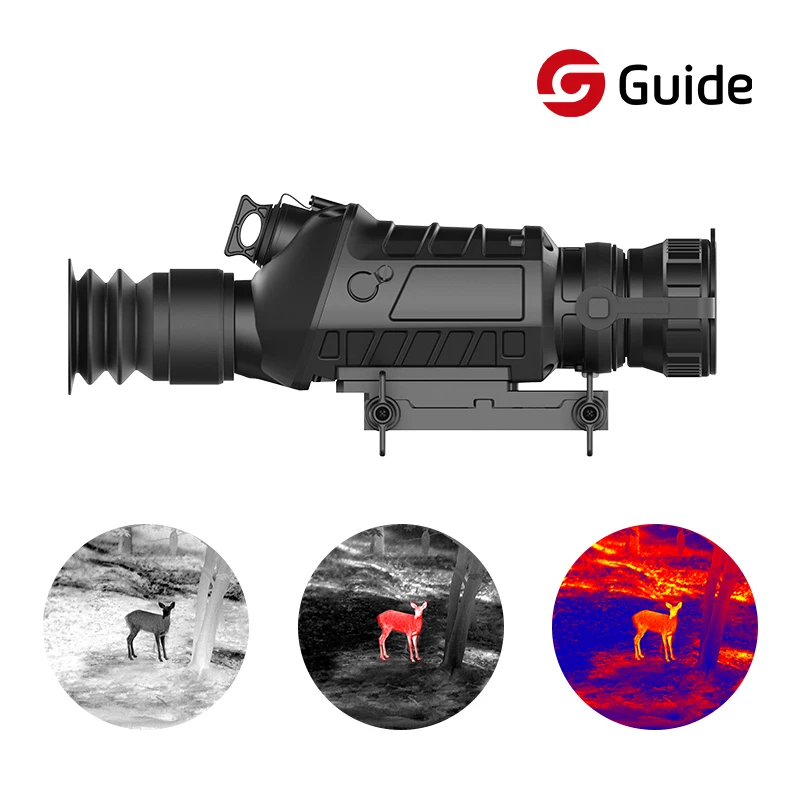

Guide TS425 TS435 TS450 Series is an economical civilian infrared thermal imaging riflescope that includes 25mm/35mm/50mm objective lenses. With 400x300 pixel TEC metal-encapsulated thermal detector, it can detect longer range and capture vivid images of higher clarity. TS thermal riflescope also features with compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in any harsh weather.
Main Features of Thermal riflescopes hunting infrared riflescope long distance military thermal monocular thermal imaging monocular finder
Ergonomic design,easy operation
· Single hand-operation with a roller button
· Battery-mount user-friendly design, both side can be mounted, change battery easily in darkness.
High Quality Image
· Excellent imaging performance, with 17μm@400x300 TEC metal-encapsulated thermal detector for longer detection range and crisper images.
· 50Hz high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation.
· 1024x768 resolution AMOLED eyepieces, colorful and detailed images
Adaptable
· Zoom-in on the center of the reticle, and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy.
· The mil of the reticle can be zoomed in with the image, no conversion required, avoid errors.
· With multi-user customized settings, parameter information of an array of reticles can be saved to match different rifles.
Thermal riflescopes hunting infrared riflescope long distance military thermal monocular thermal imaging monocular finder
· Single hand-operation with a roller button
· Battery-mount user-friendly design, both side can be mounted, change battery easily in darkness.
High Quality Image
· Excellent imaging performance, with 17μm@400x300 TEC metal-encapsulated thermal detector for longer detection range and crisper images.
· 50Hz high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation.
· 1024x768 resolution AMOLED eyepieces, colorful and detailed images
Adaptable
· Zoom-in on the center of the reticle, and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy.
· The mil of the reticle can be zoomed in with the image, no conversion required, avoid errors.
· With multi-user customized settings, parameter information of an array of reticles can be saved to match different rifles.
Thermal riflescopes hunting infrared riflescope long distance military thermal monocular thermal imaging monocular finder
Product Paramenters
Model | TS425 | TS435 | TS450 | |||
Detector | ||||||
Detector Type | 400×300 @17μm, VOx | |||||
Spectral | 8μm～14μm | |||||
NETD | ≤50mk | |||||
Lens | ||||||
Focal Length | 25mm F1.1 | 35mm F1.2 | 50mm F1.2 | |||
Focusing | Manual Focus | |||||
FOV | 14.9°×11.2° | 10.7°×8.0° | 7.5°×5.6° | |||
Display | ||||||
Display | Color 0.39-inch OLED Display, 1024×768 | |||||
Eyepiece | Exit pupil distance 48mm, eyepiece magnification 14× | |||||
Magnification | 1.6~6.4× | 2.3~9.2× | 3.3~13.2× | |||
Video Output System | PAL 50Hz | |||||
External Video Display | Full color video output by external interface, with menu | |||||
Imaging | ||||||
Frame Rate | 50Hz | |||||
Digital Zoom | 2×,4× | |||||
Color Palettes | White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot | |||||
Picture-in-picture | On/off，the position is adjustable | |||||
Functions | ||||||
hotspot tracking | Yes | |||||
Compensation Modes | Auto Compensation / Shutter Compensation / Scene Compensation | |||||
Calibration | 25m/50m/100m | |||||
Stadiametric rangefinder | 1.8m/0.5m/0.25m | |||||
Gun Types Selection | 6 Types | |||||
Power Supply | ||||||
Battery Type | Interchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device | |||||
Battery Operating Time | ≥3H（Standard low temp battery，Observation status only） | |||||
≥5H（Panasonic 3400mah standard 18650 battery，Observation status only） | ||||||
Interface | ||||||
Video Interface | Lemo | |||||
Environmental Characteristics | ||||||
Operating Temperature | -40°C-50°C | |||||
Shock | 500G/1ms | |||||
Encapsulation | IP67 | |||||
Certificate | RoHS，CE | |||||
Weight & Dimensions | ||||||
Weight（excl battery） | 660g | 660g | 720g | |||
Dimensions | 230mm×90mm×75mm | 230mm×90mm×75mm | 250mm×90mm×75mm | |||
Package Contents | ||||||
Standard | Lens cap,battery,Charger,Video cable, Pick-up gun rack,Hard transport case,User Manual | |||||
Detection Range | ||||||
Human：1.8m×0.5m | 700m | 1000m | 1400m | |||
Vehicle：2.3m×2.3m | 1700m | 2400m | 3000m | |||
Recognition Range | ||||||
Human：1.8m×0.5m | 350m | 500m | 700m | |||
Vehicle：2.3m×2.3m | 700m | 1000m | 1400m | |||
Company Profile
Wuhan Guide Sensmart Tech Co., Ltd.
Guide Sensmart is the subsidiary of Guide Infrared (SZ.002414), the world leading infrared thermal imaging systems
manufacturer.Thanks to our group company’s 20 years experience in the infrared industry and mass production capacity, Guide Sensamrt designs and delivers high quality, affordable thermal imaging products across the globe at scale quantity, with the mission to make thermal imaging benefit everyone in the daily work and life.
Thanks to the advantage of low cost and mass production brought by Guide’s self-developed IR detectors, Guide Sensmart developed a wide range of infrared thermal imaging products with an annual production capacity of 500,000 units, including industrial thermal cameras, IR fever warning systems, thermal imaging scopes, thermal binoculars and more.
Guide Sensamrt has always adhered to the innovation on thermal imaging technology. So far, the company has over 216 patents, and is honored to be the High-tech Enterprise supported by the state. In the overseas market, Guide Sensmart has developed over 300 long-term partners and established sales and service network in more than 70 countries and regions around the world.
manufacturer.Thanks to our group company’s 20 years experience in the infrared industry and mass production capacity, Guide Sensamrt designs and delivers high quality, affordable thermal imaging products across the globe at scale quantity, with the mission to make thermal imaging benefit everyone in the daily work and life.
Thanks to the advantage of low cost and mass production brought by Guide’s self-developed IR detectors, Guide Sensmart developed a wide range of infrared thermal imaging products with an annual production capacity of 500,000 units, including industrial thermal cameras, IR fever warning systems, thermal imaging scopes, thermal binoculars and more.
Guide Sensamrt has always adhered to the innovation on thermal imaging technology. So far, the company has over 216 patents, and is honored to be the High-tech Enterprise supported by the state. In the overseas market, Guide Sensmart has developed over 300 long-term partners and established sales and service network in more than 70 countries and regions around the world.
Why Choose Us
Professional
We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years' experience in infrared thermal
imaging industry.
imaging industry.
Market Share
NO. 3 market share in the globle commercial infrared thermal imaging products markets.
Reliable
Guide's self-developed infrared cores and complete chain of infrared thermal products realize mass production capacity in short
leadtime.
leadtime.
Best Servie
We are committed to providing the customers with a quick, efficient, professional and high-quality after-sales service. Most of
our products provide the 1+1 years warranty policy.
our products provide the 1+1 years warranty policy.
Verified Supplier
Guide Sensmart is officially verified by alibaba.com
Trade Assurance
Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.

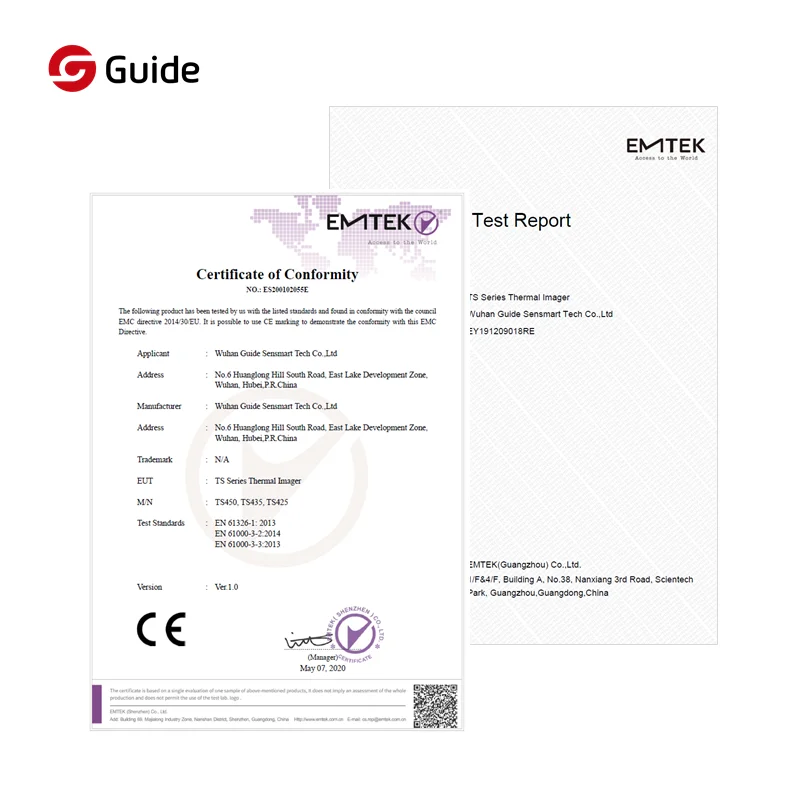

Certifications
