Q202 2 кнопки кран поворотный междугородного сообщения концевой выключатель встроенным промышленным Радио пульт дистанционного
- Категория: Remote Control >>>
- Поставщик: Nanjing,Xiading,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 71.27 $* | 75.59 $* |
| Aug-16-2025 | 71.35 $* | 75.66 $* |
| Jul-16-2025 | 59.78 $* | 62.90 $* |
| Jun-16-2025 | 70.81 $* | 74.30 $* |
| May-16-2025 | 61.72 $* | 64.45 $* |
| Apr-16-2025 | 68.65 $* | 71.38 $* |
| Mar-16-2025 | 68.61 $* | 71.22 $* |
| Feb-16-2025 | 67.20 $* | 70.83 $* |
| Jan-16-2025 | 67.49 $* | 70.15 $* |
Характеристики
Product description

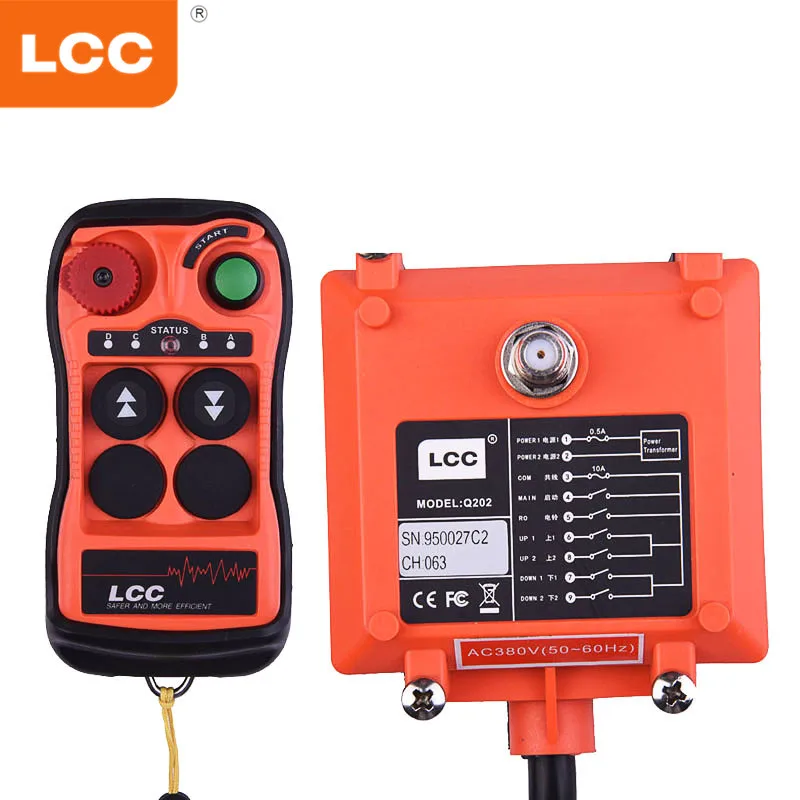

Q202 waterproof electric remote control system switch for hoist
| TECHNICAL PARAMETERS OF BUTTON Q SERIES | |||||||||||||
| Type | Q200 | Q202 | Q400 | Q404 | Q600 | Q602 | Q606 | Q800 | Q808 | Q1000 | Q1010 | Q1200 | Q1212 |
| Transmitter Function | 2 single -speed buttons | 2 double -speed buttons | 4 single -speed buttons | 4 double -speed buttons | 6 single -speed buttons | 2 double 4 single
| 6 double -speed buttons | 8 single -speed buttons | 8 double -speed buttons | 10 single -speed buttons | 10 double -speed buttons | 12 single -speed buttons | 12 double -speed buttons |
| Transmitter Dimensions | 14.5x7.5x3.8cm | 19x7.2x3.9cm | 23.9x7.2x3.9cm | ||||||||||
| Transmitter Weight | 240g | 300g | 360g | ||||||||||
| Transmitter Antenna | Inside | ||||||||||||
| Receiver Antenna | Inside / optional external antenna | ||||||||||||
Start | Press the start button | ||||||||||||
Emergency | Mushroom conforms to EN3849-1 standard | ||||||||||||
Housing | Reinforced nylon plastic | ||||||||||||
IP class | IP65 | ||||||||||||
Distance | ≥ 100 meters / can be customized 300 meters / 500 meters | ||||||||||||
Frequency | 433/480MHZ | ||||||||||||
Temperature | -35°C— +75°C | ||||||||||||
Button life | ≥2,000,000 times | ||||||||||||
| Power supply | 2 pieces battery (1.5V) | ||||||||||||
| Continuous working time | 400 hours (at room temperature) | ||||||||||||
| Automatic shutdown | no shutdown / software can be set for 15 minutes, 30 minutes | ||||||||||||
Button Text | Arrow/English/Chinese/Others | ||||||||||||
| Receiver Output | Relay 5A@250v | ||||||||||||
| Receiver Voltage | AC/DC 24-48V , AC/DC 110-480V | ||||||||||||
Transmitter parameter:
| Frequency | 433/480(MHZ) |
| Weight | 380g |
| Temperature range | -35℃~75℃ |
| Average power consumption | 8mA@DC3V(mA@DC) |
| Transmitter RF power | <10(mW) |
| Command response time | <100(ms) |
| Shell material | PA6(30%GF) |
| Control method | GFSK |
| Control distance | 100m |
| Protection level | IP65 |
| power supply | LR6(AA)1.5V*2DC3V(DC) |
Frequency control | PLL |
| Stop command response time | <100(ms) |
Receiver parameter:
| Frequency | 433/480(MHZ) |
| Weight | 1700g |
| Shell material | PA6(30%GF) |
| Average power consumption | 15mA@AC220V |
| Power supply(AC/DC) | Low pressure24-48V high pressure110-460V |
| Operating temperature | -35℃~+70℃ |
| Receiving sensitivity | -112(dBm) |
| Receiving capacity | 5A@250W(A@AC) |
| Control distance | 100m |
| Frequency control | PLL |
| Distribution method | GFSK |
| Reaction time | 50-100(ms) |
| Protection level | IP65 |
The LCC brand originated from the customer's desire for more reliable industrial wireless remote control. At the beginning of the brand's establishment, the vision was to provide safer, more reliable and more efficient industrial wireless remote control system for Chinese and global customers. Today, this vision has been translated into reality by LCC engineers. Now in every corner of the world, you have the opportunity to see LCC products. LCC products are the first choice for customers in general industries such as iron and steel metallurgy, automobile manufacturing, pulp and paper making, shipbuilding, mining, tunnel construction, port seawork, oil mining and other special industries.
FAQ
FAQ
1. Q: what is your minimum order?
A: our MOQ is 1 set !
2. Q: is the product 100% assembled?
A: yes, all the products are 100% assembled.
3. Q: what certificates are approved for your product?
A: we have CE,FCC,ISO9001.
4. Q: can you customize it to my needs?
A: yes, we can customize the remote control at your request.
5. Q: is there a warranty?
A: all our branded products have a 12-month warranty period. we provide 24-hour after-sales service and technical support. if you find any problems during installation, please feel free to contact us.
6. Q: will you provide after-sales service?
A: of course.
1) all products are subject to strict factory quality inspection before packaging. .
2) all the products are packed in our factory, and the second package is delivered by express delivery before shipment.
3) if there are any problems during installation or operation, please feel free to contact us and we will solve them with professional guidance.
f21-e1b wireless remote control power switch 240v winch electric hoist overhead crane
Our Services
Our Service:
1. Any queries will be answered within 24 hours.
2. Professional manufacturer, strong R & D team support.
3.OEM / ODM available, we can customize according to customer requirements.
4. Due to transportation restrictions, the battery is not in the package. you should buy your own AA battery.
5. We are a factory from China. please don't worry about the quality and service of our products.
6. If you have any questions about products and logistics, you can email us and we will reply as soon as possible.
