Automatic Rice Grains Lentils Nuts Granule Pouch Packing Machine Vacuum 1Kg 2Kg 5 Kilo Wheat Coffee Beans Packaging Machine Pric



Brief Introduction

automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.



pack different grains or granules, such as sugar, salt, desiccant, coffee, washing powder, glucose, seeds, seasoning, pepper, beans, etc.



Features:

1. adopts the advanced PLC control system, touch screen in both Chinese and English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.

2. adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies, which has a very good effect of anti-rusting, so guarantee the products clean and sanitary, and also greatly prolong the machine's life-span.



Technical Parameters

Item	Fully automatic Vacuum Packing Machine for granules
Model	PL-420KB
Filling	measuring cups
Bag style	Back sealed bag,pillow bag
Volume/bag	200-2000g/bag
Bag size	L80-350mm, W50-200mm
Packing speed	30-50 bags/min
Control system	PLC+ touch screen
material	stainless steel
Pneumatic	0.65Mpa,0.3cbm/min
voltage	380V, 50Hz,3P/ 220V, 60Hz, 3P
Weight	G.W. 800kg
Dimension	L1320*W950*H2550 (mm)
Power	2.5KW
Film material	Paper/polyethylene; cellophane/polyethylene; Plated aluminum/polyethylene; BOPP/polyethylene; nylon/polyethylene
supplies	different grains or granules, such as sugar, salt, desiccant, coffee, washing powder, glucose, seeds, seasoning, pepper, beans, etc.
Main functions	Automatically measure, make bags, fill, seal, cut and print codes.

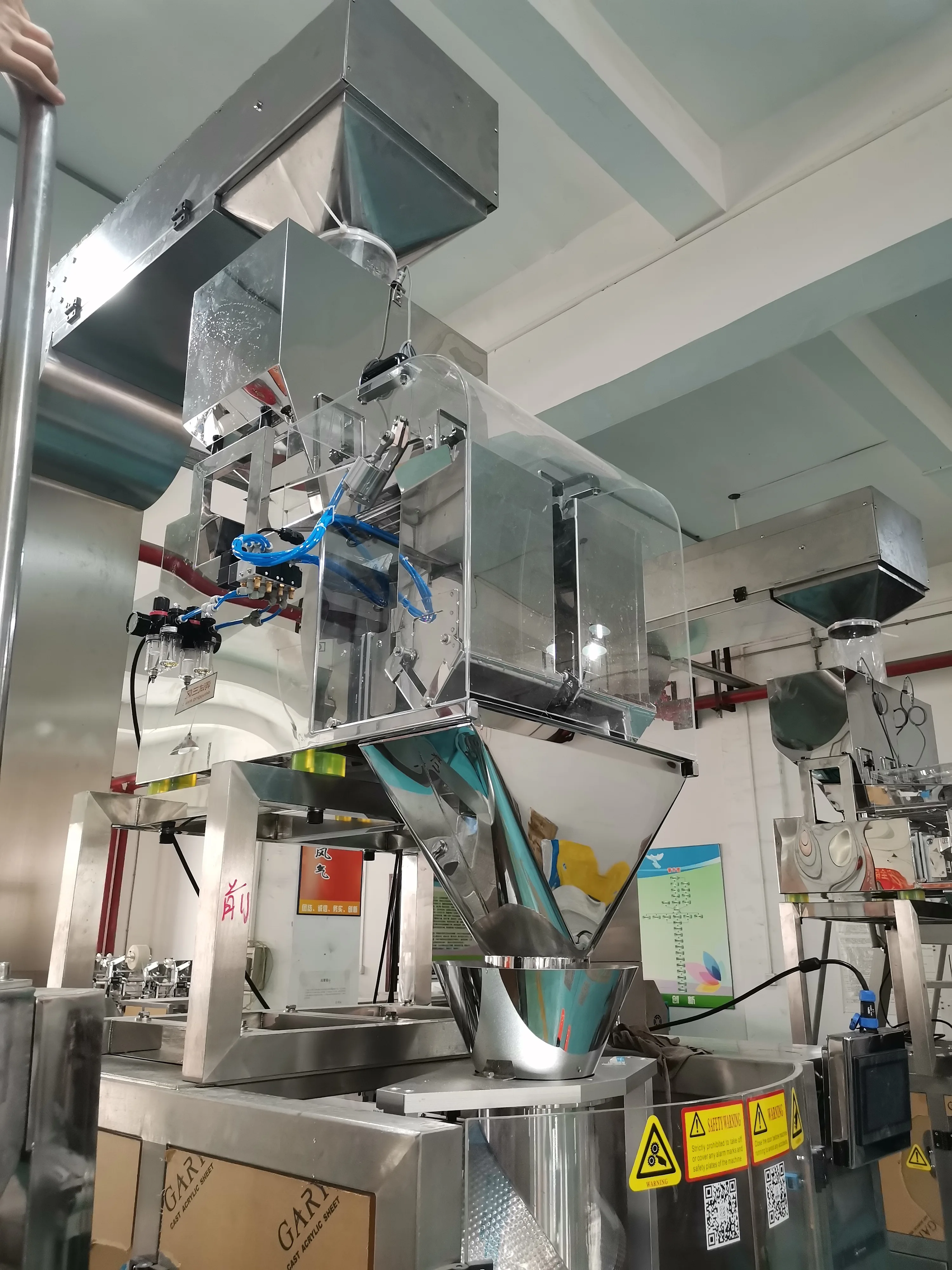

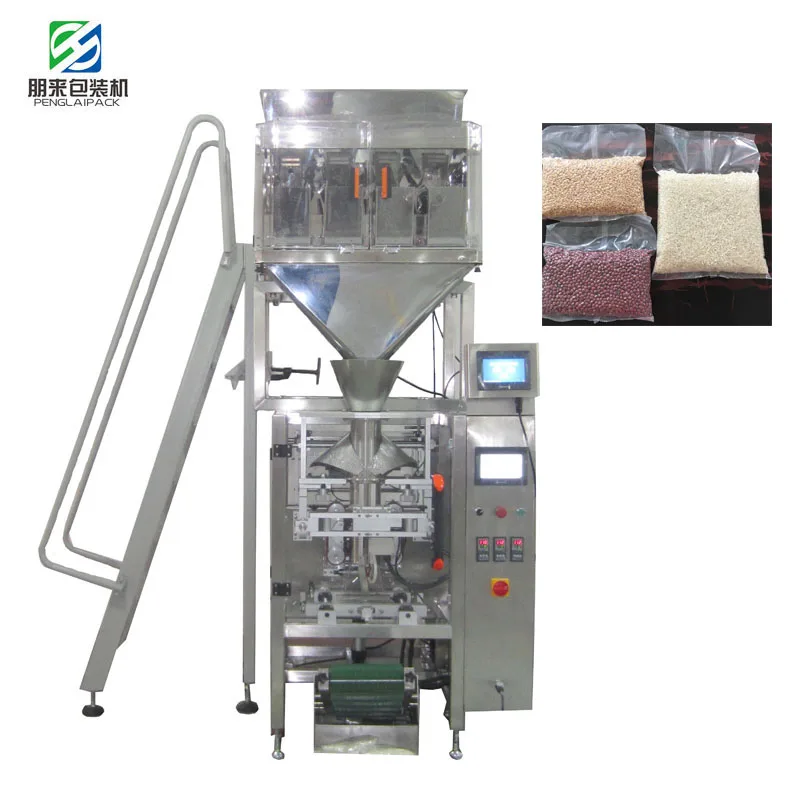

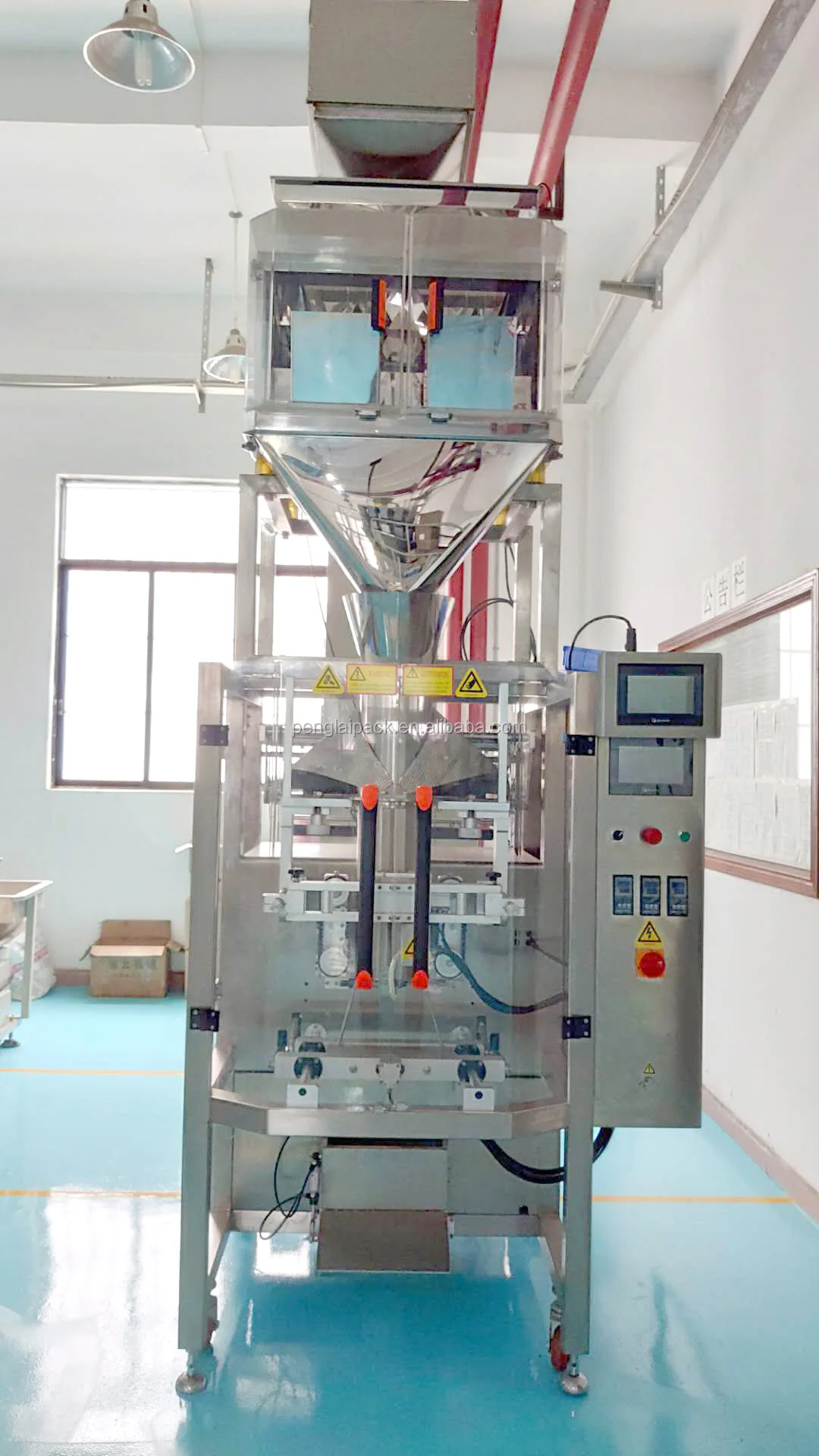

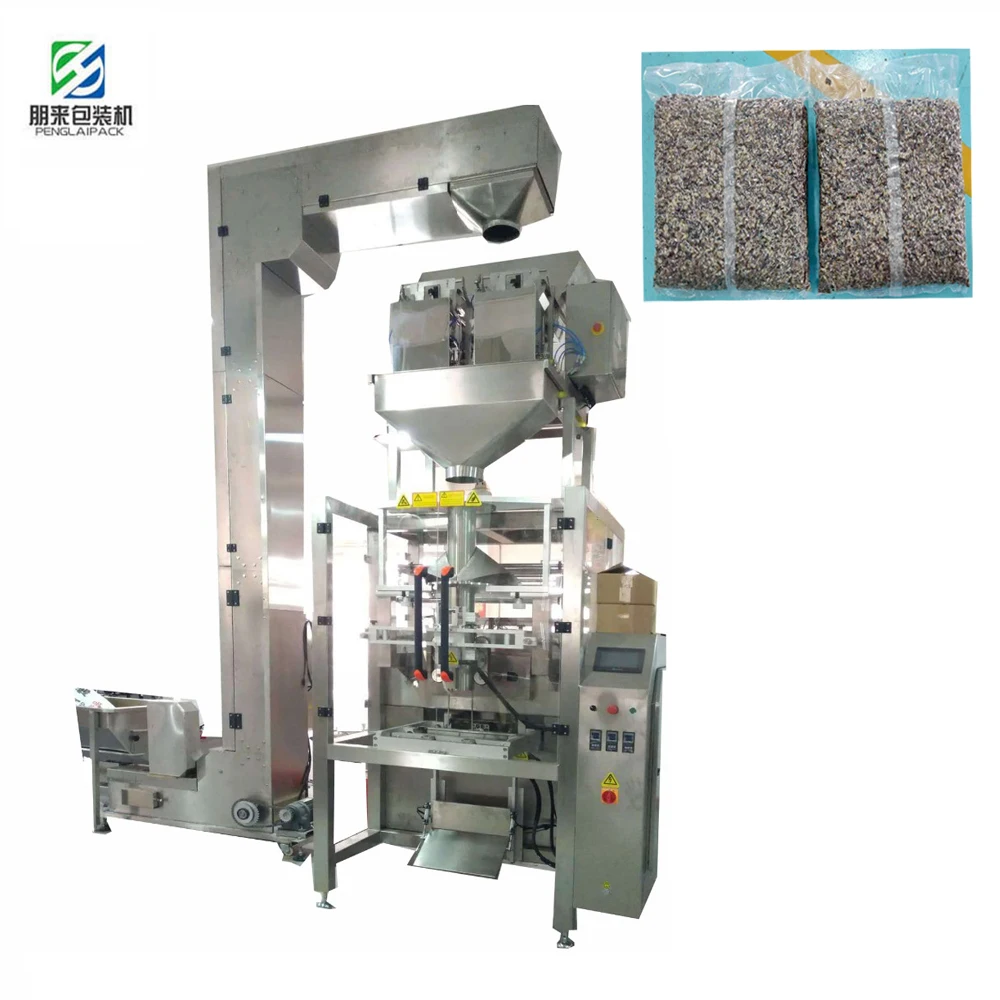

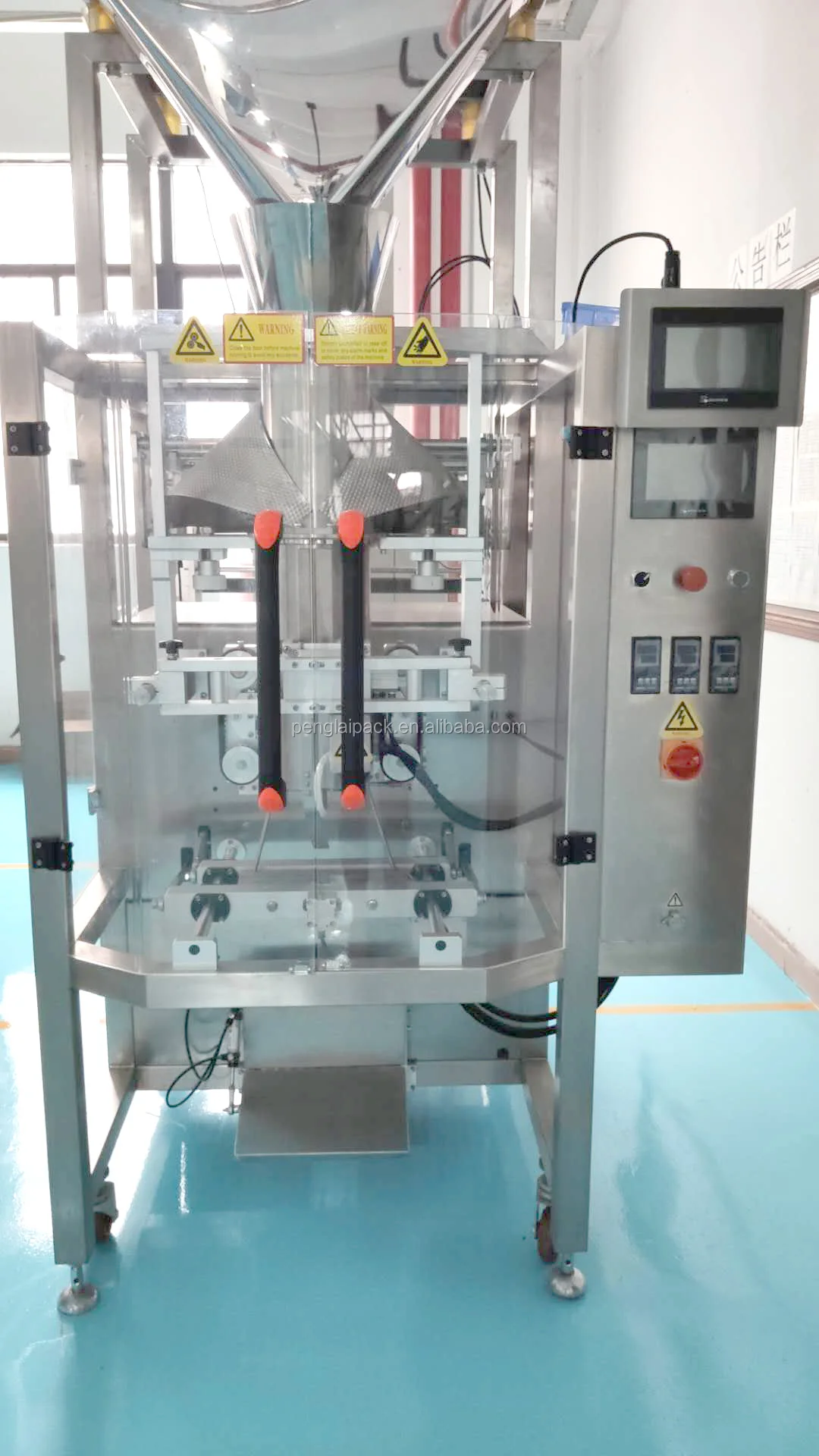

Pictures



















Packed in plywood case.   And packed in main parts seperately, totally it needs about 4CBM space for shipping.





After-sales service

a. For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.

b. We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts. We provide technical support for our machines for life-long time.

c. We can provide installation and maintenance service at your place if you need.

We, Guangzhou Penglai Packing Machinery Co.,Ltd are especially engaged in designing, R&D, manufacturing and selling various packing machines. Our main products includes:granule packing machines, liquid packing machines, powder packing machines, horizontal packing machines, counting & packing machines, filling machines, labelling machines, etc.
