Industry Laser Equipment
3000 Вт 1000 1500 2000 обменная платформа волоконно-металлическая машина для лазерной резки с

3000 Вт 1000 1500 2000 обменная платформа волоконно-металлическая машина для лазерной резки с

Категория: Industry Laser Equipment >>>
Поставщик: Jinan,Dxtech,CNC,Machine,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.52 $*	0.10 $*
Aug-19-2025	0.12 $*	0.55 $*
Jul-19-2025	0.3 $*	0.52 $*
Jun-19-2025	0.60 $*	0.32 $*
May-19-2025	0.99 $*	0.29 $*
Apr-19-2025	0.88 $*	0.19 $*
Mar-19-2025	0.9 $*	0.46 $*
Feb-19-2025	0.21 $*	0.96 $*
Jan-19-2025	0.4 $*	0.60 $*

Характеристики

Product Description

Features

This exchange platform metal fiber laser cutting machine is equipped with two worktables.Two processing platforms can realize the load and unload function at the same time, which can not only saves time for manual loading and unloading but improves production efficiency. With the characteristics of fast processing speed and high production efficiency, this machine is always popular among users.

Description	Parameter
Model	Exchange Platform Fiber Laser Cutter
Working Area	1300 x 900 mm to 2500 x 8000 mm
Laser Power	500w-12000w
Laser Wave Length	1064nm
Laser Head Brand	Raytools
Cutting Speed	1-60m/min
Max material thickness	6 mm-35 mm

Advantages

1. With automatic exchange platform, the loading time only needs 10s, which greatly shortens the working time and improves the working efficiency.
2. Manufactured with a loading roller for easy board movement, which can save manpower and improve processing efficiency.
3. Equipped with a positioning device, which can be used to roughly locate the plate in cooperation with the clamp to ensure the machining accuracy of the machine.
4. All core components are imported from international brands, which guarantees a long service life of the machine.

Detailed Image

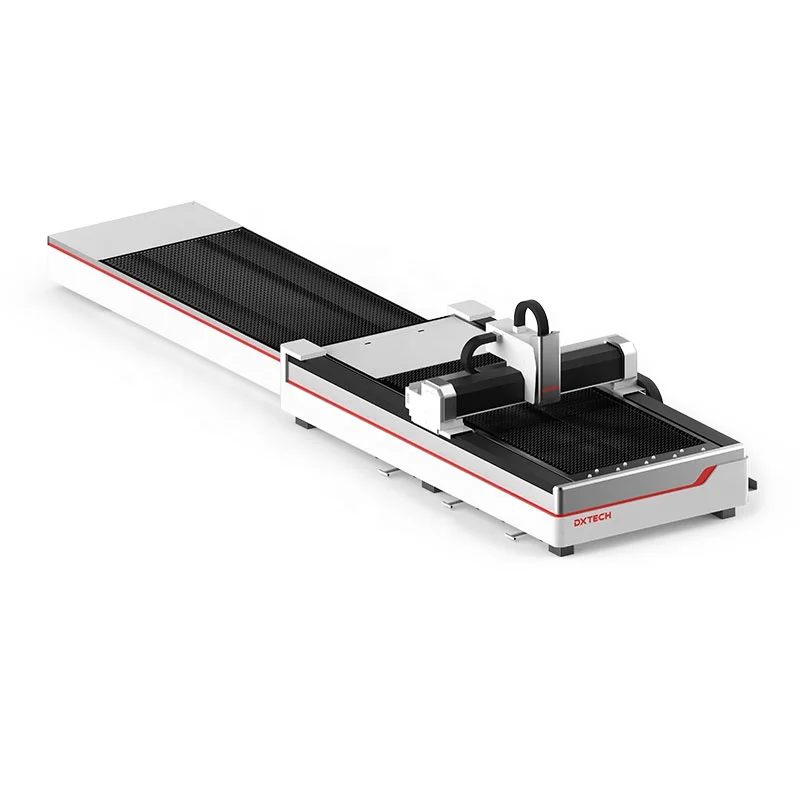

Exchange platform

The exchange platform can load and unload sheet workpieces during the cutting process, which greatly saves manpower and improves
processing efficiency. The worktable is equipped with a rotatable ball-type support for easy board movement. In addition, it is also equipped with a special positioning device, which cooperates with clamps to prevent the plate from moving and ensure the
processing accuracy of the parts.

Motor

This motor is known for its stability and speed, high cost performance, and is the world’s largest sales brand. It has the

characteristics of high speed and stable performance. The rated speed can reach 3000 rpm, which can ensure high speed and high efficiency while ensuring stable operation.

Cast aluminum beam

The cast aluminum beam has the advantages of high strength, strong stability, light weight, fast speed, strong impact resistance,
safety and reliability. Therefore, it ensures higher machining accuracy when ensuring high-speed operation of the machine. In
addition, the cast aluminum beam can also realize the rapid cutting of various graphics while satisfying the accuracy.

Sample Show

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

*More than 95% of the timely response rate, timely response to customer questions.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

*Use online contact methods such as skype whatsapp facebook to provide online services to customers.

Tube And Plate Fiber Laser Cutting Machine

98.8% Response Rate

Tube Fiber Laser Cutting Machine

98.8% Response Rate

Packing & Delivery

Packaging Size	customized
Packaging Details	1.The innermost layer is EPE pearl cotton film package. 2.The middle layer is wrapping up with environmental protection material . 3.And the outermost layer is winding up with PE stretch film. 4.They're very environmentally friendly. 5.If you need a wooden box, we will make a wooden box.

Why Choose Us

FAQ

1.What is fiber laser cutting machine ?

A fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped. This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc. Maxphotonics - Made in China

2.What's the max. cutting thickness?

Cutting thickness is related to laser power.

500W: 3mm stainless steel, 6mm carbon steel

1000W: 5mm stainless steel, 12mm carbon steel

2000W: 10mm stainless steel, 18mm carbon steel

Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.

3.Do you have CE document and other documents for customs clearance?

A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

4: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

5: I don’t know how to use after i receive Or i have problem during use, how to do?

A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can
also provide Door service if you need.

6: I don’t know which one is suitable for me ?

A :just tell us below information

1) Max work size:choose most suitable model.

2) Materials and Cutting thickness:Power of laser generator.

3) Business industries:We sell a lot and give advice on this business line.

7:Why the machine price not include laser tube?

A:Different customers, different requirements, and many different laser power can be optional, some customers only want to cut the non-metallic materials ,other customers want to cut non-metallic materials and metallic material, that's why we list the price not include laser tube parts.
