20 кг Joyance Agras T20 T30 T10 Дрон опрыскиватель высокая эффективность сельскохозяйственный комплект
- Категория: Drones >>>
- Поставщик: Shandong,Joyance,Intelligence,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7140.49 $* | 7497.87 $* |
| Aug-18-2025 | 7080.52 $* | 7434.84 $* |
| Jul-18-2025 | 5940.21 $* | 6237.22 $* |
| Jun-18-2025 | 6960.4 $* | 7308.10 $* |
| May-18-2025 | 6060.13 $* | 6363.44 $* |
| Apr-18-2025 | 6840.95 $* | 7182.15 $* |
| Mar-18-2025 | 6780.13 $* | 7119.64 $* |
| Feb-18-2025 | 6720.93 $* | 7056.0 $* |
| Jan-18-2025 | 6660.31 $* | 6993.30 $* |
Характеристики
2020 now type big drone agriculture/blast sprayer drone/continuous action atomizer drone with GPS radar
Product Description

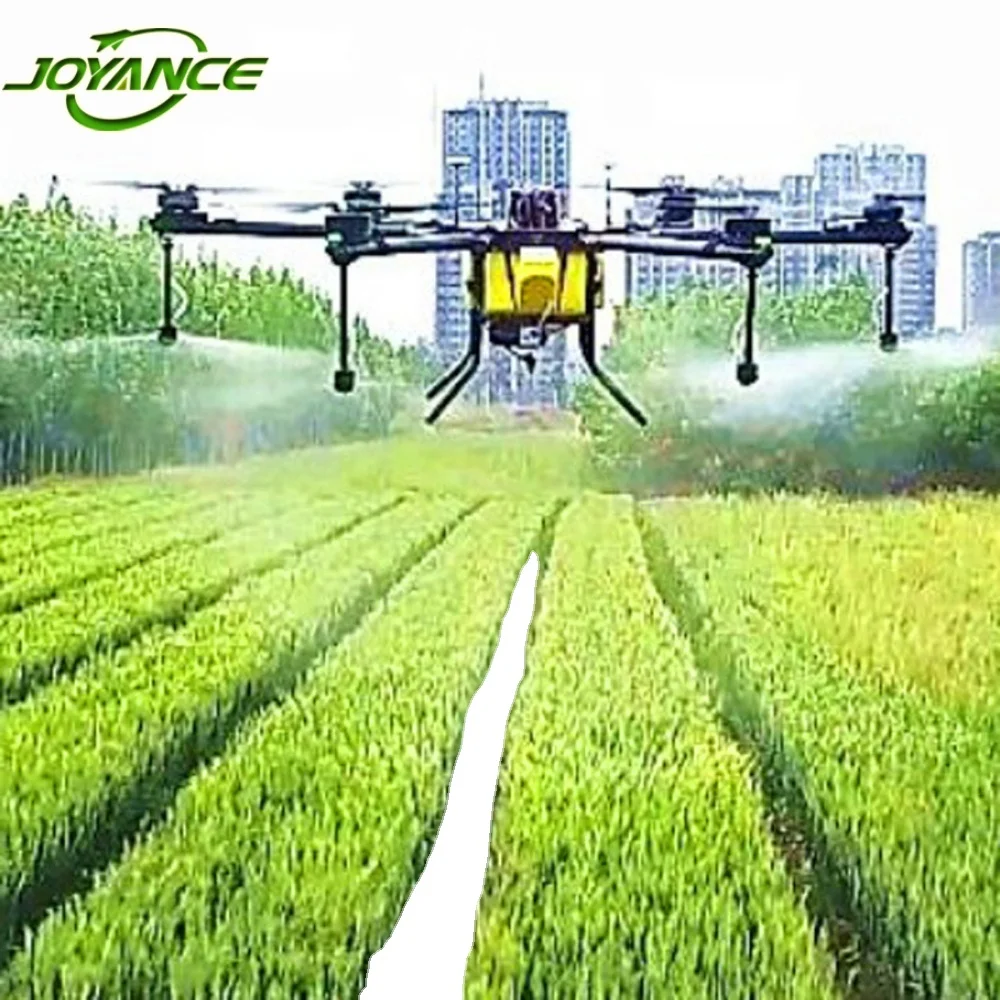

Agriculture Drone Applications.
JOYANCE agriculture sprayer drones have been widely used for crop protection, mosquito control, and public disinfection. Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Specification
Item/Model | JT10L-606 | JT15L-606 | JT16L-606QC | JT20L-606 |
Pesticide load | 10 Liters | 15 Liters | 16 liters | 20 liters |
Self weight | 10.5 KG | 13.5 KG | 17 kg | 18.5 kg |
Take-off weight | 22 KG | 31 KG | 40 kg | 44 kg |
Fly time | 10-15 Min | 10-15 Min | 10~15 min | 10~15 min |
Spray efficiency | 5-6 Hectares/hour | 7-8 Hectares/hour | 8~10 hectares/hour | 9~11 hectares/hour |
Spray width | 4-6 m | 6-7 m | 6~7 m | 7~8 m |
Spray speed | 0~8 m/s | 0~8 m/s | 0~8 m/s | 0~8 m/s |
Nozzle | 2 centrifugal nozzles | 2 centrifugal nozzles | 4 High pressure nozzles | 4 centrifugal nozzles |
Battery | 2 pcs 6S 17000 mAh | 2 pcs 6S 17000 mAh | 1 pc 12S 22000 mAh | 2 pcs 6S 23000 mAh |
Flying radius | 1000 m | 1000 m | 1000 m | 1000 m |
Spray flow | 1~1.5 L/Min | 2~2.5 L/Min | 2~ 2.5 L/min | 2.5~ 3 L/min |
Flying height | 0~30 M | 0~30 M | 0~30 m | 0~30 m |
Work temperature | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ |
Work humidity conditions | 0-90% | 0-90% | 0-90% | 0-90% |
Wind resistance | 10 m/s | 10 m/s | 10 m/s | 10 m/s |
Spread size (m) | W1.3 *L1.3 * H0.45 | W1.8 *L1.8 * H0.48 | 1.8 *1.8 * 0.7 m | 1.95 *1.95 * 0.57 m |
Folded size (m) | W0.6 * L0.6 *H0.51 | W0.7 * L0.7 *H0.63 | 0.95 * 1.05 *0.7 m | 0.7 * 0.7 *0.8 m |
Package size/ weight | 73*67*65 cm / 50 kg | 75*75*81 cm / 70kg | 120*100*79 cm / 70 kg | 75*85*95 cm / 80 kg |

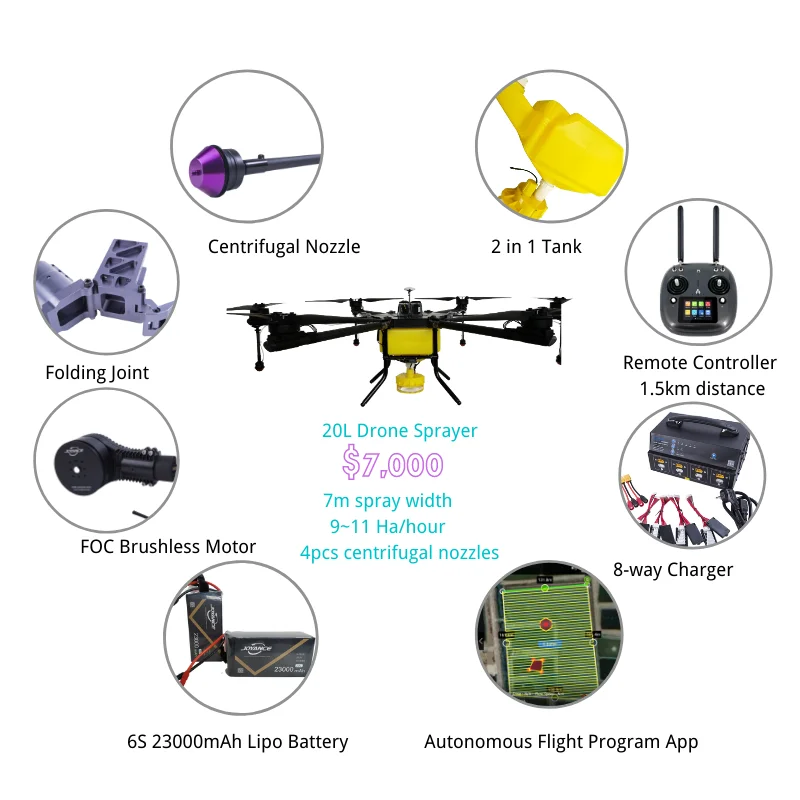

Product Feature
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Centrifugal nozzle
Droplet diameter of 50~200um
Better atomization effect
Better penetration
Spray more evenly
Not easy to be blocked
Aviation aluminum folding joint
Light and durable
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Long service life
Carbon fiber propeller
Foldable during transport
FOC integrated power system
Granular spreader can be installed Spreading seed/solid fertilizer/granule
Carbon fiber main board
Strong and stable
Operation Modes
Manual Operation.
1. GPS Mode
2. Attitude Mode
3. AB Line Mode
It is semi-automatic mode. Just mark A point and B point on the map, the drone will fly automatically.
Autonomous Flight.
App for Android phone or tablet
Google map
Add obstacles
Program flight routes with waypoints
Low voltage warning
Break medicine protection
Intelligent spraying control
Terrain following sensor
Company Profile
Shandong Joyance Intelligence Technology Co., Ltd. is a high-tech enterprise with 9 years experience in researching and developing agricultural sprayer drones and UAV application solutions.
Our products have got CE, FCC, RoHS, ISO 9001 certifications and acquired 14 patents. With high quality, competitive price and professional after-sale service, has been widely praised by our clients, our products have been exported to 72 countries and regions.
We has been proudly awarded as high-tech enterprise in 2018, undertaking social responsibility, cooperating with Shandong University, Weifang University to found teaching practice base, positively contributes to the development and promotion of intelligence drones.
Now we have 10L, 15L,16L,20L different capacity drones, widely used in the area of agricultural spraying, plant protection and public sanitary disinfection. our production capacity is over 200 units monthly, devote to be your reliable professional agriculture drones business partner.
Our products have got CE, FCC, RoHS, ISO 9001 certifications and acquired 14 patents. With high quality, competitive price and professional after-sale service, has been widely praised by our clients, our products have been exported to 72 countries and regions.
We has been proudly awarded as high-tech enterprise in 2018, undertaking social responsibility, cooperating with Shandong University, Weifang University to found teaching practice base, positively contributes to the development and promotion of intelligence drones.
Now we have 10L, 15L,16L,20L different capacity drones, widely used in the area of agricultural spraying, plant protection and public sanitary disinfection. our production capacity is over 200 units monthly, devote to be your reliable professional agriculture drones business partner.
Welcome to contact us. Thank you.
1.Certificates: Joyance sprayer drones have got CE, FCC, RoHS, ISO 9001 and 12 Patents.
2.Exhibition: Exhibitions in Ukraine, Australia, New Zealand, Argentina, Malaysia, Canton Fair, etc.
3.Customers in the word: JOYANCE agricultural drones have been sold to 65 countries and regions, such as Mexico, Brazil,
Peru,Colombia, Ecuador, Turkey,Malaysia,Indonesia, Cambodia, Australia, New Zealand, Ghana, Nigeria, Poland, Ukraine, etc.
2.Exhibition: Exhibitions in Ukraine, Australia, New Zealand, Argentina, Malaysia, Canton Fair, etc.
3.Customers in the word: JOYANCE agricultural drones have been sold to 65 countries and regions, such as Mexico, Brazil,
Peru,Colombia, Ecuador, Turkey,Malaysia,Indonesia, Cambodia, Australia, New Zealand, Ghana, Nigeria, Poland, Ukraine, etc.
Packing & Delivery
Our services:
● Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.
● Shipment methods: by sea, by air, by express according to your needs.
● Lifelong after-sales service, operate manual and videos, timely video support is
available.
● Free training in our factory, including operation and maintenance, takes 2-3 days.
● Offer operation manual & video in English , Spanish....and online technical support.
● Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.
● Shipment methods: by sea, by air, by express according to your needs.
● Lifelong after-sales service, operate manual and videos, timely video support is
available.
● Free training in our factory, including operation and maintenance, takes 2-3 days.
● Offer operation manual & video in English , Spanish....and online technical support.
FAQ
Q. What's your MOQ of the fumigation drone?
A:1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q.Are you sprayer drone factory?
A:1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q.Are you sprayer drone factory?
A: Yes, we are a professional agricultural sprayer drone R & D and production:agricultural sprayer drones, spreader drones. thermal fogger drones.
Q.Is uav sprayer drone ready to fly?
A:Yes.Before dispatch, JOYANCE assembled all the parts and set all the parameters. every drone is 100% tested and confirm it meets the highest standards in performance and durability
Q: How long is your delivery time of spraying drones?
A:Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 50% T/T deposit for sprayer drone production, balance paid before shipment.
