Оборудование для обработки поверхности улучшения гидрофилии материала радиочастотная вакуумная плазменная Очистительная Машина 40
- Категория: Other Cleaning Equipment >>>
- Поставщик: Shenzhen,Jinbolilai,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 31665.64 $* | 32298.47 $* |
| Jul-19-2025 | 25681.14 $* | 26195.43 $* |
| Jun-19-2025 | 31166.15 $* | 31789.65 $* |
| May-19-2025 | 30917.35 $* | 31535.20 $* |
| Apr-19-2025 | 24684.22 $* | 25178.79 $* |
| Mar-19-2025 | 30418.81 $* | 31026.60 $* |
| Feb-19-2025 | 30169.38 $* | 30772.26 $* |
| Jan-19-2025 | 29920.30 $* | 30518.53 $* |
Характеристики
Product Overview

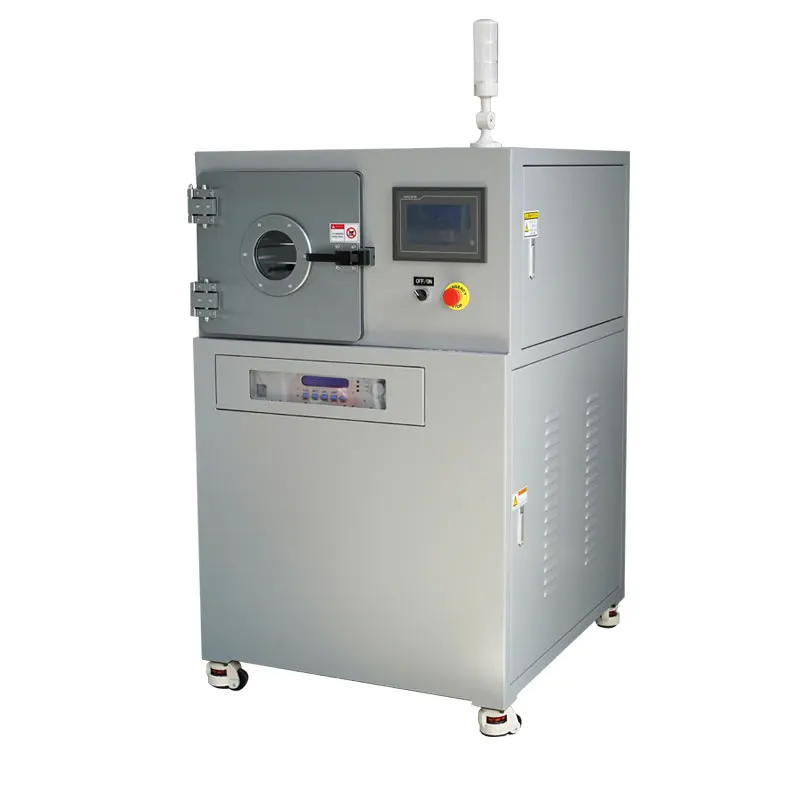

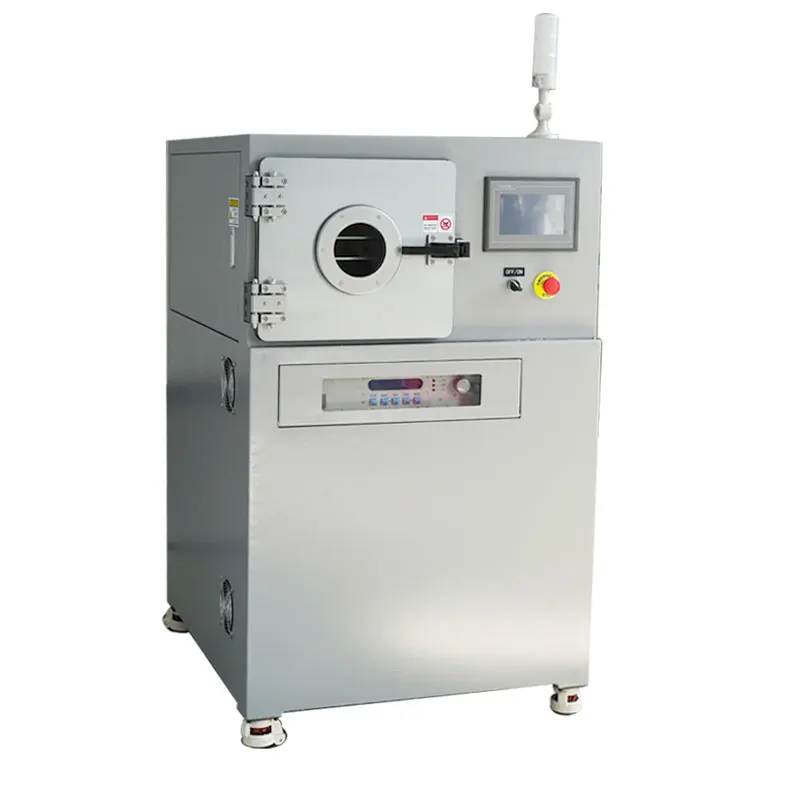

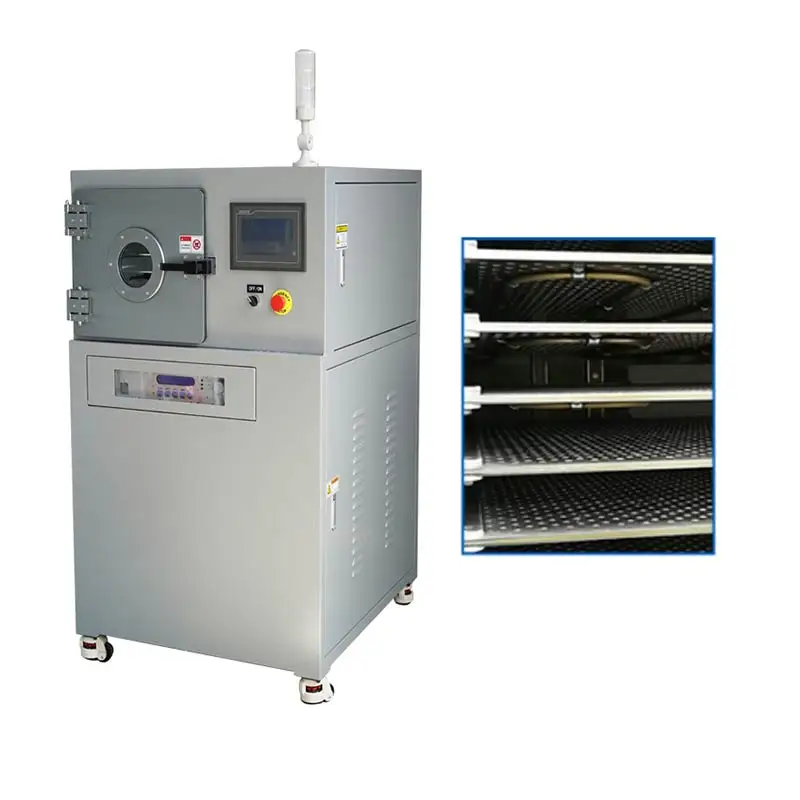

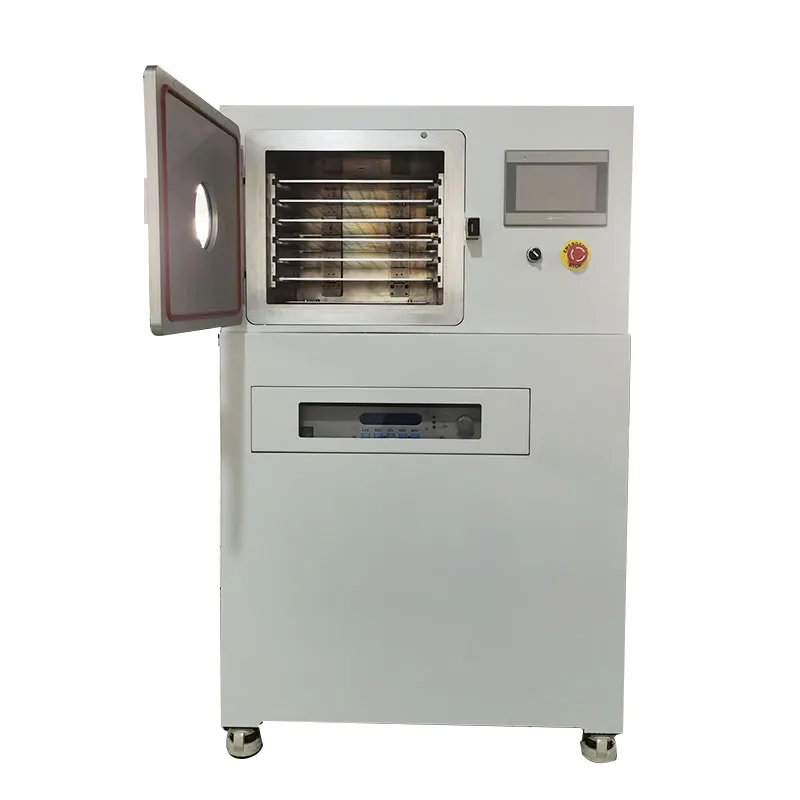

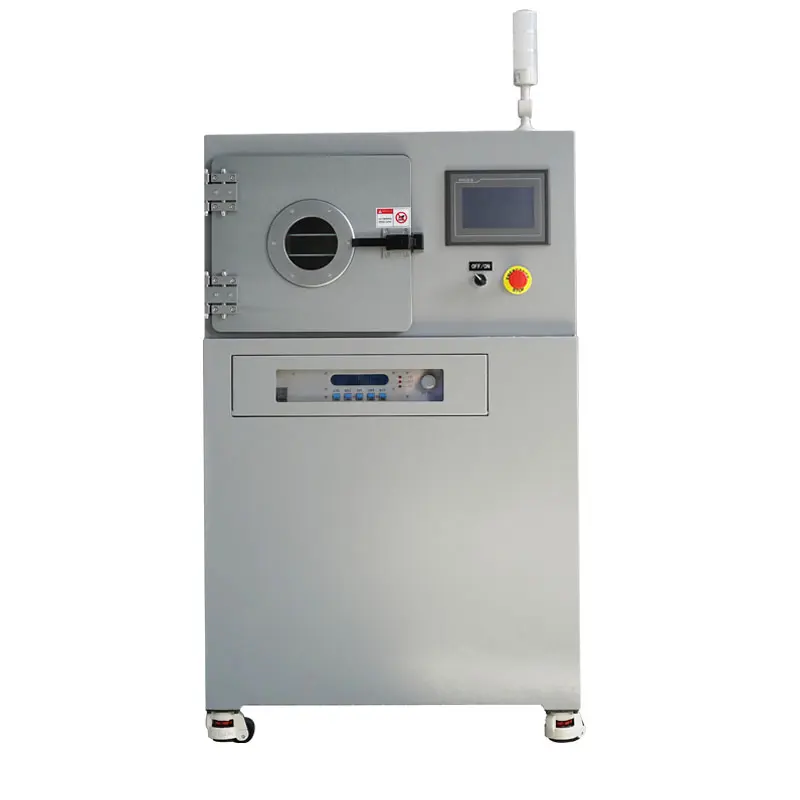

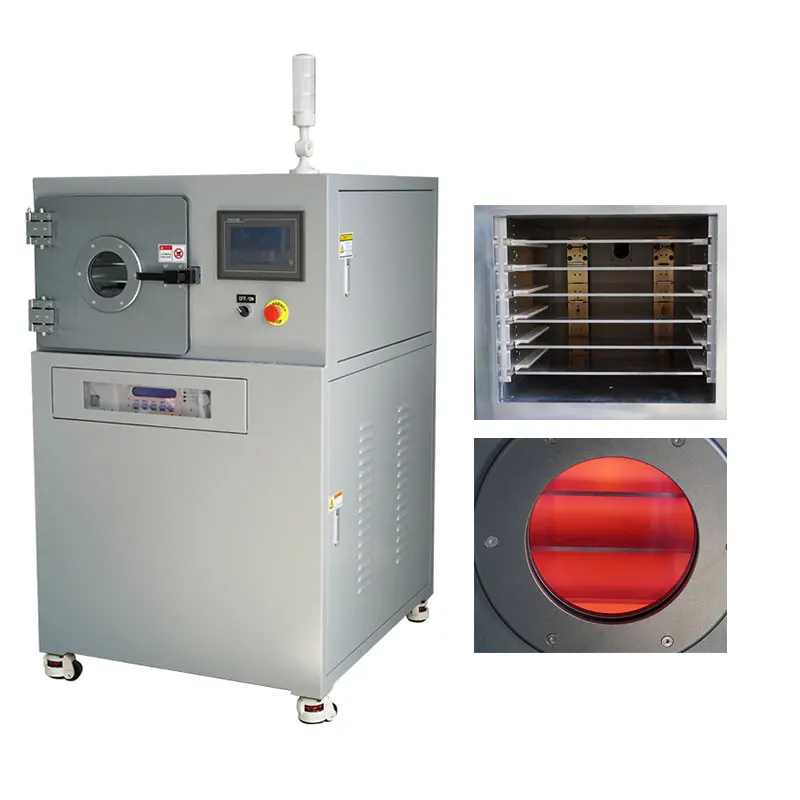

vacuum plasma cleaning machine 40L
The vacuum plasma cleaner is composed of high-quality anodized aluminum and ceramic fixtures, with excellent durability, economical reactive ion etching In a compact benchtop configuration, the anisotropic reactive ion etching plasma system is completely independent.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Equipment size | 1105W*1488D*1842Hmm (2158mm with signal lamp height) |
2 | Host specification: | 8 floors |
3 | Electrode plate | 402W*450Dcm |
4 | Electrode distance | 48mm |
5 | Signal indicator | 3 ribbon alarm |
6 | Vacuum pump | 90m3/h bipolar oil pump |
7 | Vacuum measurement | Japan ulvac vacuum gauge |
RF power supply | RF power frequency | 13.56MHz |
RF power | 1000W | |
RF power matcher | Fully automatic matching, leading air capacitor technology |
System Power & Machinery | Power supply | AC380V, 50/60Hz |
rated power | 5000W | |
System weight | ＜600Kg | |
Equipment size | 1805(W)×1988(D)×1842(H)cm |
Equipment prerequisites | Power supply | 7.5KVA |
Compressed air requirements | Anhydrous and oil-free CDA 60～90psig | |
Exhaust system | ≥2 cubic meters per minute, the central exhaust gas treatment pipeline is enough | |
System ambient temperature requirements | ≤30℃(The best room temperature) | |
Process gas requirements | 15～20psig 99.996% or above purity |
Applications
Company Profile
Shenzhen Kimberlite Technology Co., Ltd. was established in 2014, citing 25 years of plasma system research and development technology derived from Germany. It is a world-leading high-tech enterprise specializing in the research and development and production of plasma cleaning/etching systems.
Adhering to the business philosophy of "customer first, quality first, technological innovation, and win-win cooperation", the company continuously introduces high-quality, high-standard, and low-cost products to provide all customers with real-time pre-sales, after-sales and technical integrated professional services
We have cooperated with many customers and have been providing high-quality and reliable plasma treatment solutions to meet their specific needs in high-tech electronic fields such as mobile phones, computers,circuit boards, LEDs, semiconductors, photovoltaic solar energy, automobiles, medical care, and large-scale industrial fields.
Adhering to the business philosophy of "customer first, quality first, technological innovation, and win-win cooperation", the company continuously introduces high-quality, high-standard, and low-cost products to provide all customers with real-time pre-sales, after-sales and technical integrated professional services
Product packaging
SALES AND SERVICE NETWORK
FAQ
Q1:Are you the manufacturer？
A1:Yes, we are a manufacturer specializing in the development, manufacturing, process development and solution of plasma cleaning machines and plasma surface treatment equipment.
Q2:what does plasma cleaning do？
A2:Plasma cleanerhas the effect of improving surface hydrophilicity and adhesion..
Q3:Whether the sprayed plasma is harmful to human body?
A3:Pleasedon't worry, the low temperature plasma is green and environmentally friendly, and will not cause harm to the human body.
Q4:What materials can the plasma cleaner process?
A4：Plasma cleaning machine is suitable for surface modification treatment of various materials, whether it is metal, plastic, ceramic, glass, etc.
Q5:Power supply and plug are different in our country's, how do you solve it?
A5:Customer service consultation first, we can provide transformers and plugs according to your local requirements in
different countries.
Q6:How long is your delivery time?
A6:Generally, it is within 5 working days after receiving the payment and confirming all details if the goods are in stock, or it is 7-14 working days if the goods are not in stock, it depends on the order quantity.
Q7:What is your terms of payment？
A7:100% full payment.
Any question,please feel free to contact us,we will reply you within 24 hours you within 24 hours.
