Ассоциацией по техническому надзору (TUV) Zencar EVSE уровень зарядки 2 16A 3.7KW 1 фаза IEC 62196 Тип Wallbox зарядная станция с синий
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Kelaite,New,Energy,Technology,(changzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 210.12 $* | 214.14 $* |
| Jul-18-2025 | 170.47 $* | 173.57 $* |
| Jun-18-2025 | 206.88 $* | 210.35 $* |
| May-18-2025 | 205.55 $* | 209.88 $* |
| Apr-18-2025 | 163.56 $* | 166.12 $* |
| Mar-18-2025 | 201.29 $* | 205.21 $* |
| Feb-18-2025 | 200.8 $* | 204.46 $* |
| Jan-18-2025 | 198.8 $* | 202.53 $* |
Характеристики

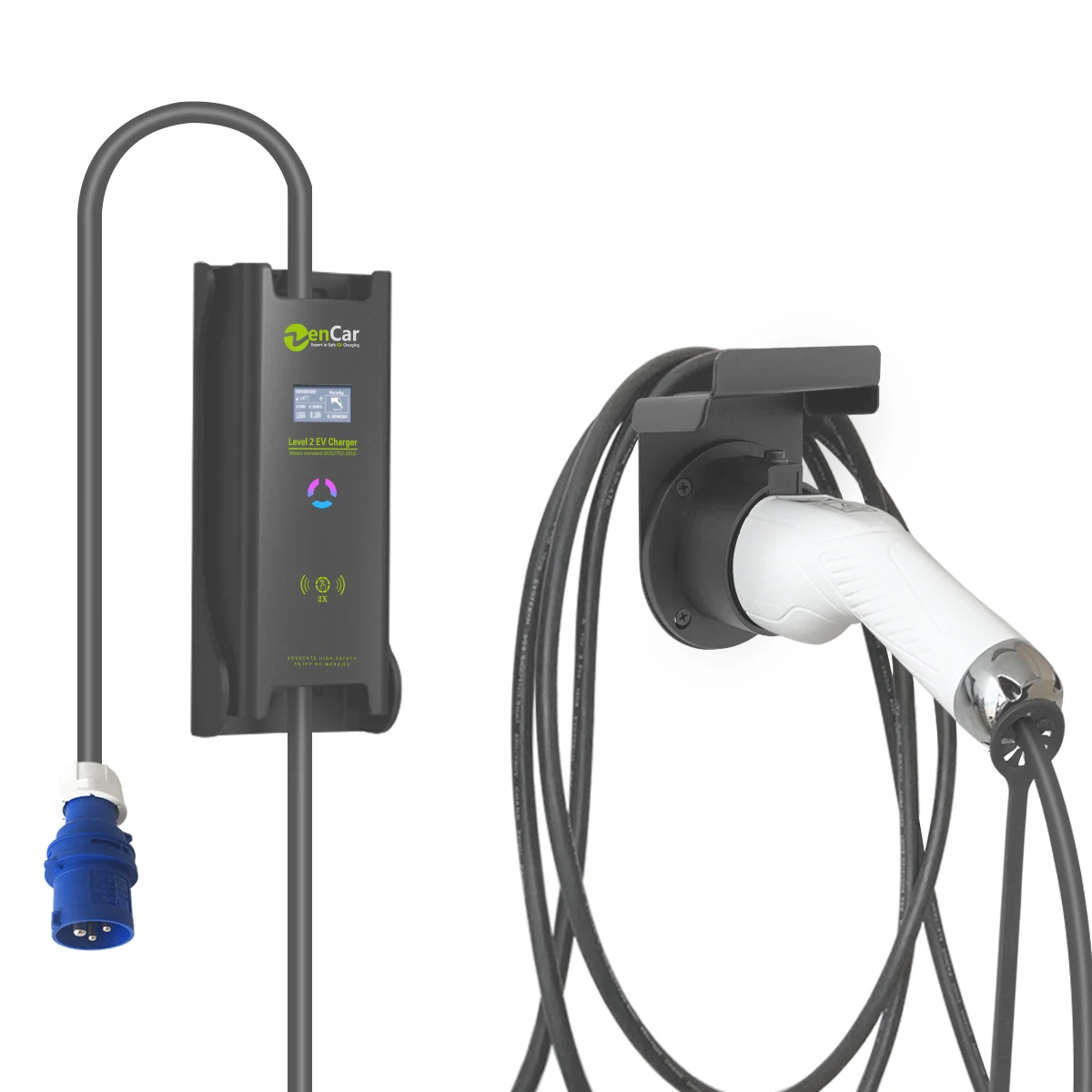

TUV Zencar EVSE ev charging level 2 16A 3.7KW 1 Phase IEC 62196 Type 2 Wallbox EV Charging Station With blue CEE
Specification
Electrical Data | ||||||||
Max. output current | 16A | Input voltage/Output voltage | 220-240V AC | |||||

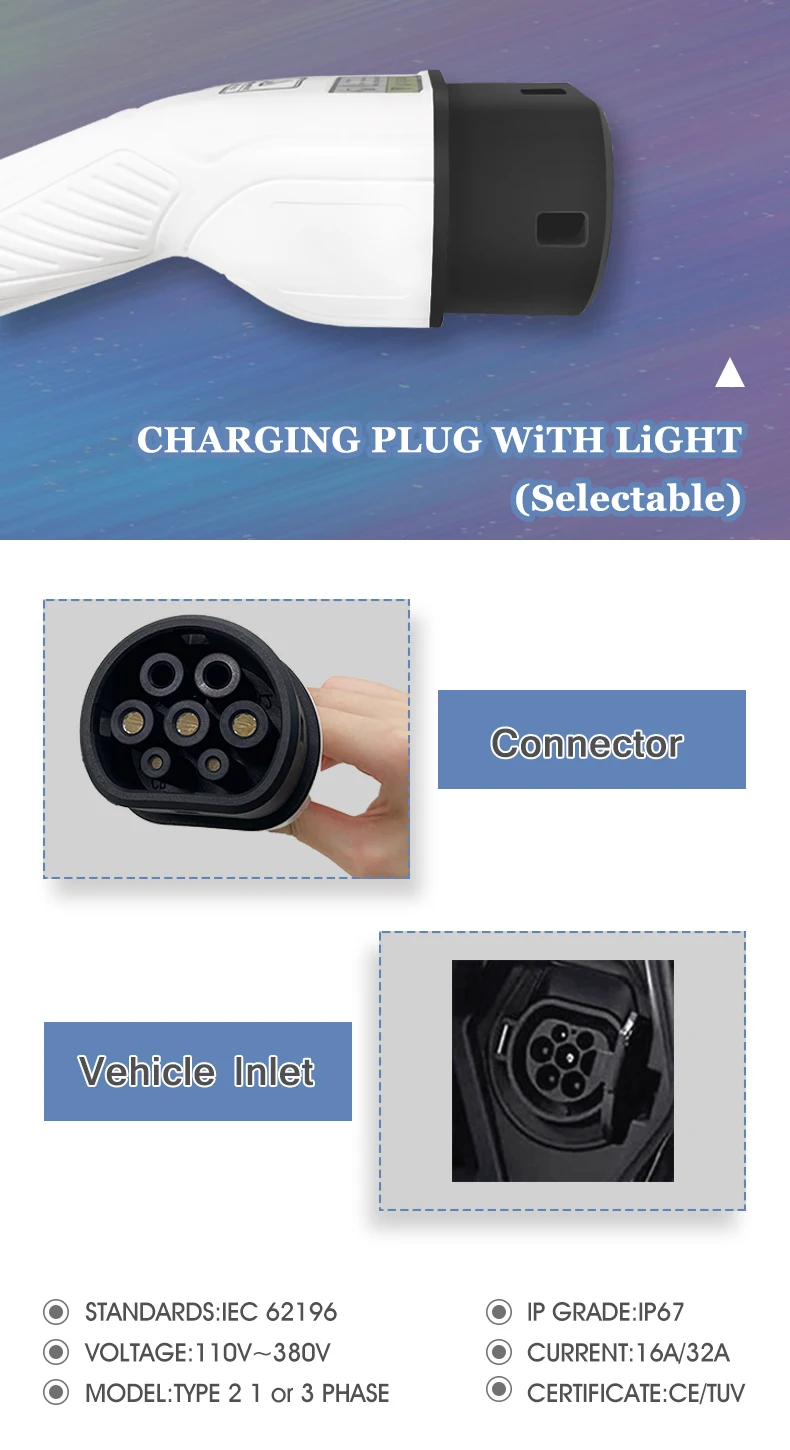

Input frequency | 50-60Hz | Charging Plug | IEC 62196-2 Type 2 | |||||
Max. output power | 3.7KW | Wall side Plug | Blue Cee | |||||
Protection | ||||||||
Over Voltage Protection | Yes | Leakage Protection | Type B AC 30mA DC 6mA | |||||
Under Voltage Protection | Yes | Over-temp Protection | Yes | |||||
Over Load Protection | Yes | Lightning Protection | Yes | |||||
Short Circuit Protection | Yes | Flame Retardant | Yes | |||||
PE Protection | Yes | Crushing Force | No damage under 5000N | |||||
Electrostatic Protection | Yes | Ingress Protection Degree | IP65 for Box , IP 65 for Plug | |||||
Function and Accessory | ||||||||
Ethernet/WIFI/4G/Bluetooth | No | LED Indicator light | Flash | |||||
LCD | Yes | Intelligent Current adjustment | Yes , 6A-16A adjustable | |||||

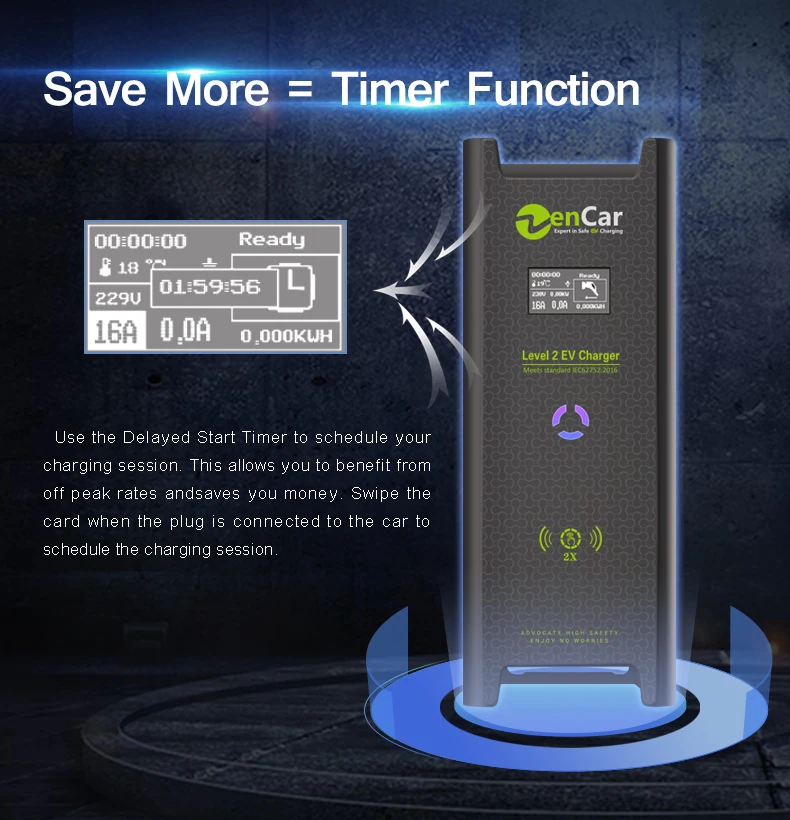

RCD | Type B AC 30mA DC 6mA | Timing Function | Yes / By RFID Card | |||||
Working environment | ||||||||
Protection degree | IP65 for Box , IP 65 for Plug | Maximum altitude | <2000m | |||||
Environment temperature | -40℃ ~ +50℃ | Cooling | Natural air cooling | |||||
Relative humidity | 0-95% non-condensing | salt mist at +35 °C | Pass | |||||
Package | ||||||||
Dimension (W/H/D) | 410/390/12mm | Weight | 3KG | |||||
Certificate | CE | Packing Methord | Netruel Color box | |||||
Product Description
Packing & Delivery
Company Profile
Why choose us
100% Product quality protection
100% On-time shipment
100% Payment protection
Related Products
FAQ
Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU, DDP.
Q2. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: EXW, FOB, CFR, CIF, DDU, DDP.
Q2. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Any other question, please click "Send", we will reply to you within 24 hours.
