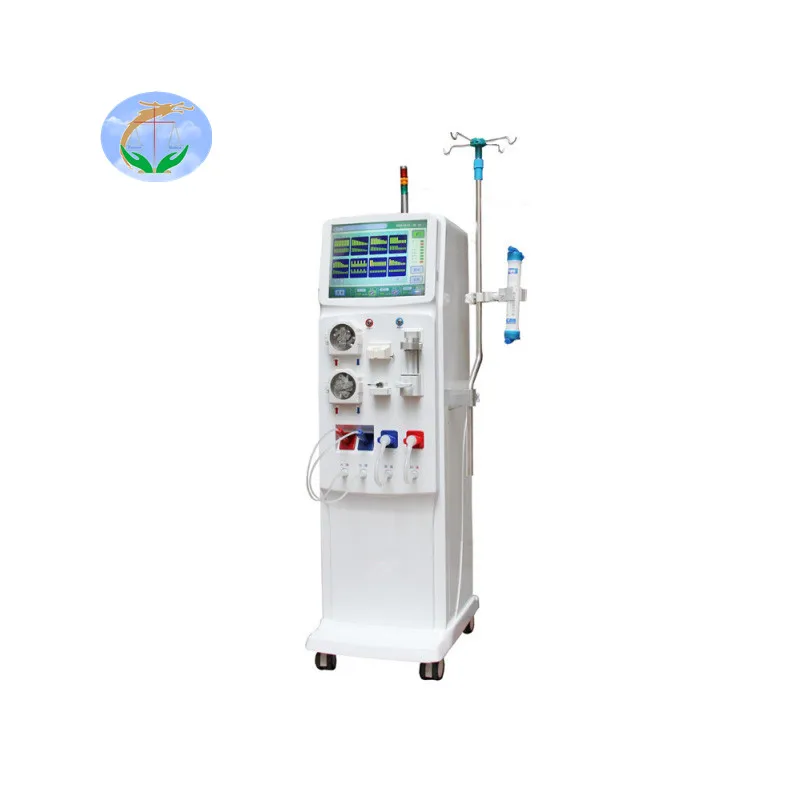

Classic style Double Pump Hemodislysis Machine





We supply Double Pump Hemodialysis Machine YJ-D2000,we devoted ourselves to send you clients high quality dialysis equipment,training and long terms after sales service.

We are expecting to become your long-terms business partner in China.



1.Production of Hemodialysis Machine YJ-D2000

This haemodialysis machine is specially designed, produced and sold for renal failure patients to receive haemodialysis.It is applicable for chronic renal failure and other blood Purification treatment.



2.Specifications of Hemodialysis Machine YJ-D2000



Model	YJ-D2000
Power	1500W
Working environment	temperature 10ºC ~30ºC (at relative humidity of no more than 70%.)
Water input pressure	0.15 MPa   ~0.6 MPa
Water input temperature	10℃~30℃
Machine Size	380mm×400mm×1380mm (L*W*H)
Package Size	680*550*1680mm
Net/Gross Weight	88KG/93kg



Dialysate	Dialysate temperature: preset range 34.0℃~39.0℃ Dialysate flux: 300~800 ml/min Dialysate concentration: 12.1 mS/cm ~16.0 ms/cm, ±0.1 ms/cm Dialysate mixing ratio: can set variety ratio. UF rate Flow range: 0 ml/h ~4000 ml/h Resolution ratio: 1ml Precision: ±30 ml/h
Extracorporeal Part	Venous pressure: -180 mmHg ~+600 mmHg, ±10 mmHg Arterial pressure : -380 mmHg ~+400 mmHg, ±10 mmHg TMP  pressure : -180 mmHg ~+600 mmHg, ±20 mmHg Blood pump flow range: 20 ml/min ~400 ml/min(diameter:6 mm) Spare pump flow range: 30 ml/min ~600 ml/min(diameter:8 mm) Resolution ratio: 1 ml Precision: error range ±10ml or 10% of reading
Heparin Pump	Syringe size: 20, 30, 50 ml Flow range: 0 ml/h ~10 ml/h Resolution ratio: 0.1ml Precision: ±5%
Sanitize	1.Hot decalcification : Time: about 20 minutes Temperature: 30~60℃, 500ml/min. 2.Chemical disinfection : Time: about 45 minutes Temperature: 30~40℃, 500ml/min. 3. Heat disinfection : Time: about 60 minutes Temperature: >85℃, 300ml/min. Storage Environment  Storage temperature should be between 5℃~40℃, at relative humidity of no more than 80%.
Monitoring System	ialysate temperature: preset range 34.0℃~39.0℃, ±0.5℃ Blood leak detection: Photochromic Alarm when erythrocyte specific volume is 0.32±0.02 or blood leak volume is equal or more than 1ml per liter of dialysate Bubble detection: ultrasonic Alarm when a single air bubble volume is more than 200µl at 200ml/min blood flow Conductivity: acoustic-optic, ±0.5%



3.Product Features of Hemodialysis Machine YJ-D2000

1,Classical and perfect model designed.

2,Two persons can be trained freely for first time.

3,All accessories or spare parts with tools can be along with hemodialysis machine can be set along.

4,Rich knowledge engineer and sales can be serve for you.

5,One year guarantee time,5 years spare parts supplied at least.

6,Intelligent Double Operation System
7,LCD touch screen with button interface
8,Emergency power 30Mins (Optional)
9,Blood Pump
10,Spare Pump (for standby and also can be used for hemoperfustion).
11,Heparin Pump
12,Hydraulic compartment(Balance chamber + UF pump).
13,Operation, Alarm information Memory function.
14,A/B Ceramic proportion pump , High precision, Corrosion-proof, Accuracy.



4.Standard Construction of Hemodialysis Machine YJ-D2000

YJ-D2000:Double Pump Hemodialysis Machine.



YJ-D2000 can be delivered with in 15 working days after we received your payment.

If there are just in stock, we can arrange shipment immediately.

Packing detail as follows:

168*68*55cm;

93kgs.

Q:Who we are ?

A:Our Forever Medical is a leading exporter and supply chain service provider of YJ-D2000 medical hospital kidney dialysis with more than 10 years’ experience.

Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables.

We have exported YJ-D2000 medical hospital kidney dialysis to more than 50 countries and built long term partnerships with clients.

Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

Q:Where are our customers?

A:We have sold YJ-D2000 medical hospital kidney dialysis to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.
