Гидравлическая моторная Лебедка для

Гидравлическая моторная Лебедка для

Категория: Winches >>>
Поставщик: Jiangyin,Zhongxin,Engineering,Equipment,Co.,Ltd.

Цена:1 800,00 $ - 2 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	2142.36 $*	2249.88 $*
Aug-19-2025	2124.28 $*	2230.0 $*
Jul-19-2025	1782.50 $*	1871.66 $*
Jun-19-2025	2088.28 $*	2192.0 $*
May-19-2025	1818.39 $*	1909.88 $*
Apr-19-2025	2052.77 $*	2155.98 $*
Mar-19-2025	2034.60 $*	2136.17 $*
Feb-19-2025	2016.47 $*	2117.87 $*
Jan-19-2025	1998.90 $*	2098.15 $*

Характеристики

Product Description

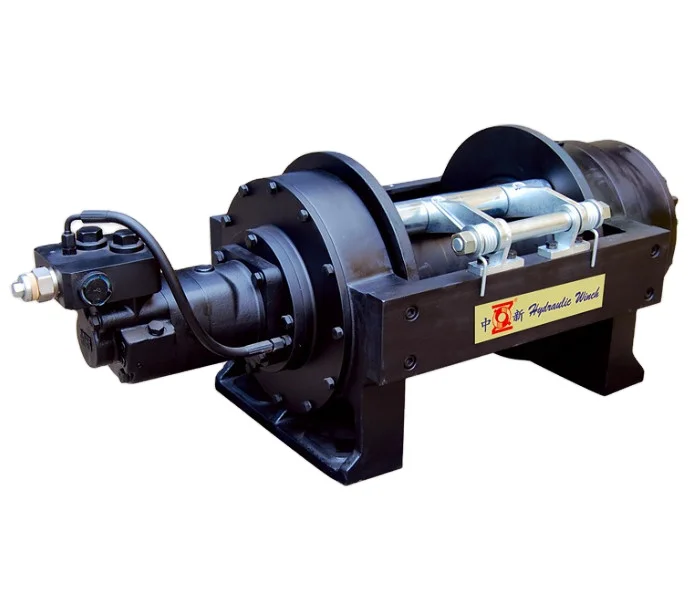

10 tons Hydraulic Winch for Trailer/ Tow truck

10 tons Hydraulic Winch for Trailer/ Tow truck is especially designed for heavy-duty lifting, pulling and towing operations. It is a good choice when an electric winch machine cannot match your operating and performance conditions. Powered by a hydraulic system, this type of winch has more strength thanan electric power winch, thus it is ideal for the most demanding tasks in construction, mining and marine. Our winches can be designed and built into any size and form to meet your application demands.

2. YJP100 hydraulic winch consists of hydraulic motor, 2-stage planetary gear reducer, arrester, drum, etc.
a. High efficiently hydraulic motor(brand motor) .
b. Full-float typed planetary gear reducer
c. Multi-disc friction closed brake
d. Small size
e . Free spooling function.

Specification

Performance
Rated line pull (1st layer)	Kgs / lbs	10000 / 30000
Line speed (1st layer)	m/min	7
Response pressure of brake	MPa / Bar	2.5 / 25
Oil pressure	MPa / Bar	17 / 170
Oil flow	L/min	60
Drum diameter x Bottom diameter x Length（internal）	mm	390x190x340
Drum capacity	m	59
Suggested high-intensity wire rope diameter	mm	Φ18
Net weight	Kg	262

item	value
Warranty	1 year
Customized support	OEM, ODM
Place of Origin	China
	Jiangsu
Brand Name	Zhongxin
Model Number	YJP100
Power Source	Hydraulic
Application	AUTO
Capacity	10 tons

Packing & Delivery

Wooden box

Company Profile

Jiangyin Zhongxin Engineering Equipment Co., Ltd. is a specialized manufacturer which integrates the research, development, production, marketing and service of hydraulic winches and hydraulic lifting mechanisms. Our products can be widely applied to engineering equipment and shipboard equipment. We strictly implement ISO9001 requirements and the regulations of the Lloyd Classification Society.

FAQ

1. Who are we?
We are based in Jiangsu, China, start from 1998. We are factory that producing hydraulic winch for more than 23 years.

2. What is your terms of payment?
A: T/T 30% in advanced,70% see the B/L copy . B.100% Irrevocable LC

3.What is your terms of delivery?
A. FOB, CFR ,CIF or as your requirement.

4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
