220 В Вибрационный двигатель для машины
US $22.00-$45.00
Трехфазный вибратор MV1200/3 220 В/380 В 50/60 Гц для
- Категория: Vibration Motor >>>
- Поставщик: Yiwu,Zhenke,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 222.87 $* | 226.77 $* |
| Jul-18-2025 | 180.37 $* | 184.11 $* |
| Jun-18-2025 | 219.83 $* | 223.65 $* |
| May-18-2025 | 217.79 $* | 221.16 $* |
| Apr-18-2025 | 173.82 $* | 176.41 $* |
| Mar-18-2025 | 214.97 $* | 218.73 $* |
| Feb-18-2025 | 212.38 $* | 216.3 $* |
| Jan-18-2025 | 210.62 $* | 214.32 $* |
Характеристики
Product Description
1. Easy maintenance.
2. High strength, low noise.
3. EXCITATION force and output with appropriate, large excitation force.
4.Vibration frequency and amplitude can be selected according to different purposes.
5. Complete specifications, to meet all kindsof vibration machinery work needs.
6. The direction of the exciting force can be changed according to the installation mode of thevibrating motor.
7. The exciting force can be adjusted steplessly by adjusting the angle of the eccentric block.
8. Fullyenclosed structure, can be in any explosion-proof requirements of dust conditions.

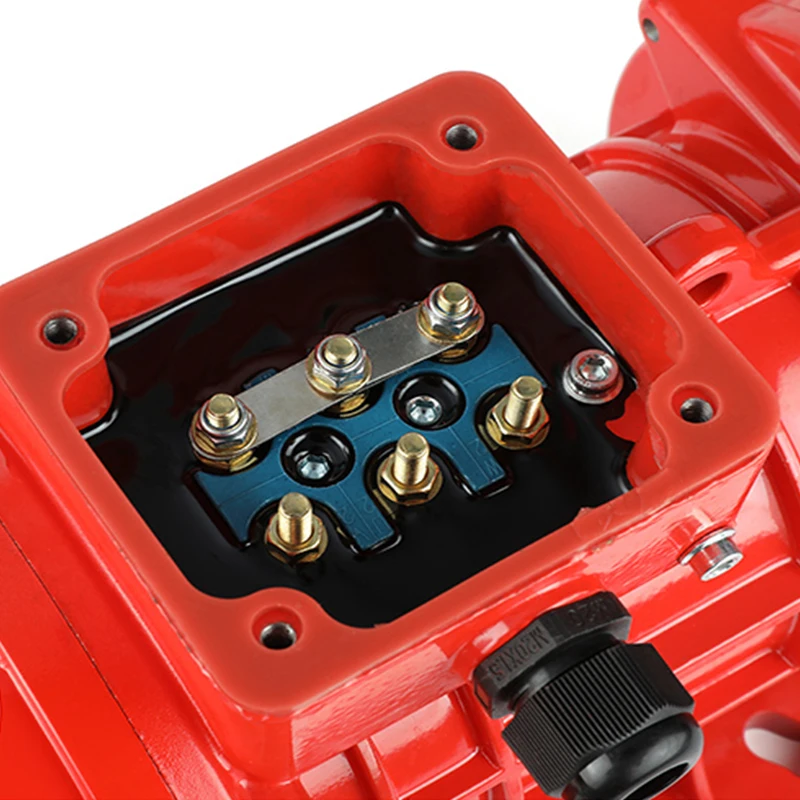

Sealed watertight box
Anti-oxidation and anti-rust connector,
high-quality Resin sealing in the junction box,
with the function of waterproof and dustproof
Adjustable excitation force
A fixed eccentric block and an adjustable eccentric block are arranged on the outlet shaft of the vibration motor. The exciting force can be changed by adjusting the angle between the adjustable eccentric block and the fixed eccentric block.
stator.
The windings are made of pure copper enameled wire, the windings are dipped in vacuum, and the insulation Grade Reaches Grade F
High precision rotor.
The rotor is carefully machined by lathes and grinders in strict accordance with technical requirements
High precision bearing.
High quality lubricating grease, low noise, smooth operation, long service life
Product Presentation Video
Installation dimension parameter
Product Paramenters
Type | Force | Force | Power | Current | Weight | Size | |
kg | KN | KW | A max | kg | |||
MV60/3 | 71 | 0.7 | 0.04 | 0.25 | 4.7 | 10A0 | |
MV100/3 | 99 | 1 | 0.04 | 0.25 | 4.9 | 10A0 | |
MV200/3 | 198 | 2 | 0.09 | 0.35 | 6.6 | 20A0 | |
MV300/3 | 311 | 3 | 0.16 | 0.52 | 10.2 | 30A0 | |
MV400/3 | 400 | 4 | 0.2 | 0.58 | 11 | 30A0 | |
MV500/3 | 516 | 5 | 0.37 | 0.96 | 16 | 40A0 | |
MV700/3 | 750 | 7 | 0.45 | 1.25 | 16.8 | 40A0 | |
MV800/3 | 788 | 8 | 0.55 | 1.45 | 20.1 | 50A0 | |
MV1200/3 | 1018 | 10 | 0.75 | 1.85 | 21.8 | 50A0 | |
MV1300/3 | 1386 | 13 | 1.1 | 2.44 | 23.9 | 50A0 | |
Application site
MV Series Vibration Motors are widely used in hydropower construction, thermal power generation, construction, building
materials, chemical, mining, coal, metallurgy, light industry and other industrial sectors. In addition to the vibration motor canbe used with general vibration machinery, but also can be combined with a variety of vibration forms. Such as: flat rotation type,Vortex type, shaking vibration type, combination of linear type, combination of long ellipse type, composite double-frequencytype, composite double-amplitude type, etc. . From these forms of vibration can be produced some of the past did not have the newvibration machinery.
materials, chemical, mining, coal, metallurgy, light industry and other industrial sectors. In addition to the vibration motor canbe used with general vibration machinery, but also can be combined with a variety of vibration forms. Such as: flat rotation type,Vortex type, shaking vibration type, combination of linear type, combination of long ellipse type, composite double-frequencytype, composite double-amplitude type, etc. . From these forms of vibration can be produced some of the past did not have the newvibration machinery.
Factory overview
FAQ
Q1:How to choose the suitable electric motor vibrator?
A: 1. The type of motor:horizontal(B3) or vertical(B5) vibrating motor.Or you can tell me what equipment you use it for,we can
recommand for you.
2. The power and voltage .
3. The speed and force.
Q2: Can the motor voltage and machine color be changed?
A: Yes,we can change the voltage and colors according to your reference
Q3: How long is the warranty period for your equipment?
A: Our machine has 13 months guarantee. During the guarantee period, if any quality problems occur, we will provide the related
spare parts(consumable spare parts not included freight free of charge.
Q4: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
Q5:Whats the minimum order quantity and delivery time ?
A: For minimum quantity no limit, for delivery times, is small quantity we can sent it within 48 hours . if very big quantity
normally about 15-25 days.
Q6: What is the price term and payment method?
A: We can quote EXW, FOB, CIF and CFR price. You can pay us by Alipay , T/T, L/C , Visa.etc.
A: 1. The type of motor:horizontal(B3) or vertical(B5) vibrating motor.Or you can tell me what equipment you use it for,we can
recommand for you.
2. The power and voltage .
3. The speed and force.
Q2: Can the motor voltage and machine color be changed?
A: Yes,we can change the voltage and colors according to your reference
Q3: How long is the warranty period for your equipment?
A: Our machine has 13 months guarantee. During the guarantee period, if any quality problems occur, we will provide the related
spare parts(consumable spare parts not included freight free of charge.
Q4: Can you accept to use our logo?
A: Yes, we can. Any OEM are welcome!
Q5:Whats the minimum order quantity and delivery time ?
A: For minimum quantity no limit, for delivery times, is small quantity we can sent it within 48 hours . if very big quantity
normally about 15-25 days.
Q6: What is the price term and payment method?
A: We can quote EXW, FOB, CIF and CFR price. You can pay us by Alipay , T/T, L/C , Visa.etc.
