Лидер продаж 2021 Высокоэффективная пескомоечная машина
- Категория: Sand Washer >>>
- Поставщик: Ganzhou,Gelin,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 3809.65 $* | 3885.10 $* |
| Jul-19-2025 | 3089.72 $* | 3151.54 $* |
| Jun-19-2025 | 3749.20 $* | 3824.32 $* |
| May-19-2025 | 3719.22 $* | 3793.44 $* |
| Apr-19-2025 | 2969.82 $* | 3028.79 $* |
| Mar-19-2025 | 3659.58 $* | 3732.9 $* |
| Feb-19-2025 | 3629.33 $* | 3702.19 $* |
| Jan-19-2025 | 3599.45 $* | 3671.19 $* |
Характеристики
Products Description
2021 Hot Sale High Effective Sand Washing Machine Sand Washer
The sand washing machine is also called a sand washer. It is a washing equipment for sandstone (artificial sand, natural sand), which is mainly used for removing impurities (such as dust) from sand products.It can remove impurities covering the surface of the sand and destroy the water vapor layer of the coated sand to facilitate dehydration and play a role in efficient sand washing.
Common types are bucket sand washers (below main introduction) and spiral sand washers.

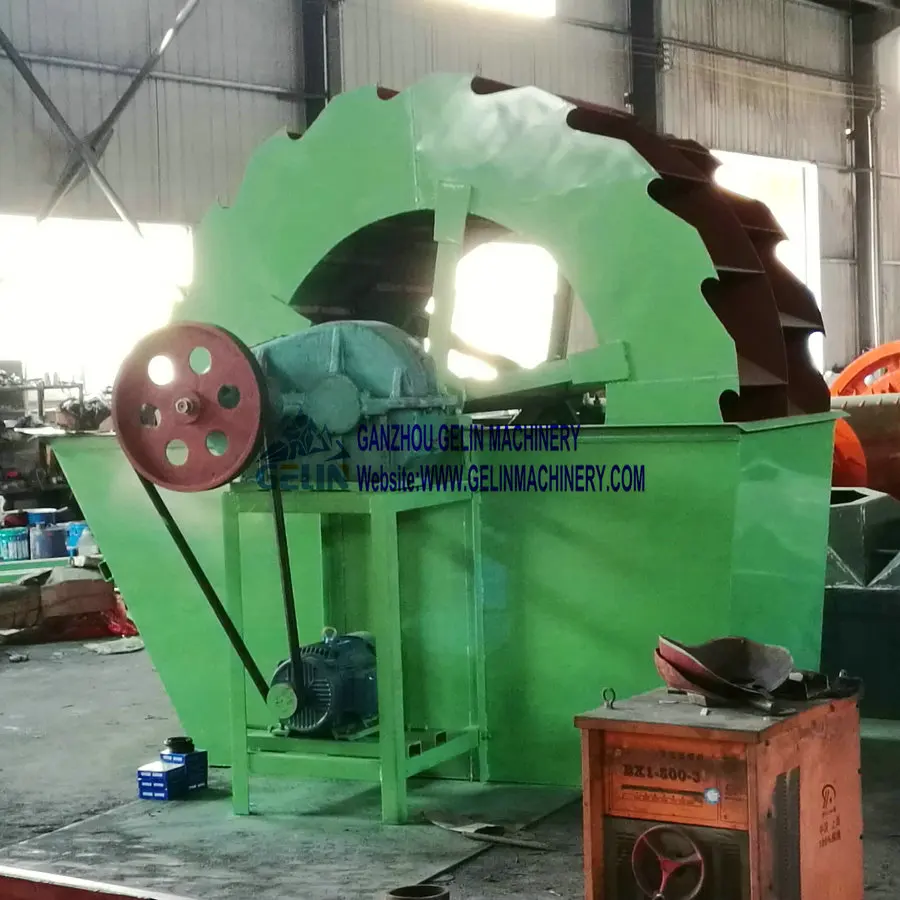

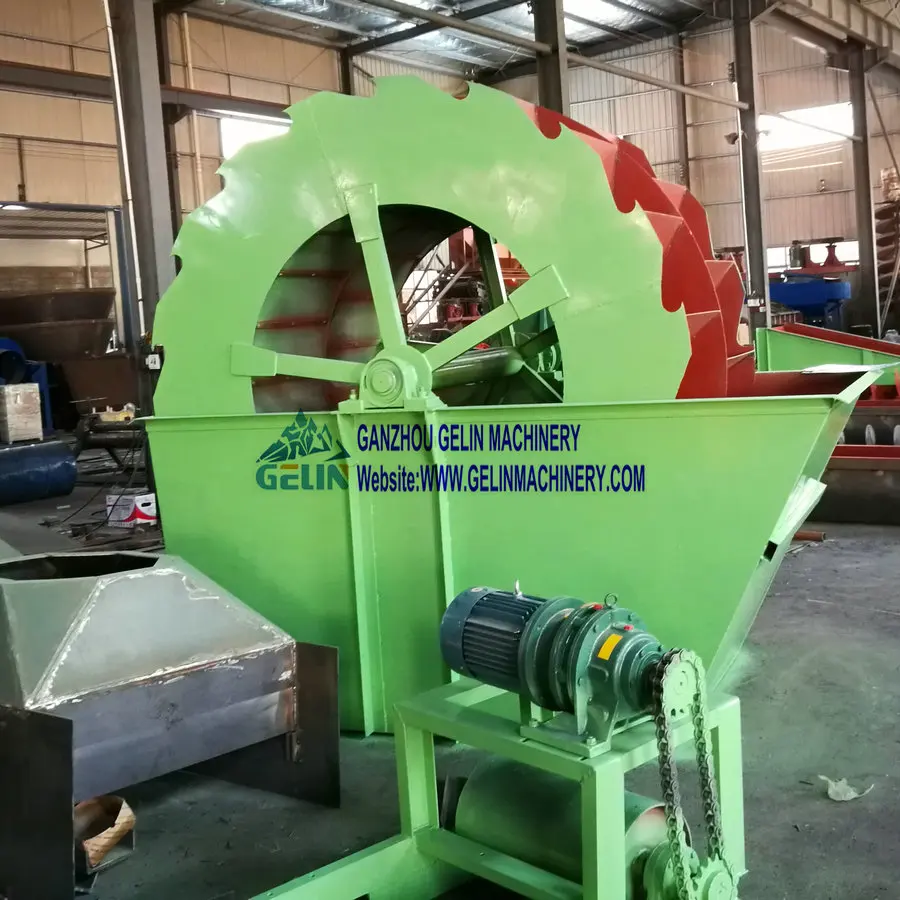

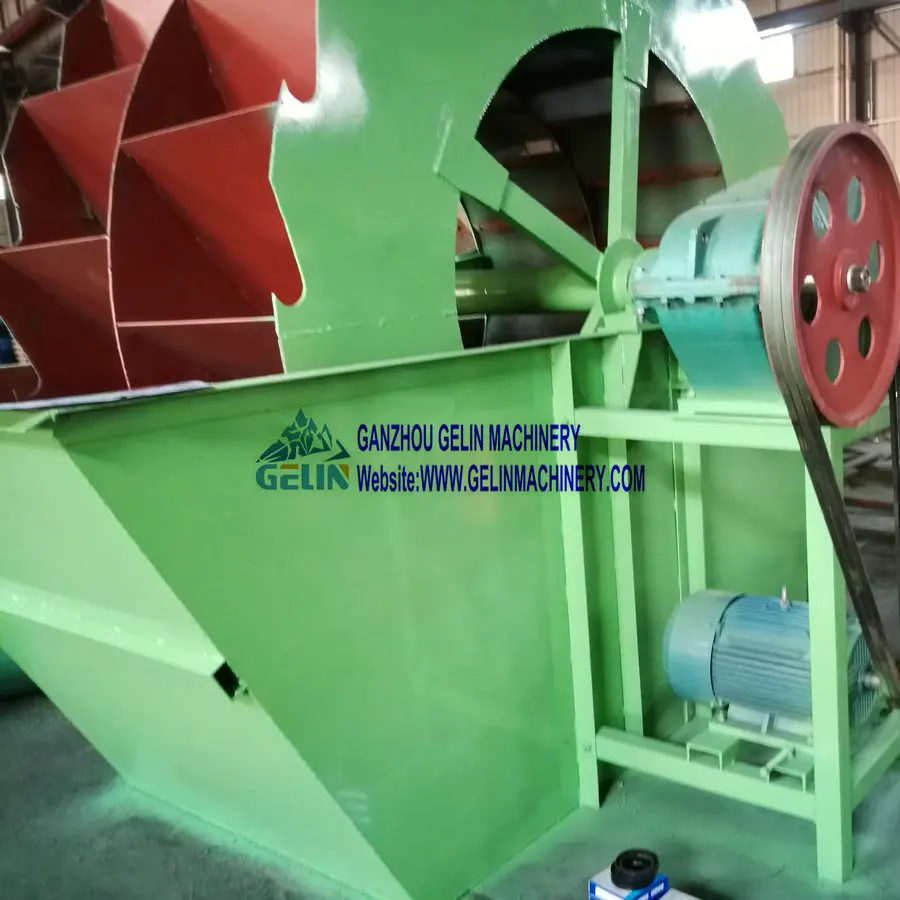

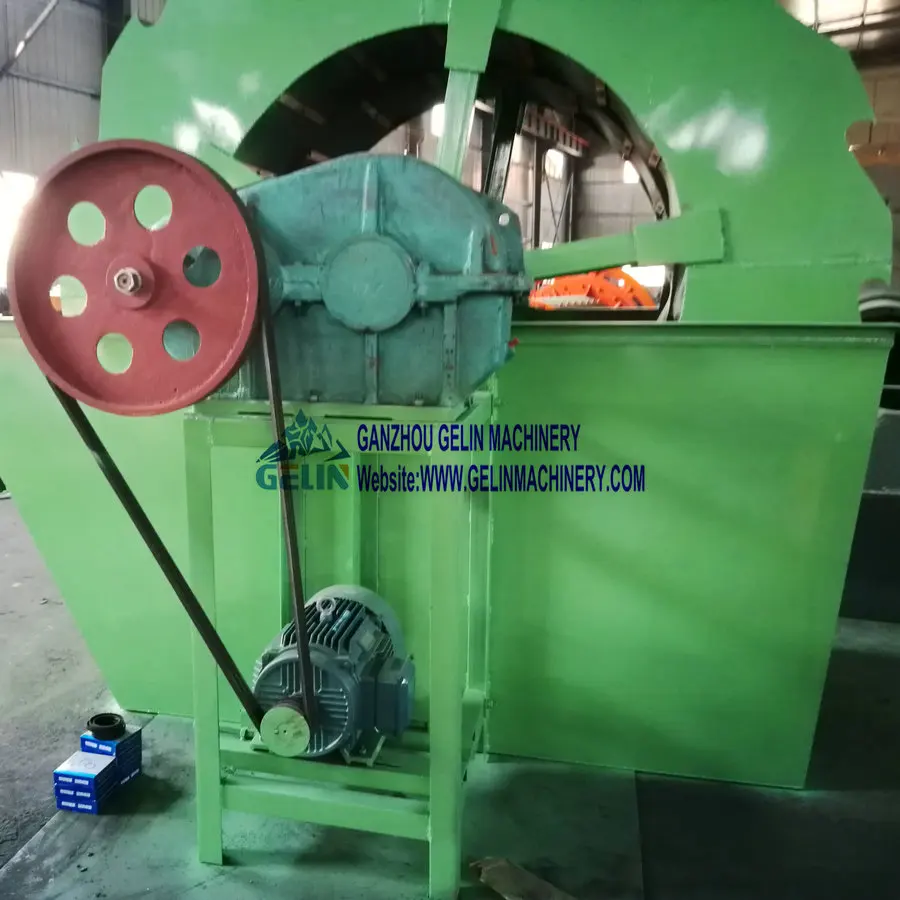

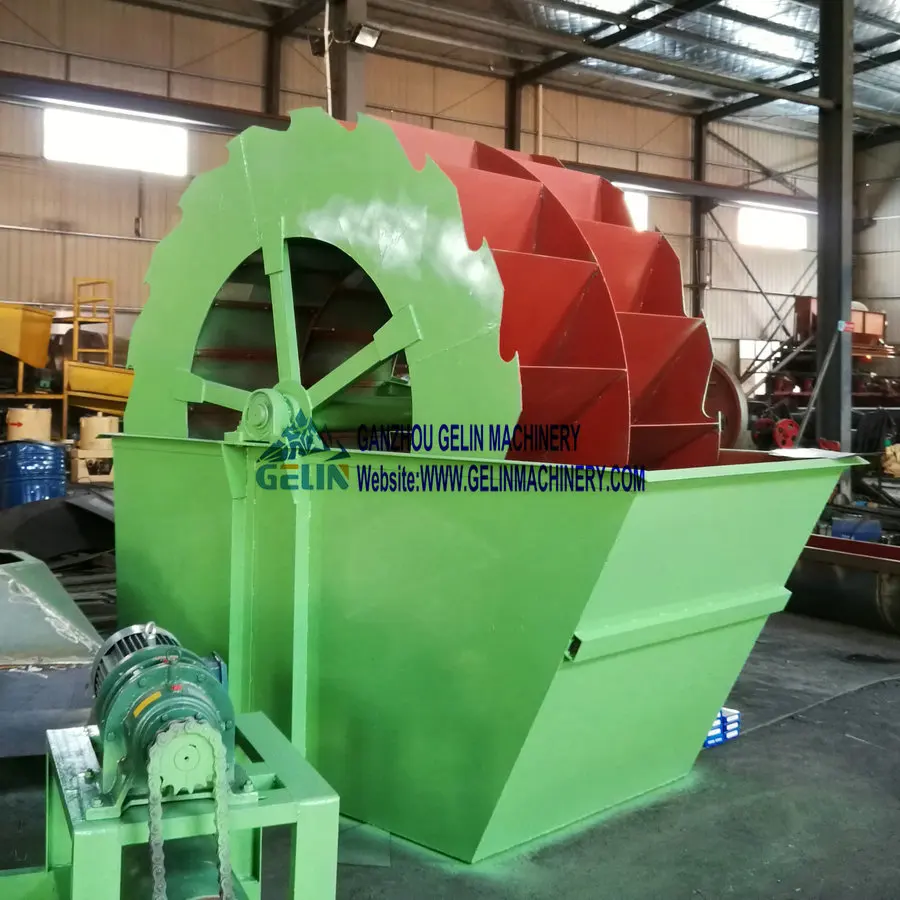

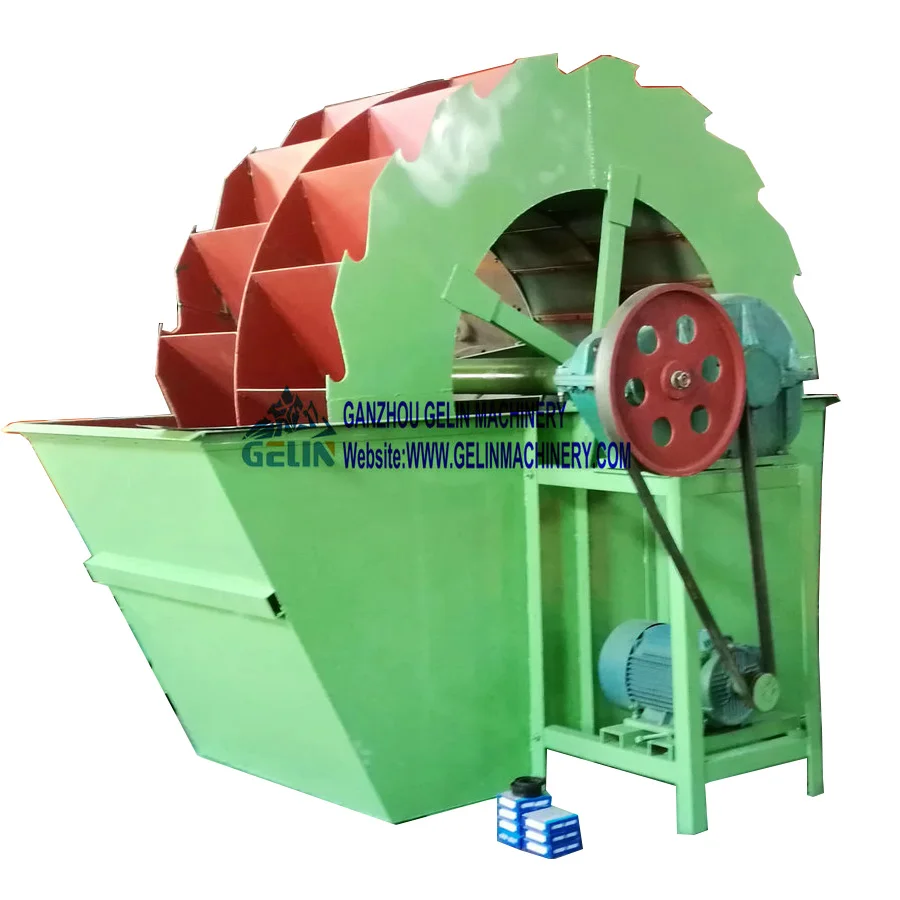

bucket sand washer
Spiral sand washer With Hopper
Features
1.The structure of the machine is simple, and the impeller drive bearing device is separated from the water and the
water-receiving material to greatly avoid the phenomenon that the bearing is damaged by water immersion, sand and pollutants.
water-receiving material to greatly avoid the phenomenon that the bearing is damaged by water immersion, sand and pollutants.
2.The sand washing machine (sand washing machine) has obvious advantages compared with the traditional spiral sand washing machine when used for sand washing in the gravel field as follows:
2.1.The loss of medium fine sand and stone powder is very small, and the sand grading and fineness modulus of the washed building reaches the national standard of "building sand" and "pebble for construction".
2.2.The machine has almost no wearing parts except the screen.
3.Long service life and no need for maintenance in the long run.
Super quality impeller with thick and durable steel;
Screen mesh with high abrasive material provides long service life!
Double reduction gears make sure stable continuous working and long service life;
Bearing support with thick channel steel guarantee heavy duty opearation!
Product Parameter
Model | XSD1500-2 | XSD2000-2 | XSD2200-2 | XSD2600-2 | XSD2800-2 | XSD3000-2 | XSD3200-2 |
Dia of wheel bucket(mm) | 1500 | 2000 | 2200 | 2600 | 2800 | 3000 | 3200 |
Rotation speed(r/min) | 2-5 | 2-4 | 2-4 | 2-3 | 2-3 | 2-3 | 2-2.5 |
Handling capacity(t/h) | 5-10 | 10-20 | 15-30 | 20-40 | 40-70 | 40-90 | 80-120 |
Motor(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Dimension (mm*mm*mm) | 2500×1500X1780 | 2900×1800×2080 | 3150×1910×2280 | 3520×2390×2690 | 3820×2640×3200 | 4000×2700×3600 | 4300×2800×3700 |
Weight(T) | 1900 | 2900 | 3300 | 3500 | 3600 | 4300 | 4800 |
Applications
Sand washing machine is widely used in the washing of materials in sand and gravel, mining, building materials, transportation,chemical, water conservancy and hydropower, concrete mixing stations, etc. It can also be applied to the washing, grading and dewatering of smaller granular sand in construction sites, sand and gravel plants, glass plants, hydropower stations and other units.
Sand washing machine is widely used in the washing of materials in sand and gravel, mining, building materials, transportation,chemical, water conservancy and hydropower, concrete mixing stations, etc. It can also be applied to the washing, grading and dewatering of smaller granular sand in construction sites, sand and gravel plants, glass plants, hydropower stations and other units.
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1. Nude packing.
2. Bundle packing.
3. Grass rope packing.
4. Water proof packing.
5. Wooden pallets packing.
6.Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.40HQ container: used for goods without overlength, overheight and overweight;
2.FR(Flat Rack) container:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.Bulk cargo shipment (LCL): used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
About Company
Ganzhou Gelin Mining Machinery Co., Ltd is an professional manufacturer of mining machines and mining engineering service provider in China.Gelin has a strong production capacity and full range of equipments for beneficiation engineering such as feeding&conveying,crushing,screening,grinding,flotation,separation etc.. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile etc.
Sincerely welcome customers to visit our factory.
Our Services
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
For accurate equipment selection and quotation, better learn below info:
2). If rock stone, what is particle size(mm) of the raw ore?
Q:
1).What type is the mining? Is it rock stone? or it is sand?2). If rock stone, what is particle size(mm) of the raw ore?
3).What is the elements of the raw ore? How much percent % of each minerals?
4). How about the handling capacity(T/H) you plan to work with?
Q: How long is the guarantee period of your products?
Q: If I need the complete mineral processing line, will you be able to help me build it?
4). How about the handling capacity(T/H) you plan to work with?
Others:
Q: Are you a trading company or a factory?
A: We are a factory with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡.\t
A: We are a factory with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡.\t
Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
Q: How long is the guarantee period of your products?
A: The guarantee period of Gelin equipments is 1-2 years, pls ask staff for more details, And we will supply the spare parts for you for life-long time at lowest cost.
Q: If I need the complete mineral processing line, will you be able to help me build it?
A: Yes, we have strong and skilled R&D team,we can provide even mineral beneficiation experiment, engineering design,scheme of plant construction an working drawings,necessary equipment delivery,installation and commissioning until the full mineral processing line completed.You can believe our quality and service.
Welcome to our factory at anytime.
For more details, please refer to our website: www.gelinmachinery.com
