GTS102N для топографического опроса Topcon общая станция цена Estacin всего другие тестовые инструкции

GTS102N для топографического опроса Topcon общая станция цена Estacin всего другие тестовые инструкции

Цена:1 900,00 $ - 2 000,00 $*

Количество:

Product Description

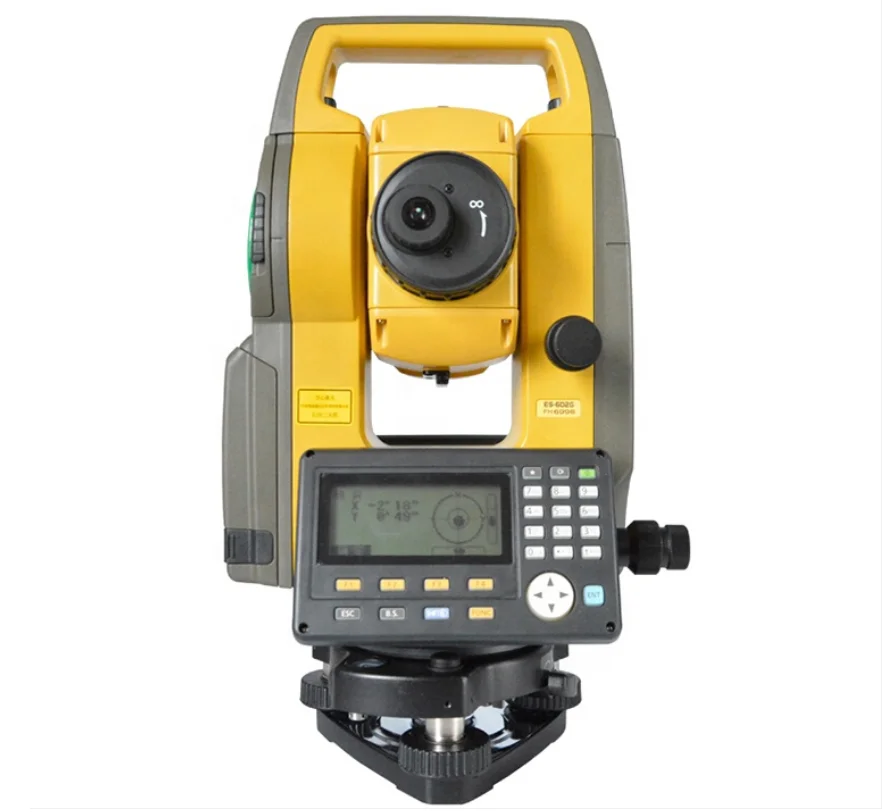

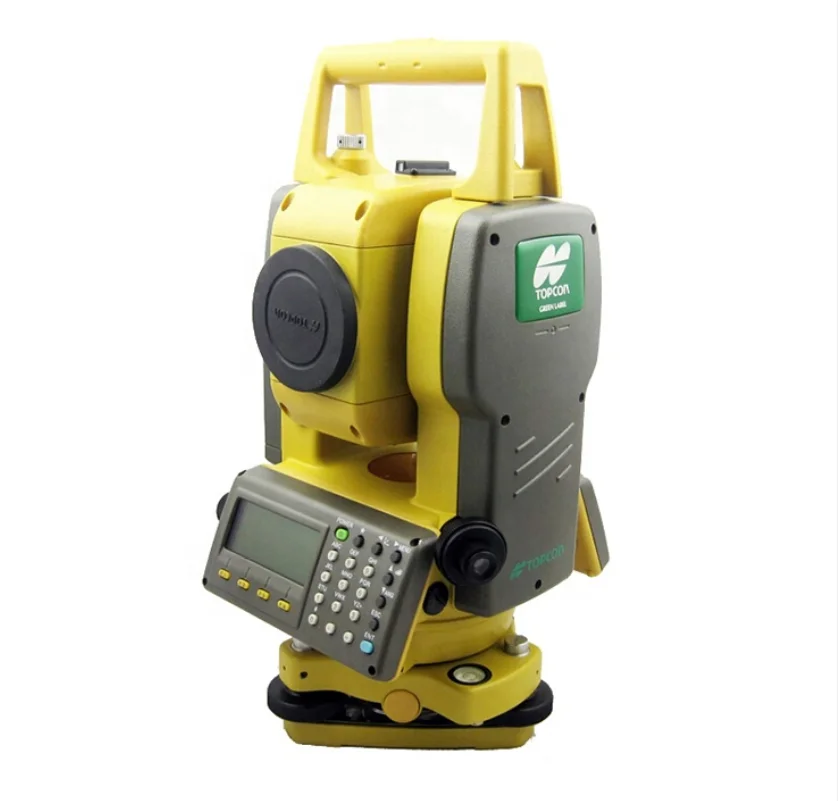

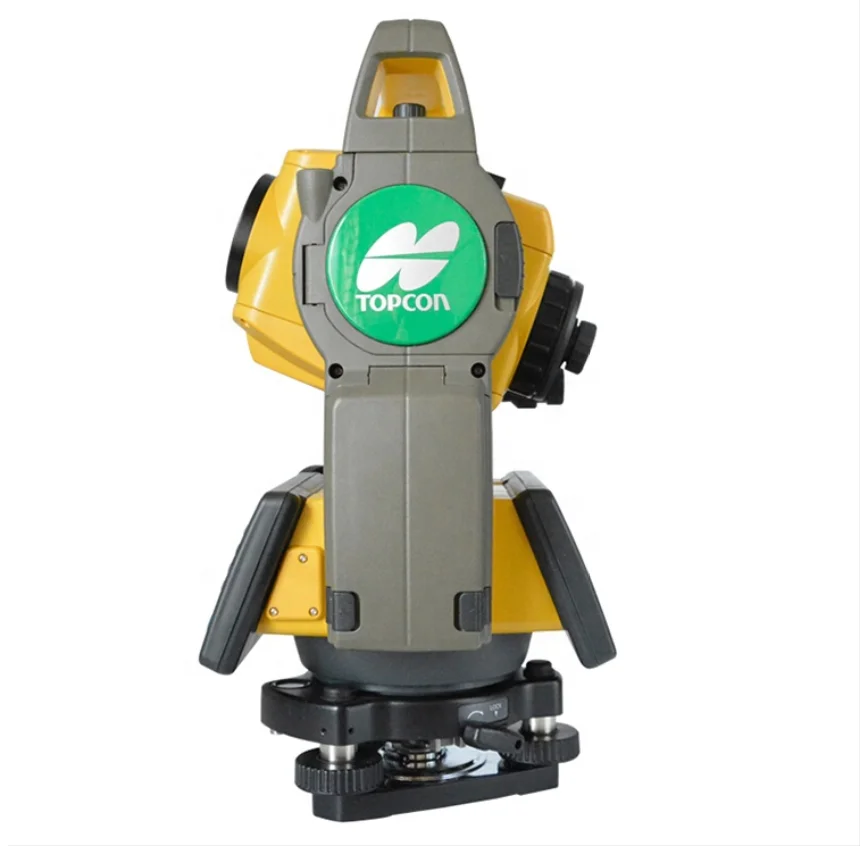

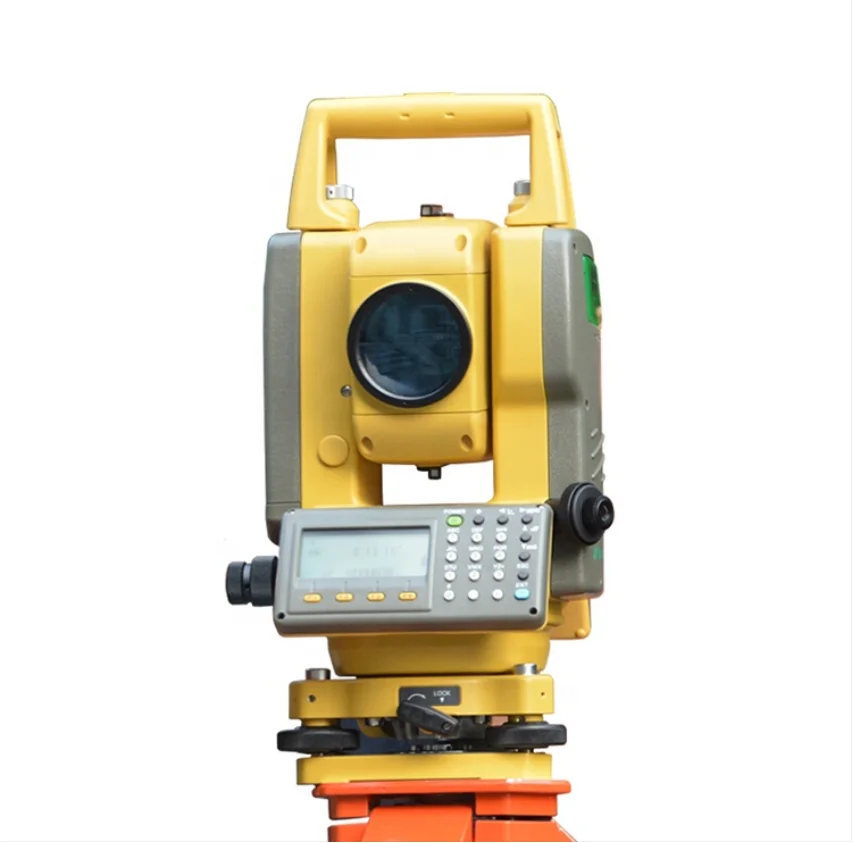

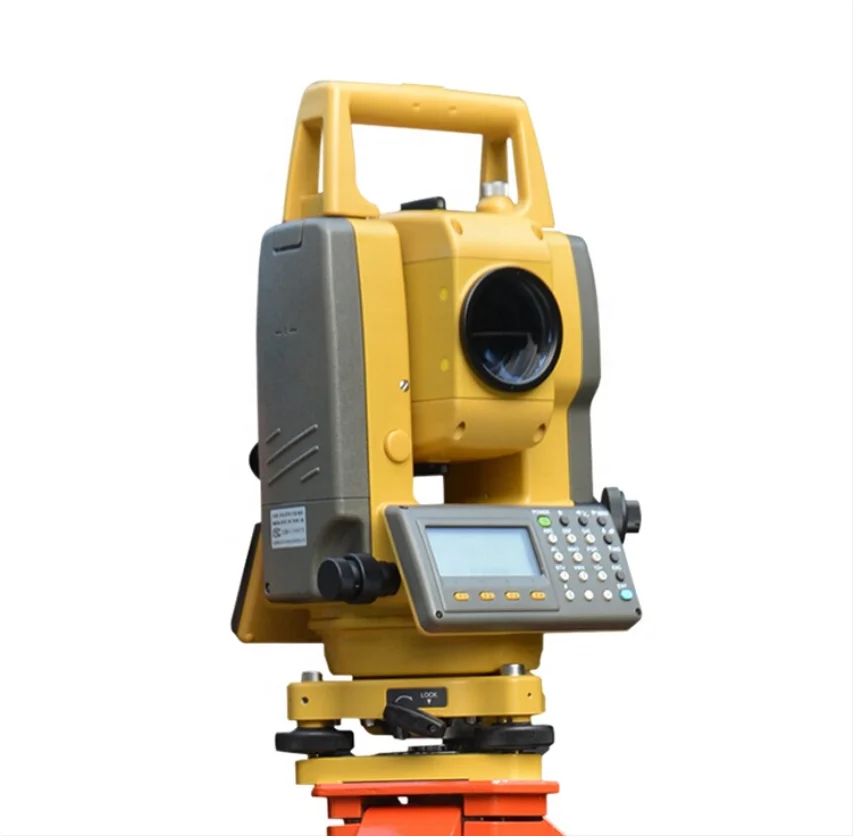

High precision Support Bluetooth Optics Instruments Topcon GTS102N Total Station

Model	GTS-102N
Length	150mm
Objective Lens Diameter	Telescope:45mm, Distance meter: 50mm
Magnification	30X
Image	Erect
Field of view	1°30’
Resolving power	3”
Mini.focus	1.3m
Single Prism	2000m
Three Prism	2700m
Accuracy - Prism mode	(2mm+2ppm x D)m.s.e.
Measuring time	Fine:1.2s , Coarse:0.7s , Tracking:0.4s
Meteorologic correction	Auto sensing
Prism constant	Manual input
Method	Absolute Encoding
Min. Reading	5” / 1”
Accuracy	2”
Diameter of circle	71mm
Type	Dot Matrix Graphic LCD (160X64)dot
Unit	2 sides
Keyboard	24 Keys
Tilt sensor	Single axis
Method	liquid-electric
Range	±3'
Accuracy	1”
Plate Level	30”/2mm
Circular Level	10’/2mm
Image	Erect
Magnification	3X
Focusing range	0.5m ~ ∞
Field of view	5°
Internal memory	24,000 points
Data interface	RS232
Working temperature	-20~+50℃
Battery type	Rechargeable Ni-H battery
Battery voltage	DC 6V
Water & dust proof	IP54
Working time	45 hours
