Длительный срок службы конвейерная лента с двойным конвейером для высокоскоростной гофрированной картонной
- Категория: Packaging Machinery Parts >>>
- Поставщик: Lly,Pack,(foshan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 95.25 $* | 100.11 $* |
| Aug-20-2025 | 94.43 $* | 99.95 $* |
| Jul-20-2025 | 79.42 $* | 83.93 $* |
| Jun-20-2025 | 93.12 $* | 98.67 $* |
| May-20-2025 | 81.36 $* | 85.67 $* |
| Apr-20-2025 | 91.43 $* | 96.2 $* |
| Mar-20-2025 | 90.19 $* | 95.84 $* |
| Feb-20-2025 | 90.95 $* | 95.67 $* |
| Jan-20-2025 | 89.51 $* | 93.50 $* |
Характеристики
Suitable for BHS, MARQUIP, MITSUTBISHI, ISOWA, MINGWEI, FULI, AGNATI, etc
WHY CHOOSE US?
➡The first domestic machine capable of producing a conveyor belt with a large width of 3300 mm➡Obtained a patent for the anti-collision edge
➡The unique Company participating in the domestic industry standard customization of conveyor belts
➡Under normal circumstances ，it can be used for 80million meters or more
MODEL-FCH | EDGE REINFORCEMEN FCH-FZ | KEVLAR EDGE REINFORCEMEN FCH-JQ | TRACION BELT FCH-QY |
NEIGHT KG/M2 | 7.5 | 7.5 | 3 |
THICKNESS mm | 9.1±0.3 | 9.1±0.3 | 6±0.5 |
WIDTH mm | 1400-3300 | 1400-3300 | 400-1400 |
THERMAL ENDURANCE℃ | 200℃ | 200℃ | 150℃ |
FRICTION FACTOR | 0.45 | 0.42 | 0.38 |
BREAKING STRENGTH KG/M | 30000 | 32000 | 10500 |
MOISTURE ABSORPTION /RELEASE RATIO | 129% | 120% | ---- |
STEAM LM2-H | 6.560 | 6.051 | ---- |
FLEXIBILITY TRANSVERSE | 0.96%/180℃ | 0.93%/180℃ | ---- |
FLEXIBILITY LONGITUDINAL | 0.68%/180℃ | 0.63%/180℃ | ---- |

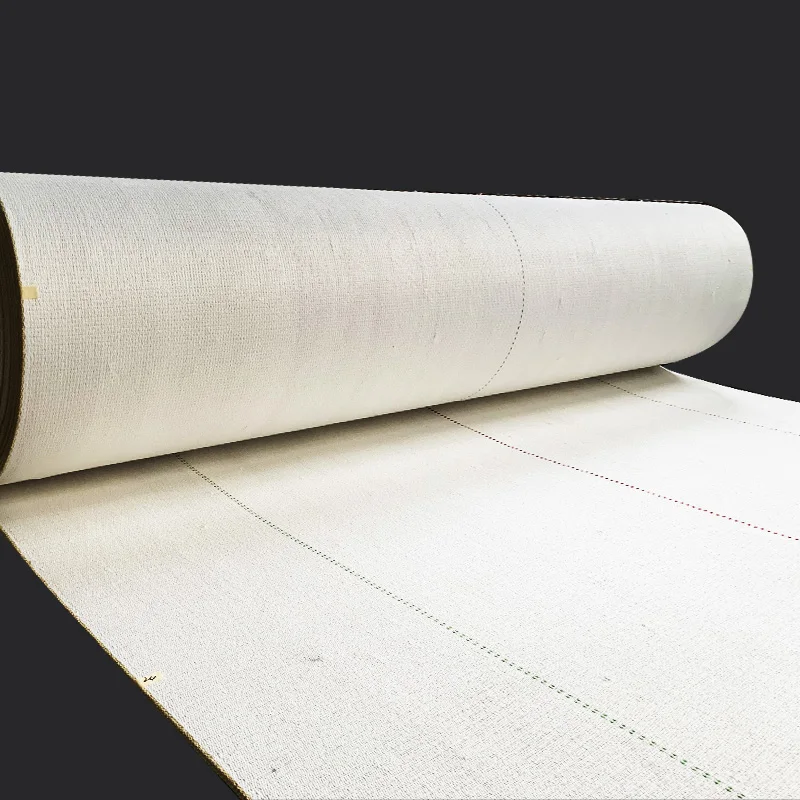

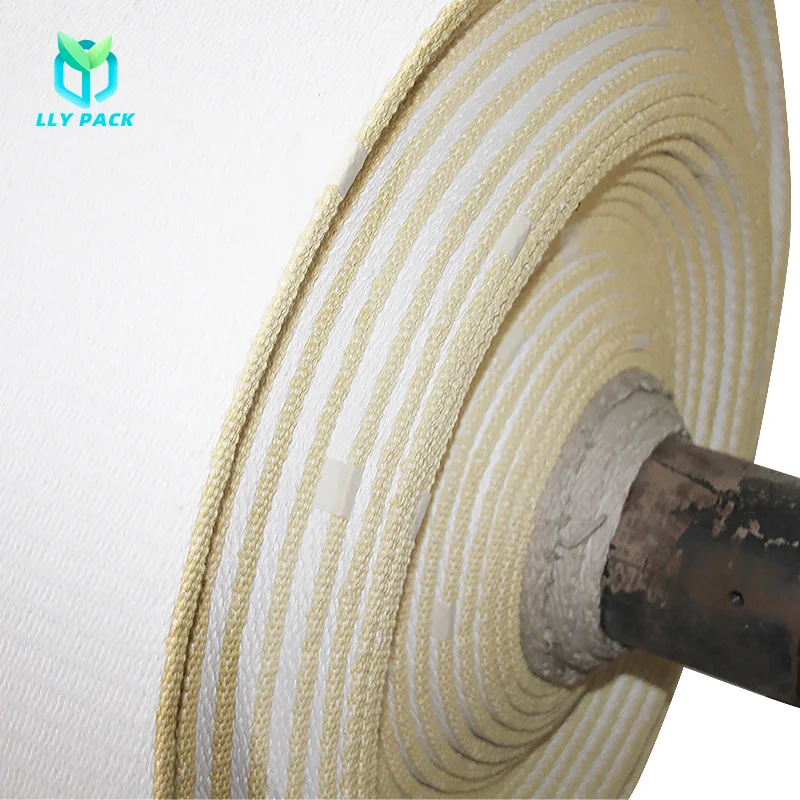

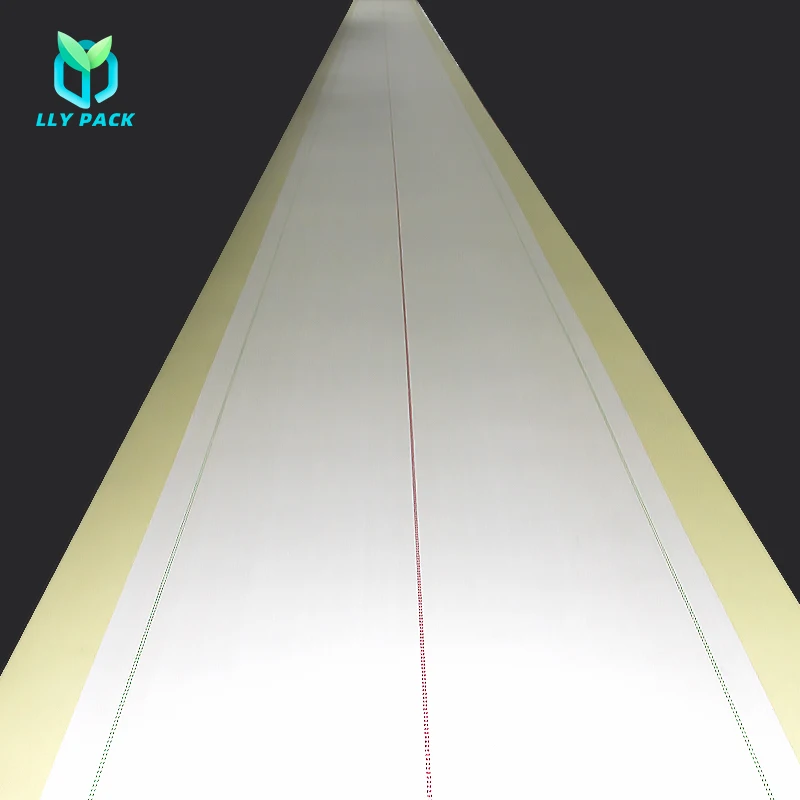

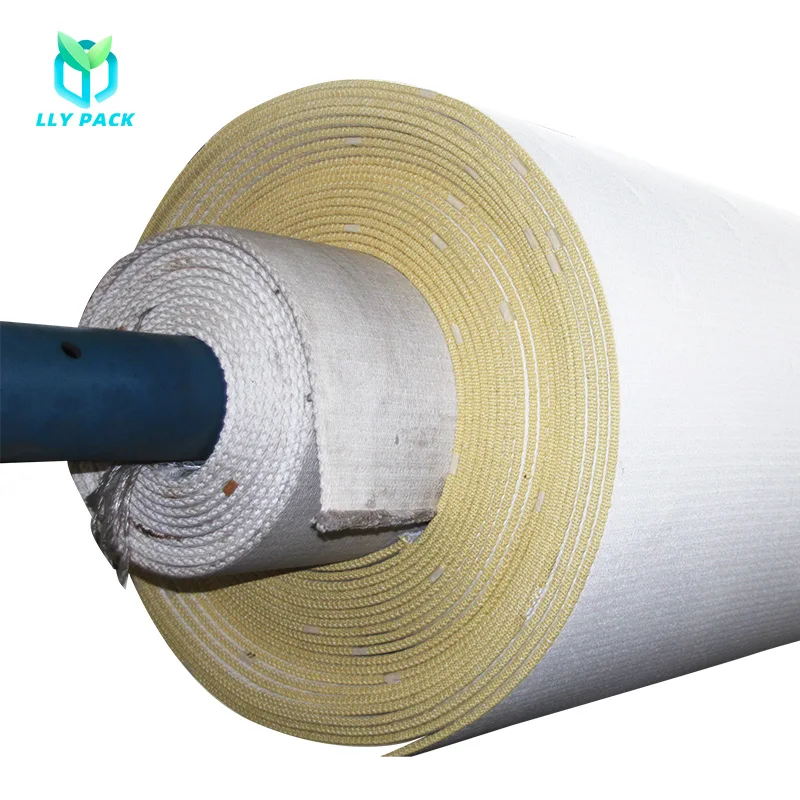

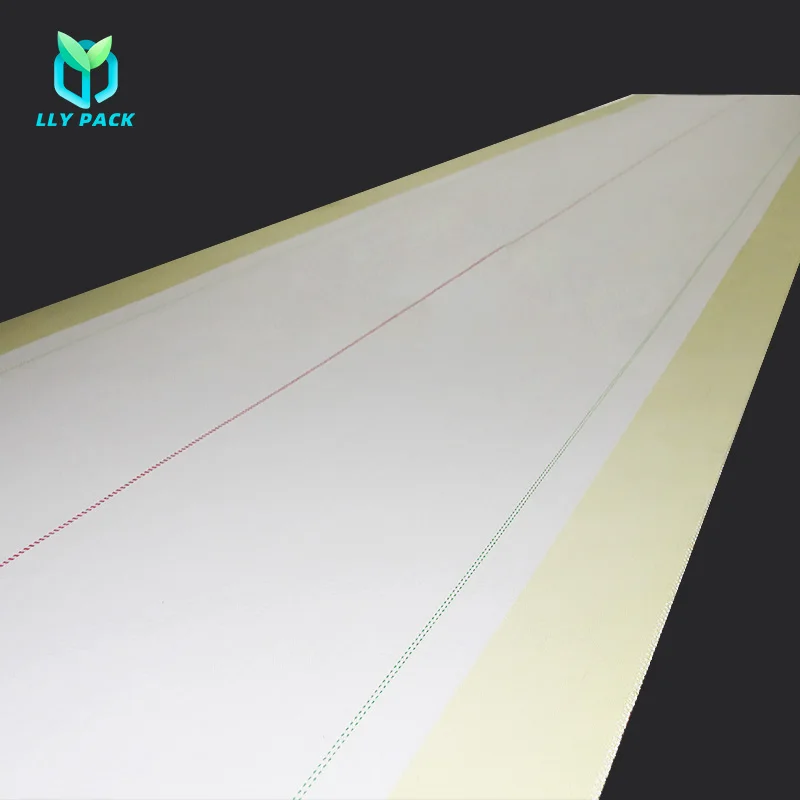

High Speed & Low Noise Woven Belt
Weaving technic: multi-layer single filing
Material: polyester yarn, polyester filament, Tencel and Kevlar
Feature: weaving texture clear, neat edge, stable dimension, heat and pressure-resisting, anti-static, outstanding traction,
surface and seam-sealing even.Great absorbency, drying and anti- static enable corrugated board transport flawlessly and efficiently in production line
Material: polyester yarn, polyester filament, Tencel and Kevlar
Feature: weaving texture clear, neat edge, stable dimension, heat and pressure-resisting, anti-static, outstanding traction,
surface and seam-sealing even.Great absorbency, drying and anti- static enable corrugated board transport flawlessly and efficiently in production line

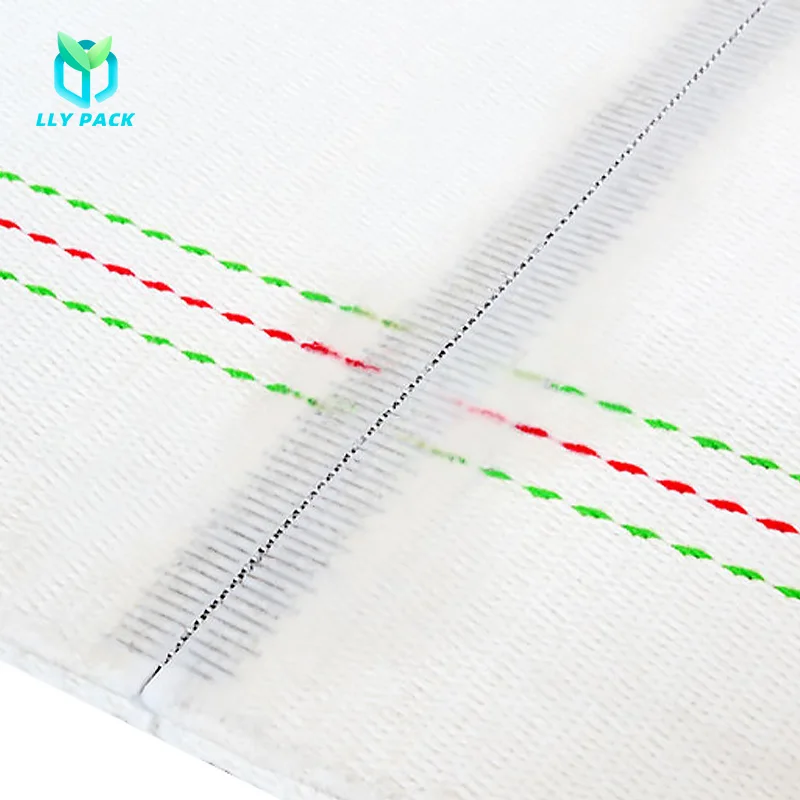

Joint Characteristics
The joint made by the double-sided thermal curing process of high temperature resistant colloid can not only protect the steel buckle well, but also be firm and durable. It also ensures that the deviation between joint height and the belt surface is less than 0.2 mm, which greatly reduces the cardboard production process Waste. It also solve the impact of indentation on cardboard printing
Q1: How long is the liftime of the conveyor belt?
A: Under normal circumstances (not operational error or mechanical failure), it can be used for 80million meters or more.
Q2: How about the fastest trial speed?
A: 330m/min.
Q3: Lead time?
A: Generally, 30-45 days. If the customer needs urgently, the lead time can be shortened.
Q4: Why is the price not the lowest among the industry?
A: The product process is different. Our factory has participated in the formulation of national standards, and the product has obtained a patent for collision avoidance.
Q5: What corrugated cardboard production line has our conveyor belt used?
A: Suitable for BHS MARQUIP MITSUTBISHI ISOWA MINGWEI FULI AGNATI and ect
A: Under normal circumstances (not operational error or mechanical failure), it can be used for 80million meters or more.
Q2: How about the fastest trial speed?
A: 330m/min.
Q3: Lead time?
A: Generally, 30-45 days. If the customer needs urgently, the lead time can be shortened.
Q4: Why is the price not the lowest among the industry?
A: The product process is different. Our factory has participated in the formulation of national standards, and the product has obtained a patent for collision avoidance.
Q5: What corrugated cardboard production line has our conveyor belt used?
A: Suitable for BHS MARQUIP MITSUTBISHI ISOWA MINGWEI FULI AGNATI and ect
