350 шт. провода для пайки разъемы герметичные изолированные терм усадочная припоя Стыковая
- Категория: Terminals >>>
- Поставщик: Huizhou,Sandianmu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 11.63 $* | 11.98 $* |
| Jul-16-2025 | 9.63 $* | 9.68 $* |
| Jun-16-2025 | 11.26 $* | 11.61 $* |
| May-16-2025 | 11.81 $* | 11.72 $* |
| Apr-16-2025 | 9.47 $* | 9.7 $* |
| Mar-16-2025 | 11.11 $* | 11.62 $* |
| Feb-16-2025 | 11.77 $* | 11.23 $* |
| Jan-16-2025 | 11.6 $* | 11.51 $* |
Характеристики
Product Description
Specification
Description:
100% brand new and high quality

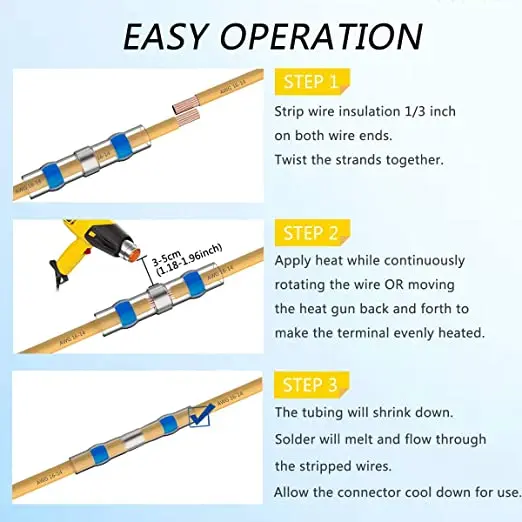

An easy one step connection of wires, soldered, insulated and sealed
Can be ideal use in marine and automobile applications

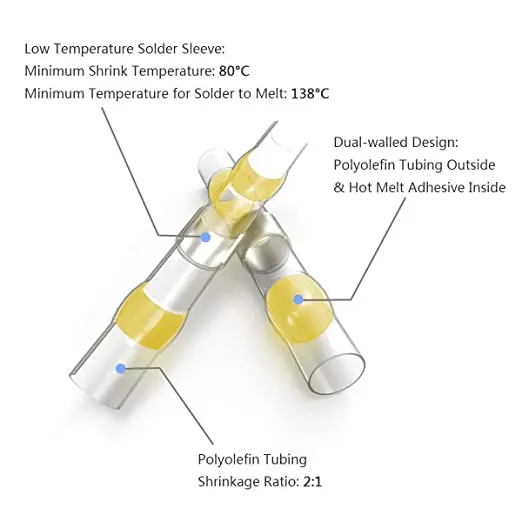

Polyolefin tubing in outside and hot melt adhesive in inside

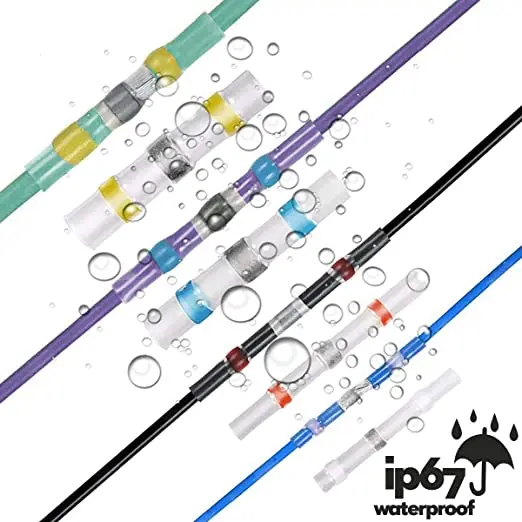

Solder and seal and with advanced waterproof function
Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation

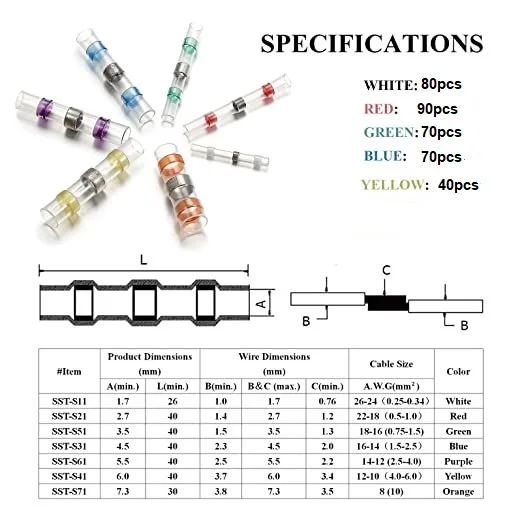

Specification:
Material : Tinned Copper
Colors : Red, Blue,White,Yellow,Green
Size :
90 x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18)
70 x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14)
70 x Green Connectors: Diameter 4.5mm, Cable cross-section 0.75-1.25 mm² (A.W.G.:18-16)
40 x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)
80 x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm² (A.W.G.:26-24)
Package includes:

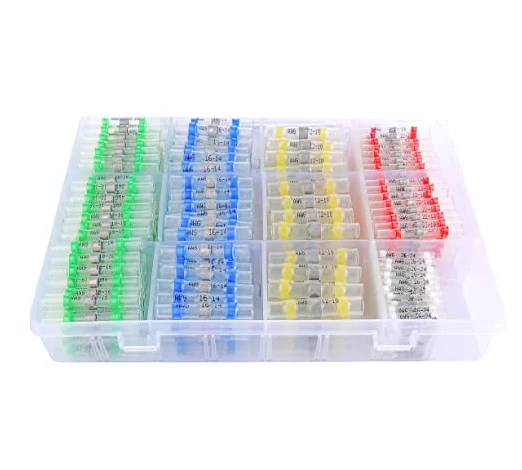

1 X 350PCS (5 Sizes) Heat Shrink Soldering Connectors
100% brand new and high quality
An easy one step connection of wires, soldered, insulated and sealed
Can be ideal use in marine and automobile applications
Polyolefin tubing in outside and hot melt adhesive in inside
Solder and seal and with advanced waterproof function
Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation
Specification:
Material : Tinned Copper
Colors : Red, Blue,White,Yellow,Green
Size :
90 x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18)
70 x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14)
70 x Green Connectors: Diameter 4.5mm, Cable cross-section 0.75-1.25 mm² (A.W.G.:18-16)
40 x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)
80 x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm² (A.W.G.:26-24)
Package includes:
1 X 350PCS (5 Sizes) Heat Shrink Soldering Connectors
Place of Origin | China (Mainland) |
China (Mainland) | Guangdong |
Brand Name | Sandianmu |
Model Number | SDM0350 |
Type | Wire connector |
Quantities | 350pcs |
Color | Red Blue Yellow White Green |
Material | Plastic +Metal |
is customized | Yes |
Item | Waterproof butt wire terminal |
Application | wire connectors |
Special | OEM Service Offered |
Usage | Connecting Cable |
Certificate | ISO9001 SGS CE ROHS |
Product name | solder seal wire connector |
Packing & Delivery
Company Profile
Huizhou Sandianmu Technology Co.,Ltd was established in 2009. We are located in Huizhou, adjacent to Shenzhen and Guangzhou. We have two unique ocean and air transportation advantages in China. We are mainly dedicated to production, research and development.Develop various wire protection sleeve solutions.
Sandianmu is a professional team with more than 10 years of experience.
Our products is exported to more than 60 countries, helping retailers in various countries to develop their businesses, and
received good feedback.
With high quality products and competitive price, We are have established long-term cooperation with many multinational business partners.Our comprehensive production lines ensure both capacity and quality.
All of our item are high quality and past relevent starndard like UL, ISO9001, CE, ROHS.
Sandianmu is a professional team with more than 10 years of experience.
Our products is exported to more than 60 countries, helping retailers in various countries to develop their businesses, and
received good feedback.
With high quality products and competitive price, We are have established long-term cooperation with many multinational business partners.Our comprehensive production lines ensure both capacity and quality.
All of our item are high quality and past relevent starndard like UL, ISO9001, CE, ROHS.
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are a very large factory for terminals and heat shrinkable tubing.
Q: What product does your company produce?
A: Company's products related to Heat Shrink Terminals, Dupont Terminals, Heat Shrinkable Tubing,
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can you make our company Logo ?
A: Yeah, we can make your logo on the box if you need.
Q:What about your lead time?
A:We have a lot of products in stock,we can send the stock products in 3 working days. If without stock, or stock is not enough,we will confirm lead time with you according to your order quality..
A: We are a very large factory for terminals and heat shrinkable tubing.
Q: What product does your company produce?
A: Company's products related to Heat Shrink Terminals, Dupont Terminals, Heat Shrinkable Tubing,
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can you make our company Logo ?
A: Yeah, we can make your logo on the box if you need.
Q:What about your lead time?
A:We have a lot of products in stock,we can send the stock products in 3 working days. If without stock, or stock is not enough,we will confirm lead time with you according to your order quality..
