Htmicrowave ИБС DAS высокой мощности 300W/500W N Женский 700 - 2700 МГц 2 пути полость
- Категория: >>>
- Поставщик: Hefei,HTMICROWAVE,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.30 $* | 1.17 $* |
| Jul-18-2025 | 1.15 $* | 1.46 $* |
| Jun-18-2025 | 1.90 $* | 1.19 $* |
| May-18-2025 | 1.82 $* | 1.75 $* |
| Apr-18-2025 | 1.27 $* | 1.56 $* |
| Mar-18-2025 | 1.82 $* | 1.31 $* |
| Feb-18-2025 | 1.28 $* | 1.7 $* |
| Jan-18-2025 | 1.29 $* | 1.84 $* |
Характеристики
Product Description

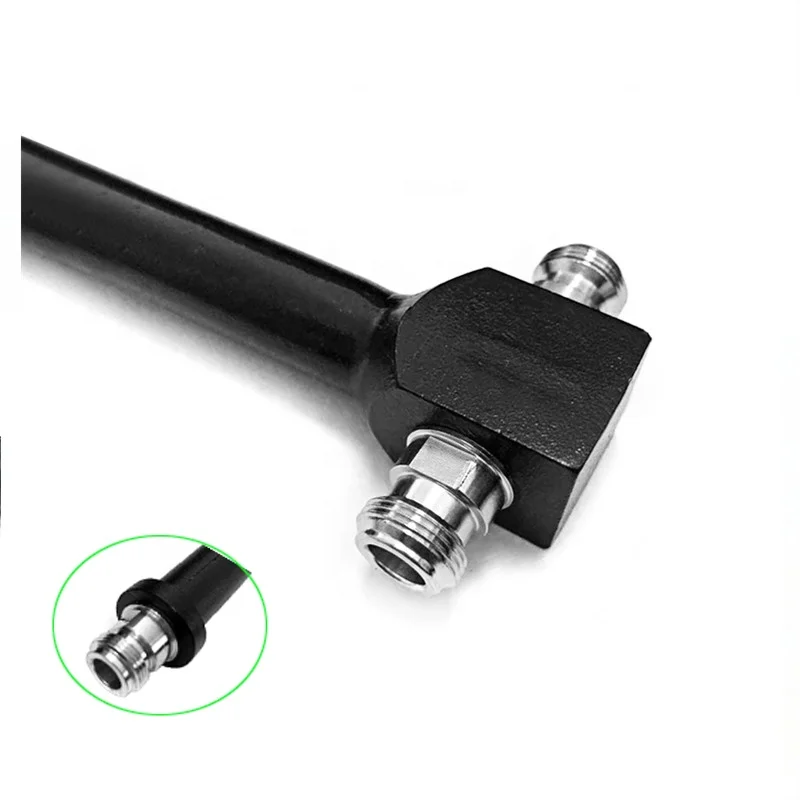

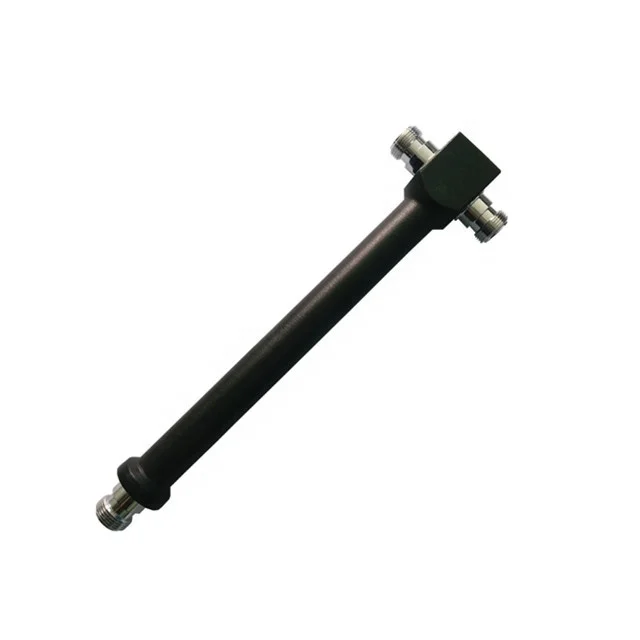

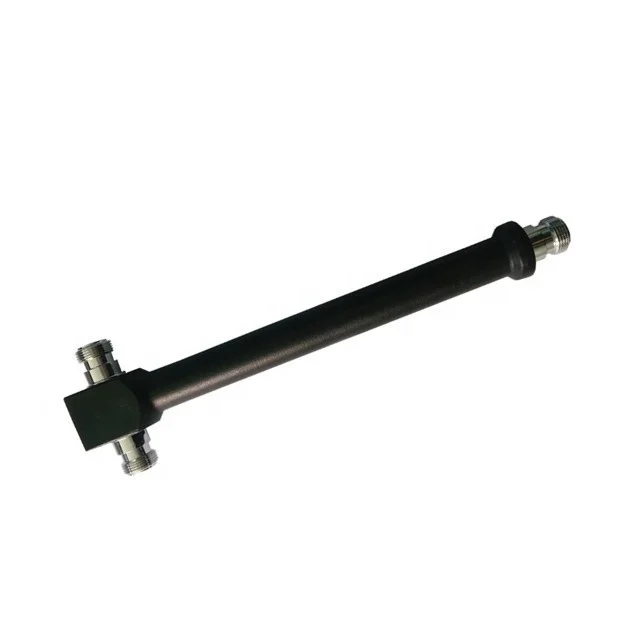

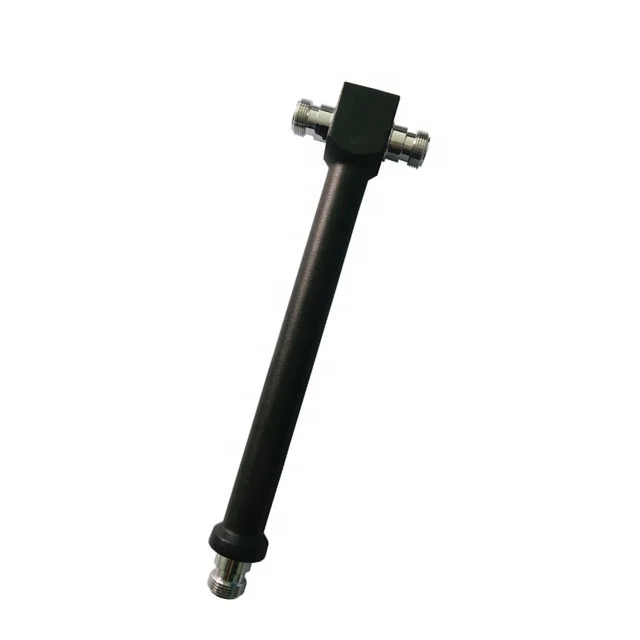

RF POWER SPLITTER/DIVIDER KEY FEATURES
1. Wide Frequency Band for 4G and 5G,
698-2700MHz, 617-3800MHz,
698-3800MHz.
2. Low Insertion Loss & Low VSWR.
3. Low PIM, supports -140/-150/-155/-160dBc.
4. N, 7/16 DIN, 4.3-10 Female connectors are available.
5. Use for equal splitting of high power RF signals with minimal reflections or loss.

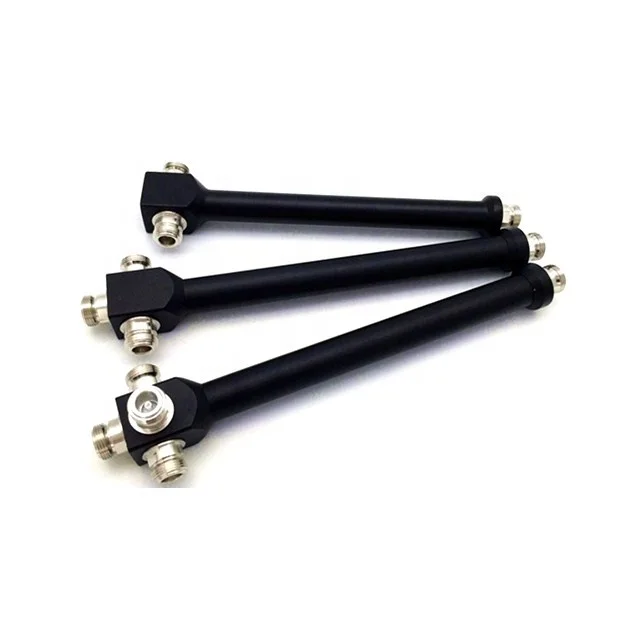

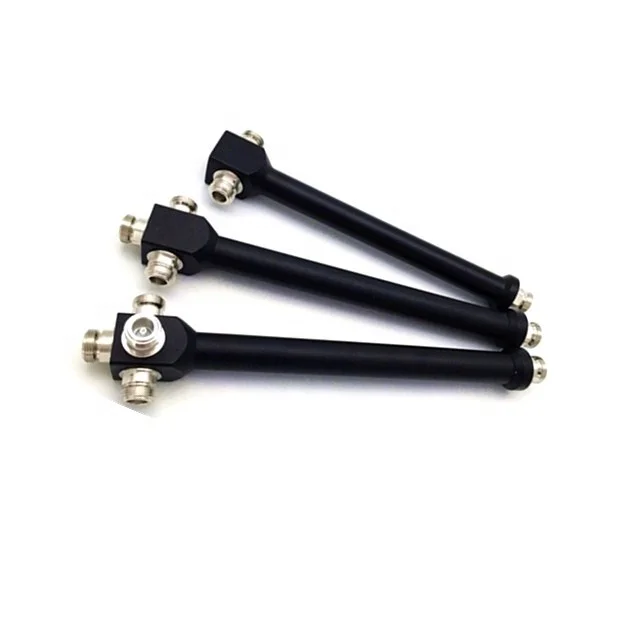

6. Multi-type power splitters are available in 2-way, 3-way and 4-way.
7. High Reliability, IP65 & IP67 waterproof
8. Economic factory price
9. ISO9001,ISO14000,SGS RoHS Compliant
Detailed Image
Specifications for 2,3,4 Way Power Spplitter | ||||||
Splitter Type | 2 Way | 3 Way | 4 Way | |||
Frequency Range | 700-2700MHz | |||||
Insertion Loss | ≤3.3dB | ≤5.2dB | ≤6.5dB | |||
In-band Ripple | ≤0.3dB | ≤0.4dB | ≤0.5dB | |||
VSWR | ≤1.25:1(2/3 Way) / ≤1.3:1(4 Way) | |||||
Impedance | 50 ohm | |||||
PIM3 | ≤ -140 /-150dBc @ 2 x43dBm | |||||
Connector Type | N-Female | |||||
Power Rating | 200/300W | |||||
Operating Temperature | -25 -+55℃ | |||||
Application | For Indoor Use / For IP65 Outdoor Use (As per customers' requirements) | |||||
Finish | Black Paint | |||||
Specifications will change without any notice, pls contact us for most current specifications.(Skype: Sunny070630) | ||||||
Related Products
Our Company
HeFei HTMICROWAVE Technology CO.,LTD is a new and high-tech enterprise which focus on Microwave Technology Research, RF Microwave Component and System Industry Development. We are a global and professional manufacturer and system integrator provider for Wireless Network Coverage and optimization solutions.
Our main products are IBS and Optical Fiber products, such as Power Splitter, Directional Coupler, 3dB Hybrid Coupler, Hybrid Combiner, RF Coaxial Attenuator, Dummy Load, Cable Assembly, Connector and Adapter, RF Antenna, Filter, Duplexer and Triplexer, PLC Splitter, Patch Cord,etc. Customers' designs (OEM / ODM) are also available.
With years of export experience along with excellent quality, advanced service and competitive prices, our company has won numerous customers' trust and support. We welcome worldwide customers to contact us for further discussion and cooperation.
Headquarter & R&D Center
Production Base
Micro-assembly Workshop
Stereoscopic Warehouse
Assembly Workshop
Automatic Filter Workshop
Testing Equipments
Our Domestic & International Exhibitions:
IMS Exhibition(USA)
BeiJing Exhibition
Our Service
1. Sufficient stock for your prompt dispatch
2. Free Samples can be provided for your evaluation
3. OEM customized services
4. Professioinal foreign trade team, 24 hours online service
Packing & Delivery
Packing Information
Each piece packed in an opp bag,
each opp bag packed in a small inner box,
small boxes put in one standard exporting carton,
then cartons packed in one pallet.
High Quality Combiner & Multi-band Combiner N-female will be protected very well with paper cardboard and foam.
Sea Shipping, Air Shipping and Express(DHL, Fedex,etc)
Delivery Details:
3-5 Days if have stock, 10-14 Days if no stock,
15-28 Days if need new design and mould.
FAQ
1.Can we get a free sample firstly?
Yes,free sample is available for our customers.
2.Are you a trader or manufacturer?
We are original manufacturer in the filed of RF components and Optical Fiber products since 1992.
3.What is your MOQ?
No MOQ for any sample test,at least 10pcs after sample order.
4.OEM/ODM Service is available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.
5. What's your company advantage?
We have our own R&D, production, sell and the rich experience technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.
6.Please let us know more details about Trade Terms, Payment Term and Leadtime.
Payment Terms: 100% TT in advance before shipment, Paypal and Western Union for the sample order
Trade Terms:FOB Shanghai/Ningbo/ShenZhen,CIF.
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Lead time: Sample order,1-3 Business Days; Bulk Order, 7-15 Business Days after the deposit.
7.How about the Warranty?
The first year: replace the new equipment if the your products failed.
The second and third year: supplying free maintenance service, just charge components cost fee and labor fee.
