Автоматический сверлильный станок с ЧПУ для деревообработки мебели древесины Сверления Глубоких Отверстий шестисторонний
- Категория: Wood Boring Machines >>>
- Поставщик: Spower,Machinery,Technology,Co.,Ltd.,(jinan)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.99 $* | 0.60 $* |
| Aug-16-2025 | 0.84 $* | 0.50 $* |
| Jul-16-2025 | 0.73 $* | 0.60 $* |
| Jun-16-2025 | 0.47 $* | 0.25 $* |
| May-16-2025 | 0.26 $* | 0.60 $* |
| Apr-16-2025 | 0.77 $* | 0.77 $* |
| Mar-16-2025 | 0.31 $* | 0.40 $* |
| Feb-16-2025 | 0.5 $* | 0.75 $* |
| Jan-16-2025 | 0.90 $* | 0.33 $* |
Характеристики
Product Description

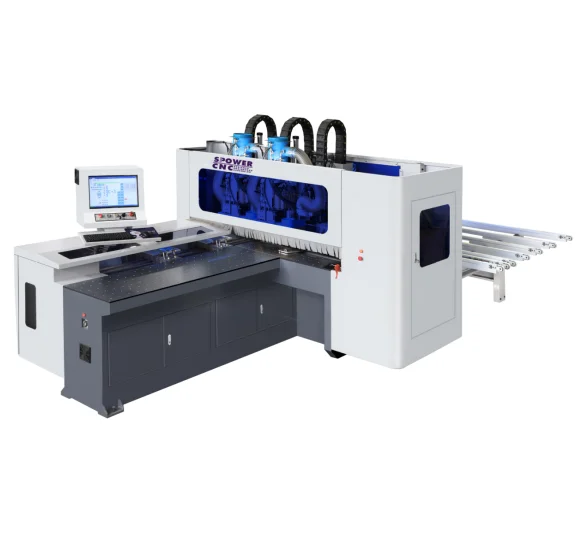

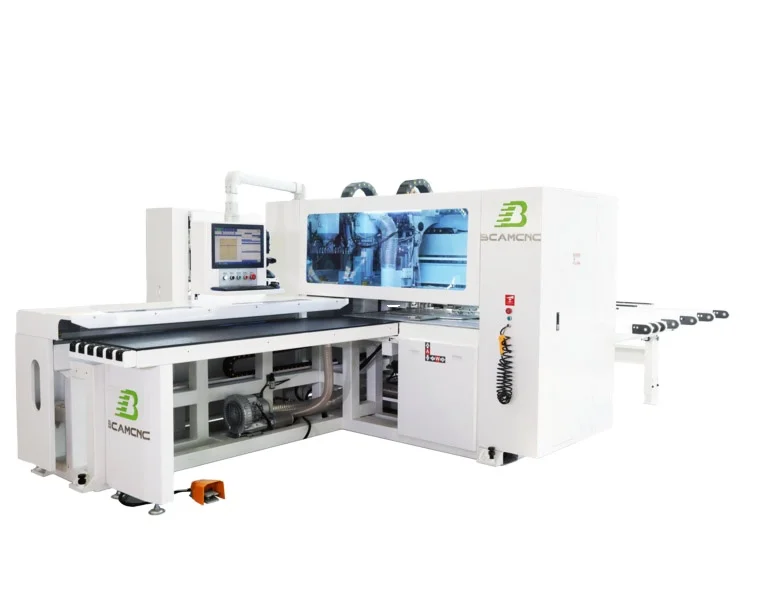

Six side drilling machine BCM612
Name | Six side drilling machine |
Model | BCM612 |
Panel length | 250-2800mm |
Panel width | 50-1200mm |
Panel thickness | 12-50mm |
Spindle | 3.5/3.0kw Air Cooling *2 |
Spindle Speed | 18000rpm |
Upper Vertical Drill | 12 pcs*2 |
Bottom l drilling | 9 pcs |
Horizontal boring | X axis: 2*4 Y axis 2*2 |
Drive Motors | Japanese servo motor and drivers |
Working Voltage | AC380v/50HZ/3 phase |
Net weight | 3500 kgs |
Overall dimension | 5900*2640*2100mm |
Features :
1.Quickly and accurately,can drill multi kinds of hole and there is no limit to the board width
2.Specially developed for horizontal perforater plate custom furniture
3.Drive motor adopts servo motor equipped with reducer easily ensure machine run fast and smooth
4.Control system adopts the domestic high quality touch screen, operation.
1.Quickly and accurately,can drill multi kinds of hole and there is no limit to the board width
2.Specially developed for horizontal perforater plate custom furniture
3.Drive motor adopts servo motor equipped with reducer easily ensure machine run fast and smooth
4.Control system adopts the domestic high quality touch screen, operation.
Advantage:
Save time, save human labor , high efficiency , the tolerance of the hole is very small .
Save time, save human labor , high efficiency , the tolerance of the hole is very small .
1.The adoption of imported drillers improves durability
2,Selection of high quality steel machine parts,and it is never performed by high-strength heat treatment;
3,Equipped with digital calculator to measure size which enhances the work efficiency.
4.High quality infrared sensor,with high sensitivity,to ensure accurate positioning.
2,Selection of high quality steel machine parts,and it is never performed by high-strength heat treatment;
3,Equipped with digital calculator to measure size which enhances the work efficiency.
4.High quality infrared sensor,with high sensitivity,to ensure accurate positioning.
5.The feeding table is an air floating table, which can effectively protect the sheet from being scratched in the process of sliding.
Detailed Images

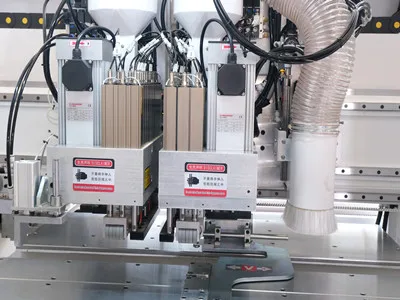

2 pcs spindle
Above: 1 pcs 3.0/3.5kw spindle Following: 1 pcs 3.0/3.5kw spindle

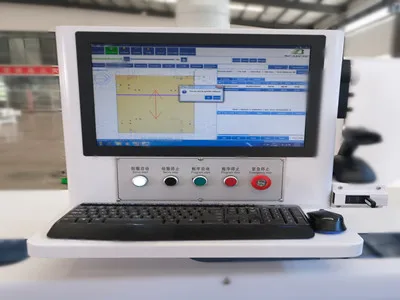

Control system
China Control system and operation system, more reliable electricity components, Industry level computer. Open system design, it not
only be docked with diversified data formats, but also flexible docking with cnc router , Edge banding machine by code ,etc
automatically load processing graphic files and produce NC programs for processing.Compatible with docking software data at home and abroad,more worry-free, faster drilling.

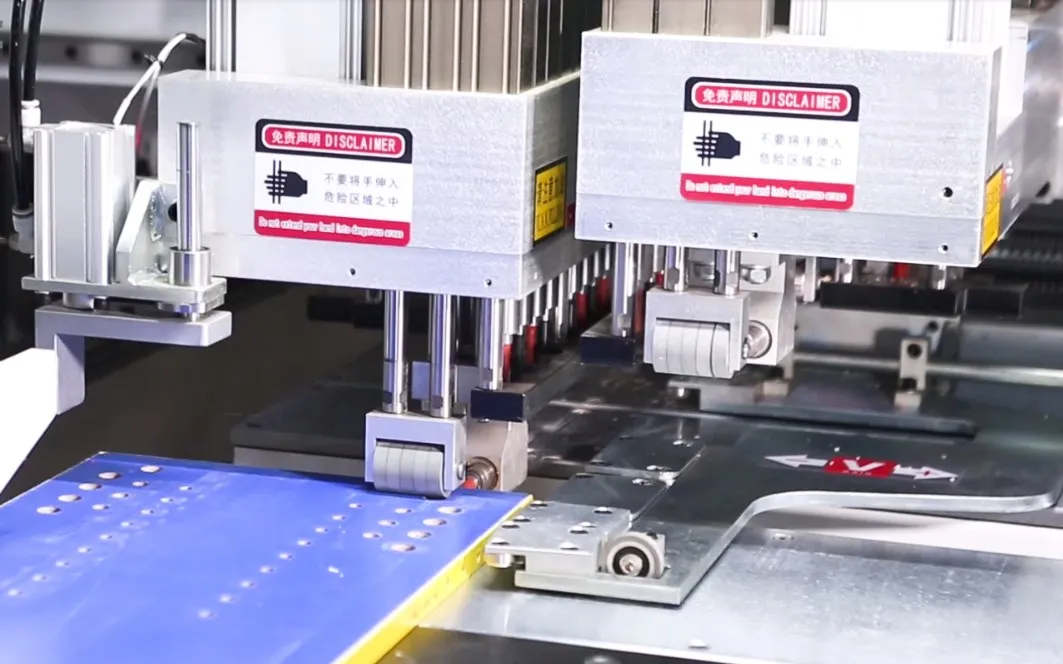

2 pcs boring unit
Horizontal Dril: X axis:2*4; Y axis: 2*2 Upper Vertical Drill: 12 PCS *2 Bottom Drilling : 9 PCS

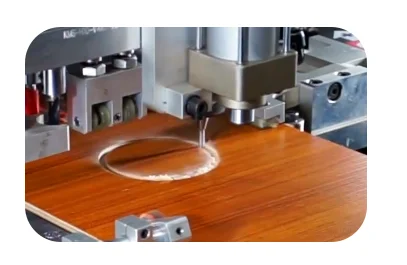

Application
Six side drilling machine is mainly used in horizontal and vertical drilling of various artificial plates, solid wood plates, semi-solid wood plates, and trough processing applications. It is a CNC processing equipment, simple operation, fast drilling speed, and small spindle Slotted, suitable for processing all kinds of combined cabinet panel furniture.
Packing & Delivery
1.How is the packing?
1).The Big size manual 3d cnc router machines woodworking with oversea service is packaged with Standard plywood case, its compressive strength and bearing quality is better.
2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3).when importing, the plywood case is with fumigation-free, the procedure is simple.
2.How long is the delivery time?
For standard machine, it would be 7-10 working days;
For non-standard and customized machines according to client’s specific requirements, it would be 15-30 working days.
1).The Big size manual 3d cnc router machines woodworking with oversea service is packaged with Standard plywood case, its compressive strength and bearing quality is better.
2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3).when importing, the plywood case is with fumigation-free, the procedure is simple.
2.How long is the delivery time?
For standard machine, it would be 7-10 working days;
For non-standard and customized machines according to client’s specific requirements, it would be 15-30 working days.
Packaging | ||
Size | 5900*2640*2100mm | |
Weight | 3500KGS | |
Packaging Details | thermocol letter cutting machine would package with plywood case then loading into container. | |
Certifications
Our Service
Guarantee:
1.24 months guarantee of the BCM612 six side drilling machine.
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the consumable parts at an agency price when you need replacement.
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary
After-sale service:
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
Company Profile
BCAM has more than 15 years experience, and has built and installed thousands of machines for industries including Aluminum & Metal Composite Cladding, Sign making, Graphics & Print Finishing, Cabinetry, Woodworking, Plastic Fabrication, Metal Fabrication,Foam Packaging, Point of Purchase, Solid Surface and many more sectors and specialty areas.
Related Products
FAQ
1. Can you sent machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
2.This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1.English guide video and instruction book are sent to you free together with the cnc router.
2.Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3.We have our own after-sales service team,24 hours technical support by calling, video and email.
3.Term of payment ?
80% T/T in advance, 20% T/T before delivery.After we receive your deposit, we will arrange production,meanwhile machine pictures and videos will be sent to clients in time,when they make sure everything is ok, transfer the balance and we arrange to delivery machine.
4.Does your product exported to our country?
Sure,Our company has been exported to more than 100 countries and has established branches in the UK, France, Poland, Germany,Korea, Georgia, Pakistan, Canada and other countries.In addition, we have established overseas warehouses in Dubai and Germany.
Yes, we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
2.This is the first time to use cnc router machine,is it easy to operate?
Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1.English guide video and instruction book are sent to you free together with the cnc router.
2.Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.
3.We have our own after-sales service team,24 hours technical support by calling, video and email.
3.Term of payment ?
80% T/T in advance, 20% T/T before delivery.After we receive your deposit, we will arrange production,meanwhile machine pictures and videos will be sent to clients in time,when they make sure everything is ok, transfer the balance and we arrange to delivery machine.
4.Does your product exported to our country?
Sure,Our company has been exported to more than 100 countries and has established branches in the UK, France, Poland, Germany,Korea, Georgia, Pakistan, Canada and other countries.In addition, we have established overseas warehouses in Dubai and Germany.
