Масляный радиатор с воздушным охлаждением AH1012T вентилятором 12 В постоянного тока для гидравлической станции пластинчатый
- Категория: Heat Exchanger >>>
- Поставщик: Xinxiang,Hengsheng,Heat,Exchanger,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 108.51 $* | 110.59 $* |
| Jul-15-2025 | 88.98 $* | 90.7 $* |
| Jun-15-2025 | 106.38 $* | 108.72 $* |
| May-15-2025 | 105.48 $* | 107.49 $* |
| Apr-15-2025 | 84.40 $* | 86.86 $* |
| Mar-15-2025 | 104.87 $* | 106.67 $* |
| Feb-15-2025 | 103.68 $* | 105.36 $* |
| Jan-15-2025 | 102.76 $* | 104.76 $* |
Характеристики
Products Description
Brand: | Hengsheng |
Type: | Hydraulic oil cooler |
Structure: | Aluminum plate-fin type |
Model: | AH1012T-DC12V |
Custom processing: | Yes |
Applicable models: | Cooling of hydraulic station, hydraulic transmission system and lubrication system of various machinery |
Fan power supply: | DC 12V 60W fan |
Heat dissipation area: | 3.2㎡ |
Working pressure: | 2.4Mpa |

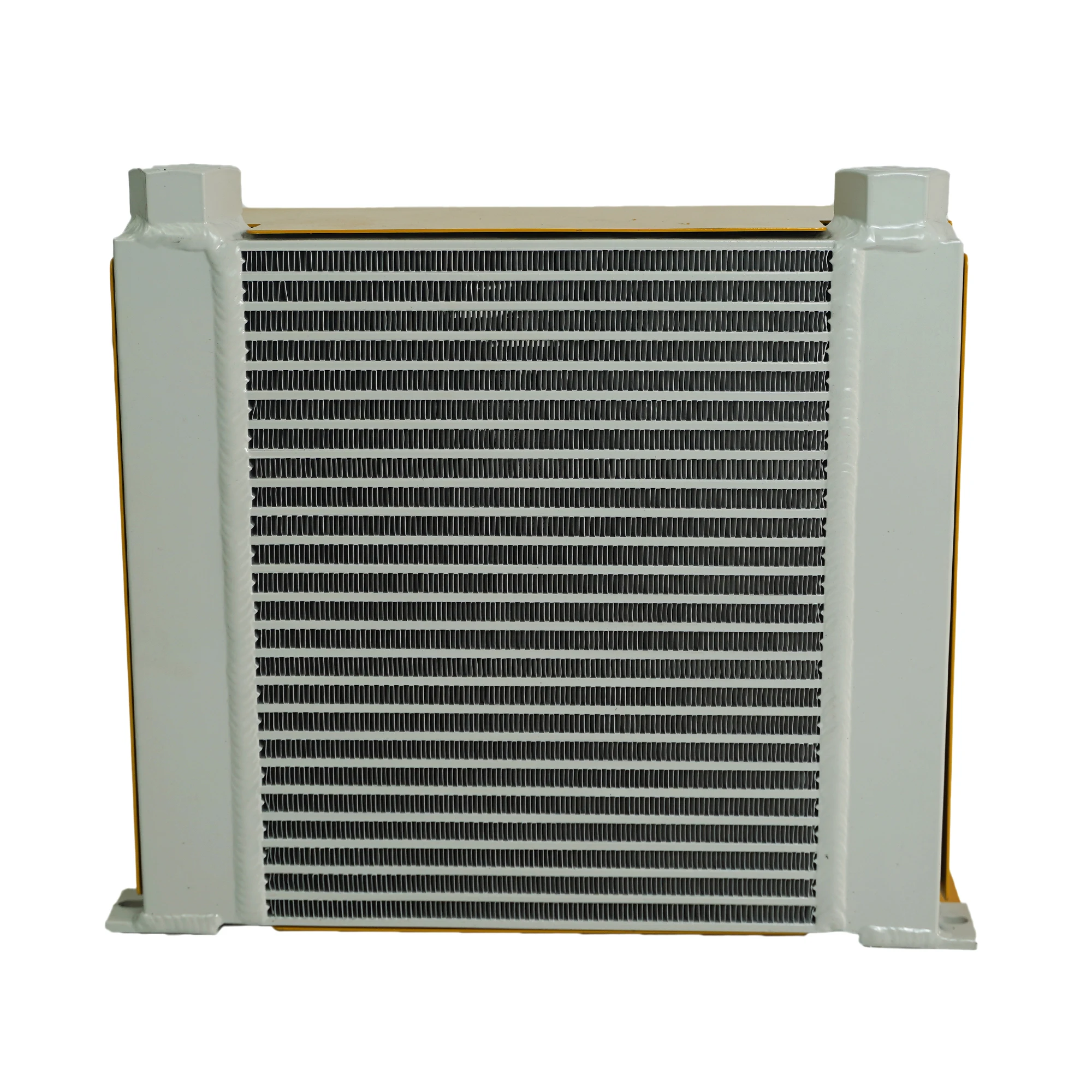

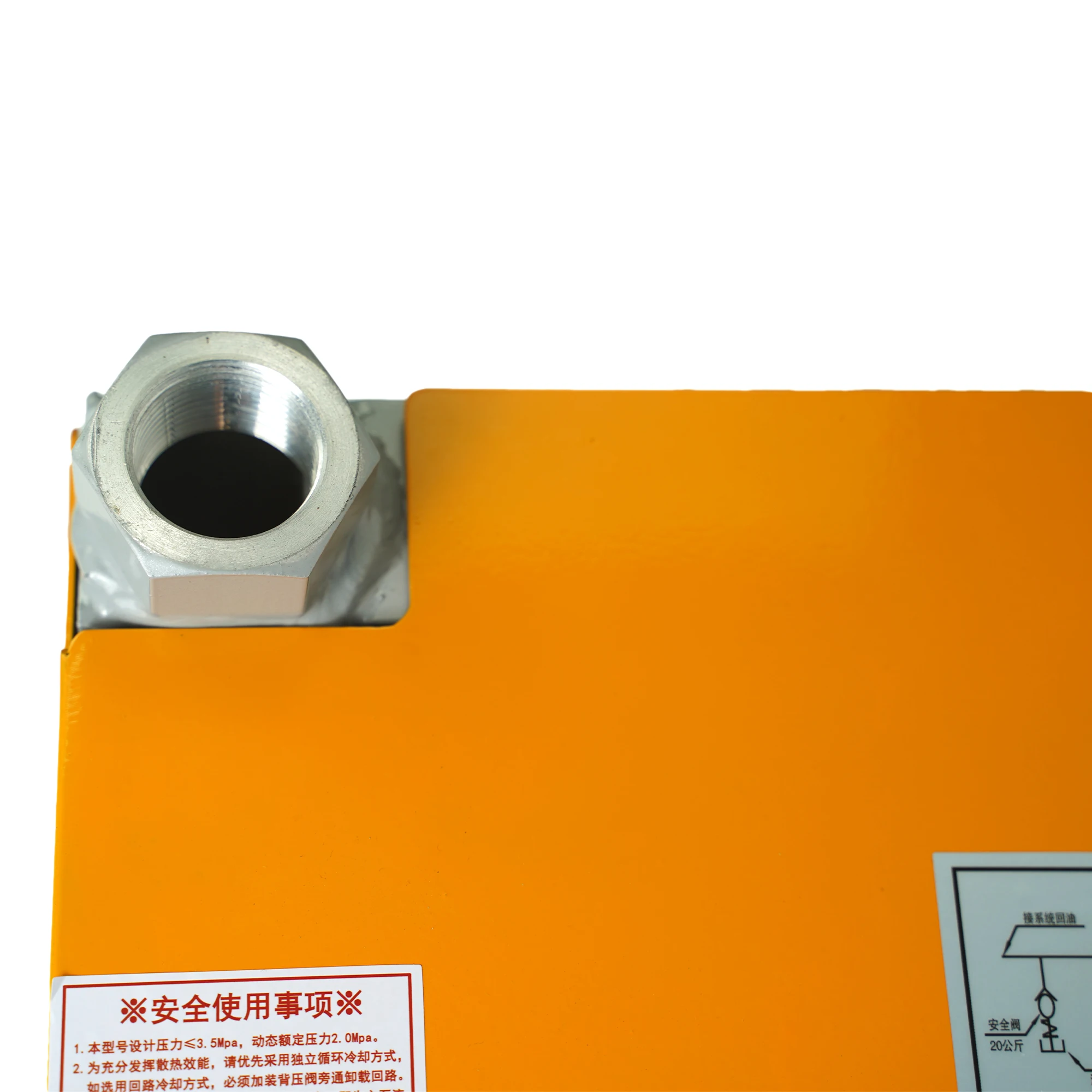

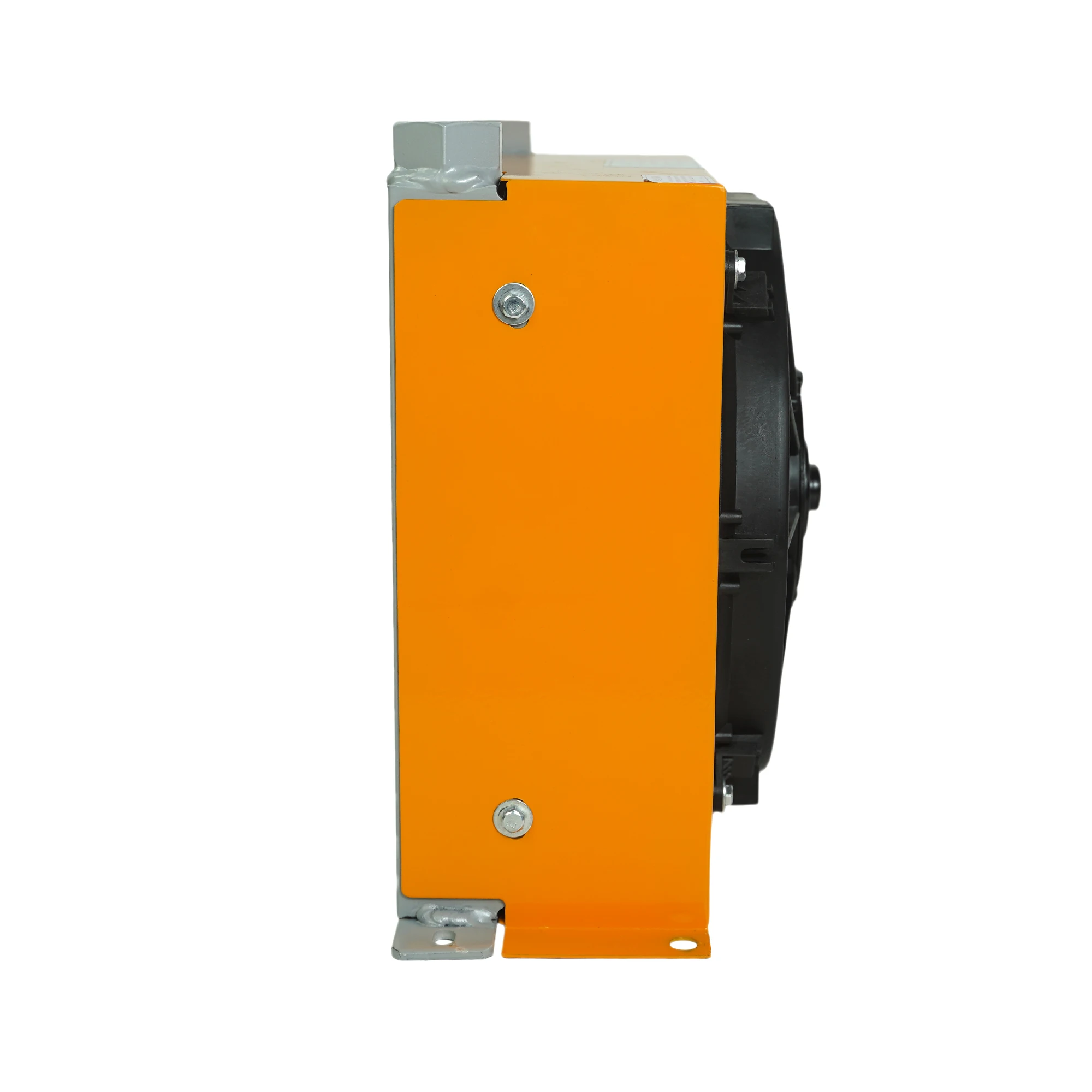

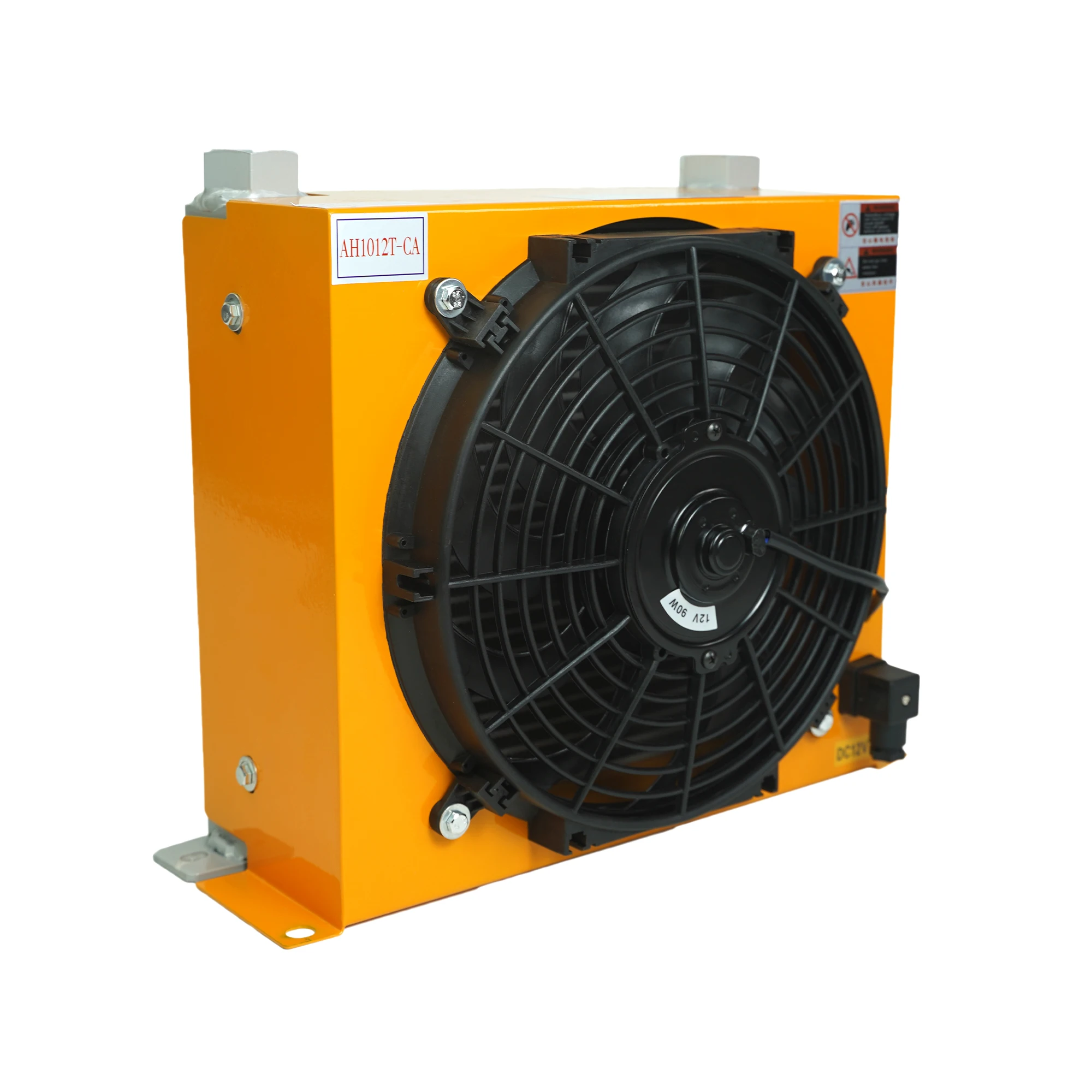

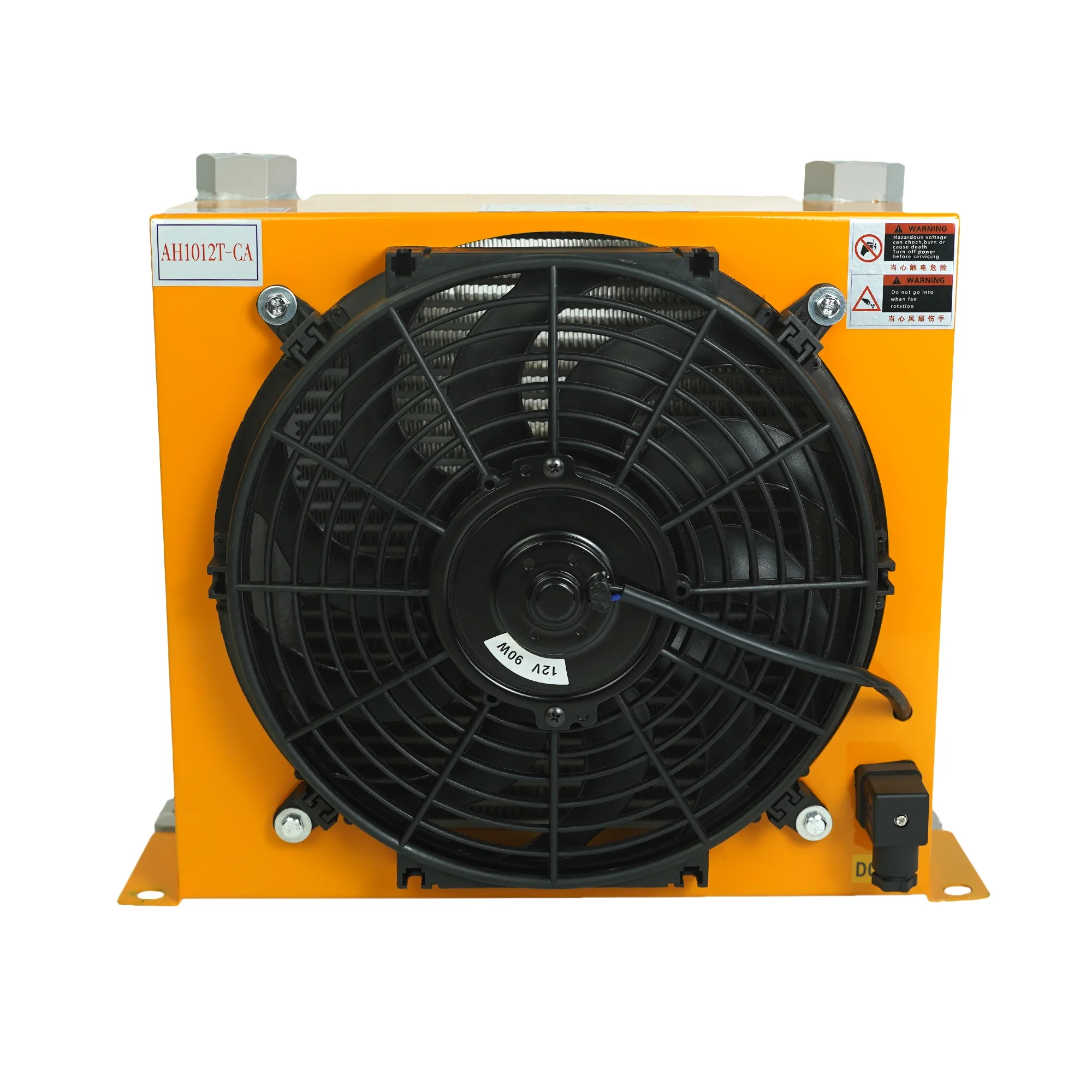

Details Images
Recommend Products
Quick selection
Follow the instructions below for quick selection:
1. Choose the oil port type of the cooler according to the size of the oil flow
In principle, when the oil flow through the cooler is less than or equal to 300L/Min, try to choose the threaded port, namely LQF1 series, to make the structure simple and quick to install and unload; and when the oil flow is >300L/Min, the flange port should be used. LQF2 series to reduce the pressure drop when the oil flows through the cooler.
2. Perform simple selection calculations
a. Estimate the heating power of the system to oil, and determine the maximum allowable working temperature and ambient temperature of the oil;
b. According to the principle of heat balance, use the formula P=K·ΔT in the "Technical Parameters" table to calculate the required K value.
3. Choose a specific model
According to the calculated K value and the selected port type, select the closest larger model in the appropriate "technical parameter" table.
Note: Since the exposed heat sink of the cooler is easy to accumulate, and the accumulation of fouling will significantly reduce the cooling effect of the cooler, therefore, if the cooler is working in an environment with serious oil and dust, there should be a large margin when selecting the model. the amount.
1. Choose the oil port type of the cooler according to the size of the oil flow
In principle, when the oil flow through the cooler is less than or equal to 300L/Min, try to choose the threaded port, namely LQF1 series, to make the structure simple and quick to install and unload; and when the oil flow is >300L/Min, the flange port should be used. LQF2 series to reduce the pressure drop when the oil flows through the cooler.
2. Perform simple selection calculations
a. Estimate the heating power of the system to oil, and determine the maximum allowable working temperature and ambient temperature of the oil;
b. According to the principle of heat balance, use the formula P=K·ΔT in the "Technical Parameters" table to calculate the required K value.
3. Choose a specific model
According to the calculated K value and the selected port type, select the closest larger model in the appropriate "technical parameter" table.
Note: Since the exposed heat sink of the cooler is easy to accumulate, and the accumulation of fouling will significantly reduce the cooling effect of the cooler, therefore, if the cooler is working in an environment with serious oil and dust, there should be a large margin when selecting the model. the amount.
Company Profile
Xinxiang Hengsheng Heat Exchanger Co., Ltd. (formerly Xinxiang Lida Heat Exchanger Factory) is located in Dazhaoying Filtration Industrial Park, Xinxiang City, Henan Province. Professional production enterprise.
The main products are: coolers, heat exchangers, radiators, intercoolers, evaporators and condensers for various purposes. Products are widely used in: hydraulic system cooling, engine system, lubrication system cooling and power system cooling of various mechanical equipment and vehicles; various heat exchanges in gas compression, drying and separation; various heat exchanges in refrigeration and air conditioning Wait.
Our main processing and testing equipment are special forming equipment for radiating fins, radiator brazing component cleaning production line, high-temperature alloy brazing fixtures, vacuum brazing furnaces, argon arc welding machines and airtight test benches.
Tips and suggestions
1. Regarding the installation position of the blower or suction fan and the cooler, the main consideration should be to prevent the cooler from sucking in hot air that has been heated by other components, and to prevent the hot air discharged from the cooler from affecting the normal work of equipment and personnel And to ensure that the air intake and exhaust are free and unobstructed.
2. Avoid sudden changes in flow and pressure shocks during use to ensure that the maximum allowable static working pressure is not exceeded. In order to ensure the safety of the cooler, we suggest users to connect a bypass valve (check valve) in parallel with the cooler directly to the fuel tank.4. Due to the diversity of working systems and the complexity of the installation environment, we recommend that users consult our technical department during the system design stage, and we are willing to provide more information for your reference.
3. For systems that work under non-continuous design loads, in order to control the oil temperature within a reasonable range, we recommend installing a temperature control switch to control the fan's rotation and stop.
