Mini M6 IP68 2 3 4 5 6 7 8 Pin водонепроницаемый разъем для электровелосипеда
- Категория: Connectors & Terminals >>>
- Поставщик: Shenzhen,Kenhon,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.31 $* | 0.75 $* |
| Aug-16-2025 | 0.63 $* | 0.69 $* |
| Jul-16-2025 | 0.39 $* | 0.46 $* |
| Jun-16-2025 | 0.99 $* | 0.1 $* |
| May-16-2025 | 0.33 $* | 0.80 $* |
| Apr-16-2025 | 0.53 $* | 0.19 $* |
| Mar-16-2025 | 0.35 $* | 0.18 $* |
| Feb-16-2025 | 0.59 $* | 0.94 $* |
| Jan-16-2025 | 0.38 $* | 0.43 $* |
Характеристики

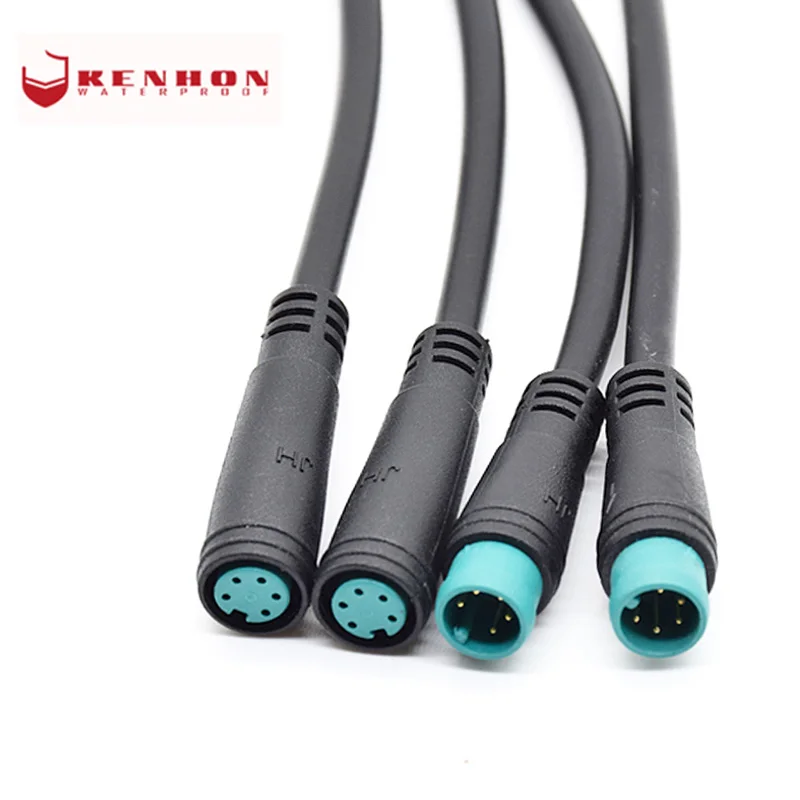

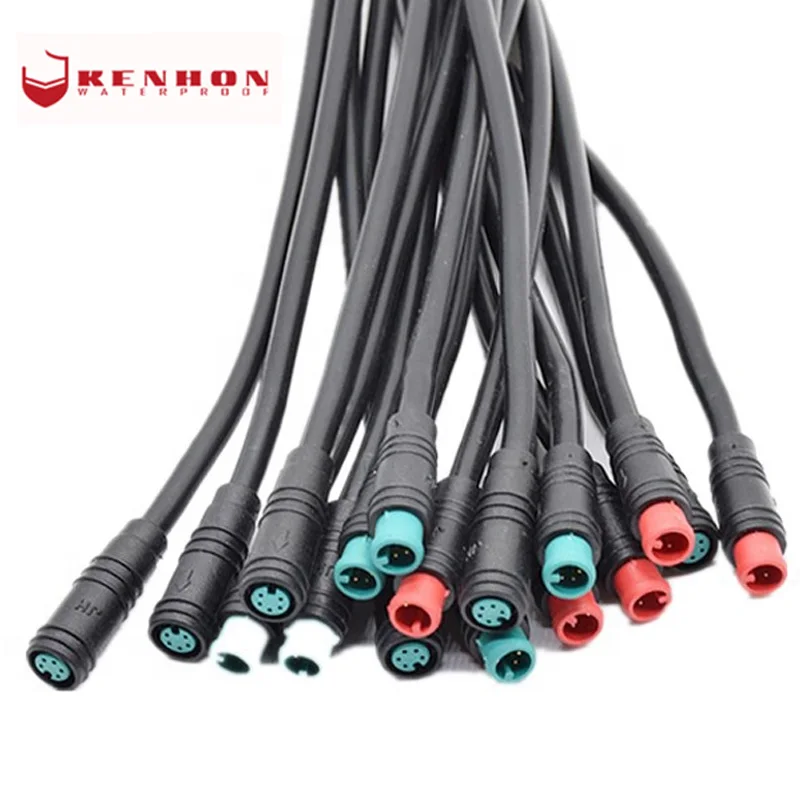

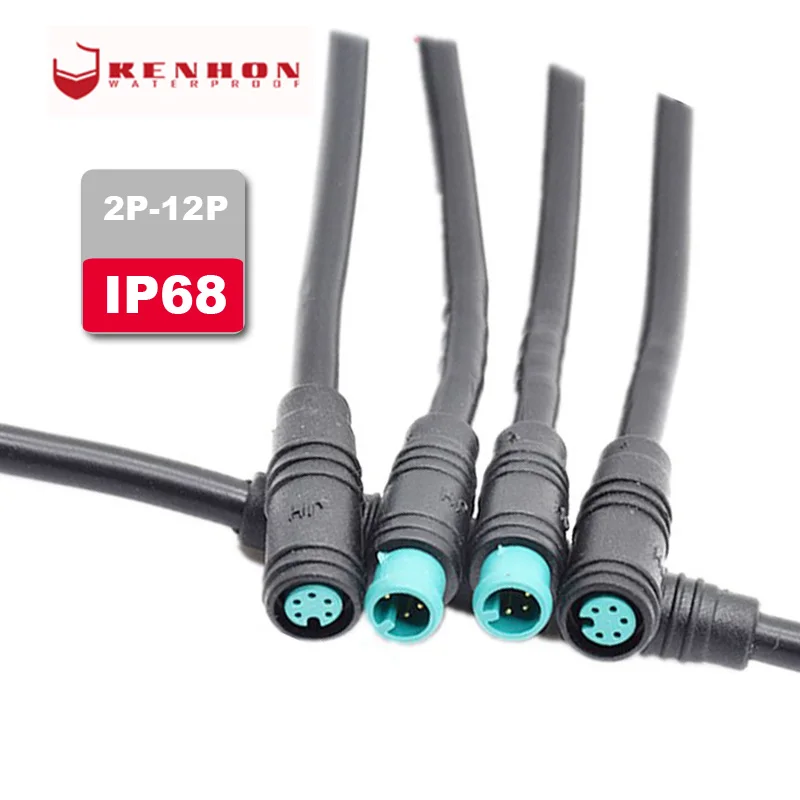

Mini M6 IP68 2 3 4 5 6 7 8 Pin Electric Bicycle Ebike Waterproof Connector
Kenhon Technology has been focused on the production of high quality waterproof connectors since 2007, which is well-known as one of the leading manufacturers and suppliers of waterproof connectors. In the 14 years, we owned strong reputation for the high quality, reliable performance and strong durability of our products.
After 14 years of waterproof connector customized services, we have hundreds of molds available. If these molds match your connectors, we would provide them for free. Please contact us to save your cost.
M6 Specifications
| Core Number | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 6 Pin |
| Rated Voltage | 60V | ||||
| Withstand Voltage | 1500V | ||||
| Rated Current | 2A | 2A | 1A | 1A | 1A |
| Wire Matching | ≤0.3m² | ≤0.3m² | ≤0.2m² | ≤0.2m² | ≤0.2m² |
| Wire Outer Diameter | 3.0mm≤Φ≤5.0mm | ||||
| Hardware | Φ0.5 Gold Plated/Solid Needle | ||||
| Contact Resistance | ≤10mΩ | ||||
| Operating Temperature | -40℃ - + 105℃ | ||||
| Number of Pluggable | 5000 | ||||
| Waterproof Level | IP65 | ||||
| Plastic Material | PVC/Gum | ||||
| Connection Method | Pair | ||||
Main Products
Application
All waterproof connector are IP65-IP68 waterproof level, and through the tuv certification, the best-selling products in nearly 30 provinces, municipalities and autonomous regions and exported to North America, Europe, Southeast Asia and other countries. Widely used in electronics, electrical, communications, lighting, LED display, stage sound, machine tools, automation equipment and construction machinery and other industries.
About us
Reviews
FAQ
Q1.What's your after-sales service?
A1:We provide technical support for you, also can help you to solve your customers' problem.
Q2. Can I have a sample for quality check?
A2: Yes, we can provide sample , but the express cost will be on your account.
Q3.Can I visit your factory?
A3: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
Q4.How to play an order?
A4: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.
Q5. How about your delivery time?
A5: Shipped in 3-8 work days after payment be confirmed.
Q6: What is your terms of payment ?
A6: Accepted Payment Type: T/T,L/C,PayPal,Western Union or other payment methods.
Q7: What is your price?
A7: We are a manufacturer and always offer our customers the most competitive factory price.
Q8: Which kind of wire connector can I use?
A8:Kindly tell us your cable diameter, wire cross-sections to help us recommend the suitable models.
Q9: Could I print my logo on the waterproof connectors?
A9:Yes. We welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our sample.
After 14 years of waterproof connector customized services, we have hundreds of molds available. If these molds match your connectors, we would provide them for free. Please contact us to save your cost.
