Product Overview

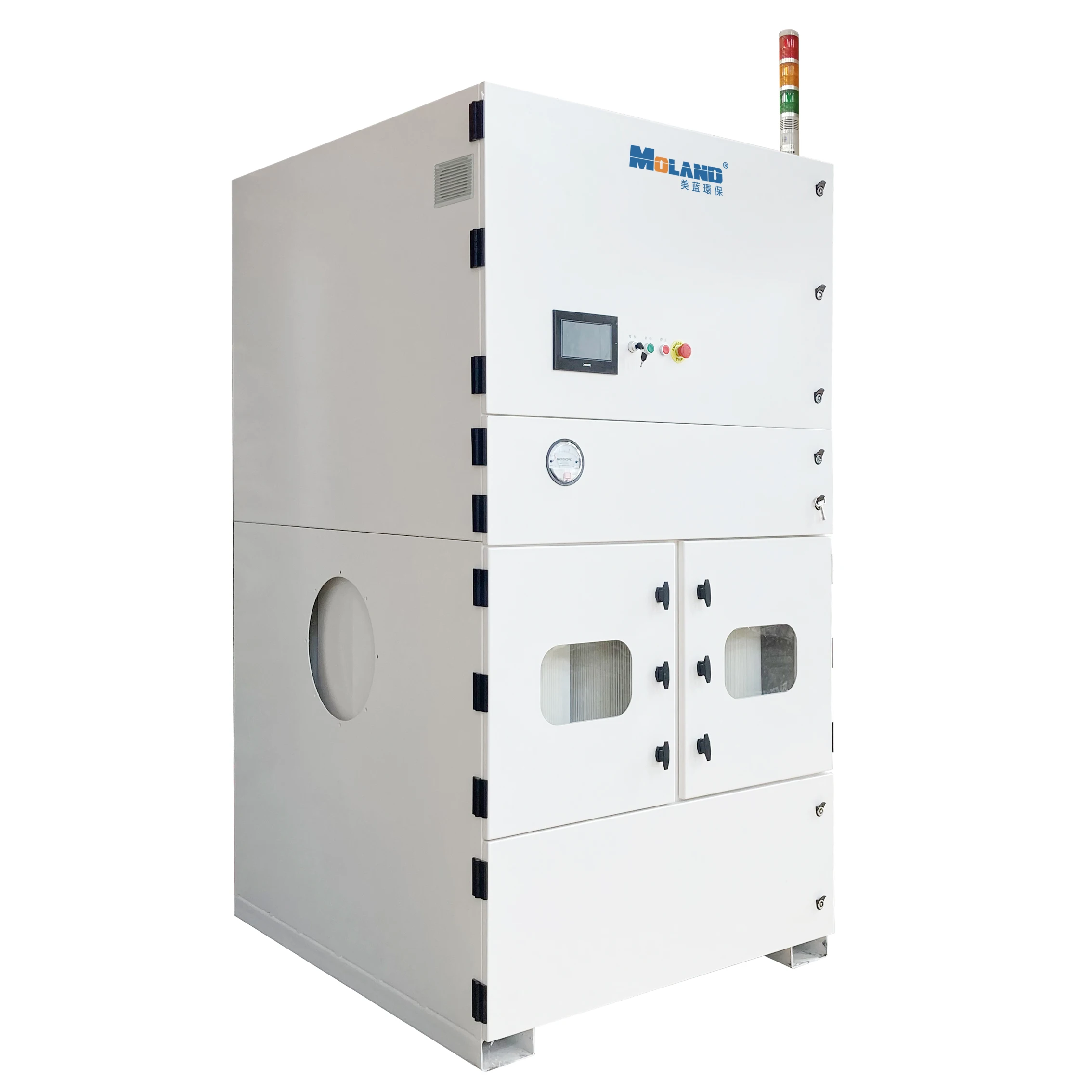

MLWF800 Dust Collector
Working principle
Firstly, the welding dust passes through the fire-proof net of the dust suction port to intercept the sparks and other large
particle suspensions, then the dust-containing gas enters the box body and is filtered by the filter element. The dust smoke is blocked on the outer surface by the filter element, and the purified gas is further purified and deodorized by the activated carbon cotton. Finally, it is discharged by the fan through the air outlet, which can be directly discharged into the room or discharged out of the room as required. With the continuous operation of the main engine, the dust on the surface of the filter element increases continuously, and then the dust is removed. The dust will be shaken off in the dust collector (dust collecting bucket) under the back blowing of the pulse gas, and the filter element will recover the filtering capacity.
Firstly, the welding dust passes through the fire-proof net of the dust suction port to intercept the sparks and other large
particle suspensions, then the dust-containing gas enters the box body and is filtered by the filter element. The dust smoke is blocked on the outer surface by the filter element, and the purified gas is further purified and deodorized by the activated carbon cotton. Finally, it is discharged by the fan through the air outlet, which can be directly discharged into the room or discharged out of the room as required. With the continuous operation of the main engine, the dust on the surface of the filter element increases continuously, and then the dust is removed. The dust will be shaken off in the dust collector (dust collecting bucket) under the back blowing of the pulse gas, and the filter element will recover the filtering capacity.
Performance description
·Integral structure, beautiful appearance, small area
· Anti-suction device, make the effect of cleaning more thorough
· Power supply condition monitoring: alarm for broken phase overvoltage and undervoltage to prevent motor and electrical
components from damage
· Pneumatic condition monitoring: alarm of low pressure of gas source to prevent incomplete ash cleaning, differential gauge to visually show the use status of filter element, automatic pulse back blowing of high pressure difference
· Operation temperature monitoring: alarm system temperature is too high to prevent fire
·Integral structure, beautiful appearance, small area
· Anti-suction device, make the effect of cleaning more thorough
· Power supply condition monitoring: alarm for broken phase overvoltage and undervoltage to prevent motor and electrical
components from damage
· Pneumatic condition monitoring: alarm of low pressure of gas source to prevent incomplete ash cleaning, differential gauge to visually show the use status of filter element, automatic pulse back blowing of high pressure difference
· Operation temperature monitoring: alarm system temperature is too high to prevent fire
FEATURES AT A GLANCE
Standard Configuration
·Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· Spark trap (large particle dust pre-filter)
Spare parts
· Frequency conversion system
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm
· Suction duct
· Ash bucket
Recommended working condition
· Welding workstation
· Artificial Welding Station
· Plasma cutting and laser cutting
· Continuous working condition with large workload
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm
· Suction duct
· Ash bucket
Recommended working condition
· Welding workstation
· Artificial Welding Station
· Plasma cutting and laser cutting
· Continuous working condition with large workload
PRODUCT CONFIGURATION
Model | MLWF280S | MLWF290 | MLWF300A | MLWF350 | MLWF400 | ||||
Power | 2.2w | 2.2w | 2.2kw | 3kw | 3kw | ||||
Voltage | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz | ||||
Air Volume | 2500-2800 m³/h | 3000 m³/h | 2800-3200 m³/h | 3000-3500 m³/h | 3500-4500 m³/h | ||||
Accuracy | 0.3μm | 0.3μm | 0.3μm | 0.3μm | 0.3μm | ||||
Filter material | PTFE Cartridge Filter | ||||||||
Filter Area | 11 m² | 11 m² | 22 m² | 22 m² | 44 m² | ||||
Filter Size | ∅325*660mm | ∅325*600mm | ∅325*660mm | ∅325*660mm | ∅325*660mm | ||||
Cleaning | Pulse Backblow | Rotor Backblow | Pulse Backblow | Pulse Backblow | Pulse Backblow | ||||
Noise | 72dBA | 72dBA | 72dBA | 75dBA | 75dBA | ||||
Size(mm) | 630*650*1760 | 700*800*1600 | 840*800*1850 | 840*800*1850 | 960*985*2080 | ||||
Weight | 230kg | 165kg | 310kg | 310kg | 350kg | ||||
Model | MLWF500-6T | MLWF500-9T | MLWF800 | MLWF800-Ash Bucket | |||
Power | 5.5kw | 5.5kw | 7.5kw | 7.5kw | |||
Voltage | 220/380/415V 50Hz | ||||||
Air Volume | 5000-7000m³/h | 5000-7000m³/h | 7000-10500m³/h | 7000-10500m³/h | |||
Accuracy | 0.3μm | ||||||
Filter material | PTFE Cartridge Filter | ||||||
Filter Area | 66m² | 99m² | 126m² | 126m² | |||
Filter Size | ∅325*660mm (6 branches) | ∅325*660mm (9 branches) | ∅325*860mm (9 branches) | ∅325*860mm (9 branches) | |||
Cleaning | Automatic Dedusting | ||||||
Noise | 75dBA | ||||||
Size | 1240×1130×2200mm | 1240×1470×2200mm | 1240×1470×2400mm | 1240×1470×2960mm | |||
Weight | 660kg | 800kg | 980kg | 980kg | |||
The filtration system is made of PTFE coated flame-retardant polyester fiber with high filtration efficiency, smooth surface, easy back blowing and strong corrosion resistance, and the service life can reach 1-2 years
Pulse Back Blow
The cartridge type filter element can be
used for cleaning and reusing the pulse
back blowing cleaning system, which can spray the filter cartridge from multiple angles, making the cleaning of the filter cartridge complete and convenient.
used for cleaning and reusing the pulse
back blowing cleaning system, which can spray the filter cartridge from multiple angles, making the cleaning of the filter cartridge complete and convenient.
Siemens Bede and other well-known brands of fans are selected, with stable operation and low wind resistance design to ensure the dust collection effect.
SALES AND SERVICE NETWORK

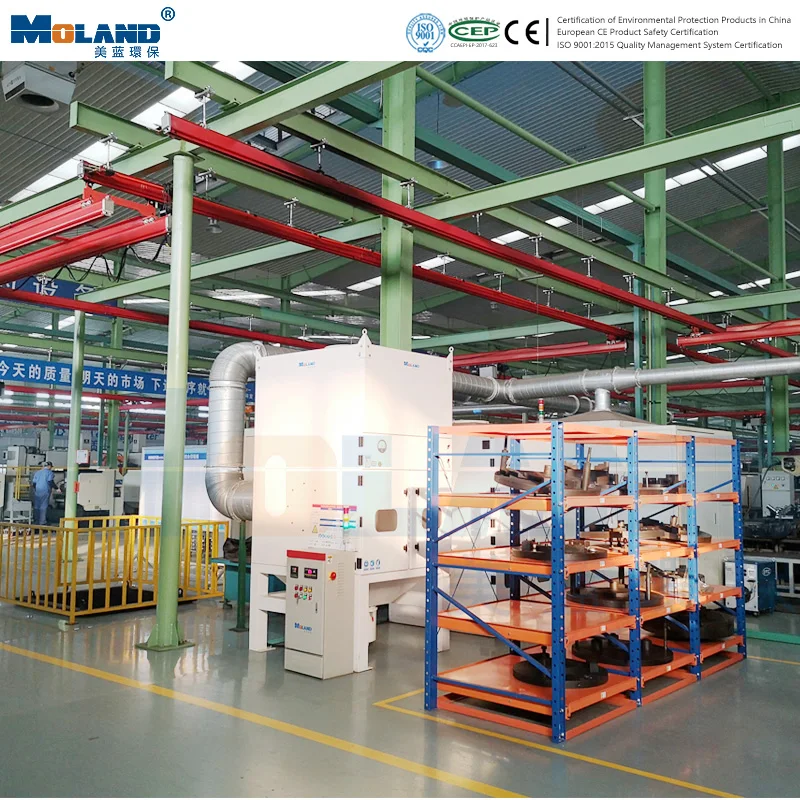

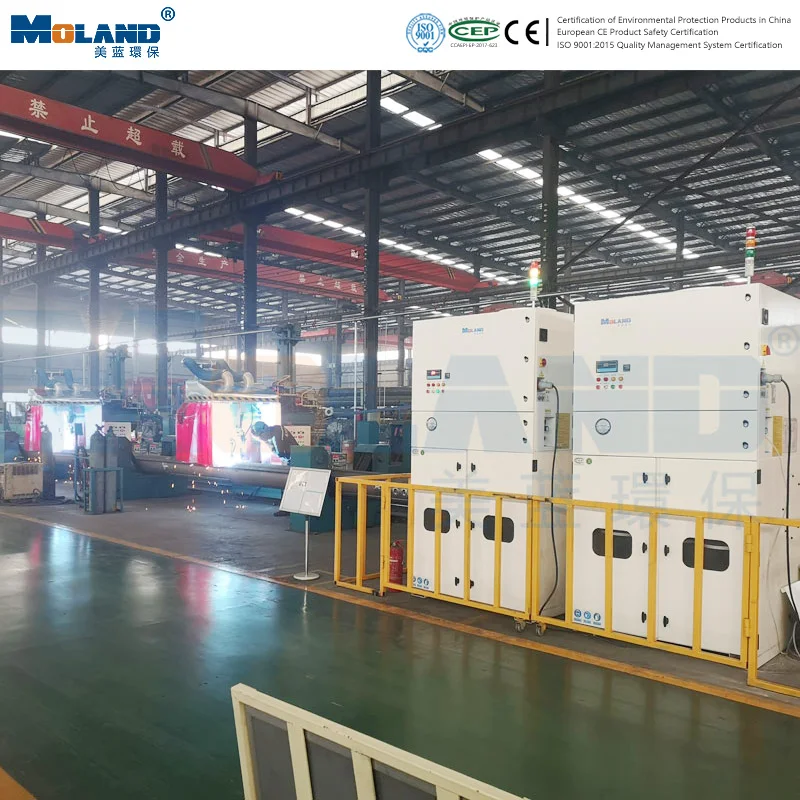

Successful Project

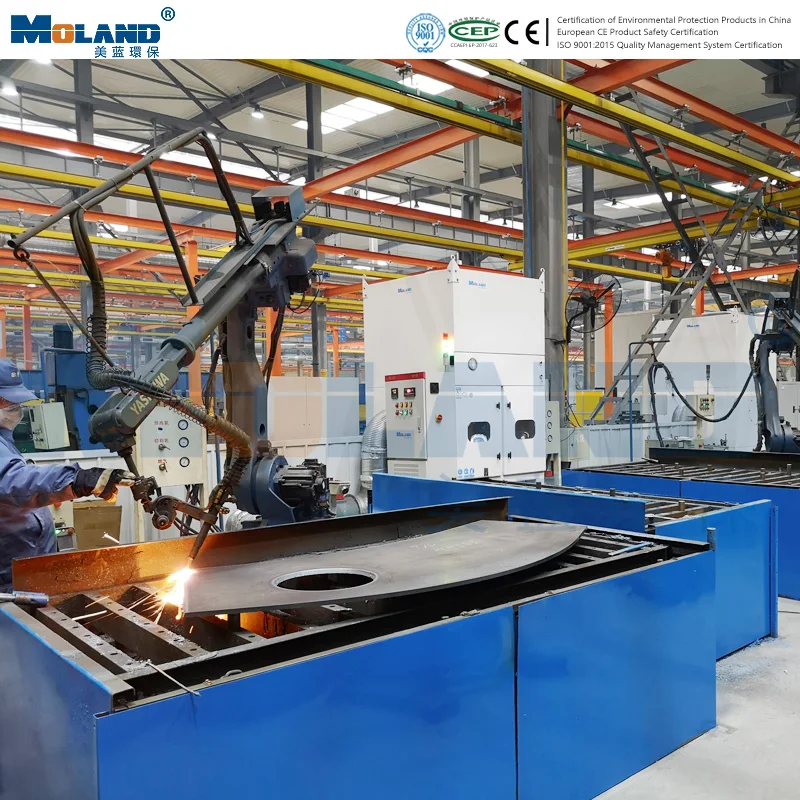

Welding
Plasma cutting
Laser cutting
