Commercial vibrating fluidized bed dryer for bochemical lysine dehydration

1.Pharmaceutical and chemical industries: All kinds of press tablet and granules, boric acid, borax, dihydroxy benzene, malice acid, malefic acid and so on.

2. Foodstuff industry: Distiller’s grains, monosodium, edible salt, mine residue, bean seed, mushroom essence, chicken essence, desiccated coconut and so on.

3. It can also used for raw materials to add up damp or cooling so on.

Raw material feature:

1: material particles are too big or irregular need to fluid.

2: lower speed fluidization is needed to keep particles complete,

3: materials are sticky or sensitive to temperature

Principle:

Raw material is fed into the fliud bed dryer from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp qir is exhausted out through cyclone separator and duster the dry raw material is discharged through discharge outlet.

Features:

1.Raw material is heated evently and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
2.The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
3.The fluided state is stable and no dead angle and phenomenon of broken out;
4.It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the total amplitude can be adjusted through continuous variable speed.
5.It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have anomaly shape.

6. Adopts full sealed structure.It is effective to prevent from cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.

Product technical parameter:

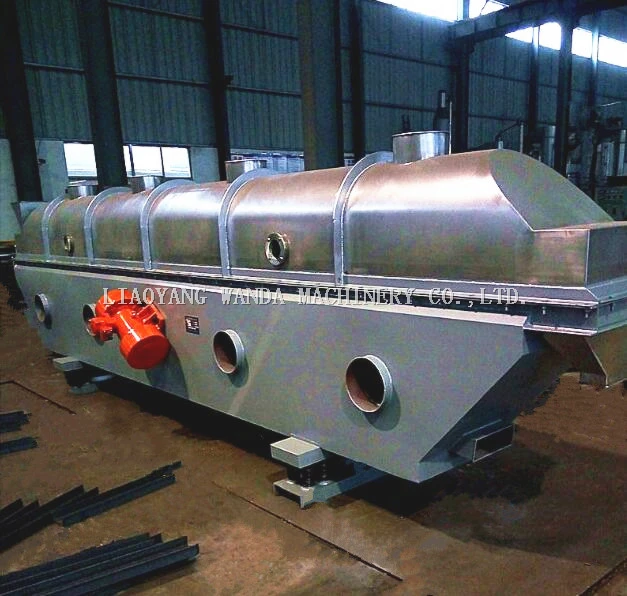

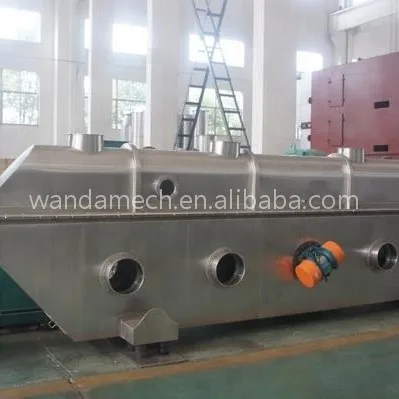

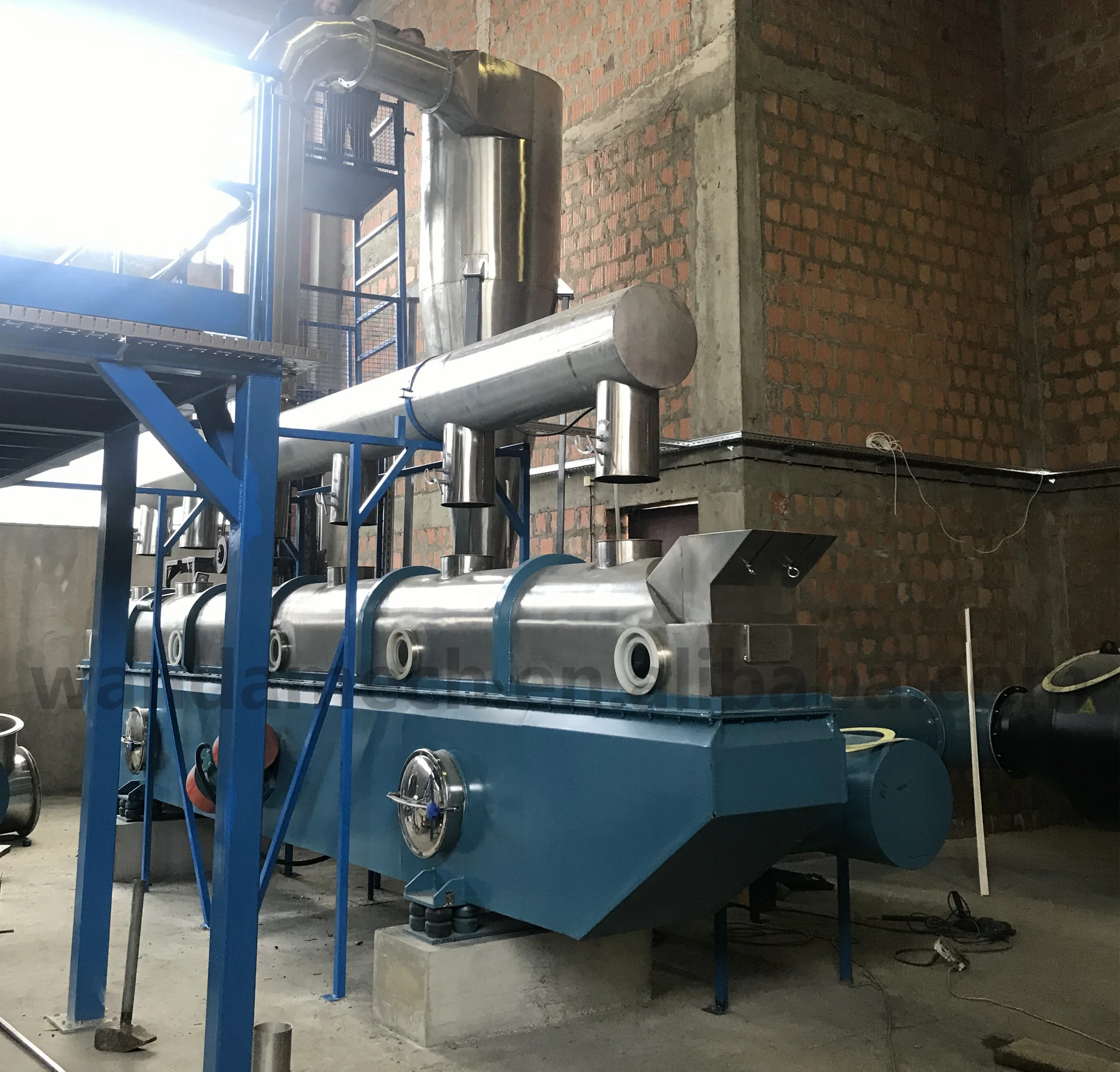

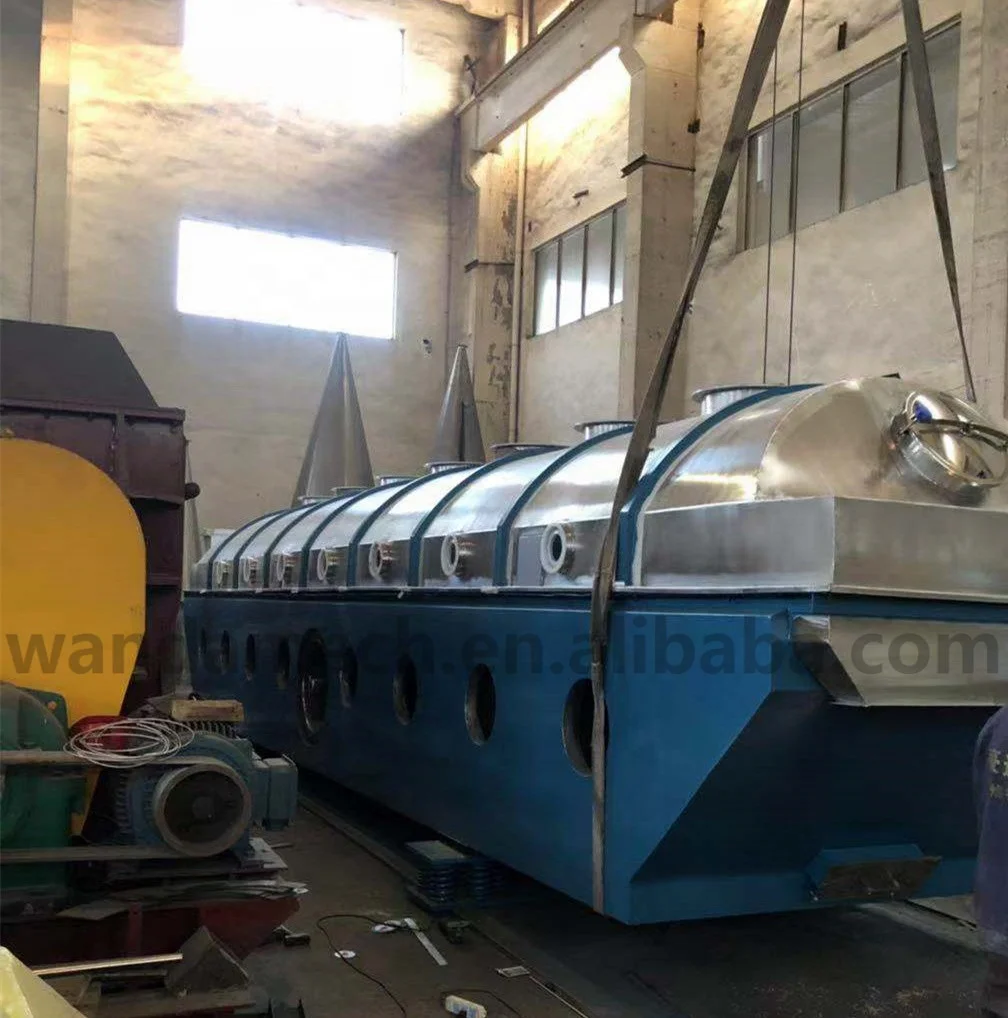

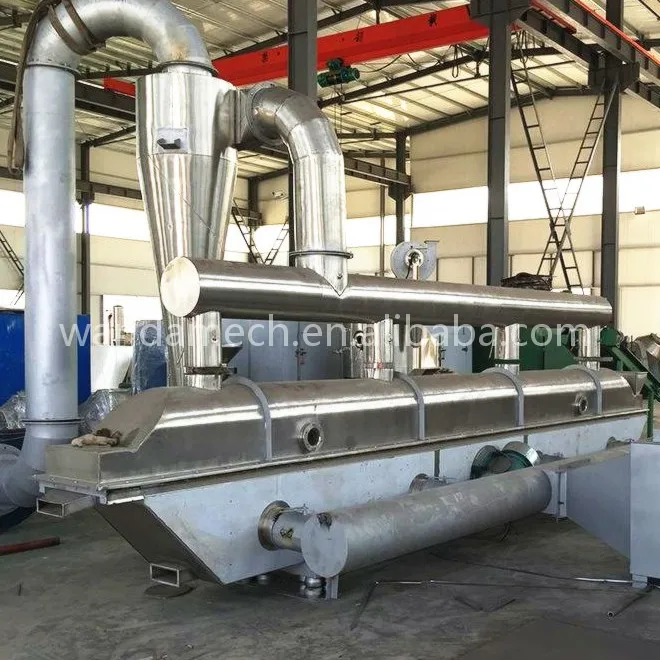

Product picture:









Wanda Machinery Co., Ltd. specializes in R&D, manufacturing, operation, export and related services of rotary flash dryers, centrifugal spray drying equipment, vibrating fluidized bed dryers, etc. The production base is located in Liaoyang City, Liaoning Province,China. Equipment designed over the years has been involved in the fields of medicine, chemicals, pesticides, electronics, mining, food, dyes, pigments and so on. The market is spread all over the country.

Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!

Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.

Our Service:

We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :

l 1. Each machine is manufactured by professional experienced staff.

l 2. 12 months warranty + 100% QC inspection Before Shipment.

l 3. Overseas  services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the  commissioning.

l 4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
