Стандартный двухстабильный 4 5 датчик наружной резьбы NSF постоянного тока 3 в 1/2 6 сантехника индукционный электромагнитный клапан
- Категория: Diaphragm Valves >>>
- Поставщик: Yueqing,Fuxin,Electric,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.49 $* | 5.45 $* |
| Aug-16-2025 | 5.74 $* | 5.96 $* |
| Jul-16-2025 | 4.57 $* | 4.94 $* |
| Jun-16-2025 | 5.0 $* | 5.57 $* |
| May-16-2025 | 4.33 $* | 4.77 $* |
| Apr-16-2025 | 5.97 $* | 5.78 $* |
| Mar-16-2025 | 5.84 $* | 5.64 $* |
| Feb-16-2025 | 4.95 $* | 4.58 $* |
| Jan-16-2025 | 4.98 $* | 4.65 $* |
Характеристики
Products Description

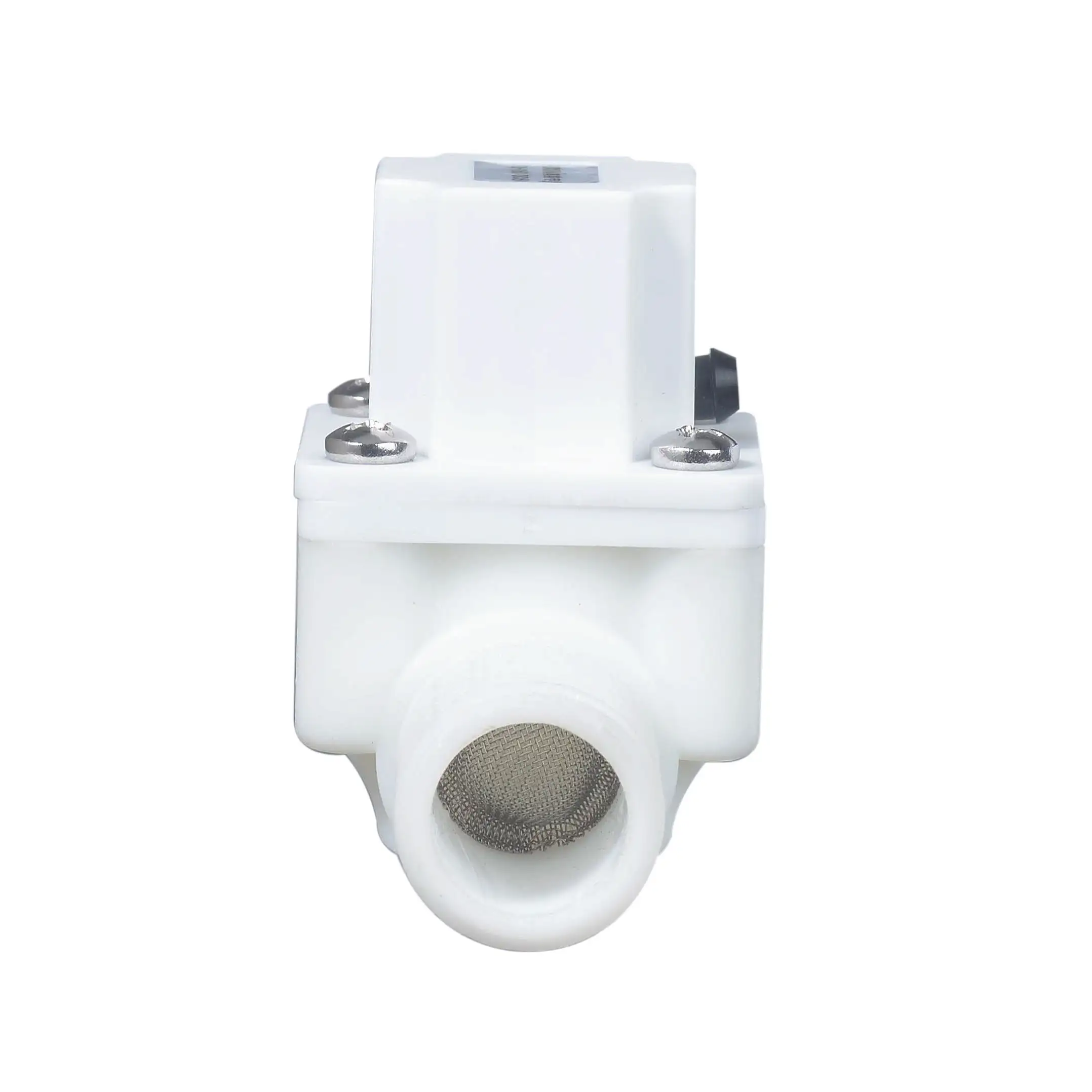

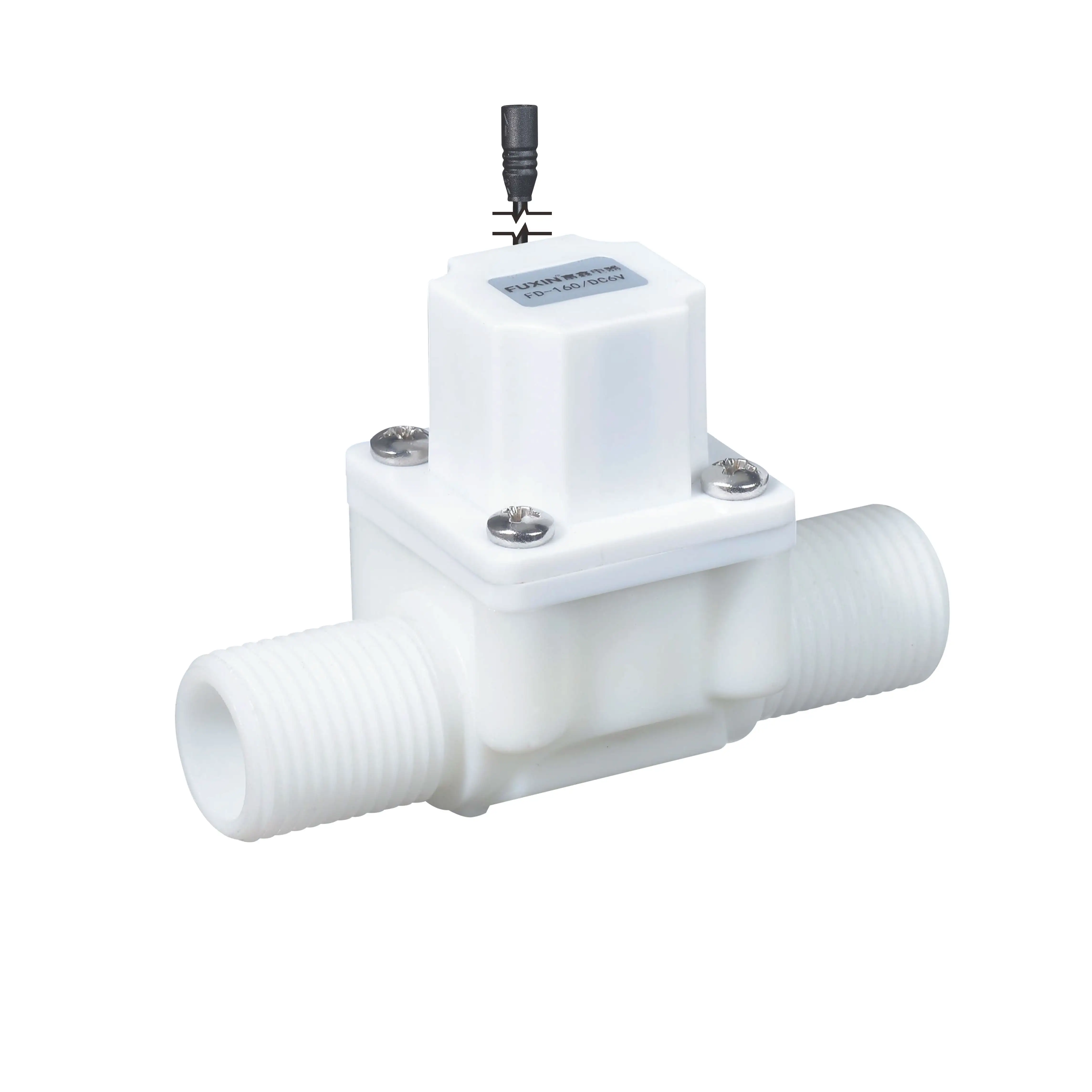

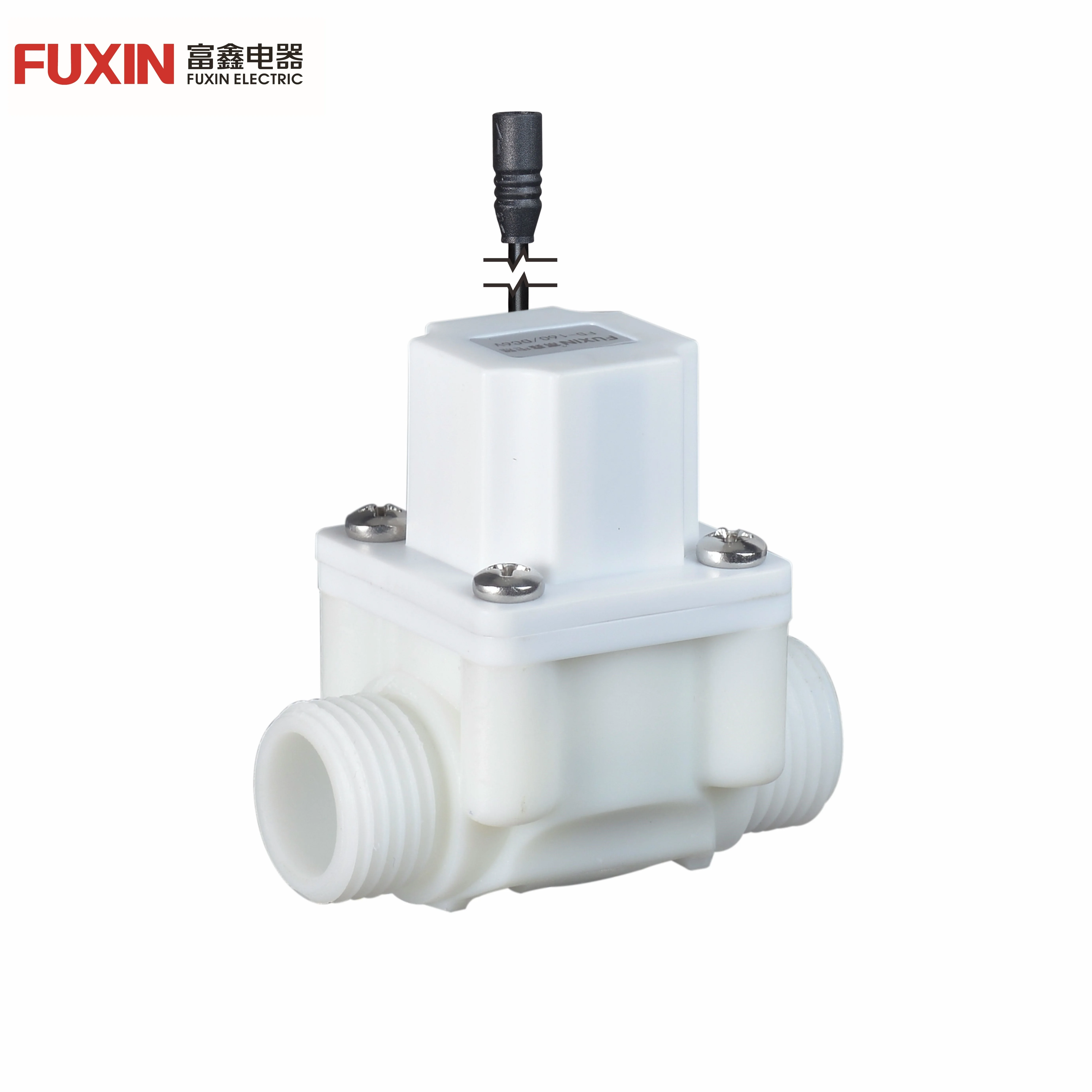

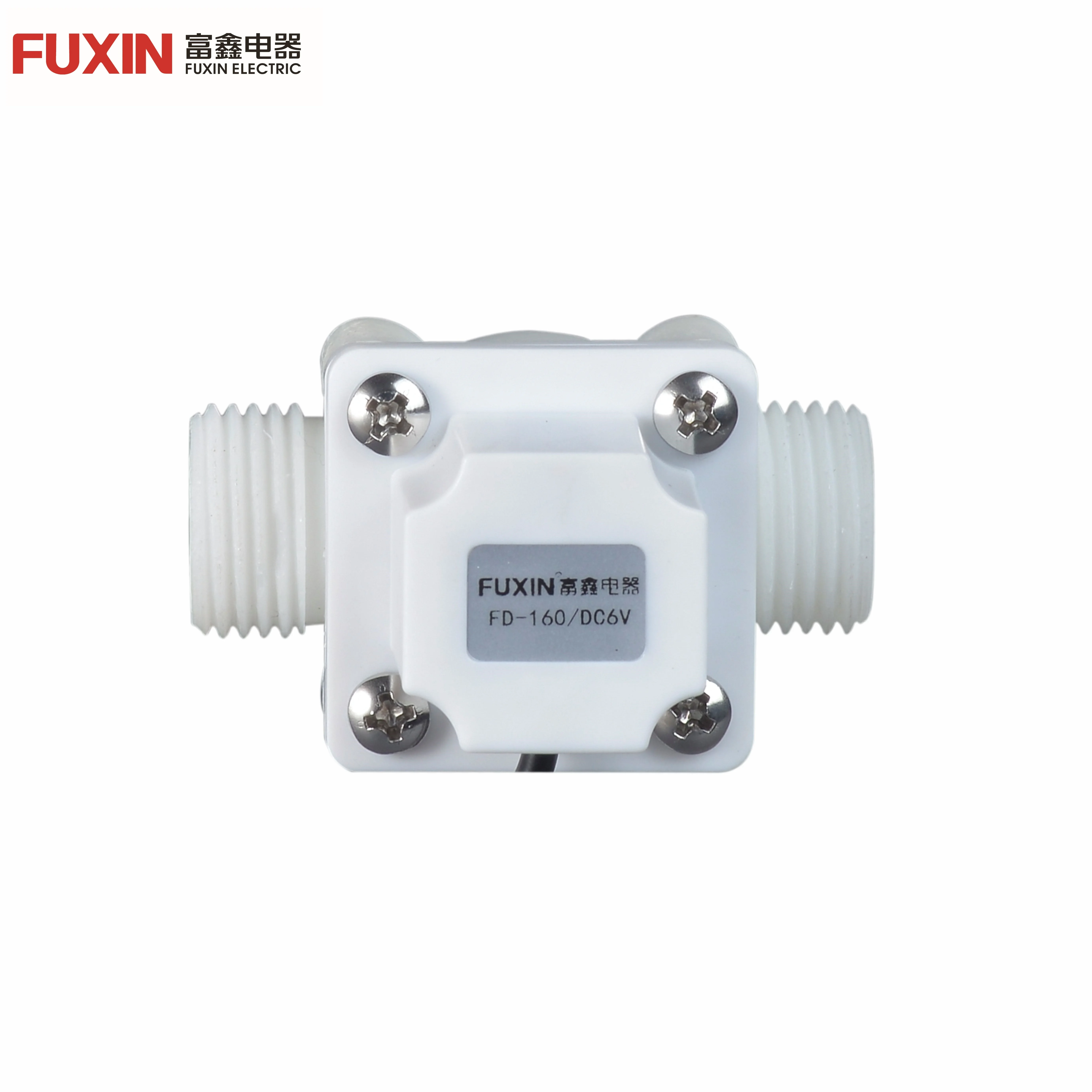

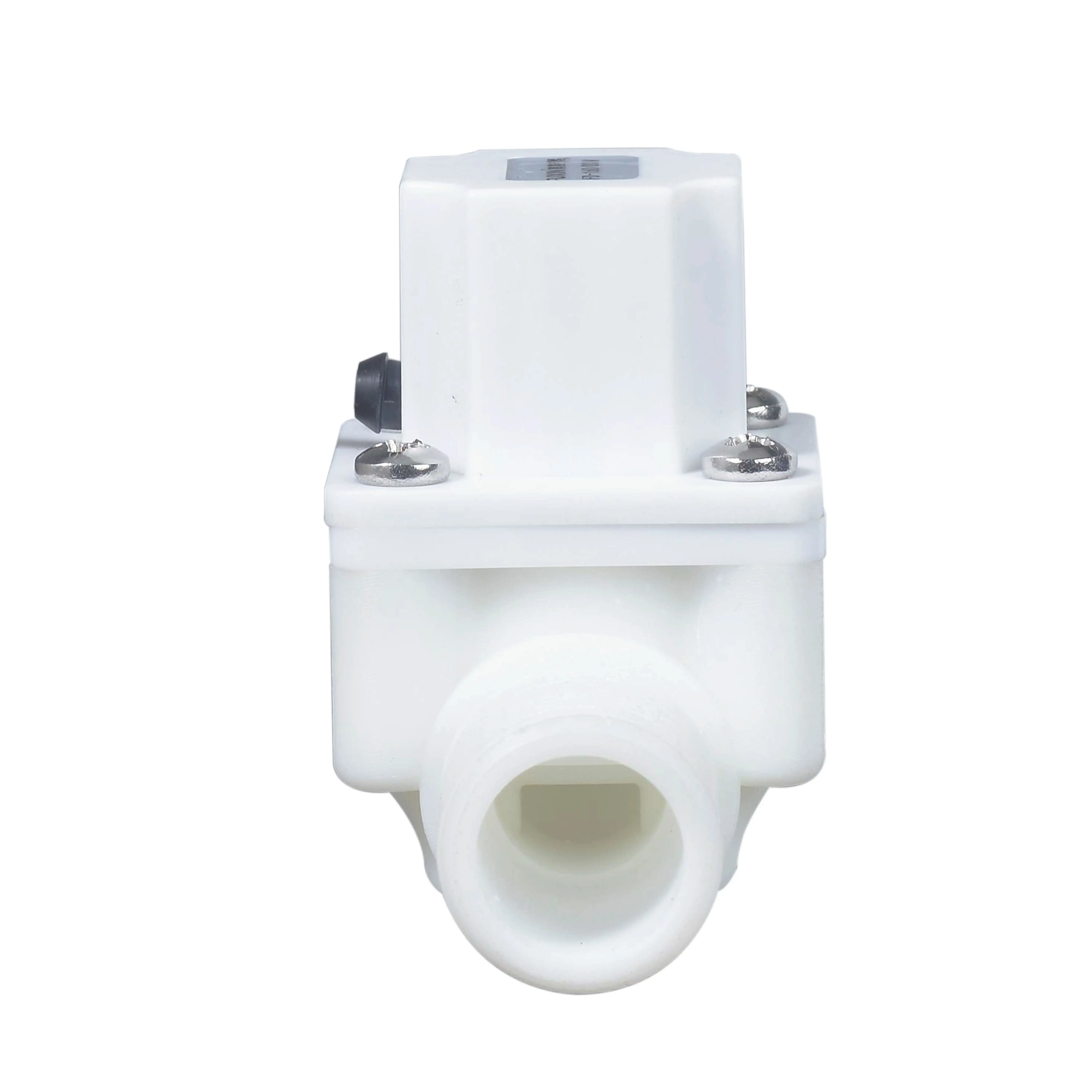

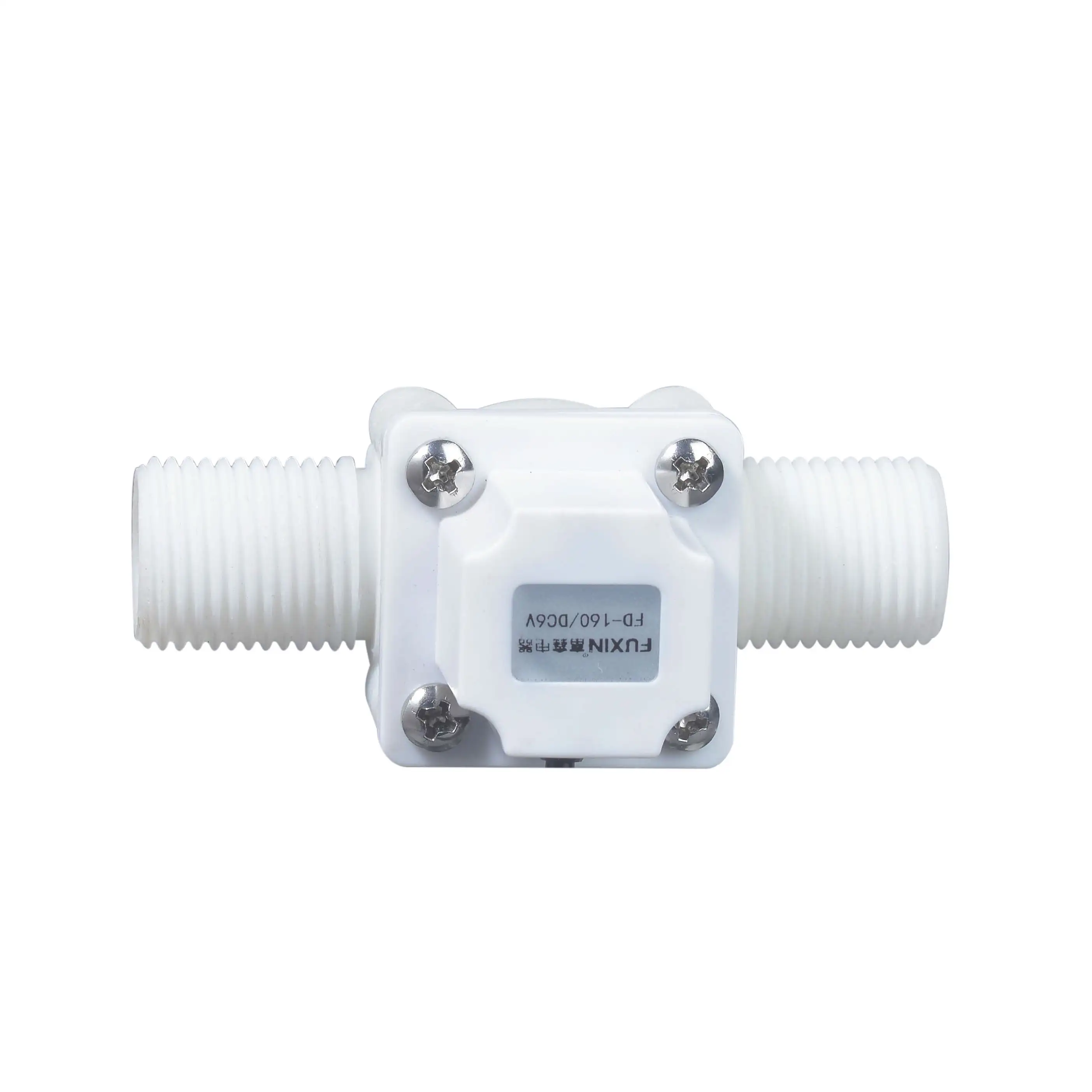

New Products 2021 Sensor Sanitary Ware Faucet Solenoid Valve FD-160SPC
Low Water Hammer and Sea Water Function
The valves are applied in the automatic system for infrared hand-washing system .There are cavities in the valve body to adjust the pressure ,reduce the resistance when the valve core is moving in the cavity ,also absorb the impact of medium to valve body while switching. Which improve the stability of valve and extend the service life, narrow the pulse width upon the max or min pressure . Special self-clean feature makes the easy anti-blocking ability ，low water hammer and sea water function .
Technical Feature FD-160series
Instruction
Instruction
Rated Voltage | DC3V | DC6V | DC12V | DC24V | |||
Coil resistance | 10Ω | 15.5Ω | 36Ω | 130Ω | |||
Min current | 300mA | 258mA | 250mA | 138mA | |||
Switch mode | DC pulse(latching type) | ||||||
Pulse width | 20-40ms | ||||||
Operating pressure | 0.02Mpa-0.8Mpa | ||||||
Media temperature | 1ºC--75ºC | ||||||
Responding time | Open ≤0.3s close≤1s | ||||||
Performance test
Strength test | Static pressure 1.6MPa | Withstand voltage pressure | 2.5MPa/1min | ||||
No-load test | Voltage 3.6V pulse width 20ms | Permissible limiting voltage | V*1.15 | ||||
High water pressure start and close | At water pressure 0.8MPa,voltage DC4.5V,pulse width 20ms,the solenoid valve can be started and closed normally | ||||||
low water pressure start and close | At water pressure 0.02MPa,voltage DC4.5V,pulse width 20ms,the solenoid valve can be started and closed normally | ||||||
Leakage upon high water pressure | 1.2MPa without leakage | ||||||
Leakage upon low water pressure | 0.02Mpa leakage≤0.1ml/min | ||||||
Electric strength | Among conductive part, mounting hole and nonconductive metal, it can withstand 500V/50Hz,leakage current 0.75mA for 1 min without the breakdown | ||||||
Insulation resistance | The resistance between the charged part and nonconductive metal part tested by megohm meter of 500V ≥20MΩ | ||||||
Sealing test | Static pressure | Air | High pressure | 1MPa | |||
Low pressure | 0.02MPa | ||||||
Cold water | High pressure | 1.2MPa | |||||
Low pressure | 0.02MPa | ||||||
Hot water | High pressure | 0.8MPa | |||||
Low pressure | 0.02MPa | ||||||
Requirements of working environment
Temp of working environment | 1℃--60℃ | Permissible limiting pressure(water) | ≤1.2MPa |
Humidity of working environment | 35%-90% RH | Mounting direction | It is mounted in vertical. The inclination do not exceed 15 degrees |
Storage temp | -5--80℃( no freezing state) | Storage humidity | 25%--95% RH(No condensation state) |
Application Domain
Company Profile
Our Services
Our advantage:
1. Long term performance capability ≥1,000,000 cycles
2. Compact design
3. Optimized water hammer
4. High IP-class
5. High burst pressure
6. Cv-value optimized against low pressure
7. Low power consumption
8. Shockproof design
9. Anti acid alkali salt
10. Complete quality approvals
1. Long term performance capability ≥1,000,000 cycles
2. Compact design
3. Optimized water hammer
4. High IP-class
5. High burst pressure
6. Cv-value optimized against low pressure
7. Low power consumption
8. Shockproof design
9. Anti acid alkali salt
10. Complete quality approvals
FAQ
Q: Are you the factory?
A: Yes, Our factory is located in Wenzhou,Zhejiang province, China,
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed NSF,KTW,ACS,W270,TUV,CE,ROHS,ISO9001 Certificates
Q: What is the delivery date?
A: For sample order,2-7 days after the payment
For bulk order, 10-20 days after the payment
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order
Q: What are your terms of payment?
A: Paypal, Western Union, bank T.T,LC payment，etc.
Q: What's your shipment method?
A: We ship by Express, by air, by sea. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: What's your mainly market?
A: Europe,North and south American,Asia,Middle East,Africa and etc.
A: Yes, Our factory is located in Wenzhou,Zhejiang province, China,
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed NSF,KTW,ACS,W270,TUV,CE,ROHS,ISO9001 Certificates
Q: What is the delivery date?
A: For sample order,2-7 days after the payment
For bulk order, 10-20 days after the payment
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order
Q: What are your terms of payment?
A: Paypal, Western Union, bank T.T,LC payment，etc.
Q: What's your shipment method?
A: We ship by Express, by air, by sea. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: What's your mainly market?
A: Europe,North and south American,Asia,Middle East,Africa and etc.
