Многослойный плиссированный картриджный фильтр Pullner из нержавеющей стали для жесткой
- Категория: Water Filter >>>
- Поставщик: Shanghai,Pullner,Filtration,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 40.92 $* | 42.4 $* |
| Aug-16-2025 | 40.14 $* | 42.85 $* |
| Jul-16-2025 | 34.36 $* | 36.99 $* |
| Jun-16-2025 | 39.14 $* | 41.55 $* |
| May-16-2025 | 34.96 $* | 36.78 $* |
| Apr-16-2025 | 39.73 $* | 41.97 $* |
| Mar-16-2025 | 38.80 $* | 40.8 $* |
| Feb-16-2025 | 38.38 $* | 40.55 $* |
| Jan-16-2025 | 38.20 $* | 40.70 $* |
Характеристики

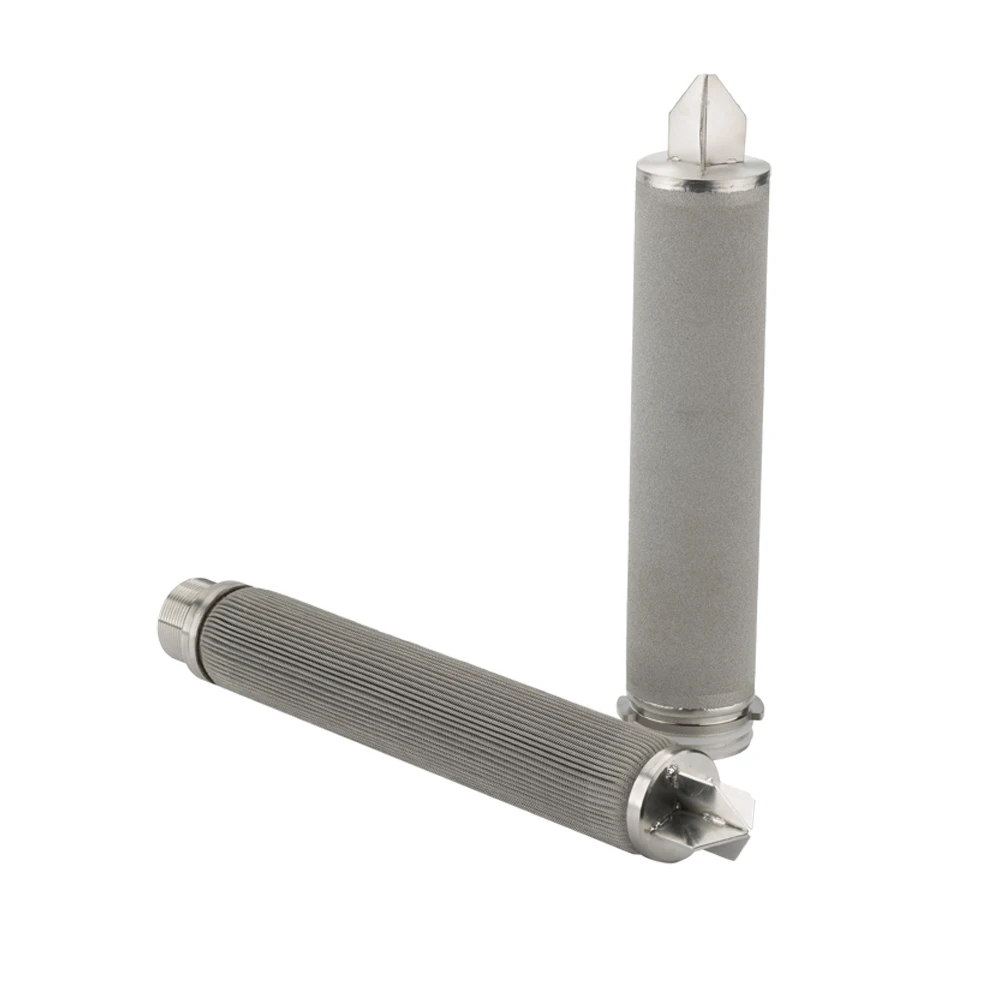

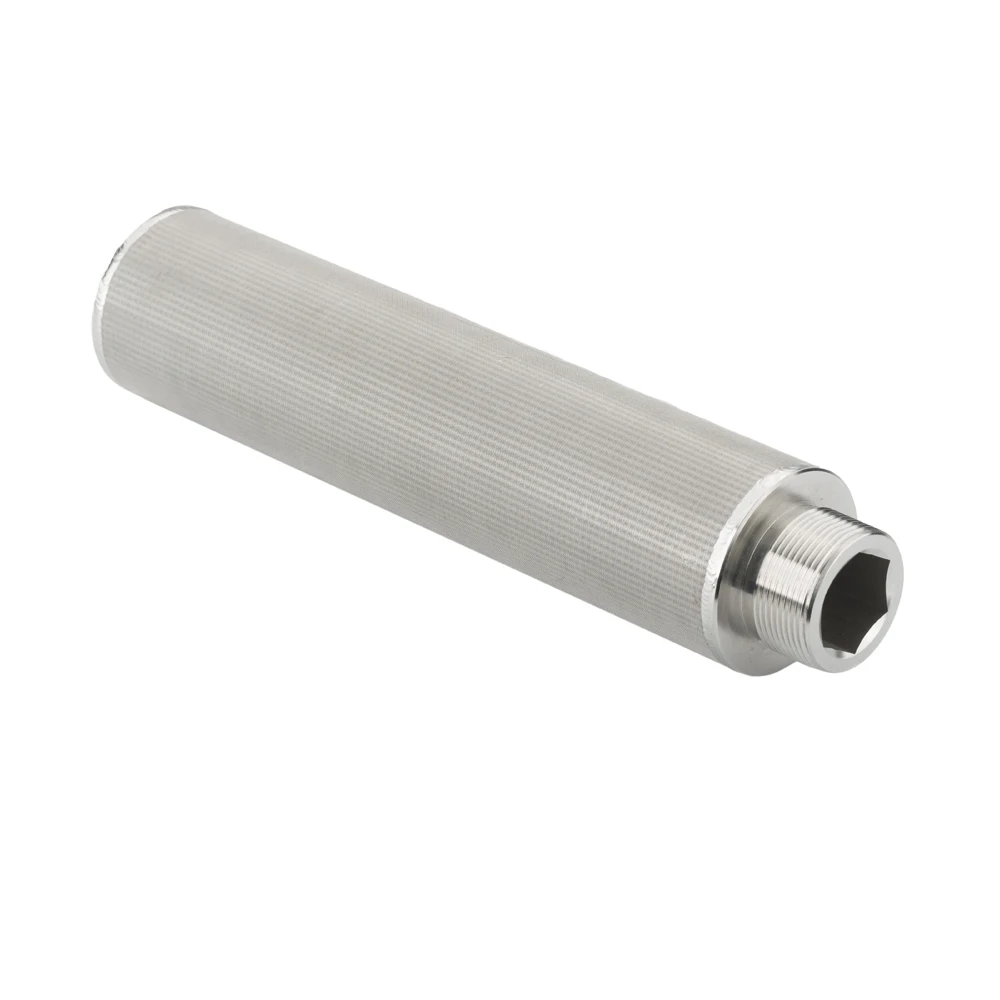

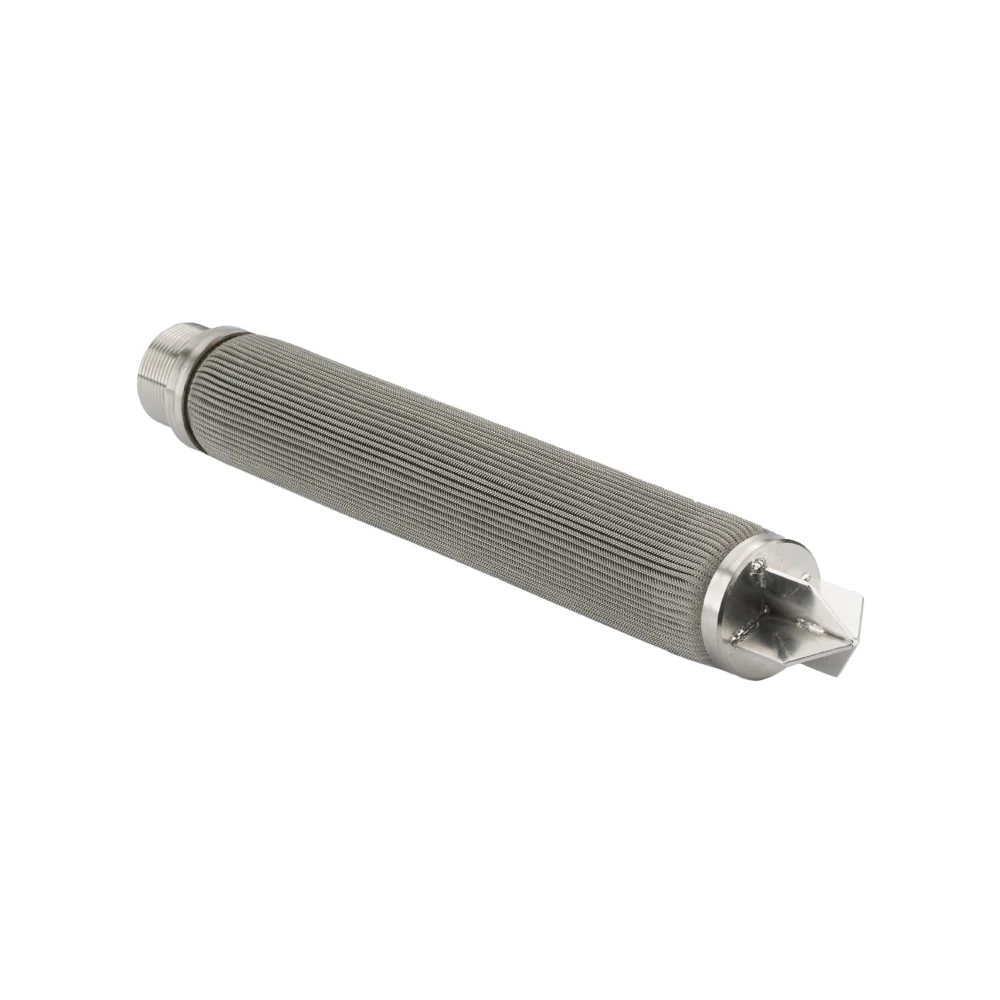

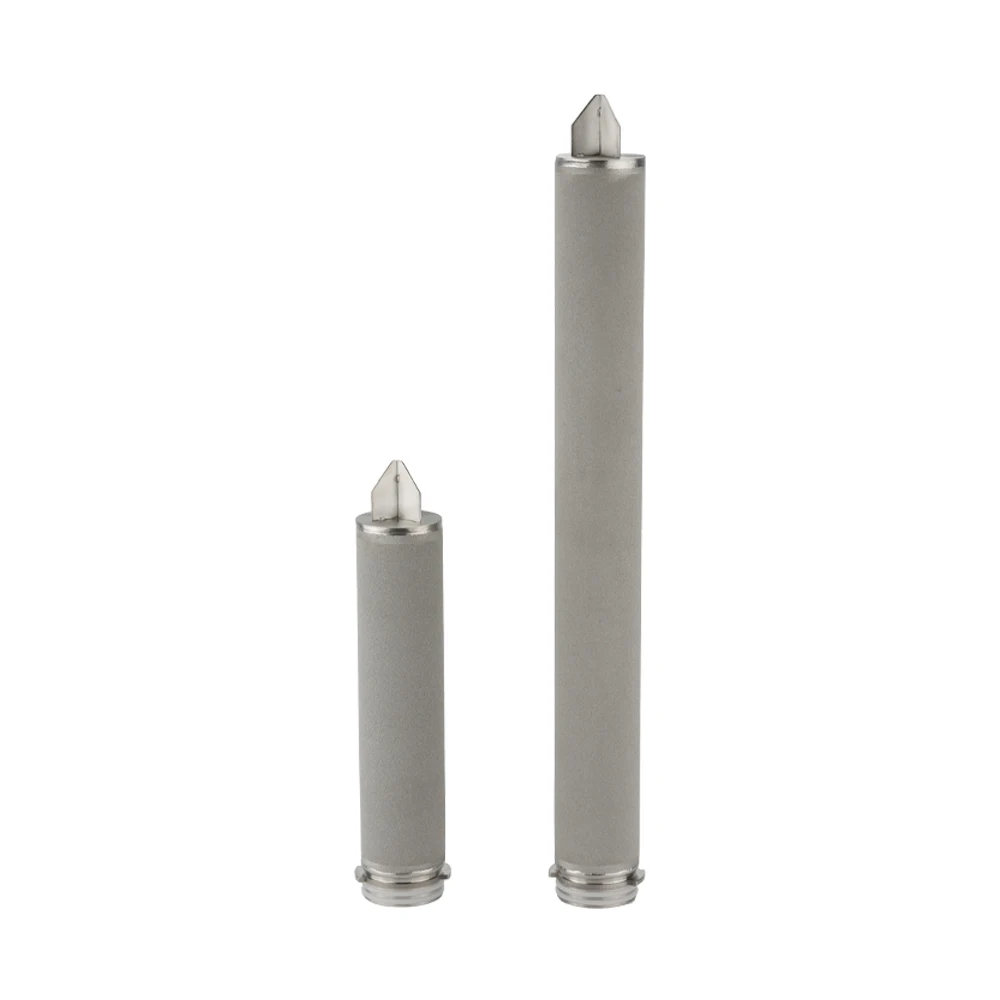

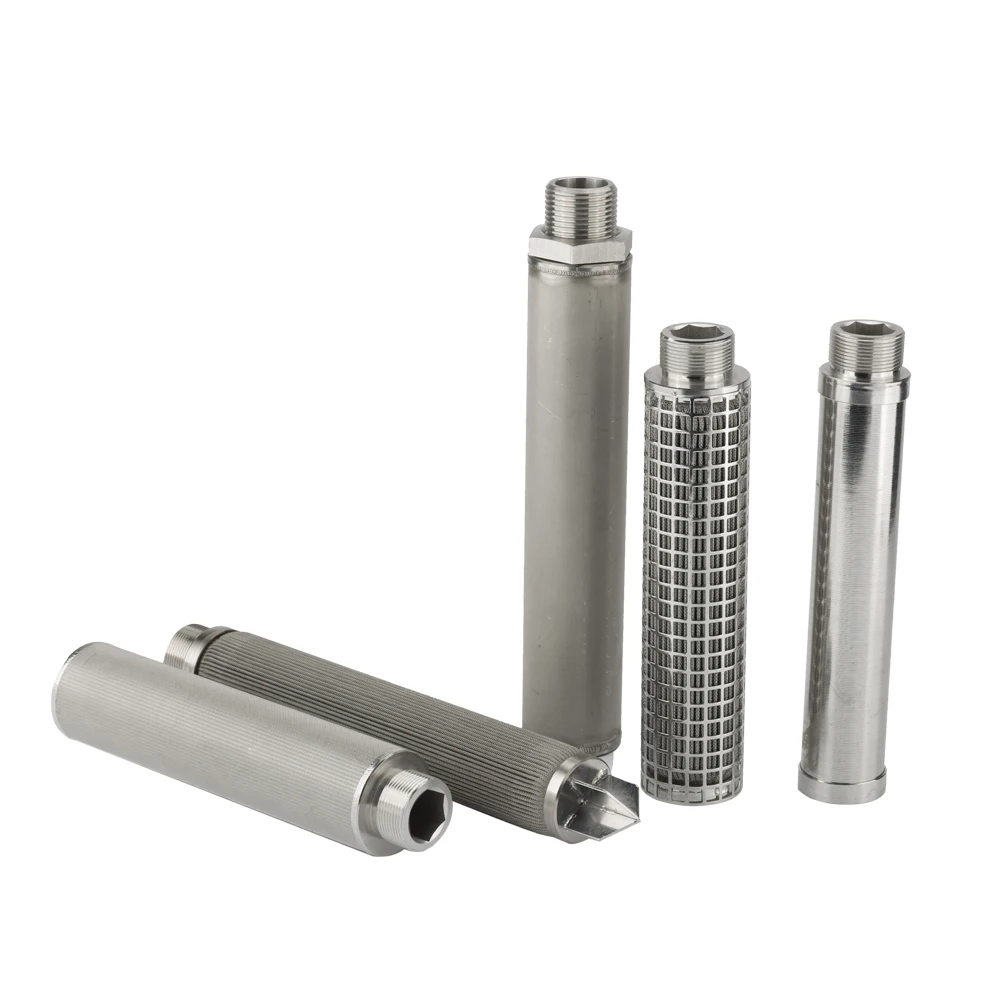

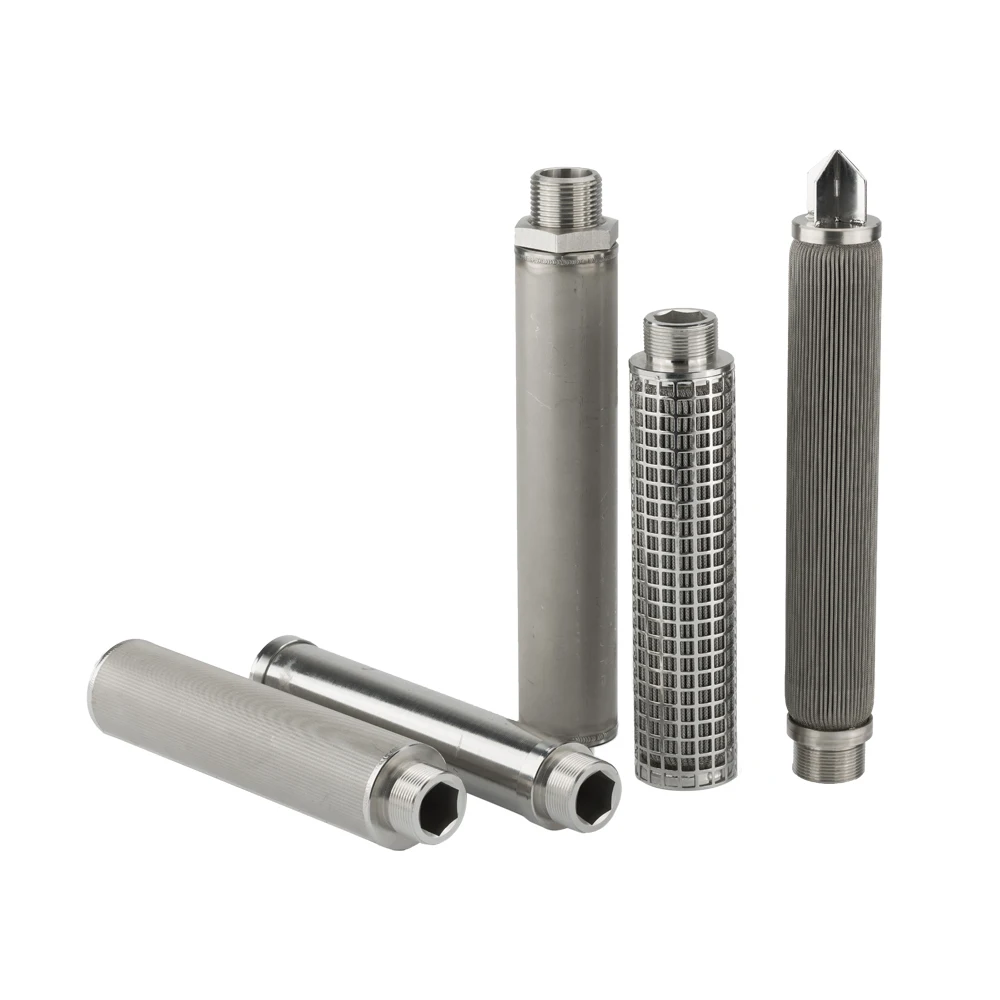

Pullner Stainless Steel Multilayer Sintered Mesh Pleated Cartridge Filter for Rigid Liquid
General Description:
PHSW stainless steel multilayer sintered mesh filter element, made of multilayer or 304 stainless steel mesh sintered, it has excellent temperature resistance, pressure resistance, corrosion resistance, and excellent backwashing effect, make it become an alternative to titanium rod products, suitable for solid liquid separation of rigid granular liquid.
Specifications:
| Item | Technical Parameters |
| Micron | 2.0μm, 3.0μm, 5.0μm, 7.0μm, 10μm, 20μm, 25μm |
| Length | 5inches, 10inches, 20inches, 30inches, 40inches |
| Filter Medium | 316L/310S/Hastelloy alloy,etc |
| Support/Drainage | stainless steel |
| Core/Cage/End Cap | stainless steel |
| Outside diameter | 2.7" (68.5mm) |
| Max. operating pressure differential | 5 bar |
| Max. operating temperature | 480℃ |
| Sterilization temperature | 30 minute cycles @121℃ |
Ordering info:
Series
| Filter Fineness | Length | Connection Type | Seal Material |
PPM
| 0030=0.3μm | 05=5" | C1=226/tripod | E=EPDM |
| PPM |
0050=0.5μm
| 10=10" | C3=222/tripod | S=silicone rubber |
| PPM |
0100=1.0μm
| 20=20" | C5=222/flat head | V=fluororubber |
| PPM |
0300=3.0μm
| 30=30" | C6=226/flat head | P=FEPsleeved |
| PPM |
0500=5.0μm
| 40=40" | C9=the two end |
Products details:
High-quality raw material with precise designs. Pleated material combines deep filtration technology and pleated technology to promising filtration efficiency. Skeleton is using satinless steel material, through testing, it meet the requirements of working conditions.
Packing
Certificate document:
Our Factory:
FAQ
1. MOQ
As manufacturer, 1 piece is acceptable.
2.Payment Term
Flexible payment method. We can accept L/C, T/T, Western Union, Money Gram, etc.
3.Certification:
We had ISO9001,ISO14001
4.Shipping :
Courier service: TNT, DHL, FedEx, UPS, etc.
By sea, by Air, according to customer's request.
5.Sample:
FREE, in 1-3 working days after confirmed.
6. Delivery time:
General 5-10days.
