1.Product Description

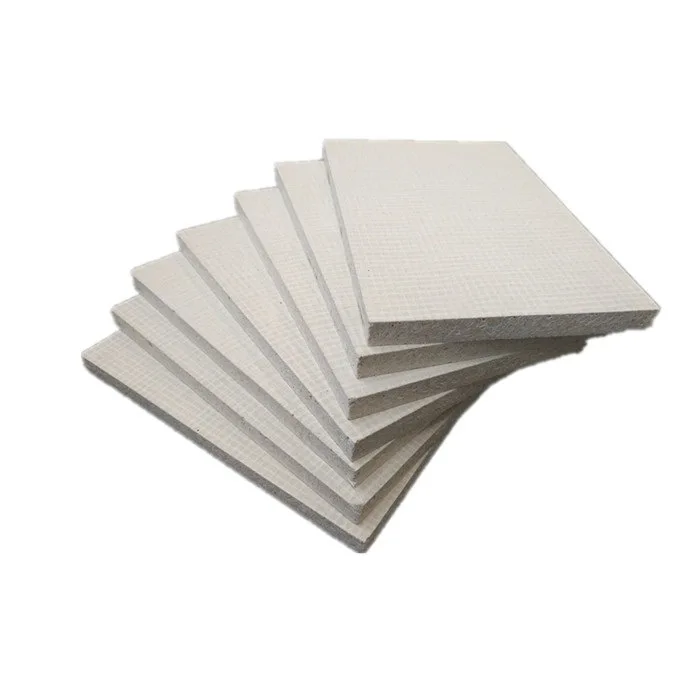

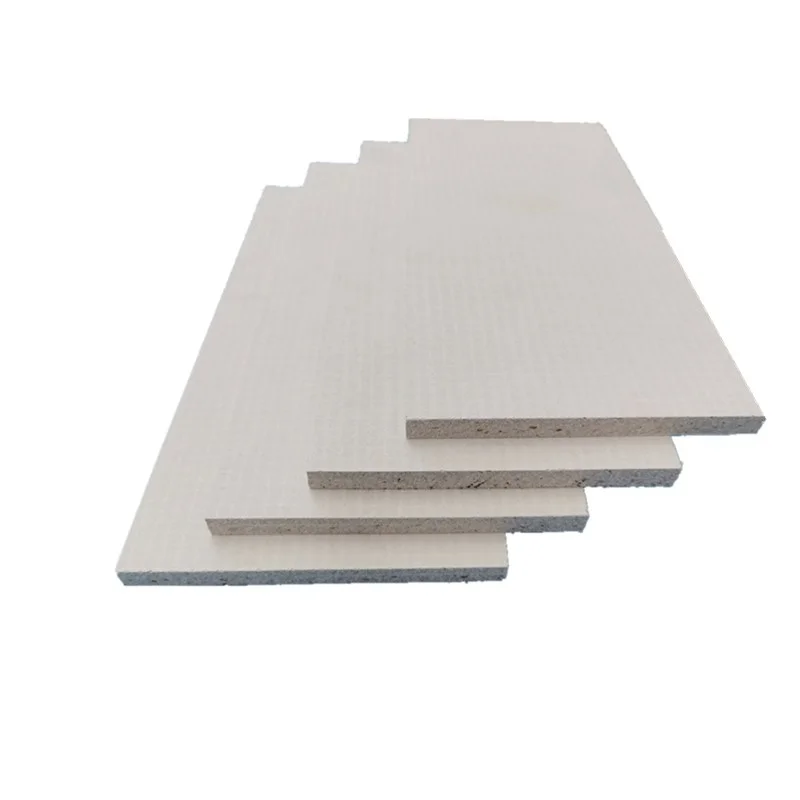

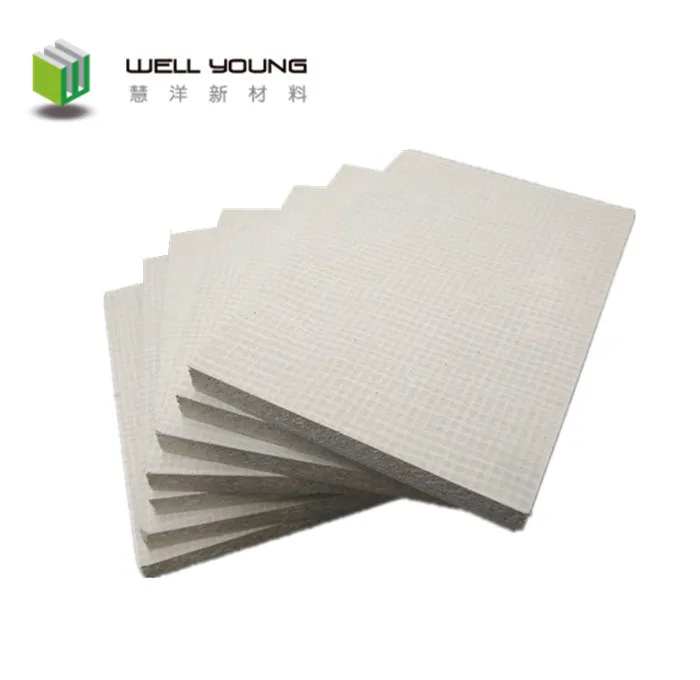

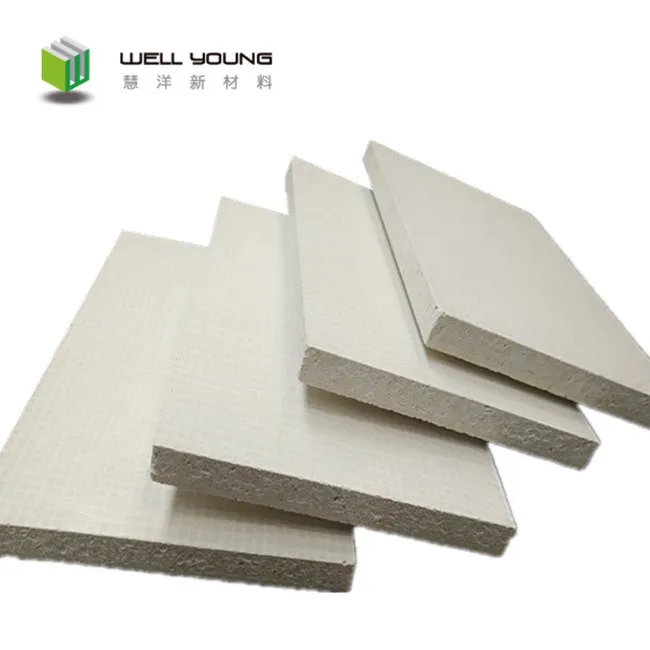

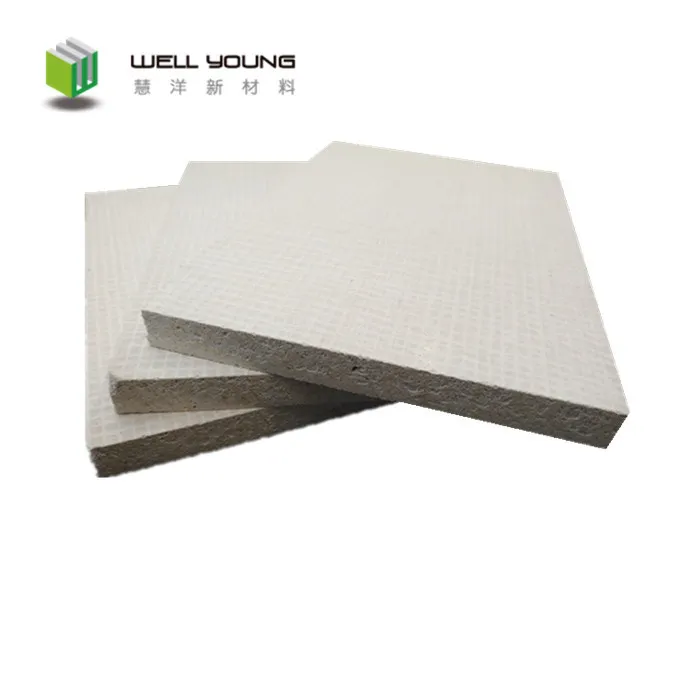

High density fireproof magnesium oxide board is a new generation fire resistant, environment friendly construction board that is made from Magnesia and Magnesium Chloride. It can be used in number of applications such as wall paneling, partition board, ceiling board, tile backing and so on.MgO Board is the advanced technology for construction application.

Standard Width:1200mm or 1220mm(4feet)
Standard Length:2400mm(8feet),2700mm(9feet),3000mm(10feet)
We can customize other sizes as per customer's requirements.

Thickness: 3-20mm



Tolerance:Length tolerance:2mm

                 Width tolerance:2mm
                 Thickness tolerance:0.3mm



Available Color:Grey,White



Edge:Square edge, tapered edge, beveled edge, shiplap edge, T&G edge



Material:MgO,MgCl2/MGSO4,wood chip,perlite,fly ash,fiber glass mesh,non-woven cloth,etc.





2. Fire Resistance limit of fireproof MgO board:

9mm Wellyoung MgO board could be applied for >= 120mins fireproof lightweight partition wall;

12mm Wellyoung MgO board could be applied for >= 180mins fireproof lightweight partition wall.

The data is for reference only. Please contact us for more details on fireproof MgO board in different specifications.

Material Comparison between Fireproof MgO board and other kinds board



3. Advantages



1.Fireproof:

Wellyoung MgO board reaches the standard of GB8624, CLASS A1, non-combustible class





2.Water proof:

Wellyoung MgO board can keep its shape and character after soaking in water for a few days.



3.Sound insulation and heat insulation

Wellyoung MgO board have a good sound insulation and heat insulation quality.



4.Environmental protection:

Wellyoung MgO board is asbestos-free, no formaldehyde and benzene,100% green boards.



5.Easy to install:

can be sawing, planning, drilling, nailing and cutting etc.



6.Lightweight and Strong strength

Wellyoung MgO board can totally saving the cost in terms of lightening the load from reducing the foundation, subject, column and beams of the construction, Improve the inner usable area 5-8%.



7. High quality, competitive price and good after-sale service





4. Specifications



Test Item	Unit	Test Result
Water absorption	%	<10%
Density	g/cm3	0.9-1.15
Freezing Resistance	after 25 freezing cycles	No Delaminated
Fireproof grade		A1 Grade
Water resistance		No condensation on  the opposite side







5. Applications

Wellyoung MgO board is widely used primarily as wallboard alternative to conventional gypsum-based drywall. The MgO boards can be scored and snapped, sawed, drilled, and fastened to wood or steel framing.It can be used for interior or exterior applications.









6. Production:



7. Packing&Shipping
