Product Description

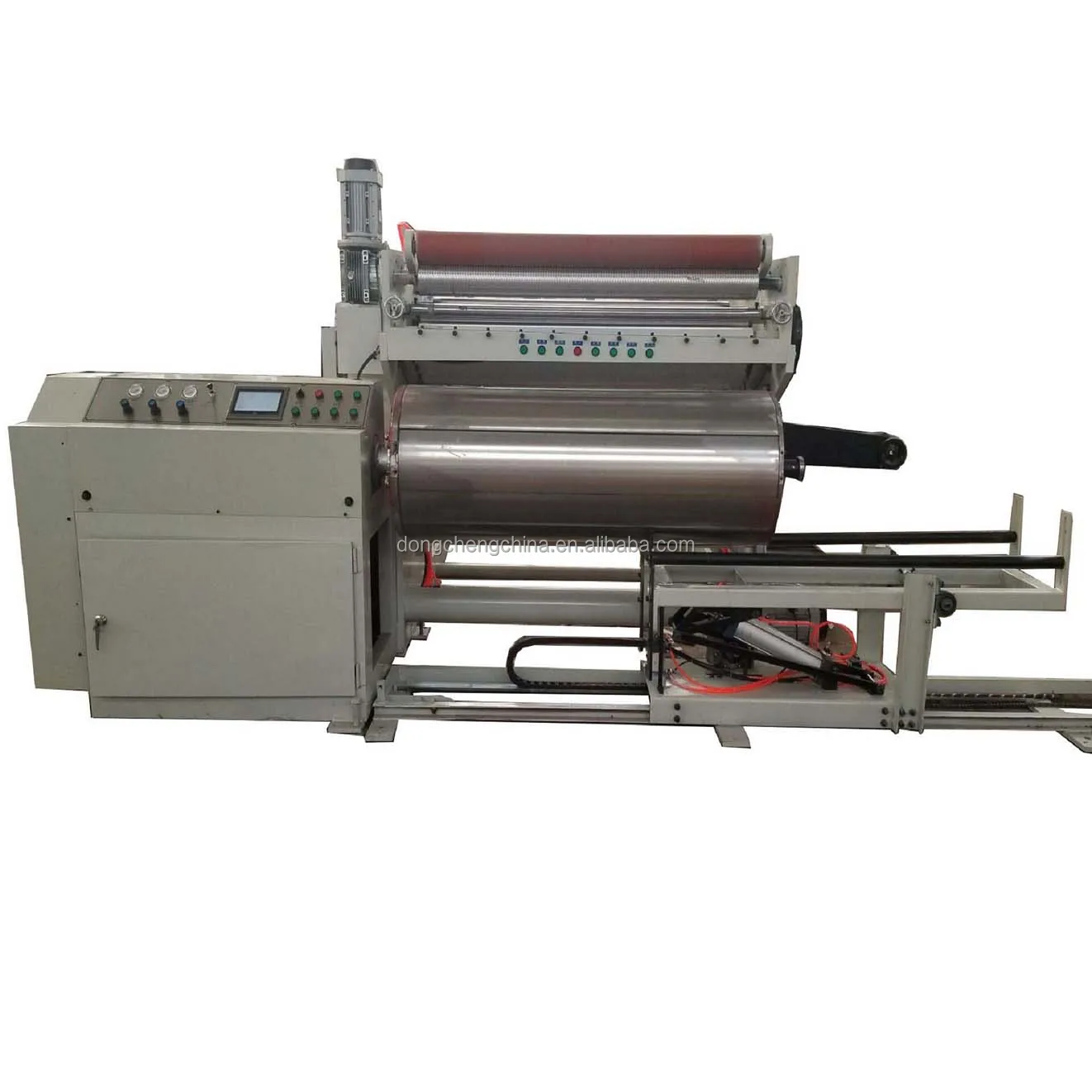

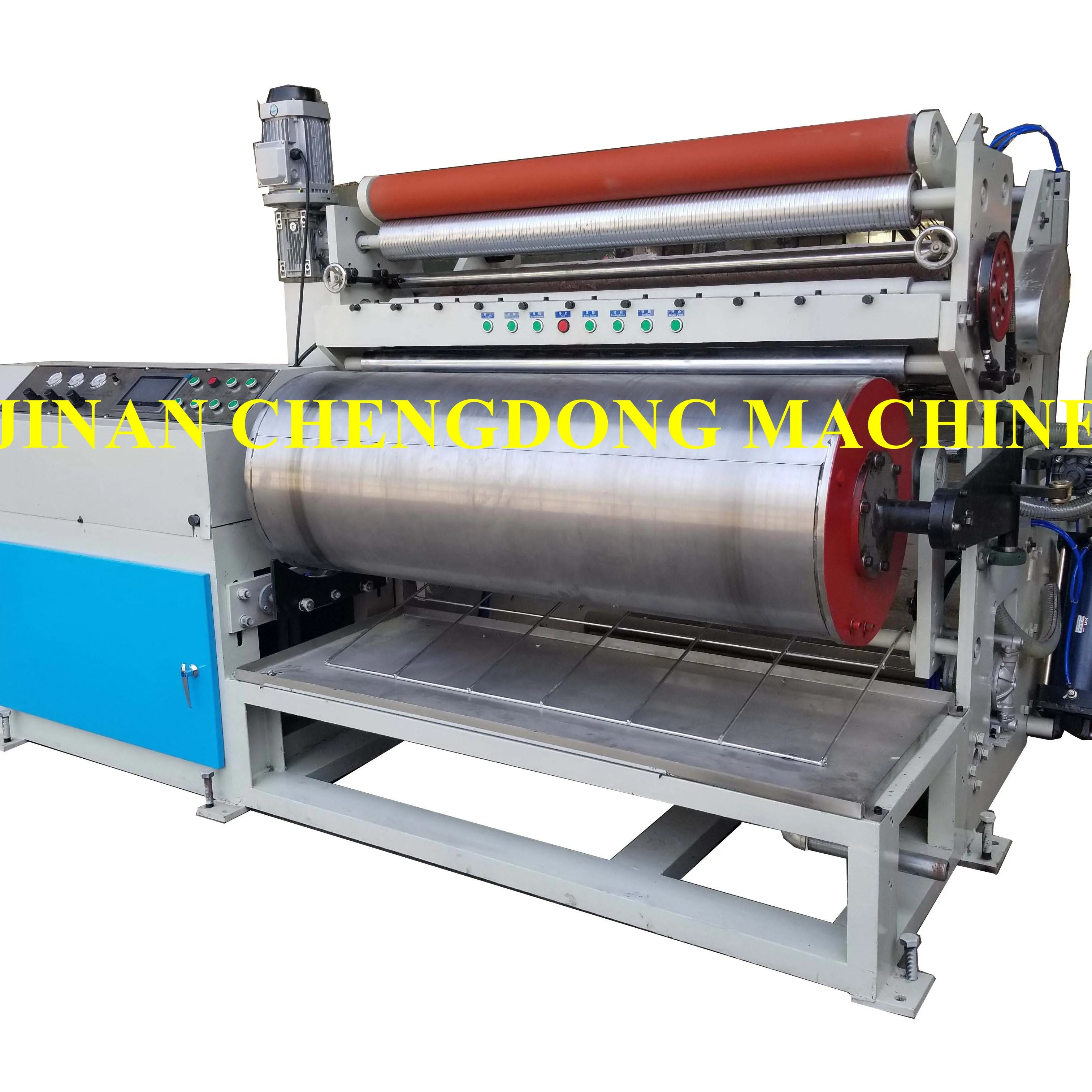

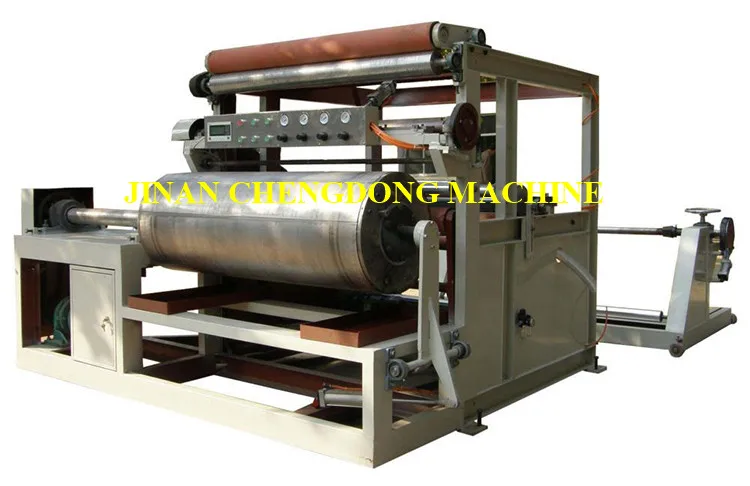

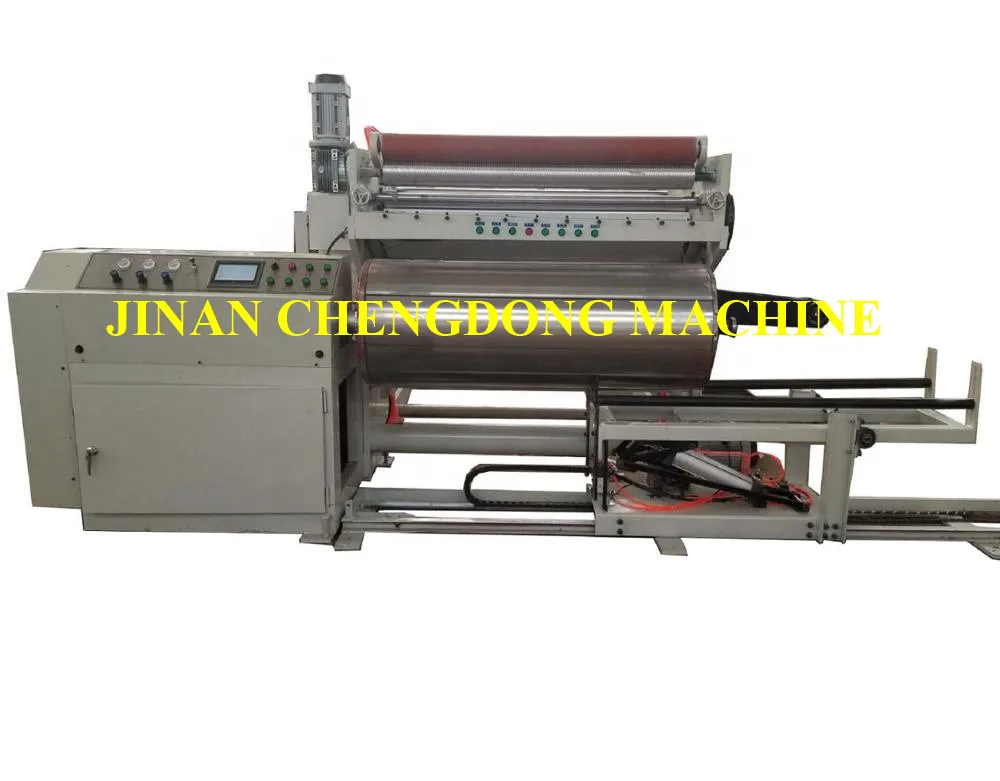

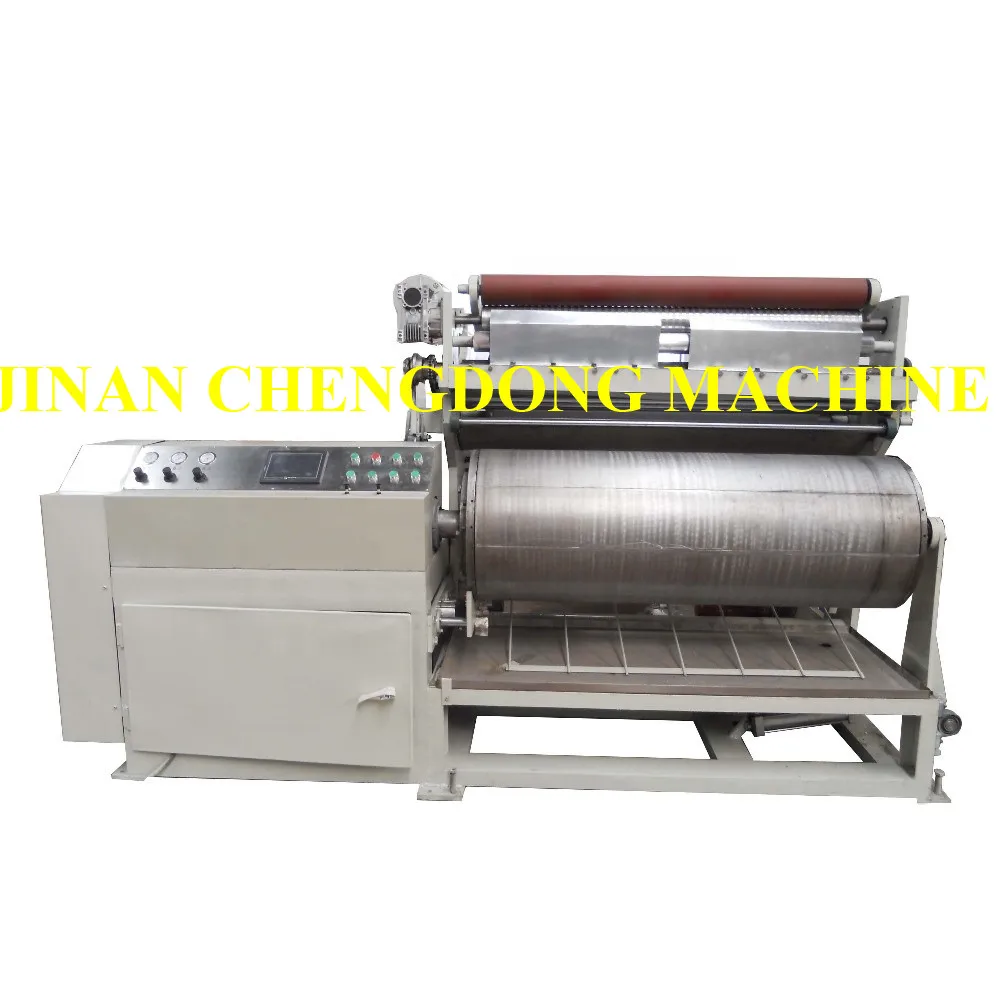

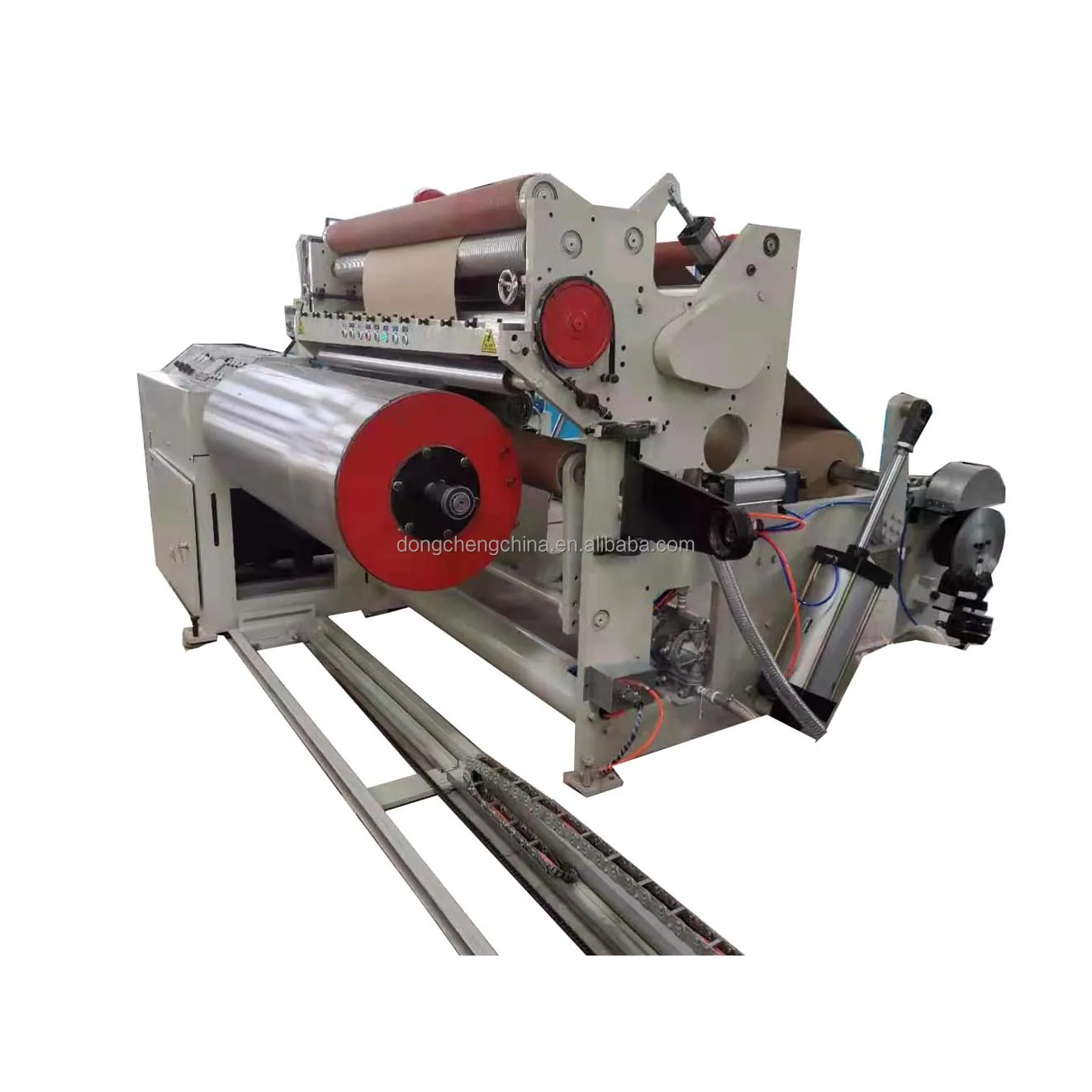

PARALLEL PAPER TUBE MACHINE MODEL ZPJ-1600
Usage and Features:
This Machine is mainly used to produce big diameter paper sleeve tubes for Aluminum foil, Copper foil, Stainless steel sheet, pre-painted steel sheet, galvanized sheet, building industry and packing industry. Adopt parallel winding type, easy operation.
The main features as follows:
1. Structure frame choose 30mm thickness steel plate
2. Automatic gluing, choose diaphragm pump
3. Mandrel choose pneumatic extension type, easy for unload paper tube
4. Equipped vacuum sucking function for mandrel
5. Equipped with pulling carriage to unload the paper tube
This Machine is mainly used to produce big diameter paper sleeve tubes for Aluminum foil, Copper foil, Stainless steel sheet, pre-painted steel sheet, galvanized sheet, building industry and packing industry. Adopt parallel winding type, easy operation.
The main features as follows:
1. Structure frame choose 30mm thickness steel plate
2. Automatic gluing, choose diaphragm pump
3. Mandrel choose pneumatic extension type, easy for unload paper tube
4. Equipped vacuum sucking function for mandrel
5. Equipped with pulling carriage to unload the paper tube
Parameter/Model | ZPJ-1300 | ZFJ-1600 | ZPJ-1600 | ZFJ-2200 | ||
Paper tube length | Max.1300mm | Max.1600mm | Max.1600mm | Max.2200mm | ||
Paper Tube diameter | 280~600mm | Max.1350mm | 280~600mm | Max.1350mm | ||
Paper tube thickness | 1~35mm | 76mm | 1~35mm | 76mm | ||
production efficiency | 200~500pcs/day | Hydraulic | 200~500pcs/day | Hydraulic | ||
Cutting Type | automatic circle blade cutting | 50~1600mm | automatic circle blade cutting | 50~2200mm | ||
Tube Unloading tpe | pulling carriage | Max.1350mm | pulling carriage | Max.1350mm | ||
Mandrel type | Pneumatic extension | Hydraulic | Pneumatic extension | Hydraulic | ||
Gluing type | Automatic | 200m/min | Automatic | 200m/min | ||
Detailed Images
Introduction of product advantages or application effect or application mode
Winding Mandrel
Choose 14mm thickness steel plate rolling,quenching and milling process, ensure mandrel good rigidity and working life.
With vaccum holes on the mandrel to adsorb paper while automatic running
Pneumatic extension
Main shaft
Main shaft base could be movement within 100mm distance, easily change position while diameter much difference
The main shaft is driven by servo motor, could positioning automatically
Unloading carriage device
Unload the paper tube out of mandrel and turn the tube automatically, save labor
loading capacity up to 100kg, heavy structure
Easy to adjust while the tube diameter difference
Electric Control System
PLC control, HMI input
Automatic Tension Control system, SMC electropneumatic proporation valve
Full servo motor control, high accuracy
Vaccum adsorb function
Products Description
fibreboard barrel
The paper barrel is also called fibreboard barrel. The barrel body is made of eight layers of kraft cardboard and is bonded by polyvinyl alcohol solution. The barrel cover and bottom are made of five layers of plywood by machine bonding.
Paper barrel drum
Compared with the traditional iron hoop paper bucket, it is a kind of paper bucket with complete paper structure without iron hoop and wood bottom cover.
paper sleeve
All kinds of chemical fiber, textile paper tube and metal matching paper sleeve. All kinds of paper tubes and sleeves with inner diameter of 18mm to 610mm are unlimited in length.
