  • Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей

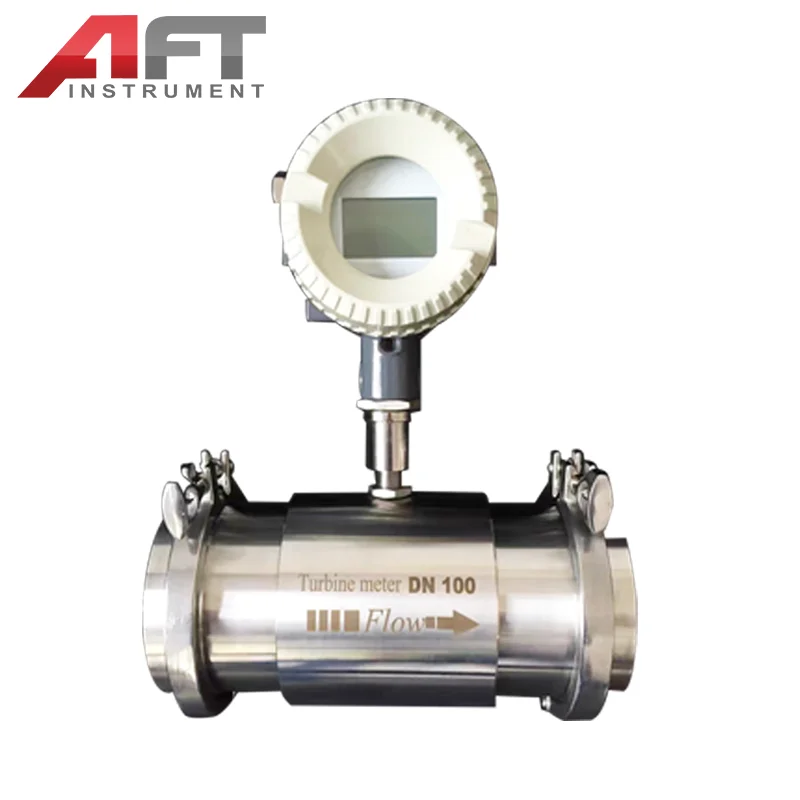

Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей
Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей
Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей
Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей
Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей
Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей
Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей

Расходомер для жидкой Турбины 24 В постоянного тока расходомер масла дизельного топлива бензина пищевого 304SS масляный турбинный из нержавеющей


Поделиться:


Цена:290,00 $ - 300,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 345.97 $* 362.21 $*
Aug-17-2025 342.52 $* 359.43 $*
Jul-17-2025 287.3 $* 301.66 $*
Jun-17-2025 336.94 $* 353.71 $*
May-17-2025 293.55 $* 308.36 $*
Apr-17-2025 331.54 $* 348.33 $*
Mar-17-2025 328.28 $* 344.93 $*
Feb-17-2025 325.44 $* 341.50 $*
Jan-17-2025 322.22 $* 338.56 $*

Характеристики



Product Description






Specification






Product Name
Liquid Turbine Flowmeter
Pressure
1.6~25MPa(High pressure customization)
Temperature
-20~120℃, high temperature 160℃
Ambient Conditions
Temperature：－10～＋55℃, Relative Humidity: 5％～90％
Atmosphere Pressure:86～106Kpa
Power supply

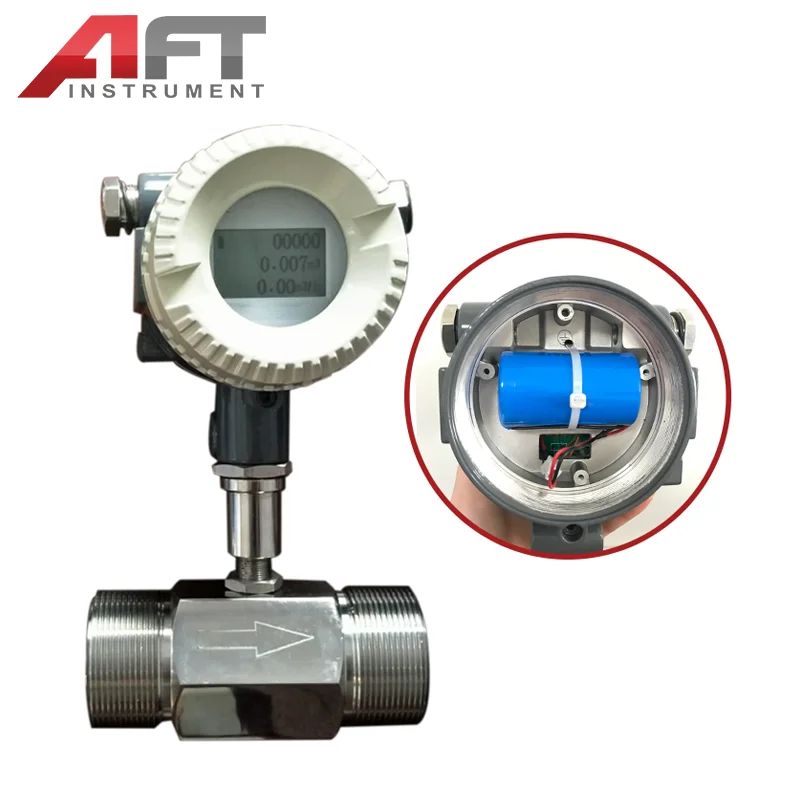

220VAC/ 24VDC/3.6V Battery powered
Signal Output
Sensor: pulse frequency signal,
low level≤0.8V high level≥8V.
Transmitter: current signal 4～20mA DCtwo wires
Signal Transmission Line
STVPV 3×0.3 (three wires), 2×0.3(two wires)
Transmission Distance
≤1000m
Signal Line Interface
Internal thread  M20×1.5
Accuracy
1.0%


Size
DN4-DN300

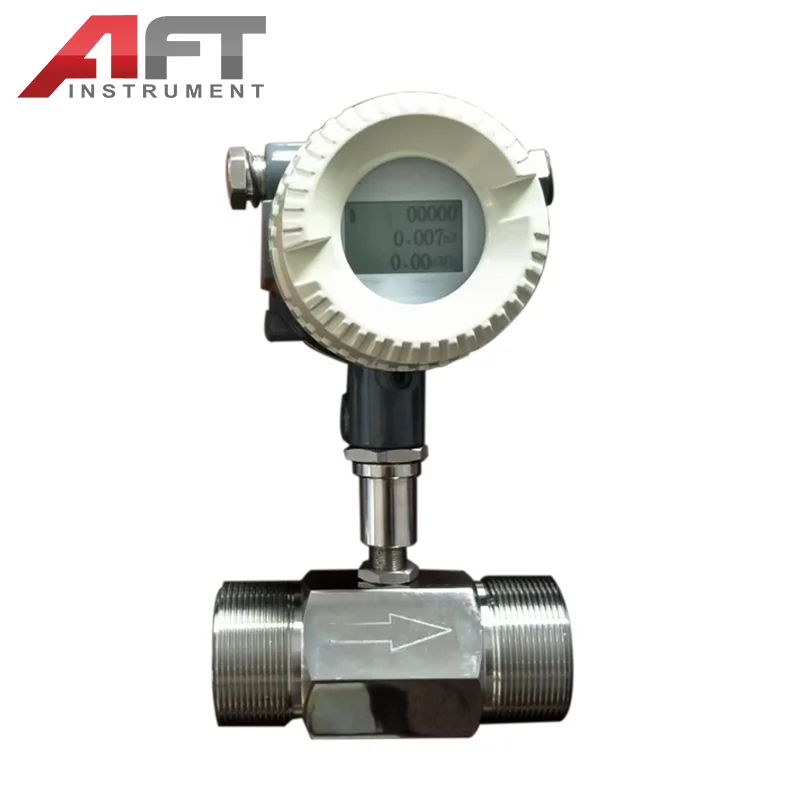

4,6,10,15,20,25,32,40 (tread connection)
15,20,25,32,40 (tread and flange connection)

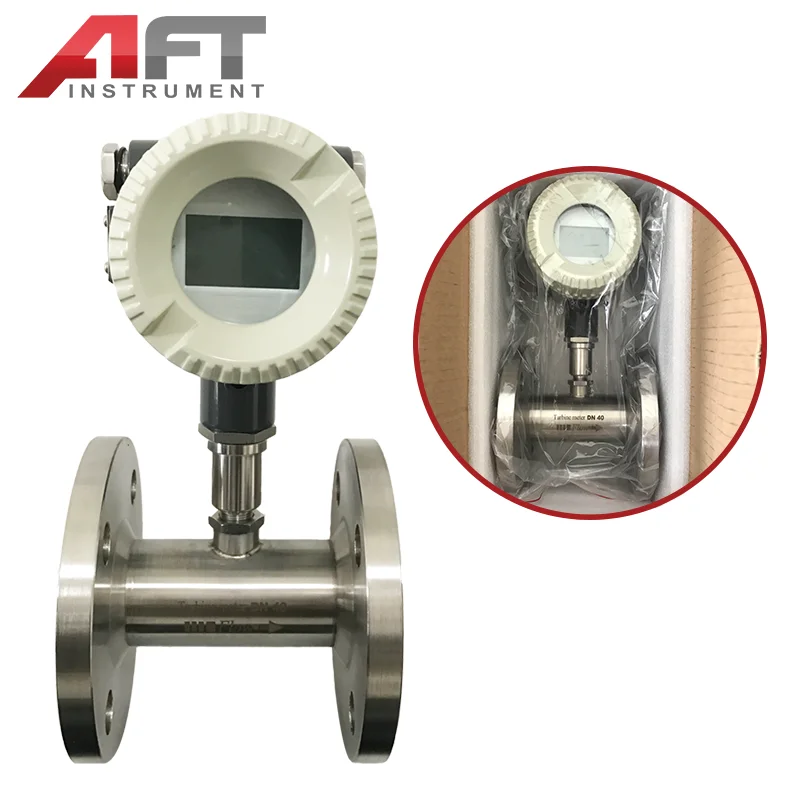

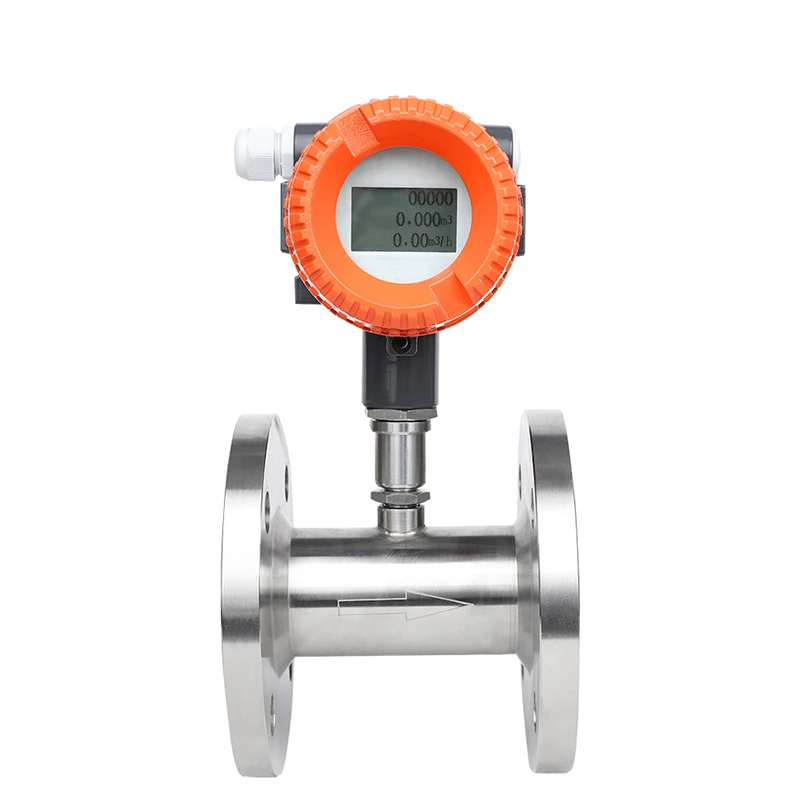

50,65,80,100,125,150,200 ( flange connection)

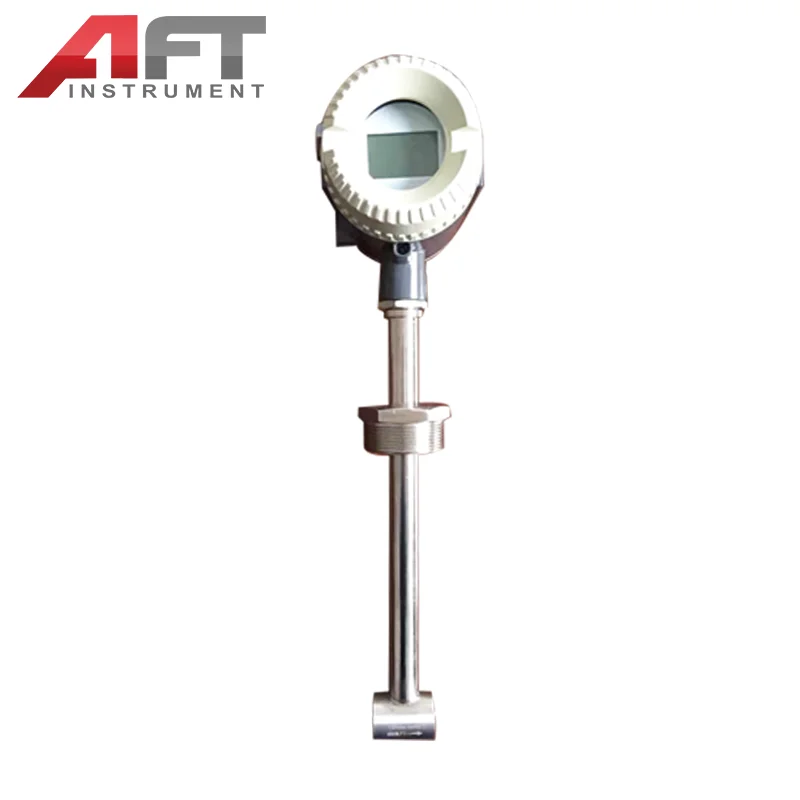

Insertion type above DN200
Measurement Range Rate
1:10,1:15,1:20
Body material
304SS/ 316L
Protection Class
IP65
Display
Instantaneous flow, cumulative flow













Flow range of liquid turbine flowmeter
Attention should be paid to the selection: each flowmeter has a flow range. The flow range corresponds to different nominal diameters. Contact us for specific selection!




Product size drawing




Nominal diameter(DN)
sensor(mm)
Flange dimensions(mm)





Pipe thread size
L
H
D
D1
D2
D3
n-do
L1(mm)
G
4
225
145






1/2
6
225
145






1/2
10
345
170






1/2
15
75
190
95
65
45

4-14
23
1
20
85
210
105
75
55

4-14
23
1
25
100
230
115
85
65

4-14
30
11/4
32
120
250
140/135
100
78

4-18
30
11/4
40
140
260
150/145
110
85

4-18
35
2
50
150
270
165/160
125
100

4-18


65
150
290
185/180
145
125

4-18


80
200
300
200/195
160
135

8-18


100
220
330
220/215
180
155

8-18


125
250
380
250/245
210
185

8-18


150
300
390
285/280
240
210

8-23


200
360
455
340/335
295
265

12-23


250
400
510
405
355
320

12-26/25


300
420
565
460
410
375

12-26/25


400
560
680
580
525
485

16-30


500
600
790
715/705
650
608

20-34




Packing & Delivery




Package:
1.Carton packaging below DN100
2.DN150 and above are packed in wooden boxes
3.Delivery time: non-customized products will be shipped within 3 -7Working days
Customized product consulting customer service!


Company Profile




Kaifeng AFT Instrument Co.ltd is a professional company which manufactures automation instrument and related settings. Our instruments are industrialized and automated, we also engaged in design,search, manufacture, selling and service.
Our company is a high-tech science and technology enterprises, and the main products are electromagnetic flowmeter, vortex flowmeter, the throttle device, current meter,ultrasonic flow meter, venturi tubes, orifice plates and other flow products. We make sure that our instruments are in various forms and complete specifications, which can meet the different requirements, and we can design products according to the requirements of customers.
Products are widely used in chemical, environmental protection and urban water supply and drainage, electric power, water conservancy, metallurgy, pharmaceutical, sugar, oil, paper etc.From product design, processing of raw materials procurement, manufacturing and assembling, calibration and examination to each link of manufactured products have strict quality control, makes the products becoming more and more perfect,and scientific management, strict process,
advanced equipment, high-quality staff as product quality guarantee.

The company has been through ISO9001.2000, and always pursue
high quality product , thoughtful service, reasonable price, honest and trustworthy business philosophy, providing the most satisfactory products and the best quality service for the users.The company sold products on the uniform implementation Three Guarantees, and to establish a set of pre-sale, sale, after-sales service system. Aim to start with the customers' requirements, finally customer satisfaction.
The customers' requirement is our goal, we sincerely hope that customers at home and abroad to build effective cooperation. We sincerely invite new and old customers coming and guidance.


Certificate






Warmly welcome customers to visit our company and look forward to our cooperation.



FAQ


1. who are we?
We are based in Henan, China, start from 2016,sell to Western Europe(15.00%),Mid East(15.00%),Oceania(10.00%),Southern Europe(8.00%),Eastern Europe(8.00%),Central America(7.00%),Domestic Market(6.00%),Africa(5.00%),Northern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),South Asia(5.00%),North America(3.00%),Eastern Asia(3.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
flow meter,magnetic flow meter,vortex flow meter,turbine flow meter,ultrasonic flow meter

4. why should you buy from us not from other suppliers?
We are a professional manufacturer of flow meters in China. Has more than 20 years of manufacturing experience. We offer highly competitive: electromagnetic flow meter, vortex flowmeter, ultrasonic flow meter turbine flow meter, thermal gas mass flow meter

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
