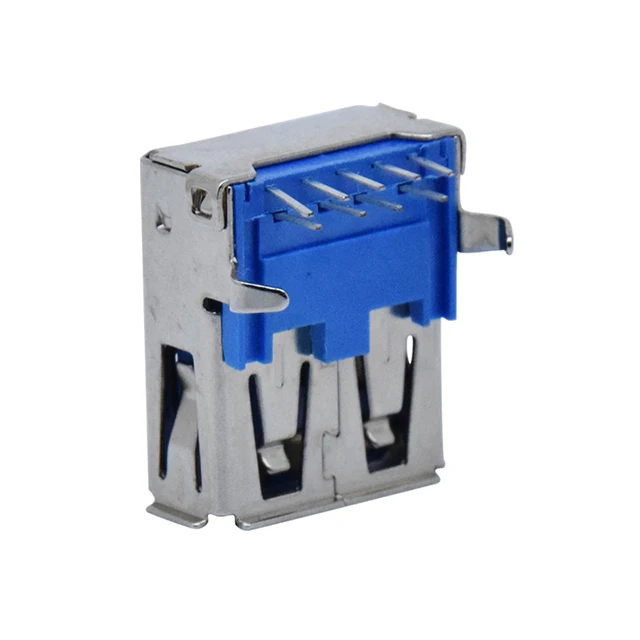

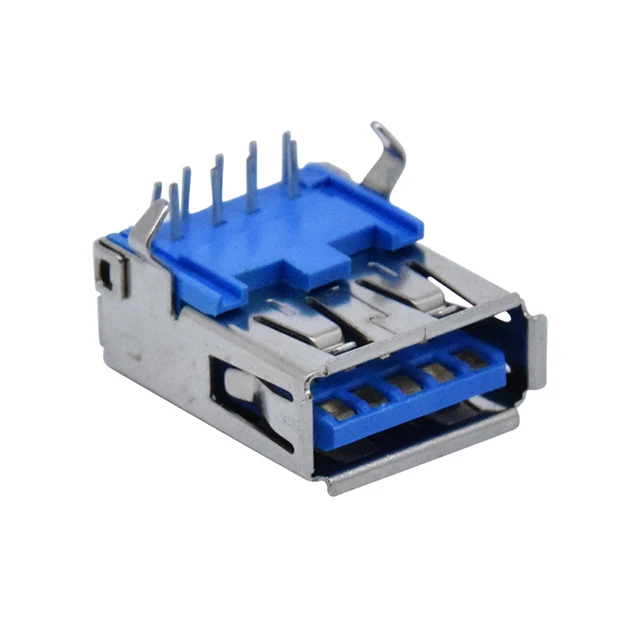

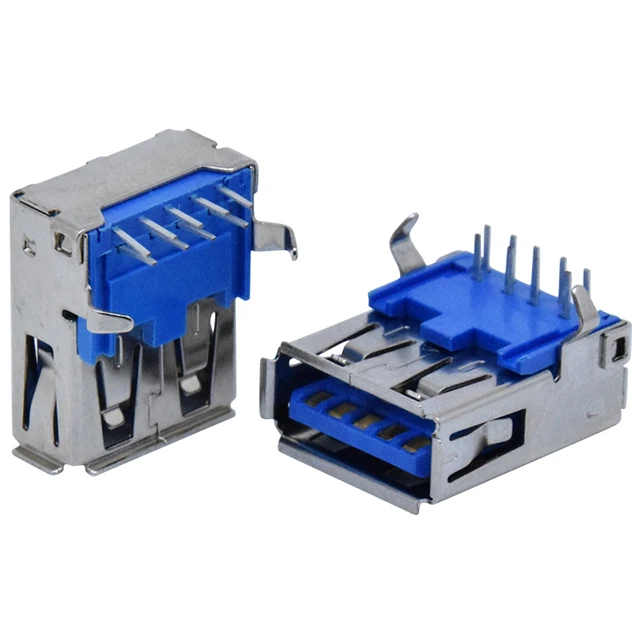

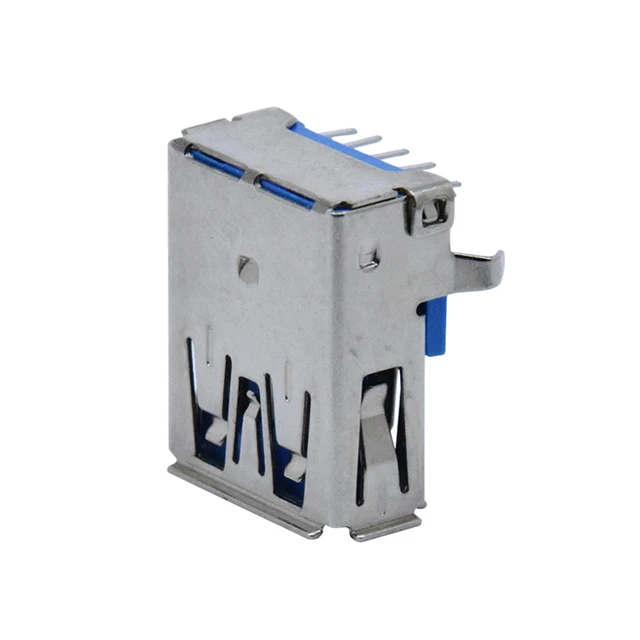

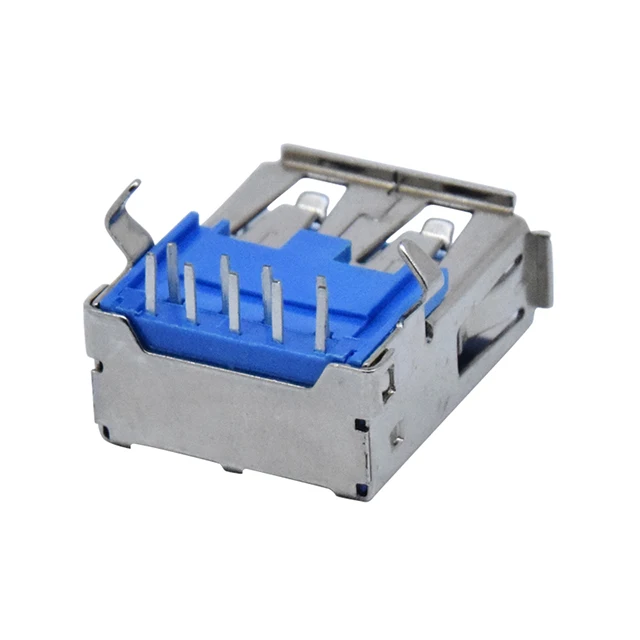

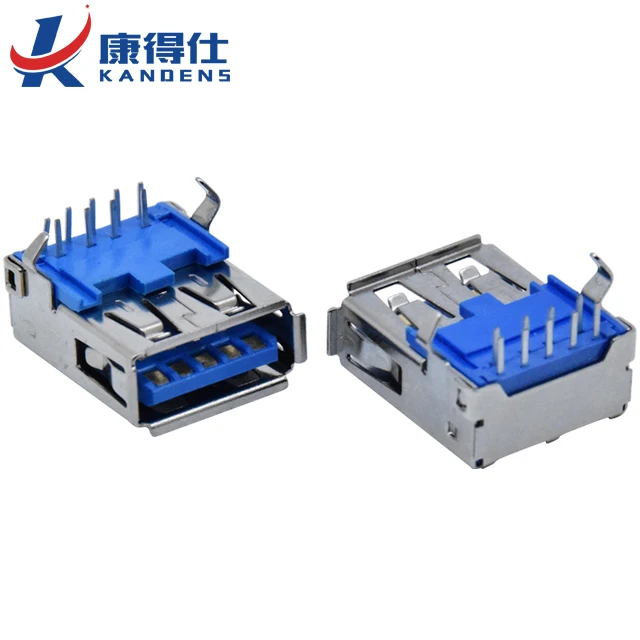

USB 3.0 female connector 90 degrees horizontal plug in usb connector 3a current 9 pins dip usb jack



AF3.0 USB Connector Features:
1. With A Type/B Type/C Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

AF 3.0 USB Connector Welding conditions
1. C Type Micro USB Connector Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature



AF 3.0 USB Connector performance description

- Type Cusb connector are made by high quality copper alloy contacts
- Ideal for making your own USB cables
- Fit for electronics power port repair or DIY projects power supply port
- Soldering is required

Product Name	USB 3.0 female connector 90 degrees horizontal plug in usb connector 3a current 9 pins dip usb jack
Current Rating	3A Contact terminal
Voltage Rating	5V DC
Contact Resistance	50Ω Max
Insulation Resistance	100Ω Min
Mating Force	3.57kg
Unmating Force	1.02kg



Usage of AF2.0 USB Connectors
1. Audio / Video product: MP3, MP4, DVD, stereo system
2. Digital devices: digital camera, digital video
3. Remote control: Vehicle, rolling door, Home security products
4. Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.
5.Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen
Scale.
6. Security Products: Videophone, Monitor etc.
7. Toy: electronic toy etc.
8. Computer products: Camera, recording pen etc.
9. Fitness equipment: running machine, massage chair, timer etc.
10. Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.

Packaging & Shipping of Type C USB Connectors:
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 45% deposits; 55% balance before delivery



Q1: May I get AF3.0 usb connector free samples?
A: Sure, 10-20 pcs AF2.0 usb connector free samples are available for normal models.



Q2: When can I get the quotation ?
A: We will send you quotation within 24 hours.



Q3: When can I get the AF3.0 usb connector samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.



Q4: Can you accept small order, like 1000 pcs AF3.0 usb connector, 2000 pcs AF2.0 usb connector?
A: Sure, but we suggest you buy more AF3.0 usb connector, because it really can save you time and freight charge in the near future.



Q5: What's the lead time of bulk order ?
A: Normally, lead time for AF3.0 usb connector around 10-14 days. We will inform you lead time before order, and will confirm to you again after received payment.



Q6. What is the payment term ?
For small order, pls remit payment by PayPal. For big order, pls remit payment by T/T.



Q7. Can you open mold for terminal order or uncommon models ?
OK, we need time to discuss in details, such us the cost for open mold, and need to know the forecast, end product and lifespan.
