Первоклассный OEM-сервис Прямая продажа с завода Воздушная сушилка для сжатия
- Категория: Freeze Drying Equipment >>>
- Поставщик: Guangzhou,Airhorse,Compressor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 885.48 $* | 903.17 $* |
| Jul-16-2025 | 718.66 $* | 732.37 $* |
| Jun-16-2025 | 871.43 $* | 888.93 $* |
| May-16-2025 | 864.79 $* | 881.7 $* |
| Apr-16-2025 | 690.25 $* | 704.70 $* |
| Mar-16-2025 | 850.17 $* | 867.4 $* |
| Feb-16-2025 | 843.32 $* | 860.43 $* |
| Jan-16-2025 | 836.87 $* | 853.91 $* |
Характеристики
Refrigerated Compressed Air Dryer | ||
Air flow | 1.0-45(m3/min) 31-1411(CFM) | |
Compressor power | 0.32-7.35(KW) | |
Maximum pressure | 13KG | |
Ambient temperature | 35℃ | |
Air inlet temperature | ≤60℃ | |
Application | For air compressor | |
Core Components | Aluminum alloy three-in-one heat exchanger | |
One-stop shopping, a complete set of service | ||
Product Name | AC freeze air drye | |
Certificate | ISO,CE,ASME,UL,CCC etc.,TUV | |
Refrigerant type | Environmental protection refrigerant | |
Evaporator type | Aluminum alloy plate | |
Cooling mode | Air-Cooling | |
Inlet pressure(Mpa) | 0.4~1.0 | |
Pressure loss(Mpa) | ≤0.02 | |
Dew point | 2~5℃ | |
Product Paramenters
Refrigerated Compressed Air Dryer | ||||||||||||||
Model | Air flow | Air flow | Compressor power | Maximum pressure | Electricity (V/ph/Hz) | Size | Net weight | |||||||
m3/min | CFM | KW | cm | KG | ||||||||||
AH-5SG | 1.0 | 31 | 0.32 | 13KG | 220/1/50 | 64*38*71 | 40 | |||||||
AH-10SG | 1.5 | 47 | 0.43 | 45 | ||||||||||
AH-20SG | 2.5 | 78 | 0.73 | 73*42*76 | 60 | |||||||||
AH-30SG | 3.8 | 119 | 0.92 | 76*45*97 | 80 | |||||||||
AH-50G | 6.5 | 204 | 1.38 | 90*50*11 | 110 | |||||||||
AH-75G | 10.5 | 329 | 1.78 | 120*60*112 | 175 | |||||||||
AH-100G | 13.8 | 433 | 2.57 | 120*60*127 | 202 | |||||||||
AH-120G | 16.0 | 502 | 2.57 | 225 | ||||||||||
AH-150GF | 20.0 | 627 | 2.94 | 380/3/50 | 140*73*135 | 315 | ||||||||
AH-200GF | 28.0 | 878 | 4.4 | 421 | ||||||||||
AH-250GF | 30.0 | 941 | 4.8 | 158*90*176 | 508 | |||||||||
AH-300GF | 35.0 | 1097 | 5.5 | 173*99.5*184 | 633 | |||||||||
AH-400GF | 45.0 | 1411 | 7.35 | 198*99.5*202.5 | 860 | |||||||||
Products Description

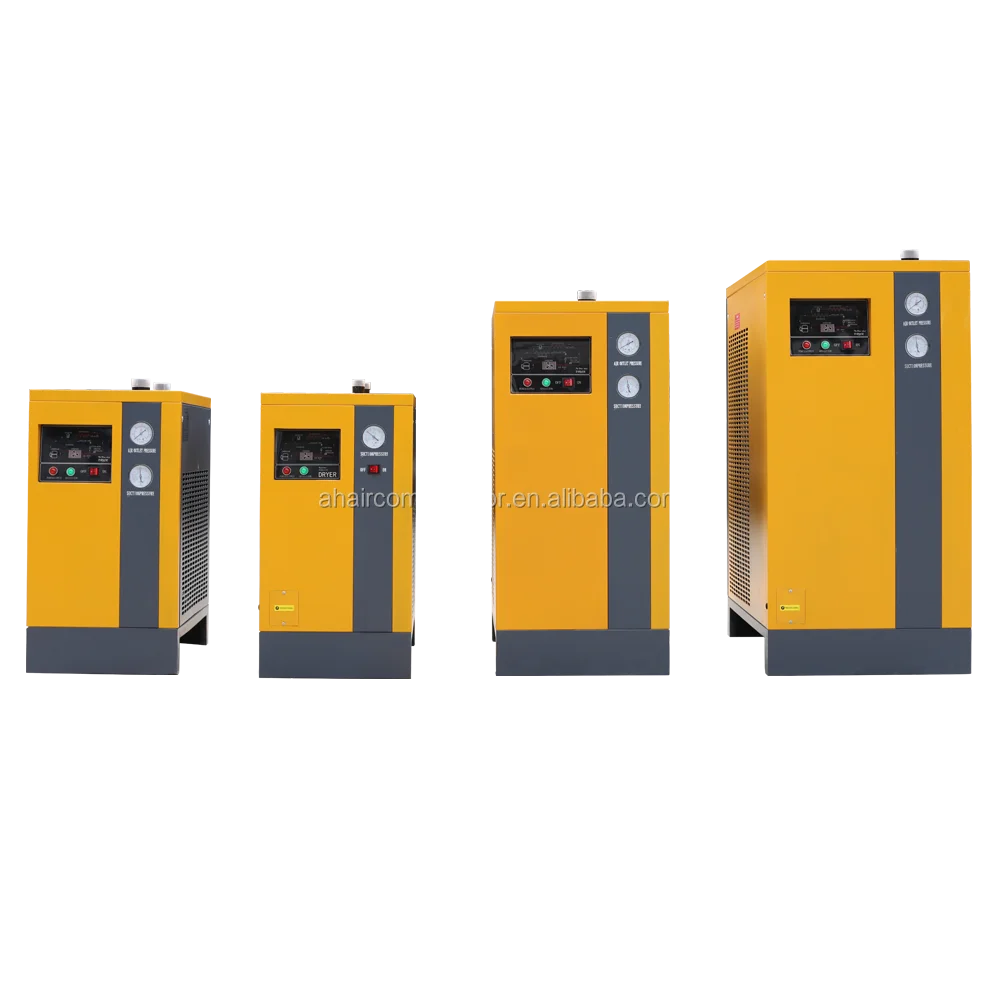

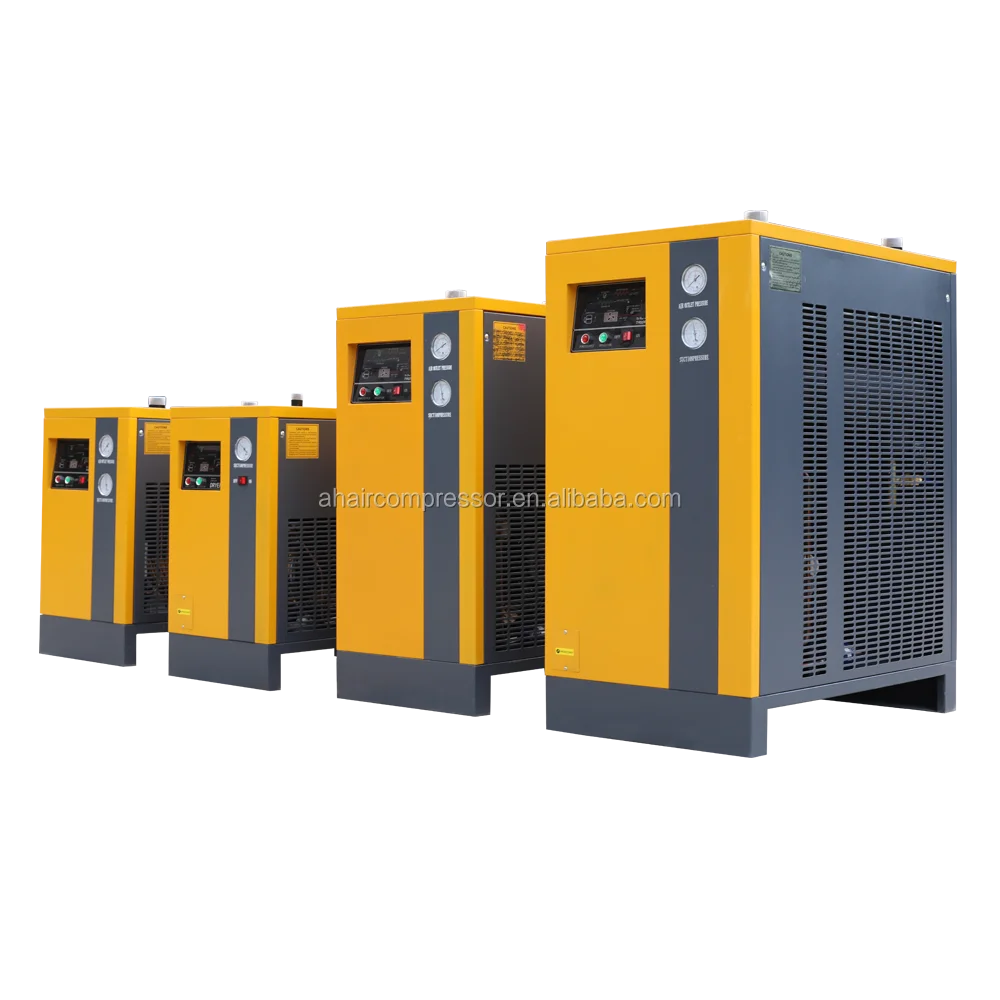

Air dryer refrigerated type 13bar compressed air dryer for compressor
High efficiency: the integrated heat exchanger is equipped with guide fins to make the compressed air uniform inside Heat exchange, built-in gas-water separation device with stainless steel filter screen, water separation is more thorough.
Intelligent: Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, automatic recording of accumulated operating time, self-diagnosis function, display of corresponding alarm codes, and automatic protection of equipment.
Environmental protection: In response to the international Montreal agreement, this series of models all use R134a and R410a environmentally friendly refrigerants, which have zero damage to the atmosphere and meet the needs of the international market.
Stable: The standard is equipped with a constant pressure expansion valve, and a standard configuration with intelligent temperature control. In the laboratory test, when the intake air temperature reaches 60°C and the ambient temperature reaches 35°C, it still runs stably, and has a temperature Degree pressure double antifreeze protection. While saving energy, it extends the service life of the equipment.
Why Choose Us
Choose our strengths

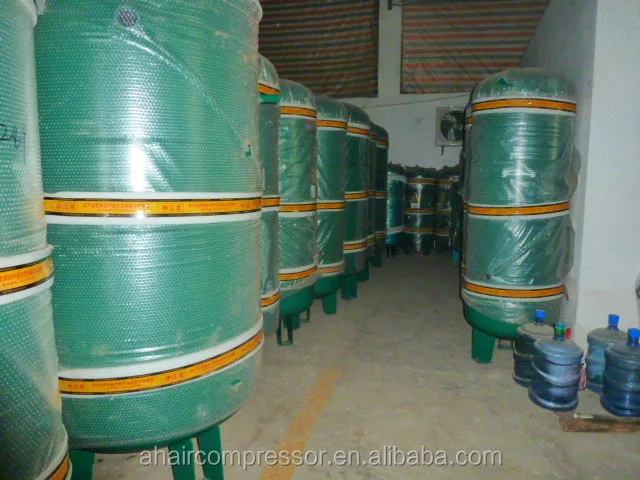

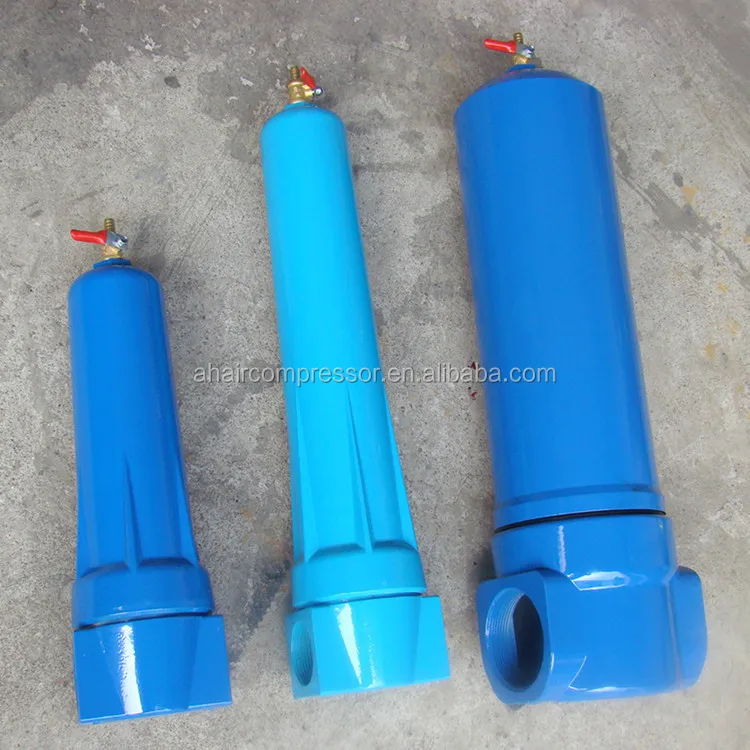

Guangzhou AirHorse Compressor co., ltd is the professional manufacturing and exporter.We are a factory in Guangzhou, China.We are specialized in air compressor research, development and production. The main products including screw air compressor, air dryer,Air tank and Pipe Air Filter etc. We do many OEM for international famous brand such as Ingersoll Rand.
Certifications
We have obtained the approval of ISO9001-2000 international quality management system, ISO14001 Enviroment management system authentication, CE quality system, UL quality systemASME quality system etc.
Exhibition
• Professional manufacturer of air compressor system equipment
• Main products include Screw Air Compressor
• Cutting-edge technology & leading techniques: original German air end with SKF bearing, Siemens/ABB electricity system and spare parts of other world-famous brands. To ensure reliability, high performance, low noise and long life span
• Main products include Screw Air Compressor
• Cutting-edge technology & leading techniques: original German air end with SKF bearing, Siemens/ABB electricity system and spare parts of other world-famous brands. To ensure reliability, high performance, low noise and long life span
Recommend Products
FAQ
Q1: Warranty terms of your machine?
A1: One year warranty for the machine and technical support according to your needs.
Q2: Will you provide some spare parts of the machines?
A2: Yes, of course.

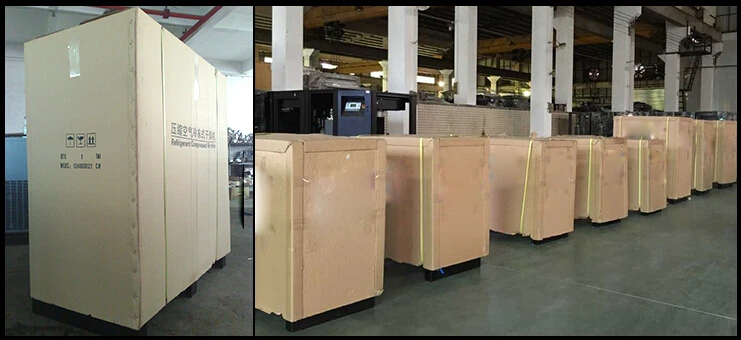

Q3: What about product package?
A3: We pack our products strictly with standard seaworthy case.
Q4: Can you use our brand?
A4: Yes, OEM is available.
Q5: How long will you take to arrange production?
A5: 380V 50HZ we can delivery the goods within 7-15 days. Other voltage or other color we will delivery within 25-30 days.
Q6: How Many Staff Are There In your Factory?
A6: About 100.
Q7: What's your factory’s production capacity?
A7: About 550-650 units per month.
Q8: What the exactly address of your factory?
A8: Our company is located in AirHorse Industrial Park, Zengcheng District, Guangzhou, Guangdong, China.
