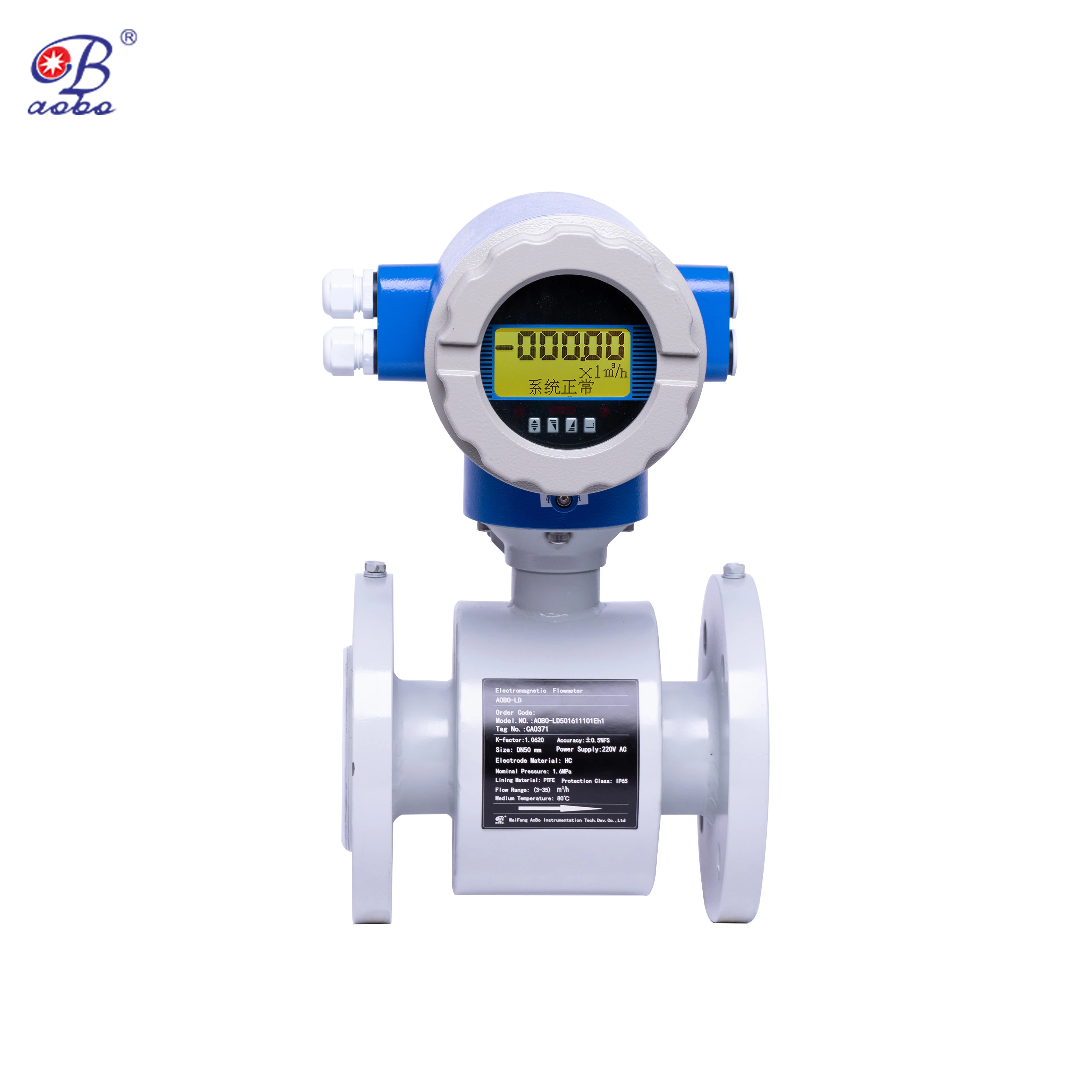

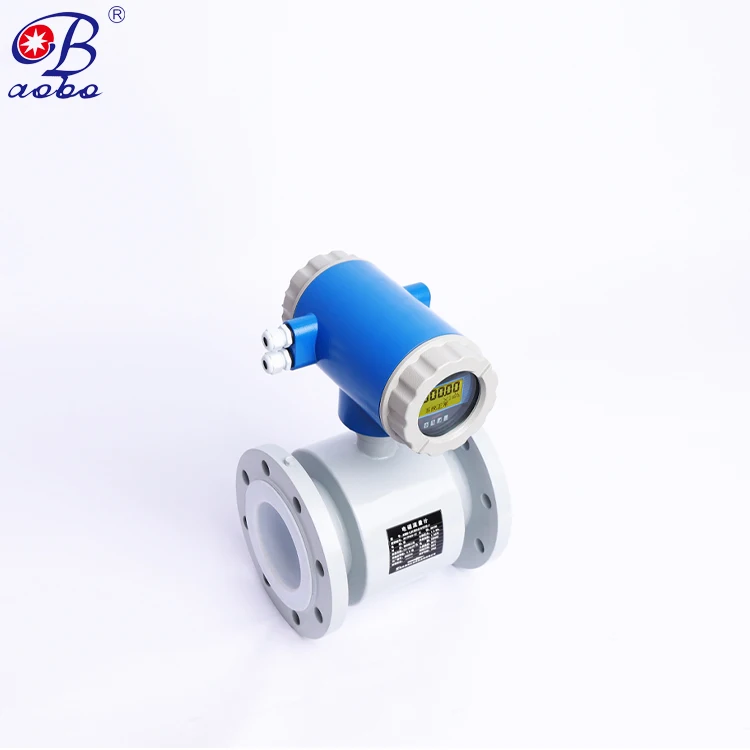

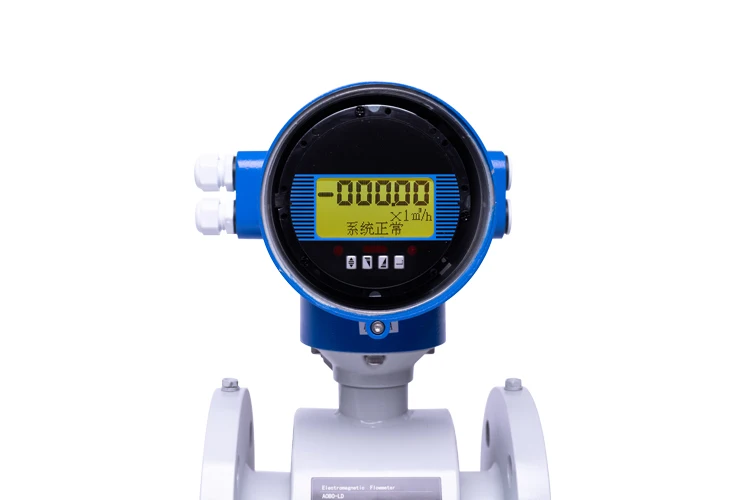

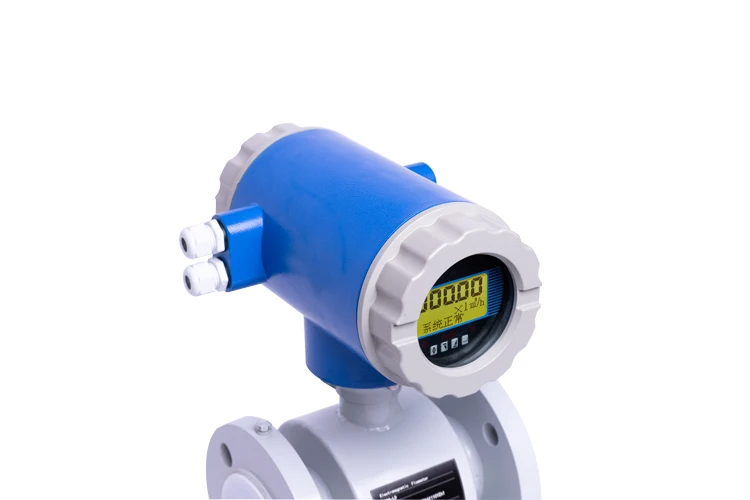

Цифровой расходомер Dn15 Dn40 устройство для измерения расхода воды Lora тип Wan Zhejiang зона с изменяемой площадью
- Категория: Flow Meters >>>
- Поставщик: Weifang,Aobo,Instrumentation,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.72 $* | 0.71 $* |
| Aug-18-2025 | 0.99 $* | 0.49 $* |
| Jul-18-2025 | 0.7 $* | 0.63 $* |
| Jun-18-2025 | 0.59 $* | 0.78 $* |
| May-18-2025 | 0.15 $* | 0.4 $* |
| Apr-18-2025 | 0.34 $* | 0.20 $* |
| Mar-18-2025 | 0.58 $* | 0.52 $* |
| Feb-18-2025 | 0.91 $* | 0.60 $* |
| Jan-18-2025 | 0.5 $* | 0.10 $* |
Характеристики
item | value |
Warranty | 1 year |
Certification | ISO, SIL, ExdmbIICT6Gb |
Customized support | OEM, ODM |
Place of Origin | Weifang,Shandong,China |
Brand Name | AOBO |
Model Number | ABDT-LD |
Type | Variable Area Water Flowmeters |
Diameter Nominal | DN15~ DN1000 |
Accuracy | ±0.5%(Flow speed > 0.5m/s) |
Conductivity | water 20μS/cm other medium 5μS/cm |
Ambient Temperat | (10 ~80)℃ |
Power Supply | (100-240)VAC, 50/60HZ |
Liner Material | PFA,F46,Neoprene,PTFE, FEP |
Protection Class | IP65 or IP68 |
PH Electrode | 316 stainless steel, HC,HB,Ta,Ti |

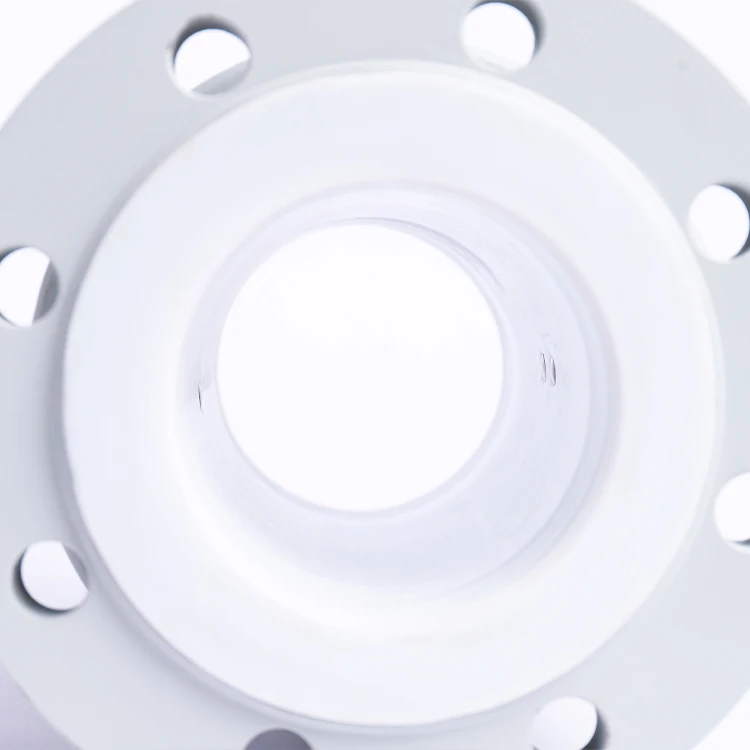

Lining material | Main features | Scope of application |
PTFE | 1.One of the most chemically stable materials in plastics, can withstand boiling hydrochloric acid, sulfuric acid, nitric acid and aqua regia, but also concentrated acids and various organic solvents | 1.Temperature resistance≤80℃ |
2.Strong corrosion media such as acids and bases | ||
2.Wear resistance and poor bonding performance | 3.Hygiene medium | |
PFA with mesh | 1.Chemical stability, electrical insulation, lubricity, non stickiness and flammability are similar to F46，But, PFA material showed better strength, aging and temperature resistance than F46 | 1.Long-term use temperature resistance ≤150 ℃ |
2.Good adhesion to metal,Wear resistance better than PTFE, F46 | 2.Can be used to measure most strong corrosive media such as strong acids, strong bases, strong oxidizing agents。But not for KOH, nitric acid, hydrofluoric acid, etc | |
3.Low Fume、Non-inflammable、High temperature resistance，High temperature mechanical strength higher than PTFE and F46 | ||
F46 | 1.Chemical stability, electrical insulation, lubricity, non stickiness and flammability are similar to PTFE，But, F46 material showed better strength, aging and temperature resistance than PTFE | 1.Long-term use temperature resistance ≤110℃ |
2.Good adhesion to metal,Wear resistance better than PTFE | 2.Can be used to measure most strong corrosive media such as strong acids, strong bases, strong oxidizing agents。But not for KOH, nitric acid, hydrofluoric acid, etc | |
3.With excellent tear resistance properties | ||
Chloroprene Rubber (CR) | 1.Excellent elasticity and wear resistance | 1.Temperature resistance≤65℃ |
2.Resistance to corrosion of generally low concentration acid, base, and salt media, intolerance to corrosion of oxidation resistant media | 2.Measurement of general water, sewage, mud, mineral pulp | |
polyurethane rubber （UR) | 1.There is an excellent wear resistance performance, and a good oil resistance | 1.Long-term use temperature resistance ≤60℃ |
2.The strength is high and tear resistance is good, but the acid resistance and alkaline energy are poor |
Electrode materials | Features and application scope | ||
316L | Applicable： | 1. Domestic water、Industrial water、Raw water、Well water、Municipal sewage； | |
2. Weakly corrosive solutions of acids, bases and salts | |||
Hastelloy B | Applicable： | 1. Non oxidizing acids such as hydrochloric acid（Concentration ＜10%） | |
2. NaOH solution（Concentration less than 50%），Ammonium Hydroxide | |||
,3. Phosphoric acid，Organic acids | |||
Not applicable： | Nitric acid | ||
Hastelloy C | Applicable： | 1. mixed acide，such as mixed solution of chromic and sulfuric acids; | |
2. Oxidised salts, such as Fe+++,Cu++,seawater and so on | |||
Not applicable： | Hydrochloric acid | ||
Ti | Applicable： | 1. Salt, such as (1) Chloride (chloride/Magnesium chloride and so on) | |
(2) Sodium salt、Sylvite、Hypochlorite salts、Seawater | |||
2. Potassium hydroxide, ammonium hydroxide, barium hydroxide solution(Concentration ＜50%) | |||
Not applicable： | Reducitcacid such as Hydrochloric acid、Sulfuric acid、Phosphoric acid、Hydrofluoric acid | ||
Ta | Applicable： | 1. Hydrochloric acid (Concentration ＜40%)、Dilute sulphuric acid and Oncentrated sulfuric acid | |
2. Chlorine Dioxide、Ferric chloride、Hypochlorous acid、Sodium cyanide、Lead acetate | |||
3. Oxidizing acid such as Nitric acid（Including Fuming Nitric acid）、Aqua regia（＜80℃） | |||
Not applicable： | Alkali、Hydrofluoric acid | ||
Latinumiridium alloy | Applicable： | almost all of the solutions of acids, bases and salts（Including Fuming Nitric acid and Fumigatus acid） | |
Not applicable： | Aqua regia、Ammonium salt | ||
Tungsten Carbide | Applicable： | Paper pulp、Sewage | |
Not applicable： | Inorganic acid、Organic acids、Chloride | ||
Weifang Aobo Instrument Technology Development Co., Ltd, established in March 2002 with the registered capital of RMB 10 million yuan, is a high-tech and double-software certification enterprise specialized in the development and production of flow instruments and the integration of measurement and control system for 19 years of development history.
