Высший сорт низкой цене хит продаж профессиональная гидравлическая с двумя головками аппарат для снятия
- Категория: Chamfering Machines >>>
- Поставщик: Zhangjiagang,Kingstar,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 6010.24 $* | 6311.80 $* |
| Aug-17-2025 | 5959.81 $* | 6257.84 $* |
| Jul-17-2025 | 5000.99 $* | 5250.91 $* |
| Jun-17-2025 | 5858.67 $* | 6151.83 $* |
| May-17-2025 | 5101.42 $* | 5356.63 $* |
| Apr-17-2025 | 5757.31 $* | 6045.39 $* |
| Mar-17-2025 | 5707.23 $* | 5992.86 $* |
| Feb-17-2025 | 5656.31 $* | 5939.75 $* |
| Jan-17-2025 | 5606.64 $* | 5886.45 $* |
Характеристики
Zhangjiagang Kingstar Machinery CO.,Ltd.
We have been committed to the development and production of various series of pipe processing machines, ranging from pipe bending machine, chamfering machine, cutting machine, end forming machine, saw blade sharpening machine, thread rolling machine and some other machines.
Final Products
Pipe Chamfering Machine Sample
Product Description
Single-head and double-head chamfering machines for your choice.
Single head pipe chamfering machine.
1.Single head chamfering machine for pipe which provides the high quality operating angle.
2.Stable construction,strong rididity,low vibratin and high cutting accuray.
3.Can be used for mutiple materials.
Save the labor and increase the productivity and safety during the processing.
2.Stable construction,strong rididity,low vibratin and high cutting accuray.
3.Can be used for mutiple materials.
Save the labor and increase the productivity and safety during the processing.

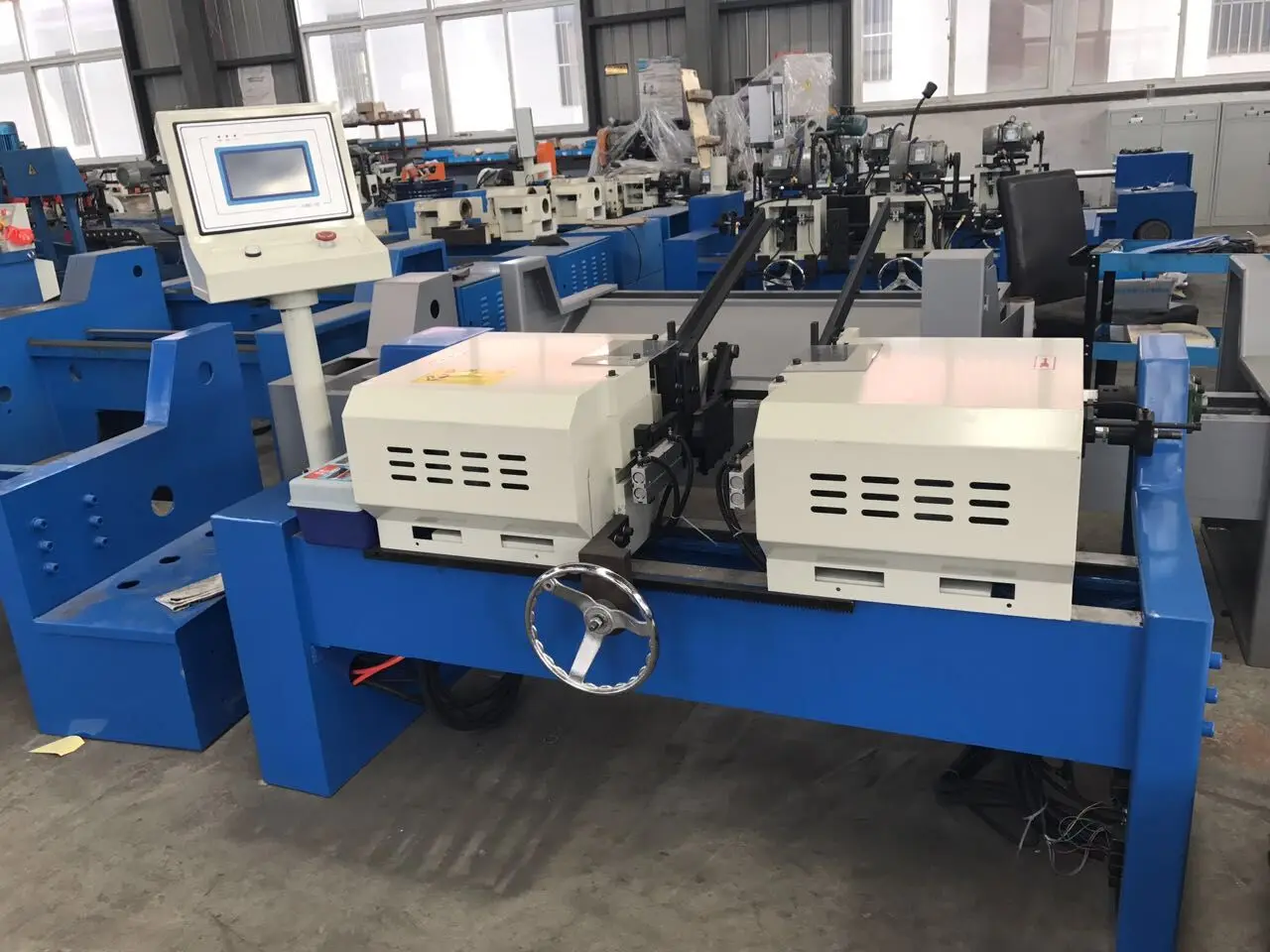

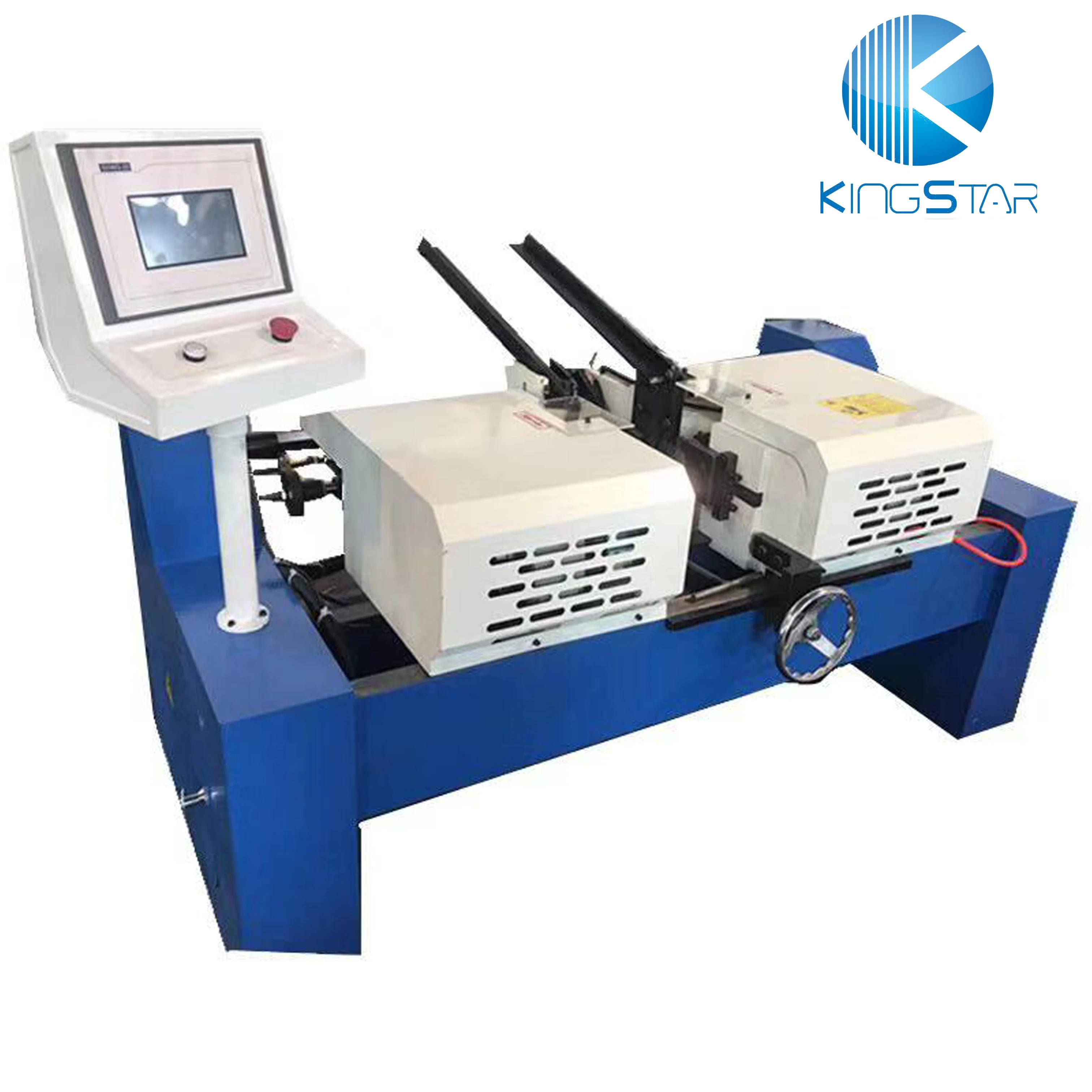

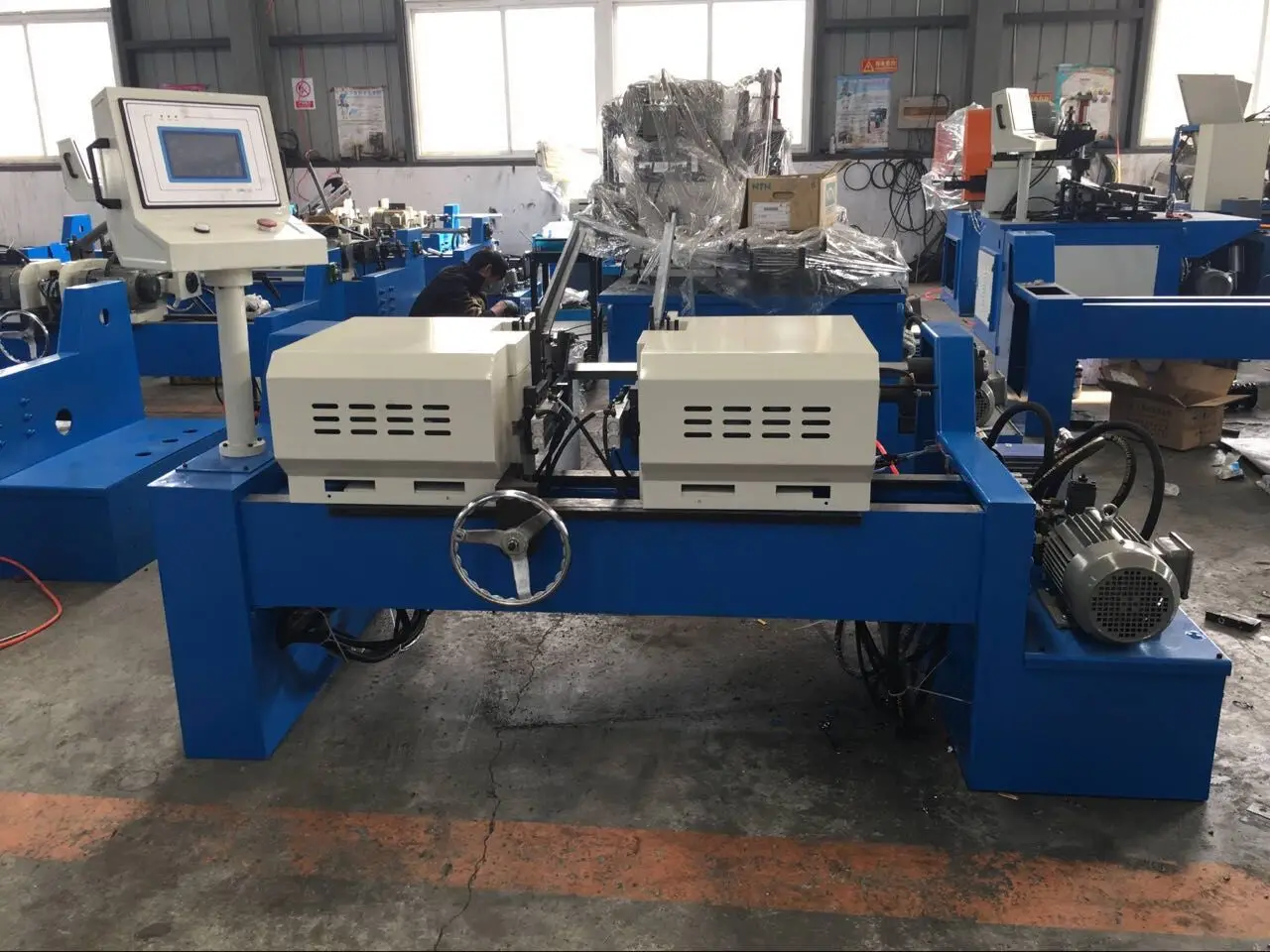

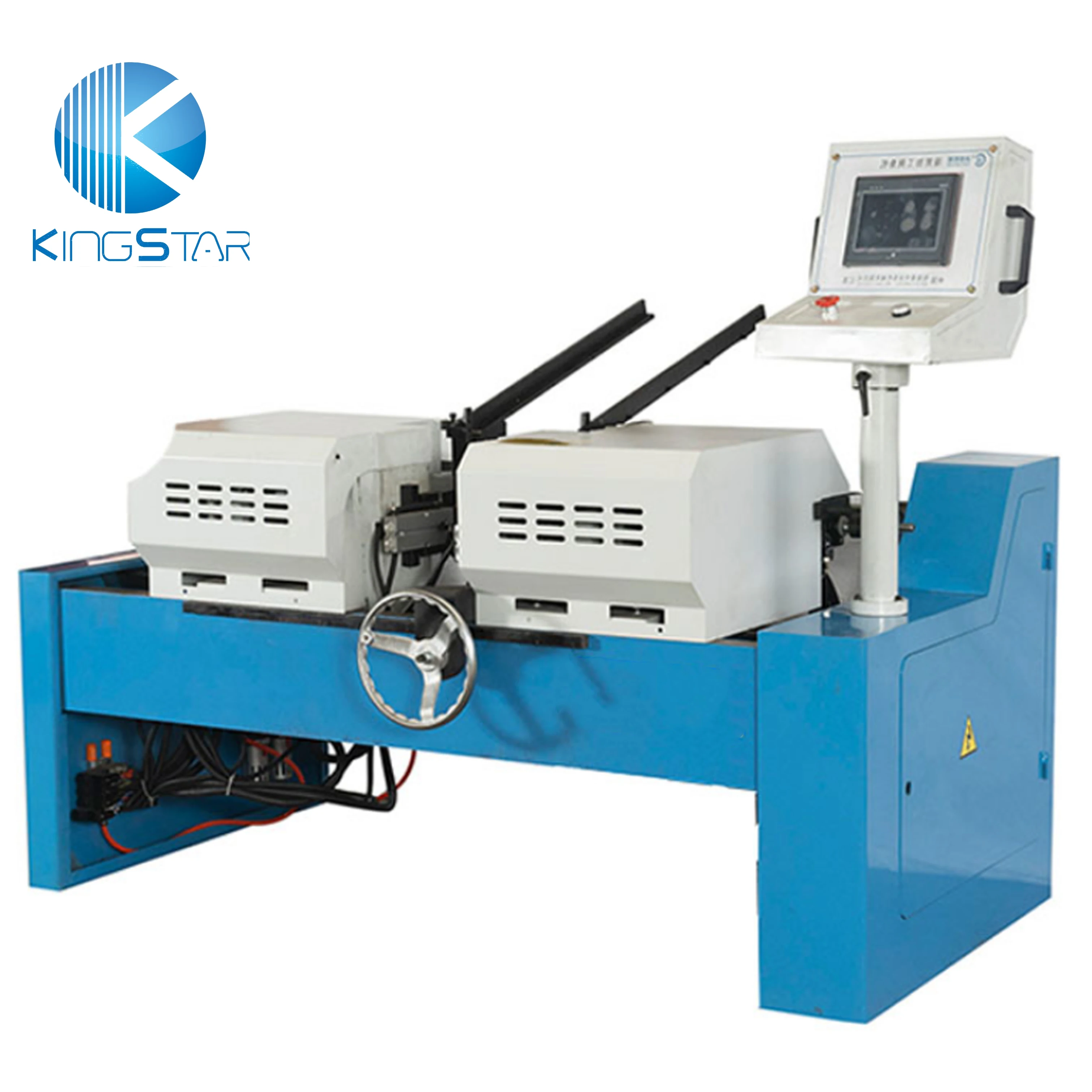

Double head pipe chamfering machine.
1. Easy to adjust the cutting feed speed.
2. The mold holder and cutter head are specially designed to complete the inner angle, outer angle and flat angle at the same time.
3. The rotation speed can be adjusted according to the change of the pulley, which is suitable for pipelines of various metal materials.
2. The mold holder and cutter head are specially designed to complete the inner angle, outer angle and flat angle at the same time.
3. The rotation speed can be adjusted according to the change of the pulley, which is suitable for pipelines of various metal materials.
Product Details

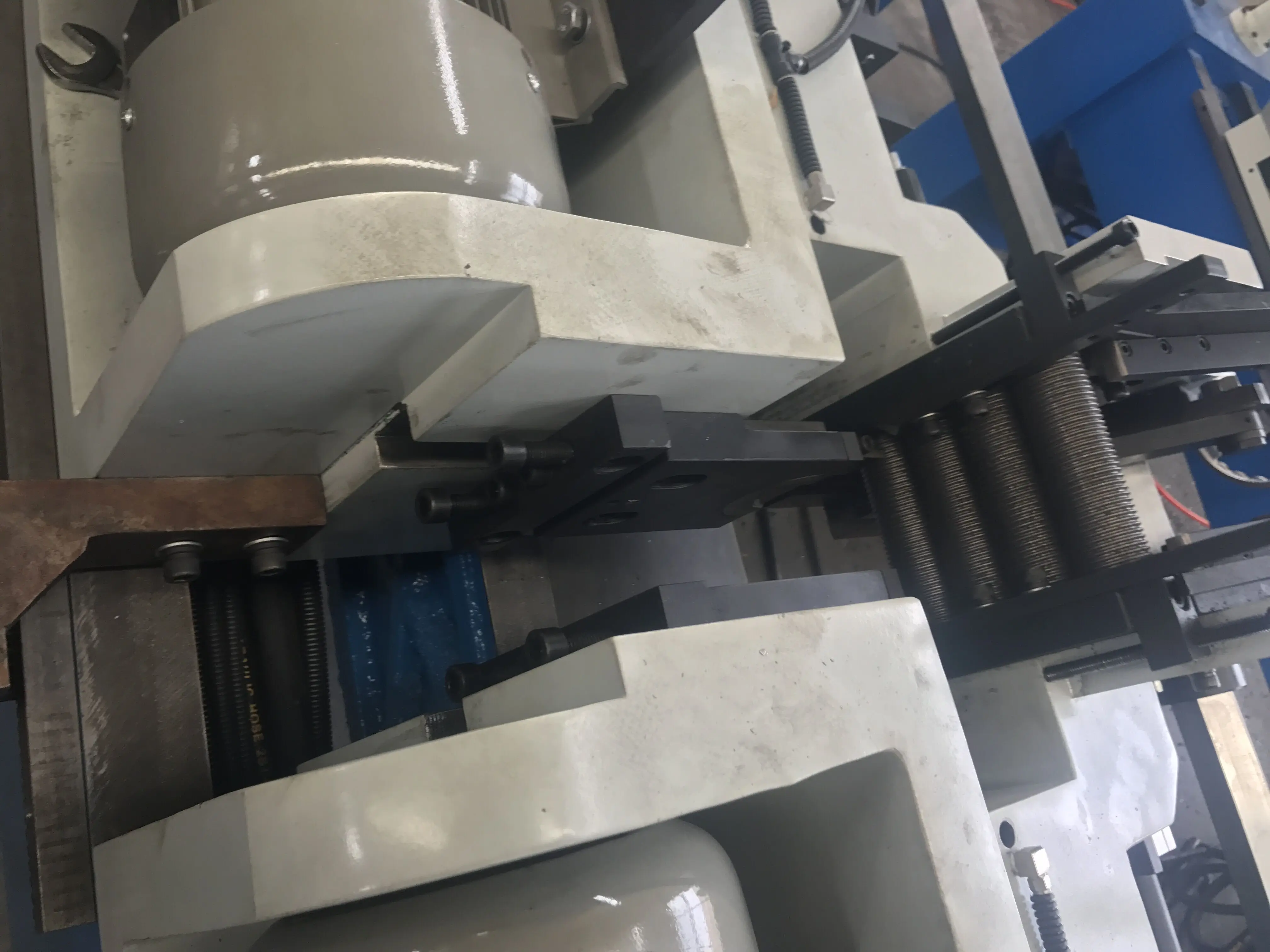

Fixture.
Clamping can be made according to different pipe fittings, and the chamfering and shaving work can be done at one time in the
inner corner,the outer corner and the plane inner corner.
inner corner,the outer corner and the plane inner corner.
Feed cylinder.
Install the limit nut to adjust the feed depth; the shut-off valve to adjust the feed speed; the buffer can adjust the slow feed to effectively protect the blade from damage.
Motor.
The three-phase asynchronous motor rotates, and after beingdecelerated by the reducer, the cutter head is rotated.
Product Paramenters
Single head pipe chamfering machine
Model | EF-PV/52 | EF-AC/80 | |
Main motor power | 0.75kw | 2.2kw | |
Main shaft speed | According to different mateial to choose rotating speed by changing leather belt | ||
Processing diameter | 9-52(mm) | 30-82(mm) | |
Prooessing extemal angle | 9-52(mm) | 20-50(mm) | |
Compressed air | 6-8KGS/cm2 60ml/min | 6-8KGS/cm2 120ml/min | |
Standard attachment | 1.Mainframe 2.one tongs 3.one standard tool bit 4.one group blade | ||
Special attachment | 1.Different size tongs 2.special tool apron and blade 3.special tool bit | ||
Double head pipe chamfering machine
Model | DEF-FA/52 |
Mainframe motor | process common steel pipe：2kw×1.5P |
process aluminum or bronze pipe：2×1.5/1.0kw,2/4P | |
process sainless steel pipe：2x 1/0.75kw,4/8P | |
Tool bit | standard tool bit, suitable pipe diameter3/8-2O.D |
Working length | a. Standard type : 150mm-1000mm |
b. Standard type : 150mm-1500mm | |
c. Standard type : 150mm-2000mm | |
Middle carrier（BTM） | #1)Φ12-Φ26mm |
#2)Φ18-Φ32mm | |
#3)Φ22-Φ46mm | |
#4)Φ40-Φ57mm | |
Compressed air | 0.6-0.8Mpa,120ml/min |
Machine size | DEF-FA/52 Rack type : 225 x 120 x 160 |
DEF-FA/52 +BTM : 225 x 220 x 160 | |
Machine weight | DEF-FA/52 Rack type : 1250 kg |
DEF-FA/52 +BTM : 1400kg |
Recommend Products
CNC pipe bending machine
NC pipe bending machine
Double head pipe bending machine
Pipe cutting machine
Thread rolling machine
Pipe chamfering machine
Saw blade sharpening machine
End forming machine
Rolling machine
Why Choose Us
Zhangjiagang Kingstar Machinery CO.,Ltd.
Kingstar Machinery has been engaged in the production of pipe processing machinery for more than ten years, with strong technical force and strong development force. It has the annual production capacity of more than 1,000 machine tools such as pipe benders. The products have been exported to Europe, America, Middle East, Southeast Asia and other countries and regions for their performance, exquisite quality and perfect service, and are well received by customers.

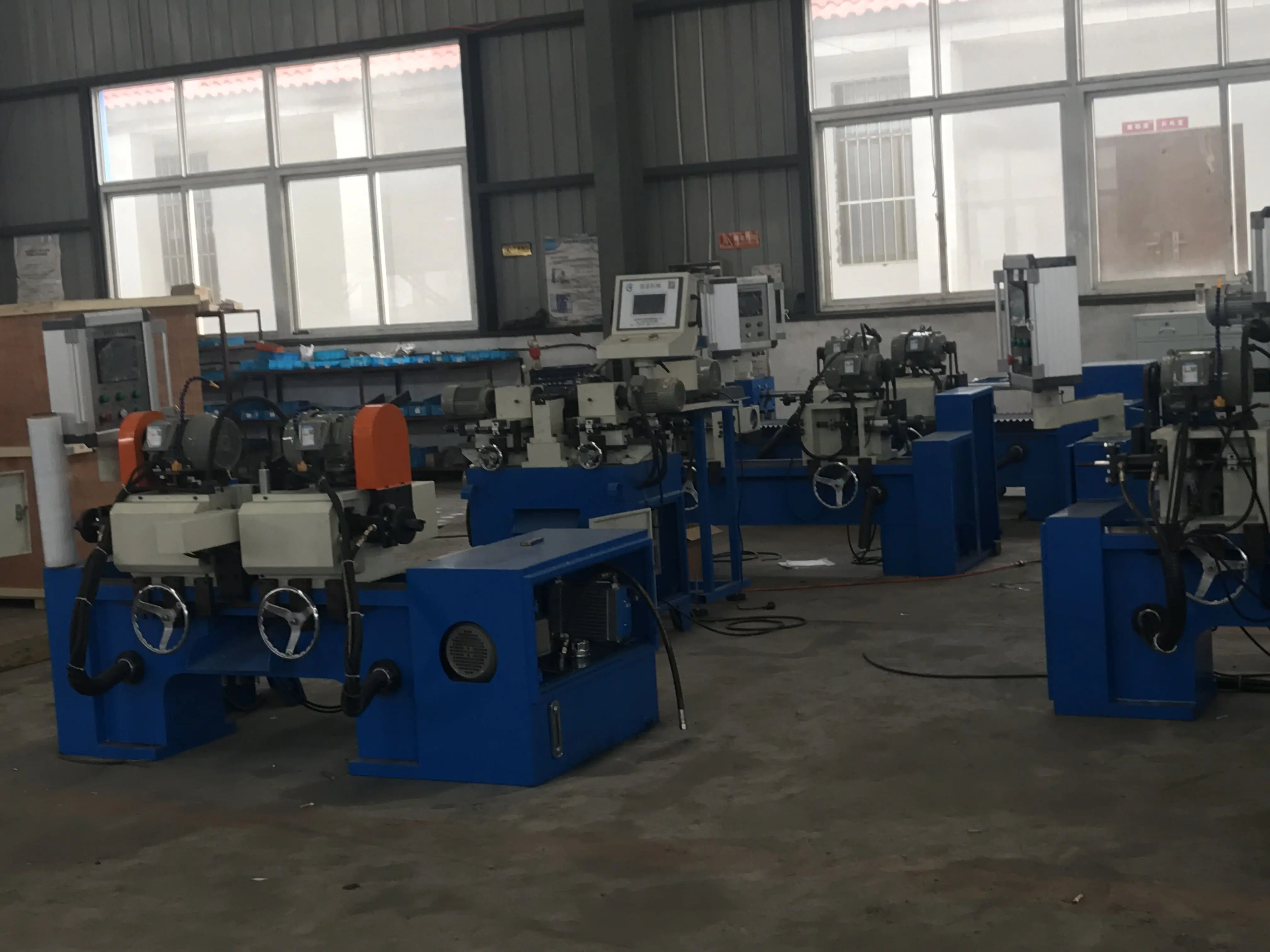

Factory.
It is located in Suzhou Zhangjiagang City, along the Economic circle of Yangtse River Delta,enjoying the highly developed economic expansion and convenient transportation access.
Our team.
Our team is combined with R&D, manufacture, sales, service, and is committed to providing customers with one-stop service. The company attaches great importance to product quality and technical content. Since the establishment of the company, our R&D team has successively developed more than 60 new products and has a number of patented technologies. The company has passed ISO9001: 2000 quality system certification, CE certification and other certifications. In order to improve customer satisfaction, we also set a professional after-sales team.
Certificates.
FAQ
1. Are you a manufacturer or a trading company?
We are a manufacturer with more than ten years of experience.
2. Do you provide any training to ensure that our users can operate the machine well?
We will provide detailed video and instructions for the machine;
3. How long can you provide the warranty?
Our machine has a one-year warranty, and we use all stable components with a long service life.
4. Where is your factory? How do i get there?
Our factory is located in Zhangjiagang City, Suzhou (next to Shanghai). You can fly directly to Shanghai Hongqiao or Pudong Airport.
5. Do you guarantee the safe and reliable delivery of the product?
Yes, we always use high-quality standard export packaging.
6. How about the shipping cost?
The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
We are a manufacturer with more than ten years of experience.
2. Do you provide any training to ensure that our users can operate the machine well?
We will provide detailed video and instructions for the machine;
3. How long can you provide the warranty?
Our machine has a one-year warranty, and we use all stable components with a long service life.
4. Where is your factory? How do i get there?
Our factory is located in Zhangjiagang City, Suzhou (next to Shanghai). You can fly directly to Shanghai Hongqiao or Pudong Airport.
5. Do you guarantee the safe and reliable delivery of the product?
Yes, we always use high-quality standard export packaging.
6. How about the shipping cost?
The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method. Please contact us for more information.
