Product Description

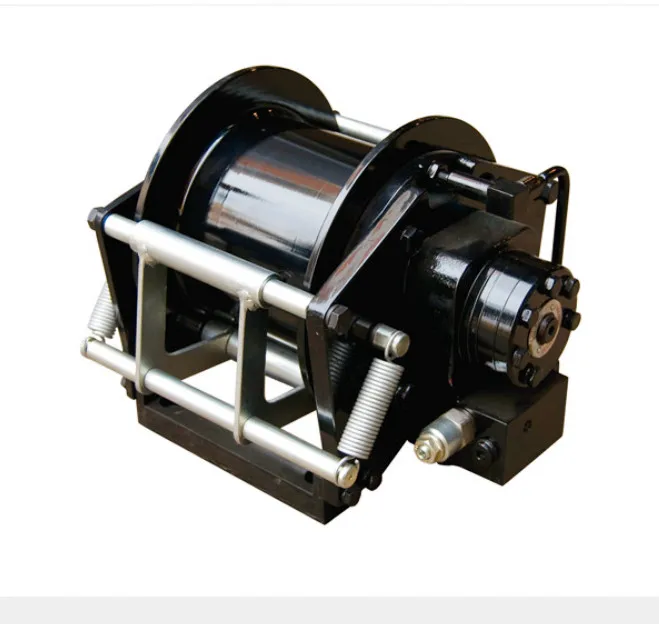

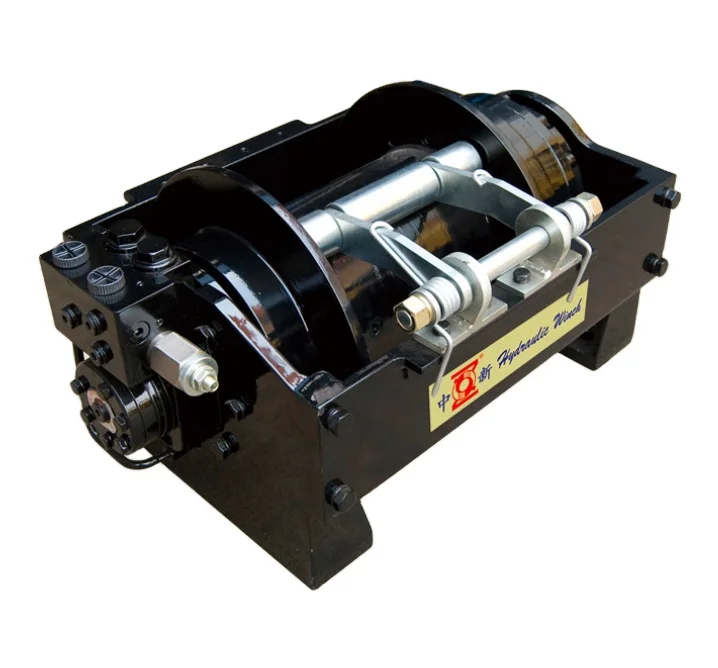

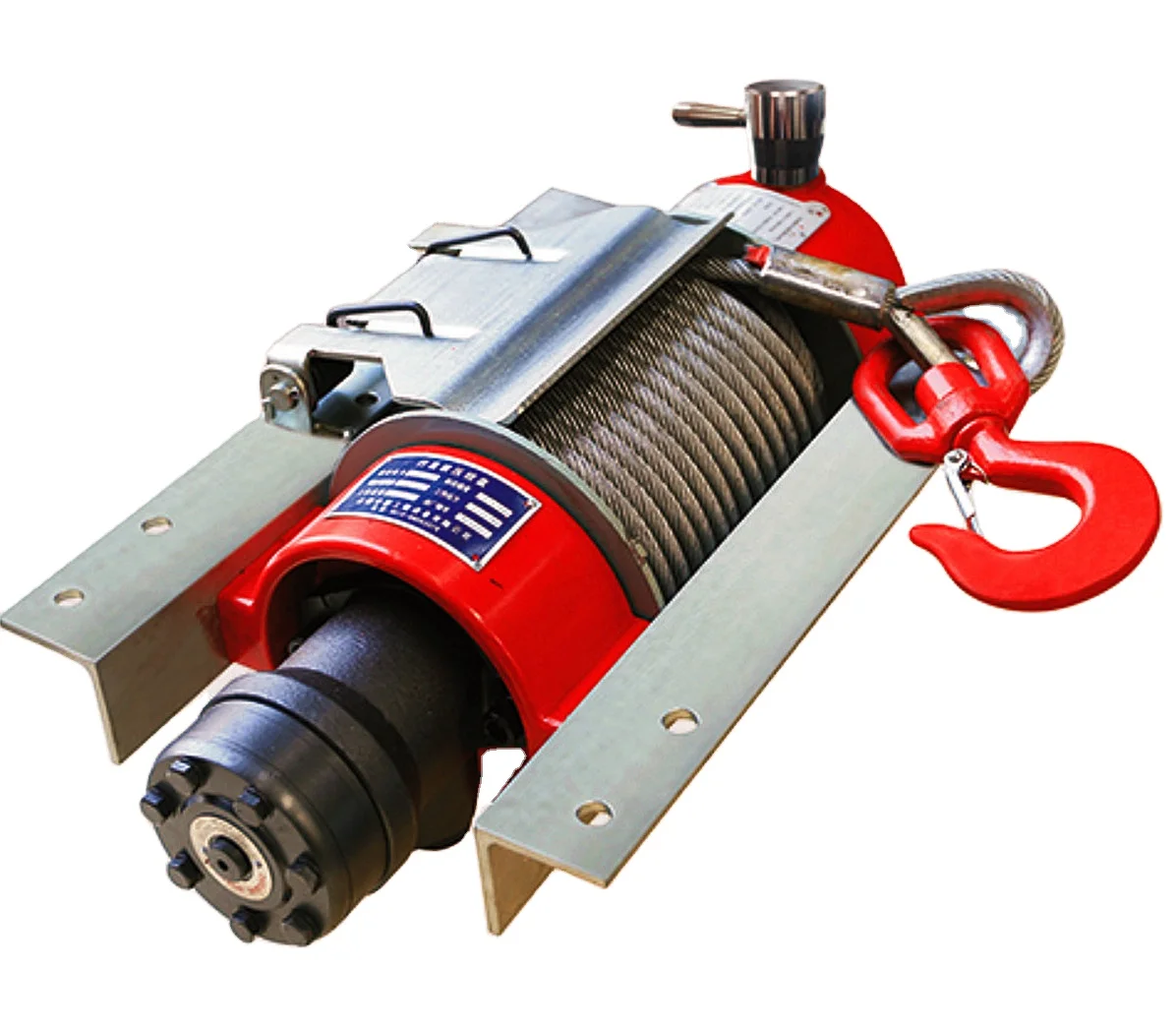

Hydraulic winch crane For car towing hydraulic winches manufacturers
Hydraulic winch crane For car towing hydraulic winches manufacturers is especially designed for heavy-duty lifting, pulling and towing operations. It is a good choice when an electric winch machine cannot match your operating and performance conditions. Powered by a hydraulic system, this type of winch has more strength than the electric power winch, thus it is ideal for the most demanding tasks in construction, mining and marine. Our winches can be designed and built into any size and form to meet your application demands.
2. PWA040 hydraulic winch consists of hydraulic motor, 2-stage planetary gear reducer, arrester, drum, etc.
a. Heavy duty high torque hydraulic motor.
2. PWA040 hydraulic winch consists of hydraulic motor, 2-stage planetary gear reducer, arrester, drum, etc.
a. Heavy duty high torque hydraulic motor.
b.Good watertight
c.Free spooling clutch-Rotation
c.Free spooling clutch-Rotation
d.Small size.
e. Fast line speed
f. With cable tensioner & Integrated mechanical brake.
f. With cable tensioner & Integrated mechanical brake.
g.Mounted on wrecker,recovery truck, or other vehicles
Specification
Performance | ||||
Rated line pull (1st layer) | KN / kgs / lbs | 39/ 4000 / 9000 | ||
Motor displacement | ml/rev | 80 | ||
Oil flow | L/min | 15-60 | ||
Oil pressure | MPa | 14 | ||
Gear ratio | 23:1 | |||
Wire rope (diameter x length) | Φ11mm x 25metre | |||
Drum dimensions (diameter x length) | mm | Φ88 xΦ192 x 200 | ||

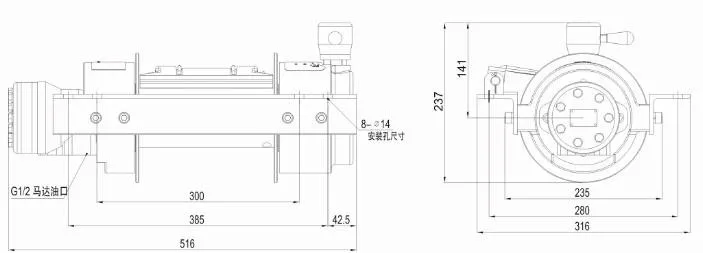

Mounting dimension and bolts | 300mm x 280mm 8—M12 | |||
Overall dimension | mm | 516(524) x 316(376) x 237 | ||
Net weight (with wire rope and hook) | kg | 48 | ||
Line pull, oil pressure and oil flow, line speed | |||||||
Line pull (KN) | Oil pressure (Mpa) | Oil flow (L/min) | Speed (m/min) | ||||
0 | 3.5 | 15 | 2.5 | ||||
27 | 8.5 | 25 | 4.0 | ||||
36 | 11.0 | 40 | 6.5 | ||||
39 | 14.0 | 50 | 8.0 | ||||
49 | 15.0 | 60 | 9.5 | ||||
Layer of calbe, line pull per layer, speed and wire rope capacity | |||||||
Layer of cable | Line pull (KN) | Speed (m/min) | Wire rope capacity | ||||
1 | 39 | 9.5 | 5 | ||||
2 | 34 | 11.8 | 12 | ||||
3 | 28 | 13.9 | 19 | ||||
4 | 25 | 16.0 | 25 | ||||
Packing & Delivery
Wooden box
Company Profile
Jiangyin Zhongxin Engineering Equipment Co., Ltd. is a specialized manufacturer which integrates the research, development, production, marketing and service of hydraulic winches and hydraulic lifting mechanisms. Our products can be widely applied to engineering equipment and shipboard equipment. We strictly implement ISO9001 requirements and the regulations of the Lloyd Classification Society.
