INTRODUCTION

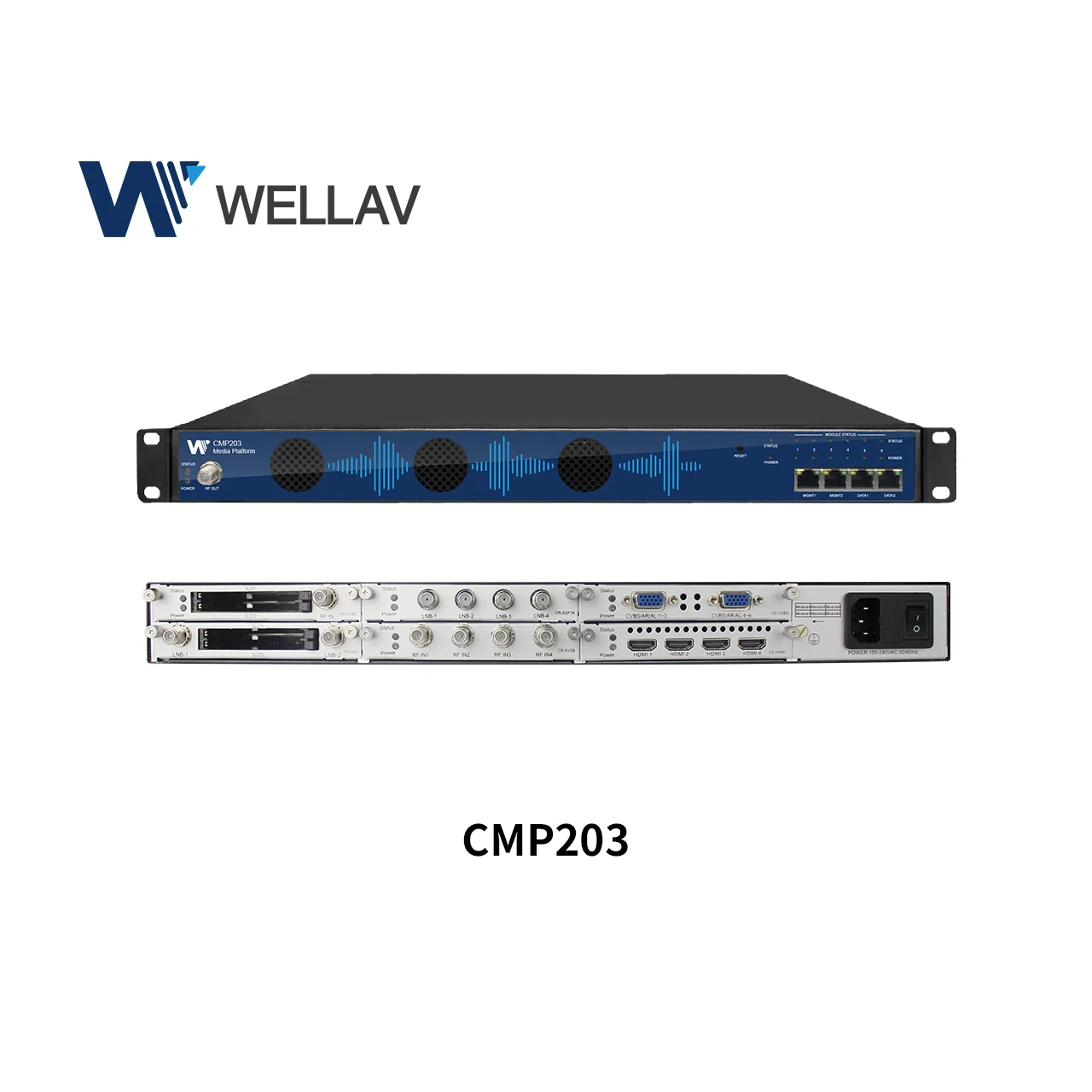

CMP201/203 is the next generation of modular video processing by Wellav.The chassis comes with a singleor dual power supply option and accommodates up to six modules. Using a built-in lP switch and diverserange of hot-swappable input/output options, CMP201/203 is a highly flexible solution perfect for a varietyof applications including Hospitality,Education, Government, MDU, and more. Offering an excellent balance of performance VS value , the CMP201/203 is ideal for dense multi-channel encoding, signal reception , digitalturn around, and simultaneous IPTV + QAM distribution without an excessive price tag. Backed by a worldwide based support team and a intuitive Web-Interface, the CMP201/203 is easy for any organization to deploy and operate.





FEATURES

• 19”1RU standard rack unit


• Optional dual power supplies (CMP201D)


• Optional 8-CH adjacent OAM/OFDM/ 8VSB/ISDB-Tmodulation module on front panel (CMP203)


• 4 GbE Ethernet ports on front panel (2 for management, 2 for lP stream in/out)


• Supports 120 IP inputs and 120 IP outputs, SPTS/MPTS


• 6 slots for hot-swappable functional modules on rear panel


• Supports up to 24 HDMI HD encoding


• Supports up to 48 CVBS SD encoding


• Supports reception of up to 24 coax channel frequencies(DVBC, DVB-T/T2,DVB-S/S2/S2x,ISDB-T, 8VSB)


• User-friendly web-interface setup and module upgrades


• Simple installation and easy configuration

APPLICATION







Chassis

6 slots for hot-swappable modules

Dual redundant power supplies

Service level multiplexing

4x Gigabit RJ45 (embedded): MPEG TS over UDP/RTP multicast/unicast SPTS/MPTS Max.120 inputs and 120 outputs



Physical & Environment
Input Voltage	100~240 VAC/50-60Hz
Power	120W
Chassis Dimension (W x Hx D)	120mm x 177mm x 345mm (Wx Hx D),1 RU
Operating Temperature	o°℃~50°℃ (32°F ~122°F)
Storage Temperature	-10°C~70°C (14°F ~174.2°F)
perating Humidity	<95%
MTBF	≥100,000 hours



Modules
Receiver
CR2-8VSB-00	4 CH, 8VSB receiving module, 4 input connector with 4 tuners.
CR2-DVBC-00	4 CH, DVB-C Annex A/C/DTMB receiving module, 1 RF input connector with 4 tuners, with 2 CI slots
CR2-DVBC-01	4 CH, DVB-C Annex B/ISDB-T receiving module, 1 RF input connector with 4 tuners, with 2 CI slots
CR2-DVBT2CI-00	4 CH, DVB-T/T2 receiving module, 1 input connector with 4 tuners, with 2 CI slots
CR2-DVBS2CI-00	4 CH, DVB-S2 receiving module, 2 input connectors (LNB1&LNB2) each with 2 transponders receiving, w/ 2 CI slots, Independent power supplies for each LNB.
CR2-DVBS2FTA-00	4 CH, DVB-S2 receiving module, 4 input connectors (LNB1/2/3/4). Independent power supplies for LNB-1 & LNB-3 only.
CR2-DVBS2FTA-00A	8 CH DVB-S2 receiving module, another interface card added on CR-DVBS2FTA-00, each module occupies 2 slots
CR2-DVBS2FTA-01	4 CH, DVB-S2/S2X receiving module (QPSK, 8PSK, 16APSK, 32APSK, 64APSK), 4 input connectors (LNB1/2/3/4). Independent power supplies for each LNB.
Encoder
CE2-CVBS-00	6 CH, CVBS encoding module, supports H.264/MPEG-2 SD, MPEG1L2
CE2-CVBS-R01	8 CH, CVBS encoding module, supports H.264, MPEG1L2
CE2-CVBS-R01A	16 CH, CVBS encoding module, supports H.264, MPEG1L2
CE2-CVBS-03	2 CH, CVBS encoding module, supports H.264/MPEG-2 SD, CC, MPEG1L2 (support), AC3 (support), AAC (support)
CE2-HDMI-00	4 CH, HDMI encoding module, supports H.264 HD/SD, MPEG-2 SD, MPEG1L2 (support), AAC (optional), AC3 (optional)
CE2-HDMI-02	2 CH, HDMI encoding module , supports H.264/MPEG-2 HD/SD, MPEG1L2 (support), AAC (support), AC3 (support), supports CC input
CE2-HDMI-02C	2 CH, HDMI/Component encoding module , supports H.264/MPEG-2 HD/SD, MPEG1L2 (support), AAC (support), AC3 (support), supports CC and analog audio input
CE2-SDI-01	2 CH, SDI encoding module , supports H.264/MPEG-2 HD/SD, MPEG1L2 (support), AAC (support), AC3 (support), supports CC, NO analog audio input
CE2-HDMI-S04	4 CH, HDMI encoding module , supports H.264 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional),support OSD subtitle, logo picture and QR Code overlay
CE2-HDMI-S05	4 CH, HDMI encoding module , supports H.264/H.265 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional), support OSD subtitle, logo picture and QR Code overlay
CE2-HDMI-05A	8 CH, HDMI encoding module , supports H.264/H.265 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional) support OSD subtitle* (see note on the right), logo picture and QR Code overlay
CE2-HDMI-06	4 CH, HDMI encoding module , supports H.264/H.265 HD/SD, MPEG1L2 (support), AAC (optional), AC3 (optional) support OSD subtitle, logo picture and QR Code overlay, de-interlacing
Modulator
CM2-QAMA-R00	16 CH, QAM modulator module, Annex A/C, non-adjacent output
CM2-QAMB-R00	16 CH, QAM modulator module, Annex B, non-adjacent output
CM2-QAMA-R01	4 CH, QAM A/C modulator module
CM2-QAMB-R01	4 CH, QAM B modulator module
CM2-OFDM-R01	4 CH, ODFM modulator module
CM2-QAMA-R01A	8 CH, QAM A/C modulator module
CM2-QAMB-R01A	8 CH, QAM B modulator module
CM2-OFDM-R01A	8 CH, ODFM modulator module
CM2-ISDBT-R01	4 CH, ISDBT modulator module
CM2-ISDBT-R01A	8 CH, ISDBT modulator module
CM2-8VSB-R01	4 CH, 8VSB(ATSC) modulator module
CM2-8VSB-R01A	8 CH, 8VSB(ATSC) modulator module
CM2-MOD-02	32 CH QAM-A non-adjacent modulator, 2 x 1000M RJ45 (256 in), 1 x RJ45 for CAS scrambling, 1 x RF out, supports independent QAM constellation
Others
CP2-EAS-00	EAS processing module, supports EAS triggerring by analogue EAS input and digital EAS input, MPEG1L2 (support), AAC (support), AC3 (support)
CP2-CAM-00	Descrambling module, 2 x CI slots, supports all mainstream CAM cards and CAS descrambling
CP2-EIT-00	EIT multiplexing module, 32 x TS inputs and 16 x TS outputs



*All the modules are not listed here due to page limitation, please find us if you can't find or need more details.
