Смарт-плата SC20 плата Andriod MSM8909 устройство IOT смарт-устройство quectel оборудование для распознавания
- Категория: IoT Solutions & Products >>>
- Поставщик: Suzhou,Story,Network,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 56542.57 $* | 57673.8 $* |
| Jul-19-2025 | 45857.64 $* | 46774.71 $* |
| Jun-19-2025 | 55651.63 $* | 56764.22 $* |
| May-19-2025 | 55206.37 $* | 56310.71 $* |
| Apr-19-2025 | 44076.27 $* | 44958.15 $* |
| Mar-19-2025 | 54316.48 $* | 55402.9 $* |
| Feb-19-2025 | 53870.44 $* | 54947.79 $* |
| Jan-19-2025 | 53425.87 $* | 54494.60 $* |
Характеристики

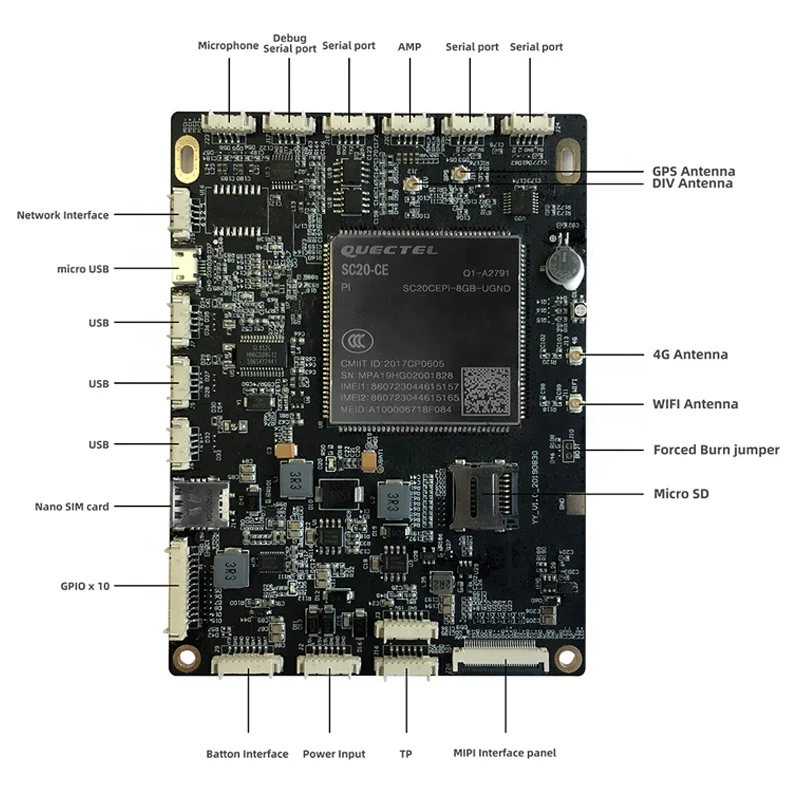

SC20-ASY mainly supports below hardware interfaces
√ Main Board Size:118.5mmx87.1mm
√ 1 MIPI screen interface,1 lane CLK,4 lane data
√ Supports RTC battery function
√ Supports 1 SIM card holder, using nano card
√ Two microphone input interfaces with built-in offset
√ Two speaker output interfaces,SPKL/SPKR,support up to 4Ω 3W
√ 4 TTL serial ports (with 5V power supply)
√ 3 USB 2.0 ports
√ Spi extended interface
√ I2c touch interface
√ 1 way 100M nework cable interface
√ SD card socket
√ USIM deck
√ 15V power supply input interface
√ 15V output interface
√ 3 cell battery interface
√ LCD backlight interface
√ RF antenna interface, including main antenna, diversity receiving antenna, WIFI/BT antenna & GPS antenna
√ 10 GPIO interfaces
√ 1 MIPI screen interface,1 lane CLK,4 lane data
√ Supports RTC battery function
√ Supports 1 SIM card holder, using nano card
√ Two microphone input interfaces with built-in offset
√ Two speaker output interfaces,SPKL/SPKR,support up to 4Ω 3W
√ 4 TTL serial ports (with 5V power supply)
√ 3 USB 2.0 ports
√ Spi extended interface
√ I2c touch interface
√ 1 way 100M nework cable interface
√ SD card socket
√ USIM deck
√ 15V power supply input interface
√ 15V output interface
√ 3 cell battery interface
√ LCD backlight interface
√ RF antenna interface, including main antenna, diversity receiving antenna, WIFI/BT antenna & GPS antenna
√ 10 GPIO interfaces
Model and Frequency Band
China
SC20-CE:
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
TD-SCDMA: B34/B39
EVDO/CDMA: BC0
WCDMA: B1/B8
GSM: 900/1800MHz
EMEA/Korea/Thailand/India
SC20-CE:
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
TD-SCDMA: B34/B39
EVDO/CDMA: BC0
WCDMA: B1/B8
GSM: 900/1800MHz
EMEA/Korea/Thailand/India
SC20-EU:
LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B41
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
Australia/Taiwan/Brazil
SC20-AU:
LTE FDD: B1/B3/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
North America
SC20-A:
LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26
WCDMA: B1/B2/B4/B5/B8
GSM: 850/1900MHz
Japan
SC20-J:
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
EMEA/Korea/Thailand/India
SC20-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900MHz
Global
SC20-W:
supports Wi-Fi & BT only
LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B41
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
Australia/Taiwan/Brazil
SC20-AU:
LTE FDD: B1/B3/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
North America
SC20-A:
LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26
WCDMA: B1/B2/B4/B5/B8
GSM: 850/1900MHz
Japan
SC20-J:
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
EMEA/Korea/Thailand/India
SC20-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 850/900/1800/1900MHz
Global
SC20-W:
supports Wi-Fi & BT only
Specification
item | value |
Model Number | SC20 |
Type | Smart board |
Place of Origin | China |
Brand Name | Getcomai |
Application | Smart board |
