WIFI плата Wifi телефон приложение пульт дистанционного управления для раздвижных качелей и гаражных ворот
- Категория: Gate Operators >>>
- Поставщик: Chisung,Intelligence,Technology,(Shenzhen),Co.,LimitedChisung,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2994.69 $* | 3144.21 $* |
| Aug-18-2025 | 2969.29 $* | 3117.6 $* |
| Jul-18-2025 | 2491.62 $* | 2616.11 $* |
| Jun-18-2025 | 2919.96 $* | 3065.57 $* |
| May-18-2025 | 2541.77 $* | 2668.35 $* |
| Apr-18-2025 | 2868.74 $* | 3011.49 $* |
| Mar-18-2025 | 2843.36 $* | 2985.8 $* |
| Feb-18-2025 | 2818.67 $* | 2959.98 $* |
| Jan-18-2025 | 2793.44 $* | 2933.85 $* |
Характеристики
Specification
Brand Name | chsiung |
Model Number | WP101 |
Type | WIFI module |
Motor voltage | DC12V/24V |
Control method | wifi 4-channel mobile phone APP remote control |
Terminal platform | Android/IOS |
Maximum output control current | 10A |
Product name | WIFI board for Sliding Swing and Garage gate opener |
WIFI Detail ,it could use for Swing gate opener and Sliding gate opener
Product features: 1-----Inching/self-locking/interlocking customers can switch at will. After the mode setting is completed, even
if the module is powered off and restarted, the set mode will not change Jog: Press the long button to release the button, the
relay is turned on, and it will automatically turn off after about 1 second Self-locking: Press the long button to release the
button, the relay is turned on, press again, the relay is turned off Interlock: When any one works, the other three will be closed
2-----WIFI mobile phone APP remote intelligent control, after the mobile phone is paired with the module, it can realize infinite
distance control (must ensure that the module is connected to WIFI); at the same time, it has the function of manual key switch
3-----7-24V wide voltage power supply to meet the needs of most customers.
Product description:
Control method: wifi 4-channel mobile phone APP remote control + button manual control Transmission mode:
WIFI communication (when the control module is connected to wifi, it can support mobile phone 2G, 3G, 4G network signal control);
Controllable circuit: 7-24V power supply 4 passive output control, the output is used as a mechanical switch Control
distance:infinite
Working voltage: DC 7-24V power supply VCC connected to the positive pole GND connected to the negative pole (the back of the
board is marked) (CK COM CB) Control output interface, when doing mechanical switches, CB is usually not used, CK and COM form a
switch Maximum
output control current: 10A Terminal platform: Android/IOS
Working temperature: 0-60 degrees
Product features: 1-----Inching/self-locking/interlocking customers can switch at will. After the mode setting is completed, even
if the module is powered off and restarted, the set mode will not change Jog: Press the long button to release the button, the
relay is turned on, and it will automatically turn off after about 1 second Self-locking: Press the long button to release the
button, the relay is turned on, press again, the relay is turned off Interlock: When any one works, the other three will be closed
2-----WIFI mobile phone APP remote intelligent control, after the mobile phone is paired with the module, it can realize infinite
distance control (must ensure that the module is connected to WIFI); at the same time, it has the function of manual key switch
3-----7-24V wide voltage power supply to meet the needs of most customers.
Product description:
Control method: wifi 4-channel mobile phone APP remote control + button manual control Transmission mode:
WIFI communication (when the control module is connected to wifi, it can support mobile phone 2G, 3G, 4G network signal control);
Controllable circuit: 7-24V power supply 4 passive output control, the output is used as a mechanical switch Control
distance:infinite
Working voltage: DC 7-24V power supply VCC connected to the positive pole GND connected to the negative pole (the back of the
board is marked) (CK COM CB) Control output interface, when doing mechanical switches, CB is usually not used, CK and COM form a
switch Maximum
output control current: 10A Terminal platform: Android/IOS
Working temperature: 0-60 degrees

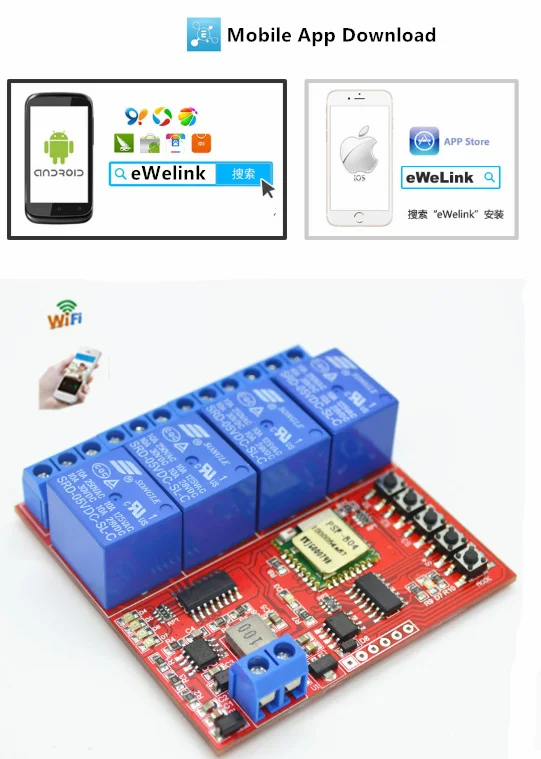

Product Display
Function&Features
Product matching
process: 1. Download the APP software from the mobile phone "eWelink"
2. Install APP software
3. Register APP software account
with mobile phone number
4. After registering OK, log in to the software
5. Press and hold any button on the controller for 5seconds, the indicator light changes from slow flashing to uniform flashing;
then release the button, at this time, select "+" in the login software to add a device; keep clicking next until pairing Success
.
6. After the automatic addition is complete, name the device by yourself and click Finish; OYE! ! It can be controlled! !
process: 1. Download the APP software from the mobile phone "eWelink"
2. Install APP software
3. Register APP software account
with mobile phone number
4. After registering OK, log in to the software
5. Press and hold any button on the controller for 5seconds, the indicator light changes from slow flashing to uniform flashing;
then release the button, at this time, select "+" in the login software to add a device; keep clicking next until pairing Success
.
6. After the automatic addition is complete, name the device by yourself and click Finish; OYE! ! It can be controlled! !
Packing & Delivery
1 pc wifi board
1 carton box
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Domestic Market(30.00%),South America(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tripod Turnstile,Speed Glass Gate,Barrier Gate,Swing Gate Opener,Sliding Gate Opener
4. why should you buy from us not from other suppliers?
Chisung Technology is integrating intelligent machinery and electronic technology, and all the hardware and software technology is designed by ourselves and advanced in the markets; ODM/OEM to meet to the different clients in China and overseas markets
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
We are based in Guangdong, China, start from 2014,sell to Domestic Market(30.00%),South America(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tripod Turnstile,Speed Glass Gate,Barrier Gate,Swing Gate Opener,Sliding Gate Opener
4. why should you buy from us not from other suppliers?
Chisung Technology is integrating intelligent machinery and electronic technology, and all the hardware and software technology is designed by ourselves and advanced in the markets; ODM/OEM to meet to the different clients in China and overseas markets
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
