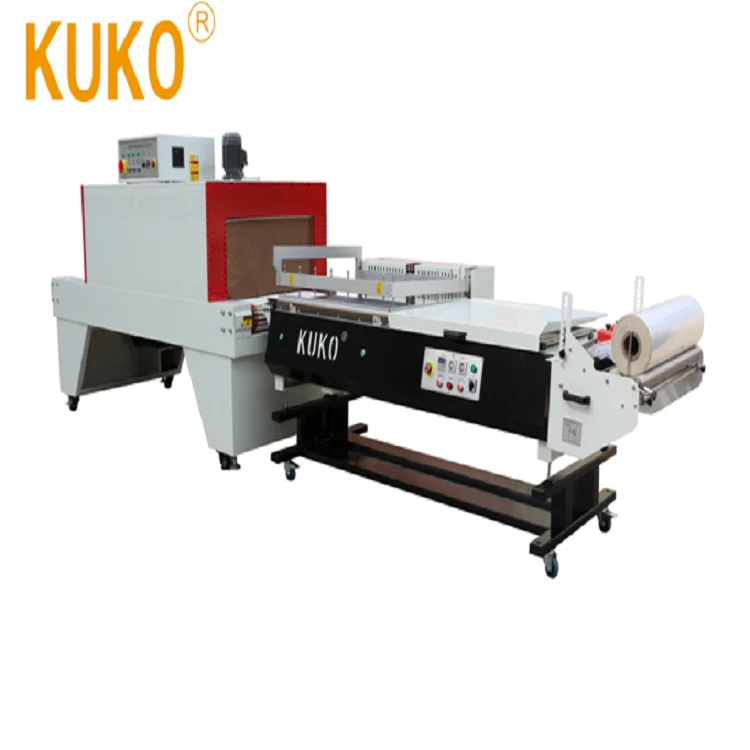

Полуавтоматическая термоусадочная упаковочная машина для яиц
- Категория: Sealing Machines >>>
- Поставщик: Shanghai,Kuko,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 9520.27 $* | 9996.73 $* |
| Aug-20-2025 | 9440.30 $* | 9912.68 $* |
| Jul-20-2025 | 7920.62 $* | 8316.83 $* |
| Jun-20-2025 | 9280.68 $* | 9744.88 $* |
| May-20-2025 | 8080.77 $* | 8484.94 $* |
| Apr-20-2025 | 9120.24 $* | 9576.80 $* |
| Mar-20-2025 | 9040.39 $* | 9492.56 $* |
| Feb-20-2025 | 8960.70 $* | 9408.78 $* |
| Jan-20-2025 | 8880.62 $* | 9324.3 $* |
Характеристики
Model | SF-50LG | SF-5030 |
Power | 3.8kw | 12kw |
Power Supply | AC220V 1/3PH 50/60Hz | AC220V/380 3PH 50/60Hz |
Max. Packing Size L×W×H | L+H≤950mm W+H≤750mm H≤300mm | L1000×W400×H200mm |
Tunnel Size L×W×H | / | 1300×500×300mm |
Table Height | 800±50mm | 850±50mm |
Packing Speed | 0-15m/min. | 0-15m/min |
Max. Loading Weight | 30kgs | |
Shrink Film | POF | POF |
Machine Size L×W×H | 1600×800×1570mm | |
Package Size L×W×H | 3000×1400×1280mm | 1650×850×1720mm |
G./N. Weight | 790/760kgs | 345/315kgs |
l Anti-stick high-temperature alloys L type sealing bar which can seal neatly, without cracking, coking and smoking; The sealing bar adopts imported nickel-chromium alloy material heating wire. It is easy to adjust the conveyor height by the hand wheel;
l Sealing time is controlled by time relay;
l Sliding bracket can be placed all kinds of shrink film, while the punching device is smooth;
l The sealing bar will only work if the operator press the Two-hand sealing control device. Automatic anti –cut and anti-overheat protection device effectively protect the operator away from accidental cutting;
The whole sealing function of SF-50LG is automatically completed by cylinder which decreases labor intensity and increases working efficiency;
l With emergency stop device in case of emergency situations can immediately stop the machine running;
l Imported electrical components assure stable performance;
l Imported heat - resistant insulation curtain greatly reduces heat loss;
l Stainless steel heating elements makes warming-up fast. Large power fan motor assures big wind volume and air transported uniform. According to products’ sizes and output, you can adjust conveyor speed and chamber temperature to achieve optimal contraction effect;
l Using solid roller conveyor, external anti-high temperature silicone tube can endure heavier objects and rollers will become deformed;

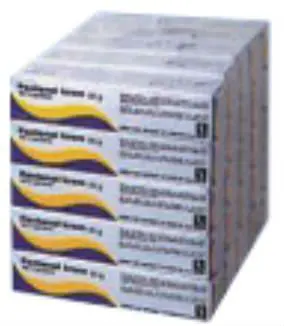

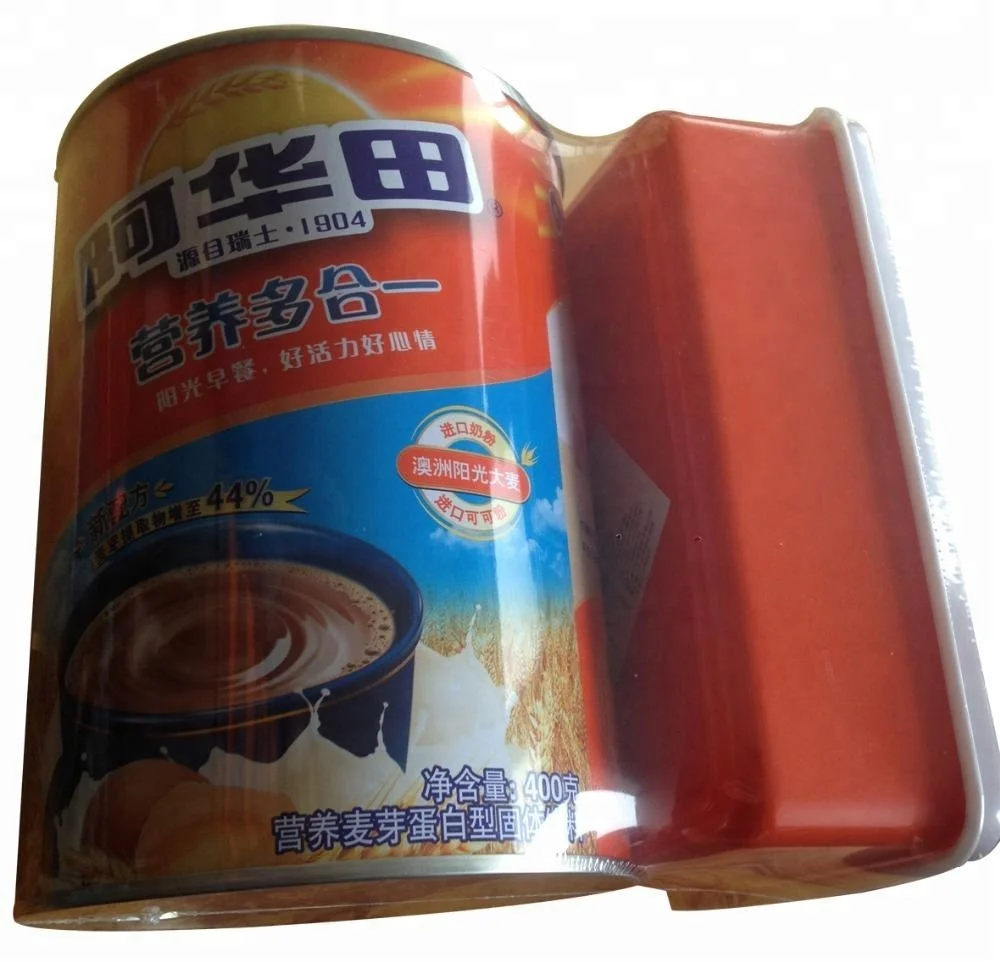

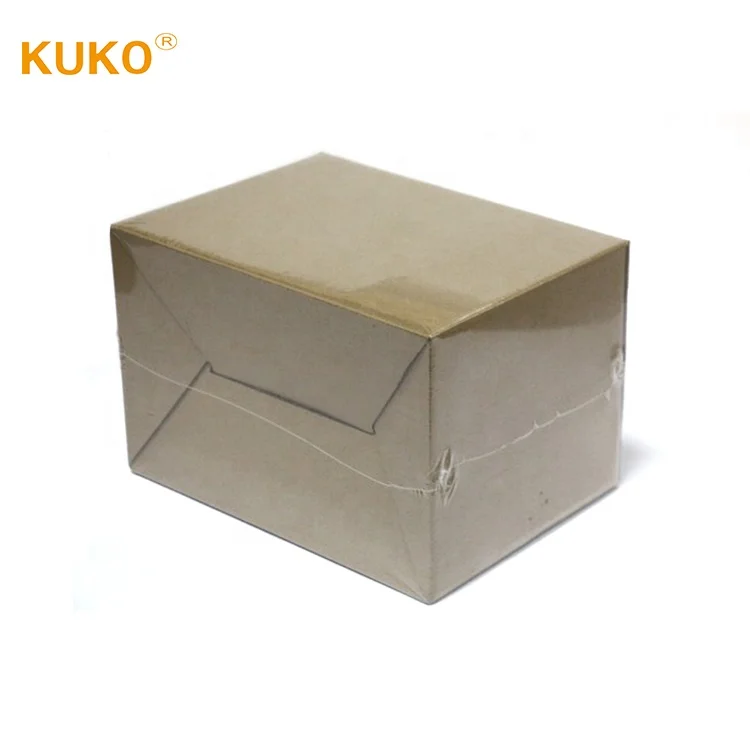

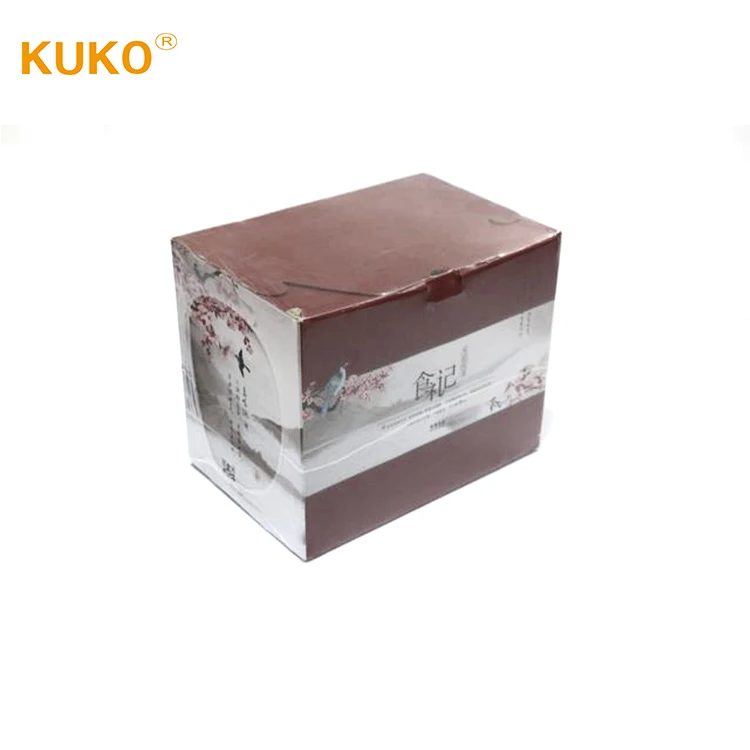

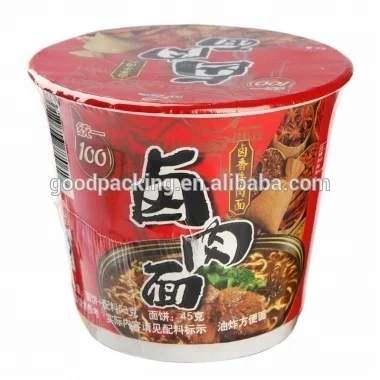

l The machine is widely used in biscuits, printing products, pharmaceuticals, floors, pottery, boxes and other packaging fields which only need one operator and conveniently working.
The packing speed is fast and improves the working efficiency greatly which specially suits for bulk products packing;
l Suitable for PVC, POF, PP, PE, PET film sealing wrapping.
Sealer | Brand | Country |
Gear Motor | GPG | Taiwan |
Intermediate Relay | Siemens | Germany |
Temperature Controller | Autonics | Korea |
Time Relay | Omron | Japan |
Switching Power Supply | Schneider | France |
Overload Relay | Schneider | France |
AC Contactor | Schneider | France |
Air Spring | Takigen | Japan |
Shrink Tunnel | Brand | Country |
Gear Motor | OTG | Shanghai |
Circulation Motor | SURFON | Taiwan |
Intermediate Relay | Siemens | Germany |
Temperature Controller | Autonics | Korea |
Switching Power Supply | Schneider | France |
Overload Relay | Schneider | France |
AC Contractor | Schneider | France |
All Switches | Siemens | Germany |
Video Link | Product |
https://youtu.be/a8myi_Ffc2I | Book |
https://youtu.be/ls_dige0UME | Small boxes |
https://youtu.be/jfYAmAoVINM | Cigarette case and boxes |
https://youtu.be/hmQfYqZa1VI | Laundry liquid |
https://youtu.be/6wqKY4bH0zI | Change the heating elements |
https://youtu.be/0phldgXk9f8 | Operating e video 1 |
https://youtu.be/npKAANhslLs | Operating e video 2 |
https://youtu.be/bUT3Tqr2zFo | Install the film |
https://youtu.be/0phldgXk9f8 | Install the film |
http://youtu.be/PqhPUwEan-E | Dove chocolate with U type conveyor |
https://youtu.be/Wvp_Lmdv-50 | Dove chocolate with U type conveyor and basket |
https://youtu.be/Qt1IRCzb1cc | New York 5x5 Liquid Bottles |
https://youtu.be/8WNjqNnNEic | New York 4x25 Liquid Bottles |
https://youtu.be/HOcRCGp2UVA | New York 5x1 Liquid Bottles |
https://youtu.be/ZwHKgdnftZc | New York 5x1 Glass Bottles |
https://youtu.be/WU5M3V1qhR4 | New York 5x1 plastic bottles |
https://youtu.be/RiOvpK7kFqw | Italy board with bottom |
https://youtu.be/1s_Habh8Pc0 | Italy board with buttom |
https://youtu.be/8CSXIcGcJ4I | Russia board with bottom |
https://youtu.be/cntPET7s4Lc | Russia board with feet |
