Высокоскоростная Автоматическая выдувная формовочная машина для бутылок из ПЭТ 6 ячеек 1 5 л с
- Категория: >>>
- Поставщик: Taizhou,Longer,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.47 $* | 0.14 $* |
| Aug-17-2025 | 0.20 $* | 0.32 $* |
| Jul-17-2025 | 0.45 $* | 0.90 $* |
| Jun-17-2025 | 0.46 $* | 0.59 $* |
| May-17-2025 | 0.92 $* | 0.72 $* |
| Apr-17-2025 | 0.31 $* | 0.93 $* |
| Mar-17-2025 | 0.50 $* | 0.52 $* |
| Feb-17-2025 | 0.68 $* | 0.29 $* |
| Jan-17-2025 | 0.2 $* | 0.6 $* |
Характеристики
Product Description
LGD-6-15,a pioneer in full-automatic linear PET stretch blow moulding machine, especially for big volume bottles, LG adopts special design on the preheating system and servo driving system to enable it a big volume blowing, saving more than 50% power compared with similar machines by others, it is widely used in the package of edible oil, water with the volume 1.5L.
Blowing system: create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
Concentrated heating system: patent light box provides an even temperature, lamp distance 101mm rather than 240mm from others and save power by more than 50%.
Stretching system: use linear sliding track framework instead of liner bearing, which offers an outstanding improvement of stability.
Main transmission system: adopt patent double strand roller chains technology, to assure the demands of stability and high speed.
| ITEM | UNIT | LGD-6-15 |
| Number of cavity | cavity | 6 |
| Theoretical Output | pcs/hr | 7000-7500 |
| Max.container volume | L | 1.5 |
| Max.neck diameter | mm | 45 |
| Max.container diameter | mm | 95 |
| Max.container height | mm | 330 |
| Mould Thickness | mm | 210 |
| Mould Stroke | mm | 130 |
| Streching stroke | mm | 100 |
| Heat Lamp Amount | pcs | 42 |
| Max.heating power | kw | 33.6 |
| Power of Main Blower | kw | 86 |
| Actual power consumption | kw | 40-45kw |
| Working Pressure | Mpa | 0.8 |
| Low pressure consuming | Ltr/min | 1600 |
| Blowing pressure | Mpa | 3.5 |
| Measurement of Main Blower | mm | 5000*2100*2100 |
| Weight of Main Blower | kg | 6600 |

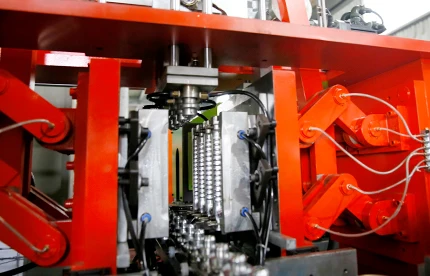

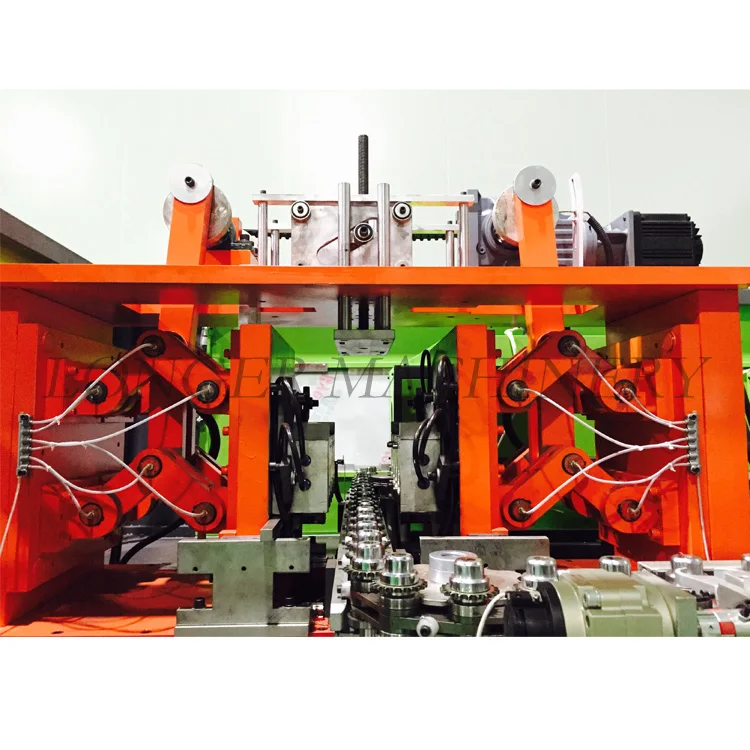

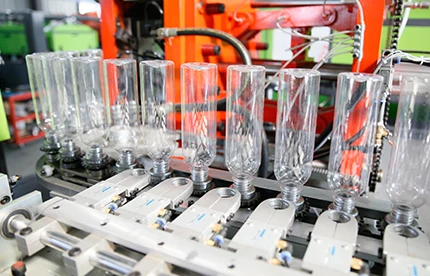

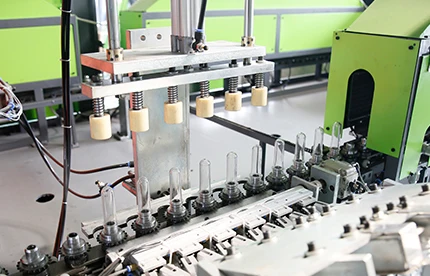

Detailed Images
Related Products
About us
Packaging
FAQ
A:Are you a factory or trading company?
B:We are a factory.
A: Which material can be prodcue in this machine?
B: PET,BOPP.
A:How about quality control in your factory?
B:Quality is first, Customers are friends.
A: Whare is your factory located?
B: Our factory is in Huangyan, Taizhou city,Zhejiang Province, China.
Taizhou LONGER MACHINERY are always paying graet attentions to quality controlling from the beginning to end. Every machine is tested strictly before packing.
Contact us
Mrs.Lucky Sales Manager
Taizhou Huangyan Longer Machinery Mould Co., Ltd.
Tel: +86-576-84266060 Fax:+86-576-84254545
Mobile&Whatsapp: +8613105678088
Wechat:+8613105678088
